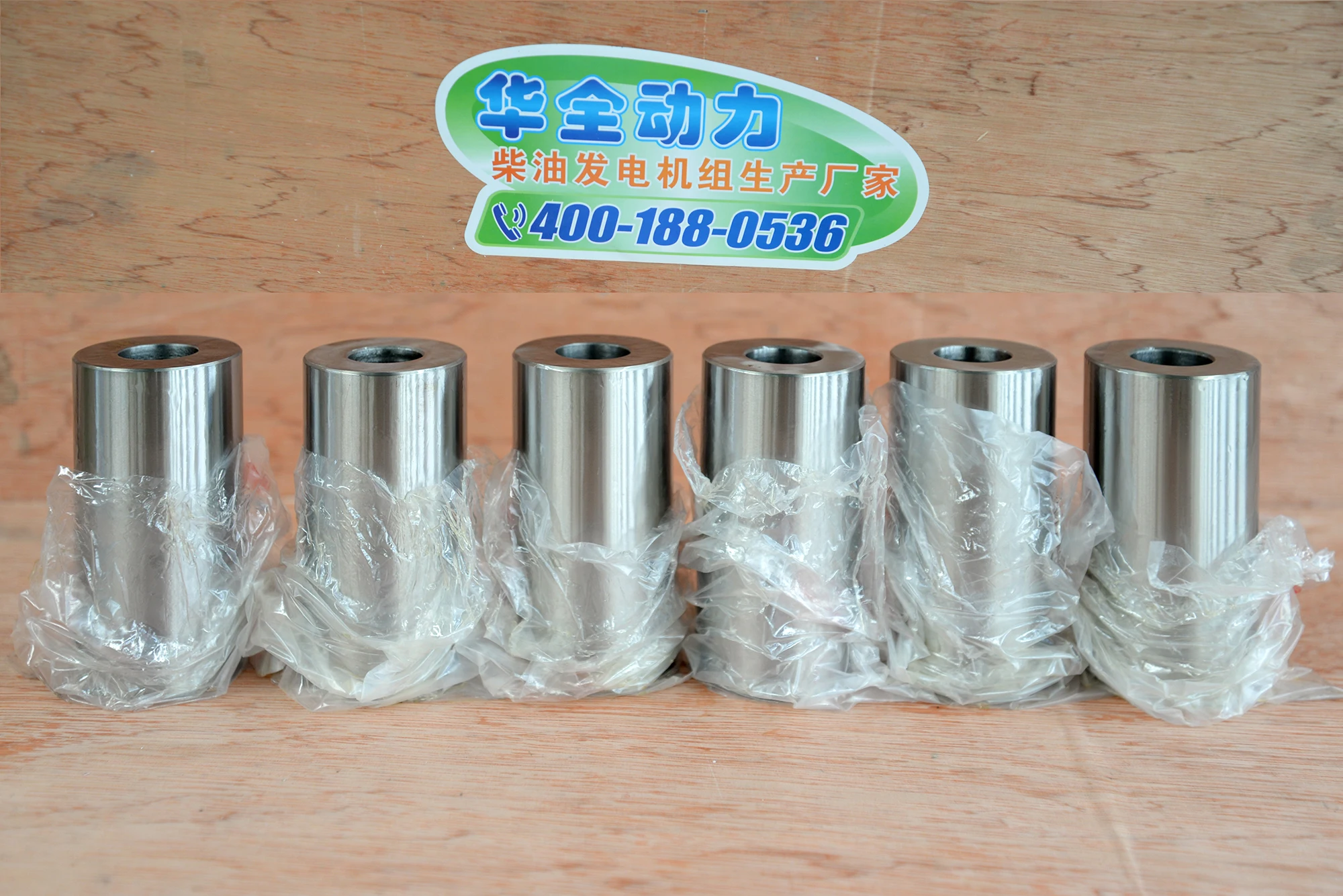

Ricardo six cylinder generator set parts price 6126AZLD piston pin |

Ricardo six cylinder generator set parts price 6126AZLD piston pin |

1、 Huaquan 40kw generator set, four-cylinder combustion, strong power, large oil capacity, to ensure long-term operation of the unit.

2、AC synchronous generator, electronic speed regulation: speed regulation and energy saving, providing a reliable power system for you to seamlessly deploy in the project.

3、The three-phase generator is equipped with a common steel base and vibration-damping rubber pad to reduce friction and extend the service life of the unit.

4、The standard belt-driven cooling fan and fan safety shield provide timely heat dissipation to protect the safe operation of the unit, and at the same time provide certain protection for the operator.

5、The unit has strong adaptability and can be matched with oil, diesel, water jacket, anti-condensation heater, mobile trailer,rainproof shed, etc.

  Genearal

  Unit model:

HQ40GF

  Steady state voltage adjustment rate (%):

≤± 1

  Output power:

40KW

  Voltage fluctuation rate (%):

≤ ± 0.5

  Power factor:

COSΦ = 0.8 (lagging)

  Transient voltage adjustment rate (%):

＋20 ～－15

  Output voltage:

400V / 230V

  Voltage stabilization time (s):

≤1

  Output current:

72A

  Steady state frequency adjustment rate (%):

≤ ± 1

  Rated frequency:

50Hz

  Frequency fluctuation rate (%):

≤ ± 0.5

  Rated speed:

1500rpm

  Transient frequency adjustment rate (%):

+ 10 ~ -7

  Fuel grade:

(standard) 0 # light diesel (normal temperature)

  Frequency stabilization time (S):

≤3

  Dimensions:

1880×750×1200（L×W×H mm）

  Fuel consumption (100% load):

205g/kW·h

  Start mode:

890kg

  Acoustic noise (LP7m):

95dB（A）

  Technical parameters of diesel engine

  Brand/origin：

Yuchai

  Cooling method:

Closed water-cooling

  Model:

YC4D60-D21

  Oil supply method:

direct injection

  Number of cylinders / Dare to mention structure:

4 / L Type

  Speed regulation method:

Mechanical

  Bore stroke:

108×115 mm

  Intake method:

Natural inhalation

  Compression ratio:

17：1

  Overload capacity:

110%

  Weight：

DC 12V Electric start

  Speed:

1500rpm

  Technical parameters of generator

  Brand：

Huaquan Brushless Generator

  Protection level：

IP22

  Model：

HQF-40

  Wiring mode：

Three-phase four-wire, Y-connection

  Rated power:

40kW

  Adjustment method:

AVR (Automatic Voltage Regulator)

  Rated voltage:

400V / 230V

  Output frequency:

50Hz

  Insulation class:

H class

  Output factor:

COSΦ = 0.8 (lag)

  Genset standard features

  Ø Direct injection internal combustion engine(Diesel)；

  Ø AC synchronous generator（Single Bearing）；

  Ø Water Radiator design for 40-45℃ Ambient belt-driven fans and guards；

  Ø Generation output air switch、Standard control panel；

  Ø Steel common base with shock absorber；

  Ø Dry-type air filter fuel filter，oil filter、starting motor、Self-charging alternator；

  Ø starter battery and connecting cables；

  Ø Industrial 9dB muffler and accessories；

  Ø The engine and alternator’s original technical papers,manuals and testing reports ship with GenSet；

  Optional accessories（Extra charged）

  Ø Engine oil、diesel、water jacket、Anti-condensation heater

  Ø Battery floating charger

  Ø Self-protection unit/self-starting control panel

  Ø Tree-remote control panel

  Ø ATS AUTO-loaded transferring screen

  Ø Daily fuel tank、Integral fuel tank

  Ø Waterproof type(Cabinet)

  Ø Mobile trailer(Drip proof)

  Ø Mobile trailer(Silent type)
