Installation range: It can be installed on cars, off-road vehicles, RVs, buses, yachts, boats, etc.

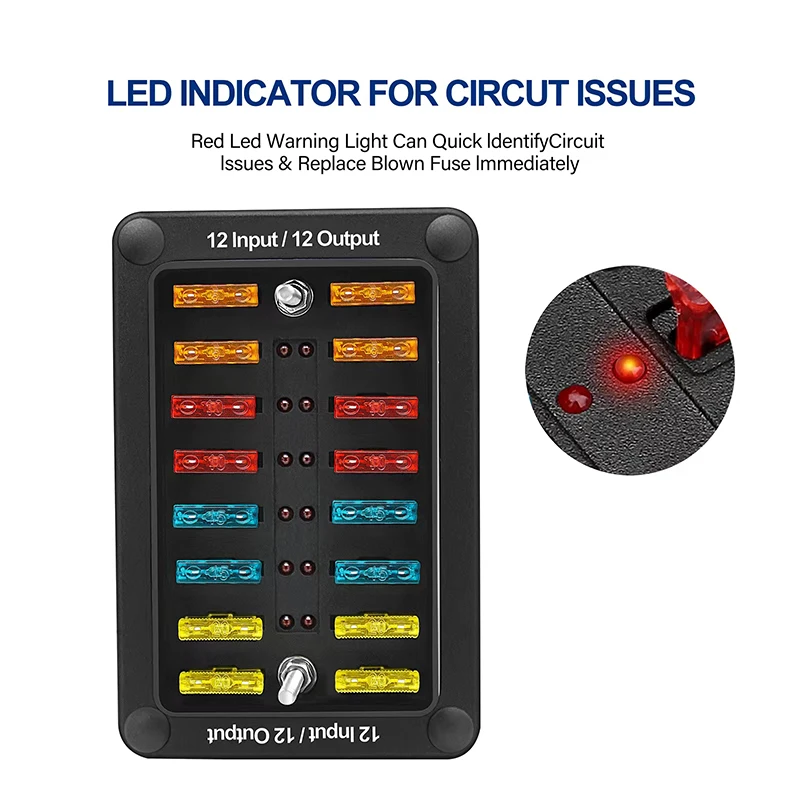

Indicator function: When the red LED light is on, it means that the fuse has been disconnected, and the fuse needs to be replaced in time to continue running.

Scope of use: It can be directly connected to the line of any electrical appliance on the car/ship [such as: dome lights, car headlights, width lights, fog lights, warning lights, car refrigerators, car chargers, car fans, car TVs Wait】

Fuse function: When the circuit fails or is abnormal, the current continues to increase, and the increased current may damage some important components or valuable equipment in the circuit, and may also burn the circuit or even cause a fire. Fuse is used to protect electronic equipment from being damaged by excessive current, and it can also avoid serious damage caused by internal failure of electronic equipment. Therefore, there is a rating on each fuse, and when the current exceeds the rating, the fuse will blow. If the fuse is correctly placed in the circuit, then the fuse will cut off the current when the current abnormally rises to a certain height and temperature, thus protecting the safe operation of the circuit and reducing damage to the equipment.

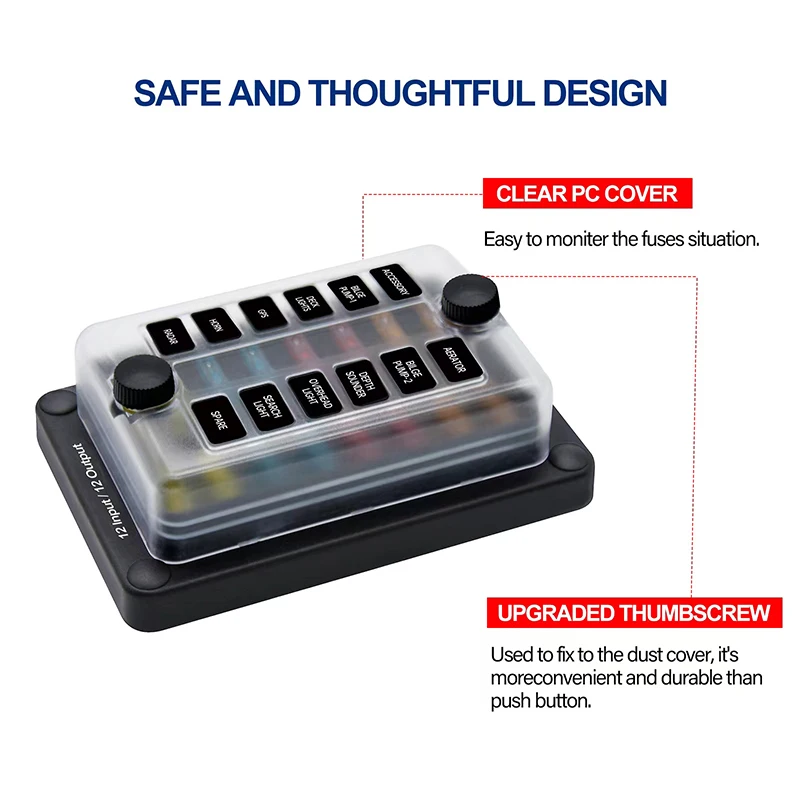

Product advantages:

[1] The product is made of PA66 flame retardant and high and low temperature resistant material, which fully meets [the fuse holder must have good mechanical strength, insulation, heat resistance and flame resistance, and will not break, deform, burn and short circuit, etc.] conditions

[2] All fastening accessories are made of stainless steel, the overall installation of the fuse box is relatively simple, and the fuse box is fixed with self-tapping screws, which is more convenient and safer to install.

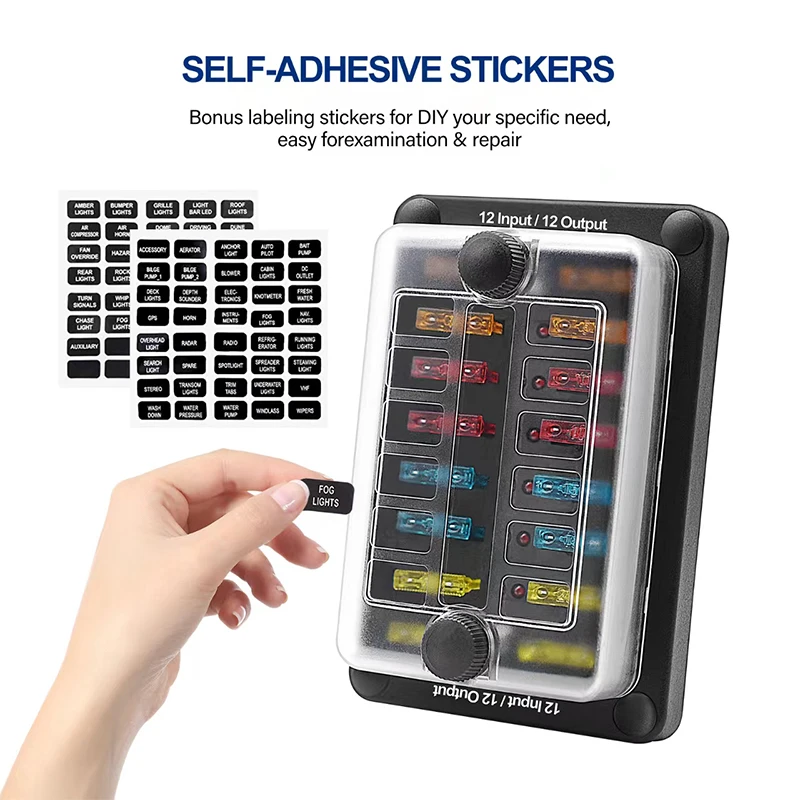

[3] The product has a delivery sticker, which can be pasted on the corresponding electrical appliance according to the name on the sticker, which can better distinguish the electrical appliance corresponding to each line. When the fuse is broken, we can immediately distinguish Find out which electrical appliance has a problem, save time and effort, and be safer

[4] The product is delivered with double fuses. When the current is too large or short-circuited, the fuse will be burned out and can be replaced from the spare fuse immediately, and the fuse has sent multiple amperes. The fuse piece corresponding to the ampere can be selected according to the current electrical appliance.

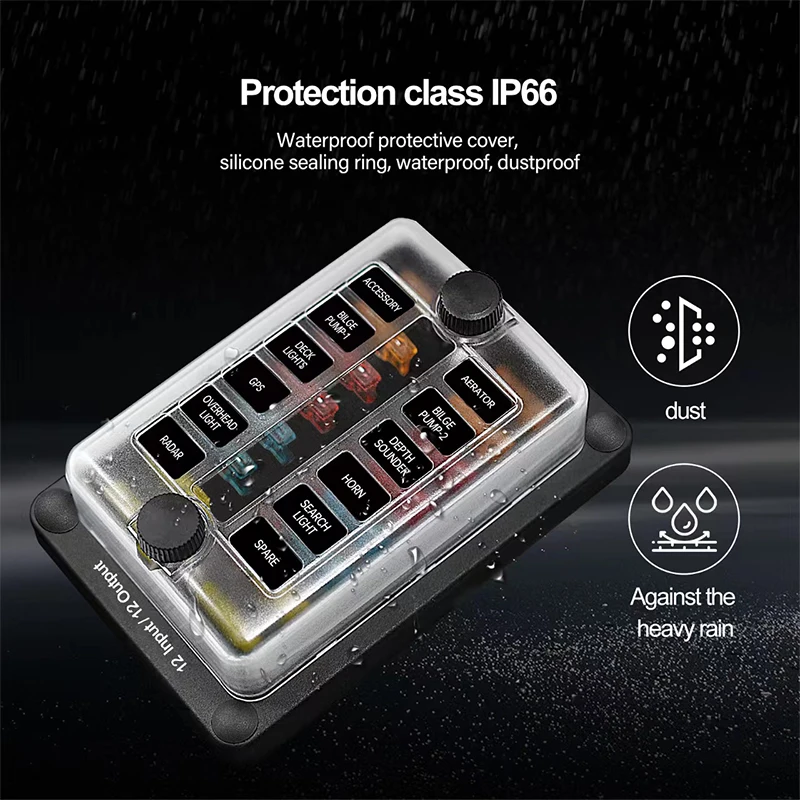

[5] This model is a waterproof fuse box. It is aimed at large-scale wading vehicles such as off-road, RV, and boats. No matter what the quality of the fuse boxes on the market, they are mainly dust-proof and have no waterproof measures. This fuse box can reach the waterproof level IP66 through the front waterproof cover, the shunting waterproof gasket, the whole body sealing ring, and the rear of the punching installation and wiring, which can achieve waterproof protection more effectively.

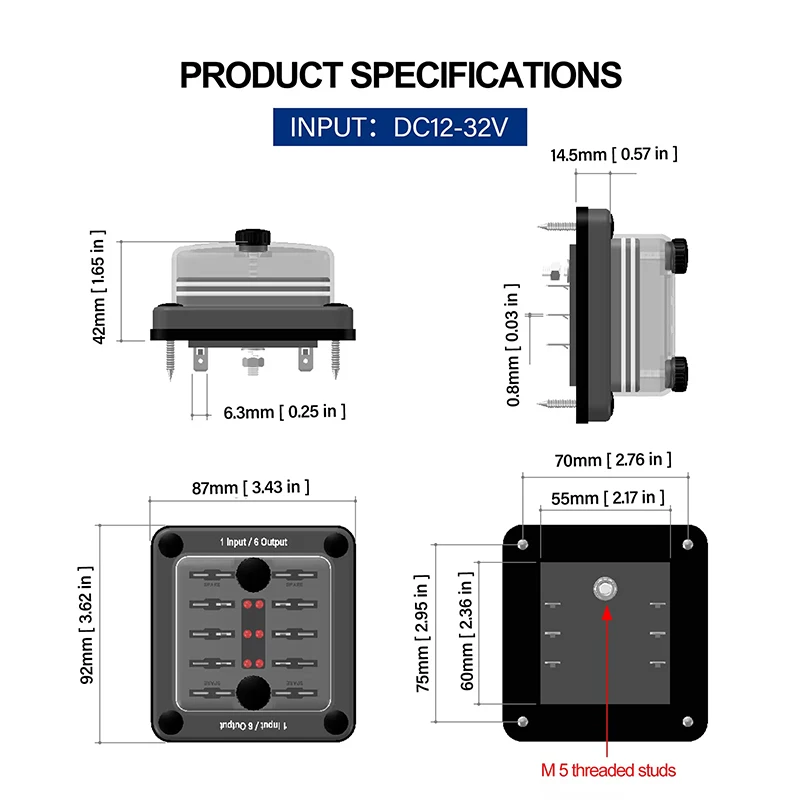

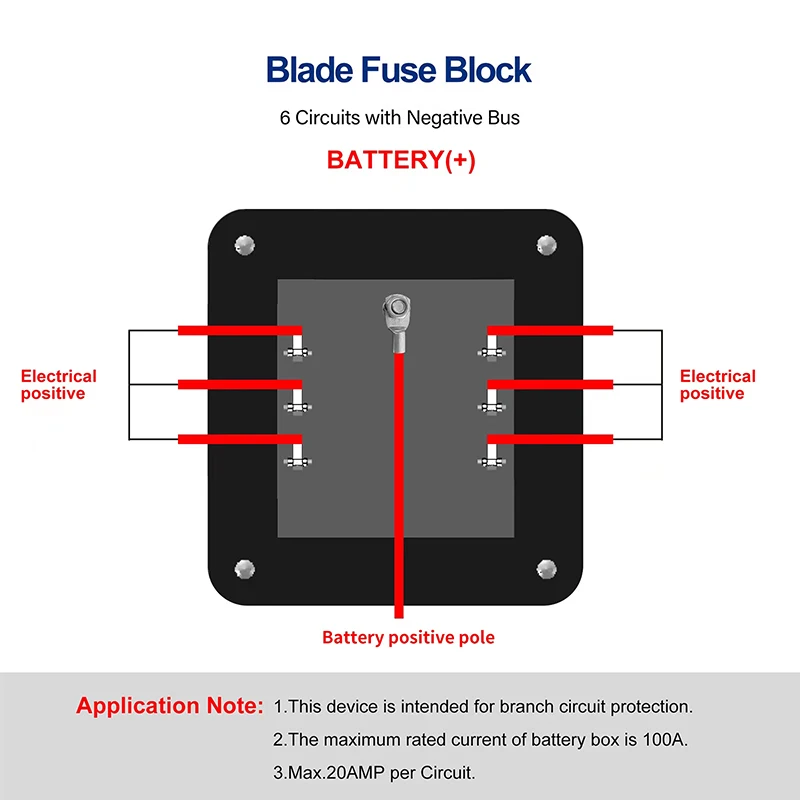

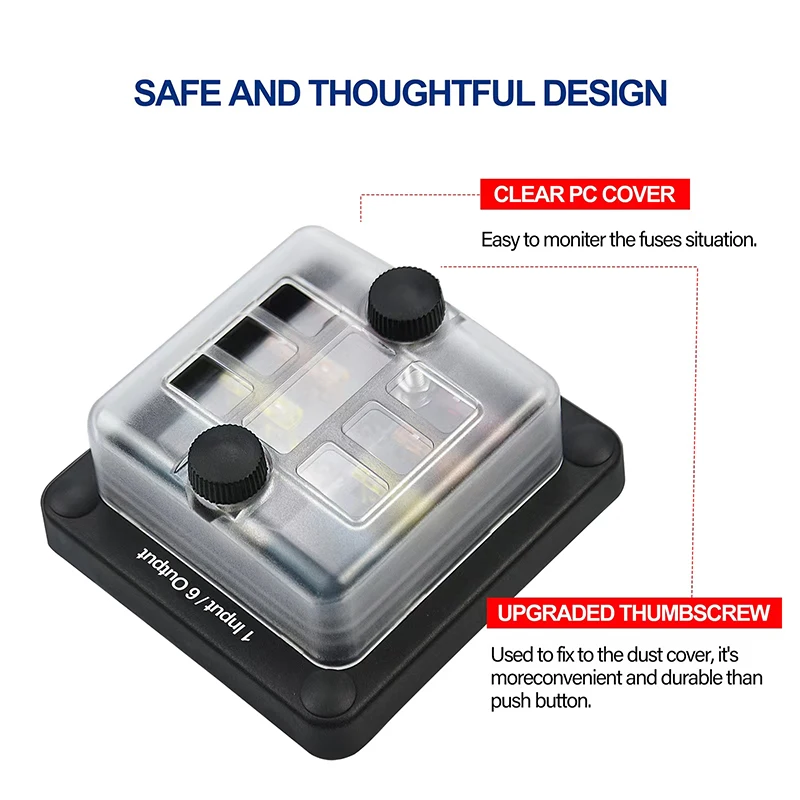

6 Way 1 Input-6 Output

Product net weight: 172g

Product gross weight: 211g

Product size: 8.7x9.2x4.2cm

Input rated voltage: 32V

Input rated current: 100A

Output maximum current: 20A per circuit

Product material: PA66 base, PC dust cover, nickel-plated copper terminals, stainless steel screws, butadiene rubber waterproof gasket, PP×70 sticker, silicone seal

Main wire terminal: M5 threaded stud (100A 32V DC max)

Main wire conductor: #4-6AWG

Single Wire Terminal: Copper/Nickel Plated 1/4" (6.3mm) (20A 32V DC max)

Single wire conductor: #12-16AWG

Hole size: 5.5*6cm

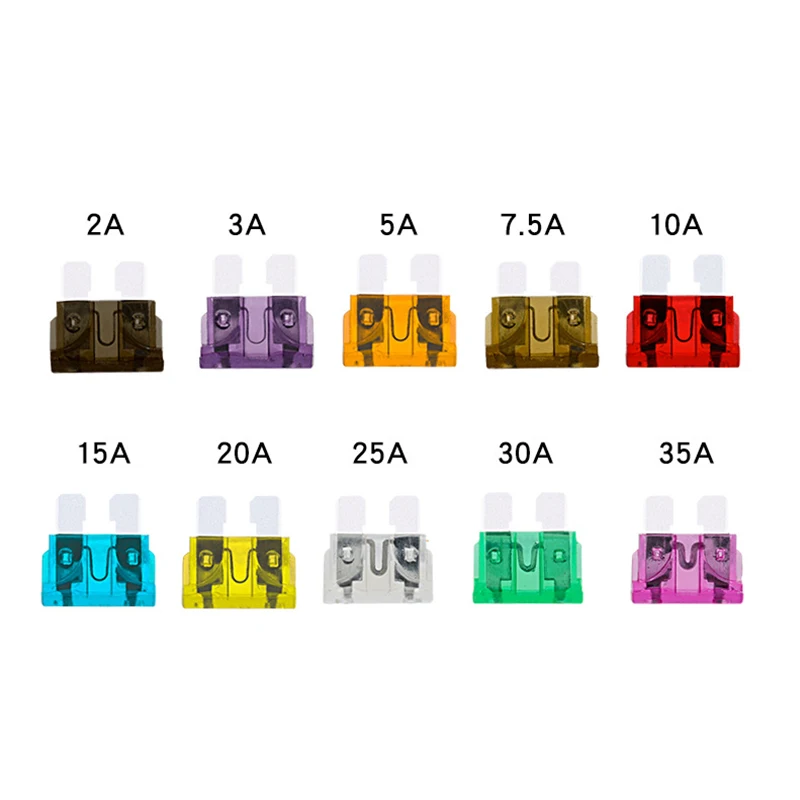

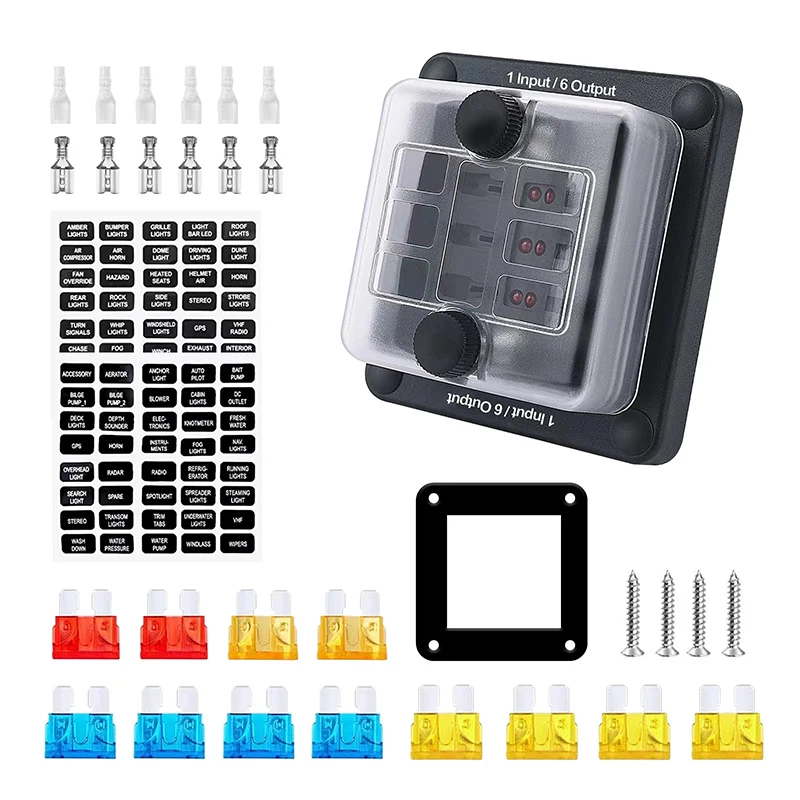

Product accessories: Sticker X2; Self-tapping screw X4; Shunding waterproof gasket x4; 20A safety piece X4; 15A safety piece X4; 10A safety piece X2; 5A safety piece X2; Accepts ATO or ATC fuses from 1A to 20A

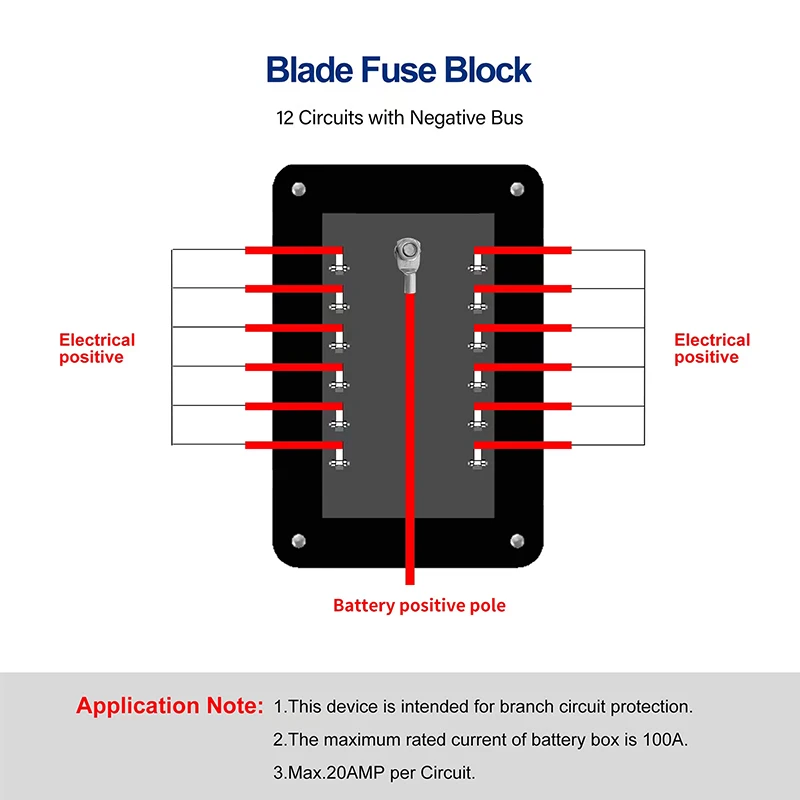

12 Way 1 Input-12 Output

Product net weight: 246g

Product gross weight: 297g

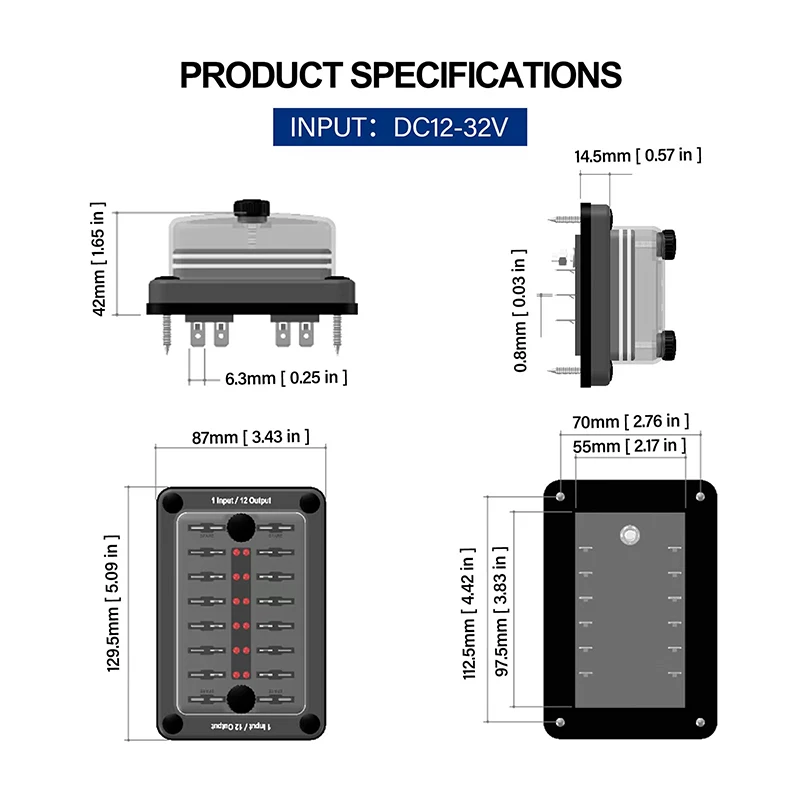

Product size: 12.95x8.7x4.2cm

Input rated voltage: 32V

Input rated current: 100A

Output maximum current: 20A per circuit

Product material: PA66 base, PC dust cover, nickel-plated copper terminals, stainless steel screws, butadiene rubber waterproof gasket, PP×70 sticker, silicone seal

Main wire terminal: M5 threaded stud (100A 32V DC max)

Main wire conductor: #4-6AWG

Single Wire Terminal: Copper/Nickel Plated 1/4" (6.3mm) (20A 32V DC max)

Single wire conductor: #12-16AWG

Hole size: 5.5*9.75cm

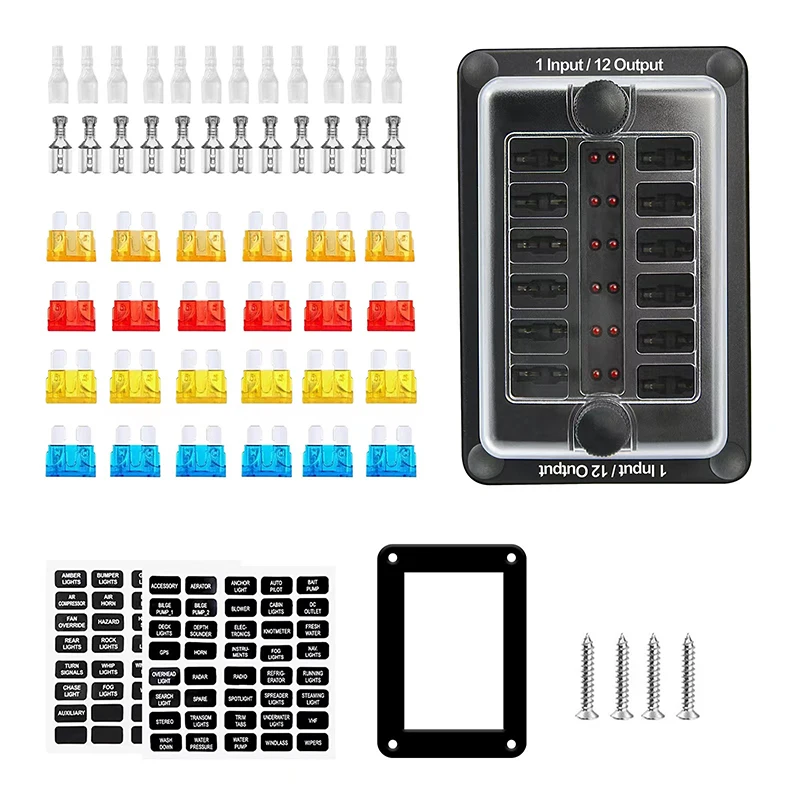

Product accessories: stickers X2; self-tapping screws X4; Shunding waterproof gasket x4; 20A safety piece X6; 15A safety piece X6; 10A safety piece X6; indivual. Accepts ATO or ATC fuses from 1A to 20A

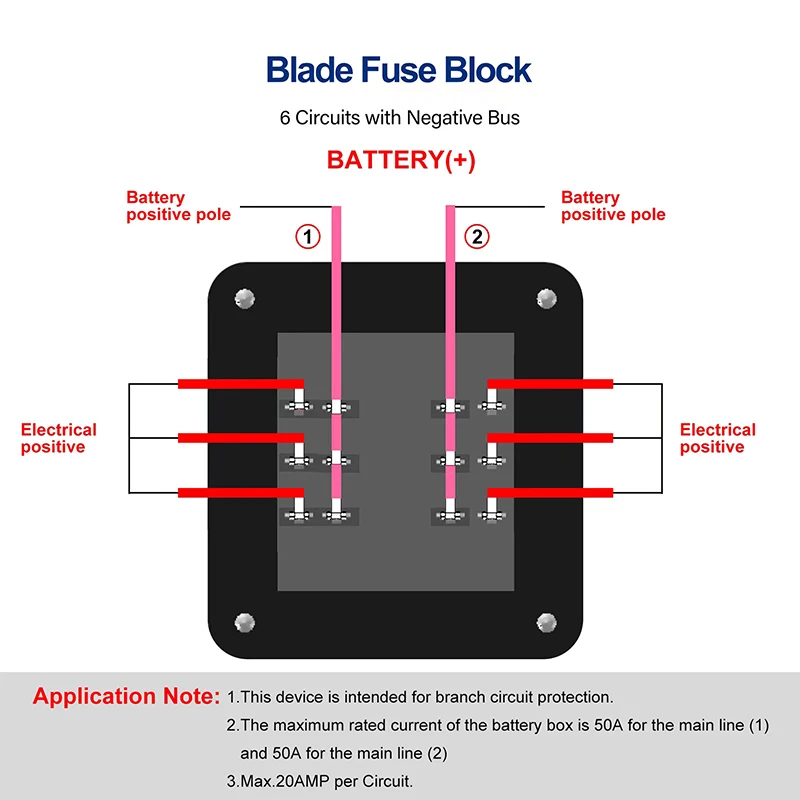

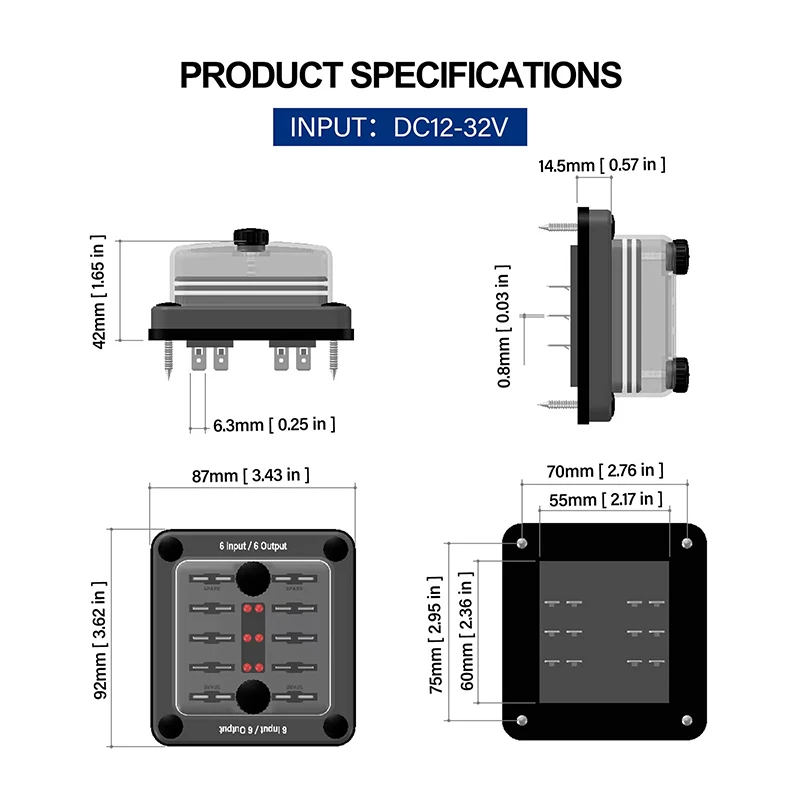

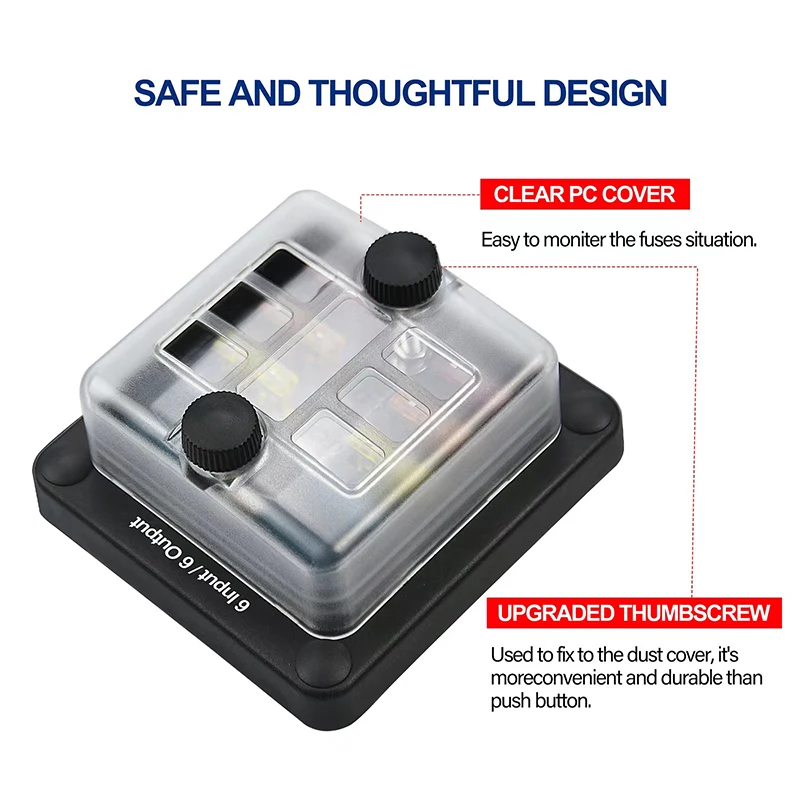

6 Way 6 Input-6 Output

Product Net Weight: 191g

Product gross weight: 230g

Product size: 8.7x9.2x4.2cm

Input rated voltage: 32V

Input rated current: main line ① 50A, main line ② 50A

Maximum output current: 20A per circuit

Product material: PA66 base, PC dust cover, nickel-plated copper terminals, stainless steel screws, butadiene rubber waterproof gasket, PP×70 sticker, silicone seal

Main line terminal: 1015/12# (50A 32V DC.max).

Single wire terminal: Copper/Nickel plated 1/4" (6.3mm) (20A 32V DC max)

Single wire diameter: #12-16AWG

Hole size: 5.5*6cm

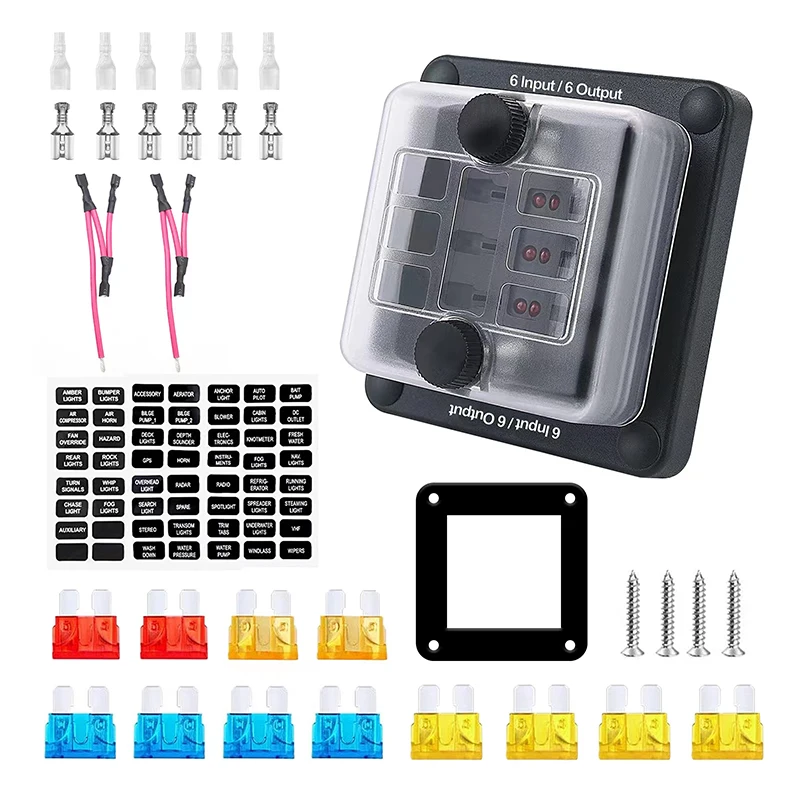

Product accessories: Sticker X2; Self-tapping screw X4; Shunding waterproof gasket x4; 20A safety piece X4; 15A safety piece X4; 10A safety piece X2; 5A safety piece X2; ; Flat terminal with protective cover x6. Accepts ATO or ATC fuses from 1A to 20A

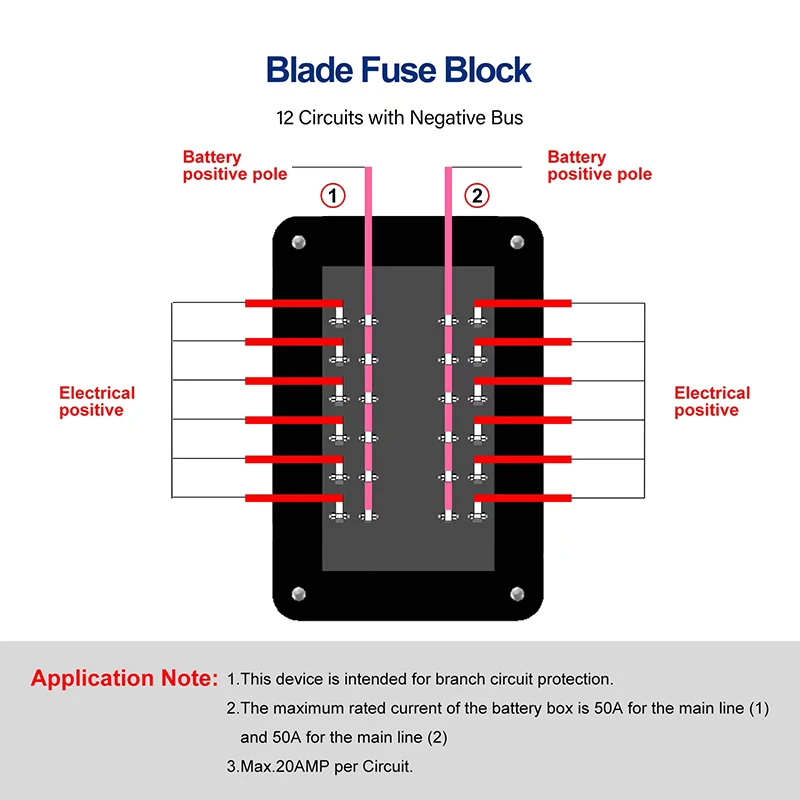

12 Way 12 Input-12 Output

Product Net Weight: 289g

Product gross weight: 339g

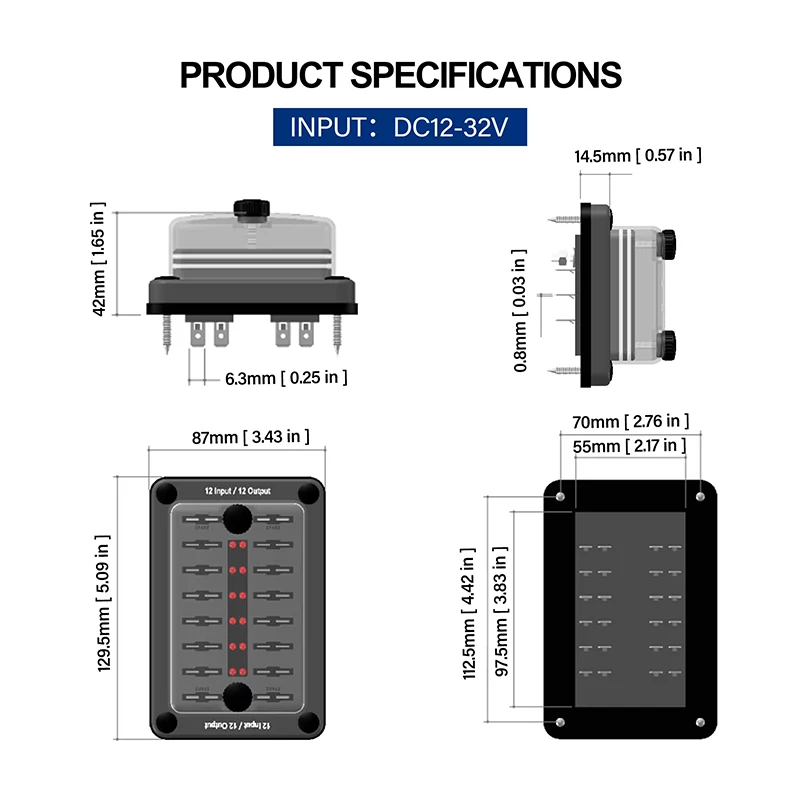

Product size: 12.95x8.7x4.2cm

Input rated voltage: 32V

Input rated current: main line ① 50A, main line ② 50A

Maximum output current: 20A per circuit

Product material: PA66 base, PC dust cover, nickel-plated copper terminals, stainless steel screws, butadiene rubber waterproof gasket, PP×70 sticker, silicone seal

Main line terminal: 1015/12# (50A 32V DC.max).

Single wire terminal: Copper/Nickel plated 1/4" (6.3mm) (20A 32V DC max)

Single wire diameter: #12-16AWG

Hole size: 5.5*9.75cm

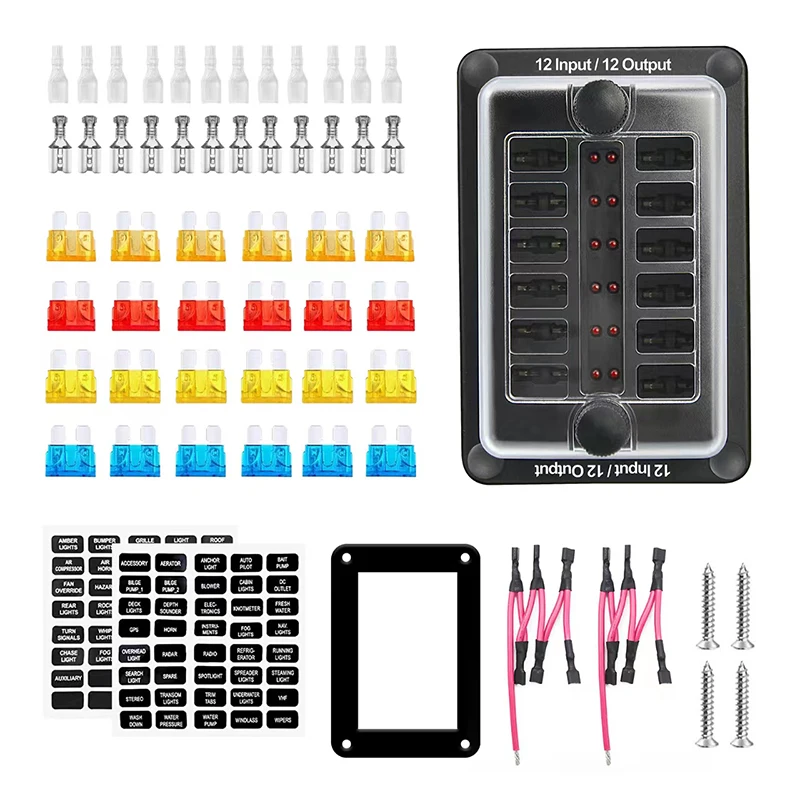

Product accessories: Sticker X2; Self-tapping screw X4; Shunding waterproof gasket x4; 20A safety piece X6; 15A safety piece X6; 10A safety piece X6; 5A safety piece X6; ; Flat terminal with protective cover x12. Accepts ATO or ATC fuses from 1A to 20A
