Corona R820FA F4FA R6FA F8FA R14FA 2.4Ghz FUTABA 10C 12FG 14SG 16SZ 18SZ Fasst Compatible Receiver

Compatibility:

FASST 2.4G Air Systems(7CH Mode/Multi Mode):6EX,7C,TM-7,TM-8,T8FG,T10C,
TM-10,T10CG,14SG,T12Z,T12FG,TM-14,T14MZ,etc.
FASST 2.4G Surface Systems(C1 Mode):3PK,4PK,etc

Specifications----R4FA:

Channels:4

Latency: 7mS for high speed PPM (HS), 14mS for low speed PPM (LS) @ FASST multi-channel mode,

Fail Safe: Yes

Weight:8g

FUTABA FASST 2.4GHz air and surface transmitters:, 3PM, 3PKS, 3VCS, 3GR, 4PK(S), TM7, TM8, TM10, TM14, T6EX-2.4G, 7C-2.4G, 8FG, 10CG, 12FG.

Compatible with both air and surface Futaba 2.4Ghz FASST transmitters, the Corona R4FA offers an affordable alternative for Futaba radio users.

Specs---R6FA.

Channels:7
Operating Voltage:3.6~10V
Operating Current:50ma max
Latency:
7mS for high speed PPM (HS), 14mS for low speed PPM (LS) @ FASST multi-channel mode
8ms for high speed PPM (HS), 16mS for low speed PPM (LS) @ FASST 7ch mode
14ms @ FASST surface system C1 CODE mode (without high speed mode)
Sensitivity:~ -100dBm
Fail Safe:Yes  (See manual in files tab)
Size:48x27x12mm
Weight: 11g
Antenna length:142mm

Specs----R8FA:

Operating Current:
70mA @ FASST 7ch mode normal and 110 mA max,
80mA @ FASST multi-channel mode normal and 110 mA max
Operating Voltage:  4.0 ~10V
Latency:
7mS for high speed PPM (HS), 14mS for low speed PPM (LS) @ FASST multi-channel mode,
8ms for high speed PPM (HS), 16mS for low speed PPM (LS) @ FASST 7ch mode
Sensitivity:~ -96dBm
Fail Safe:Yes (See manual in files tab)
Size:55x33x14mm
Weight:16.8g
Antenna length:136mm

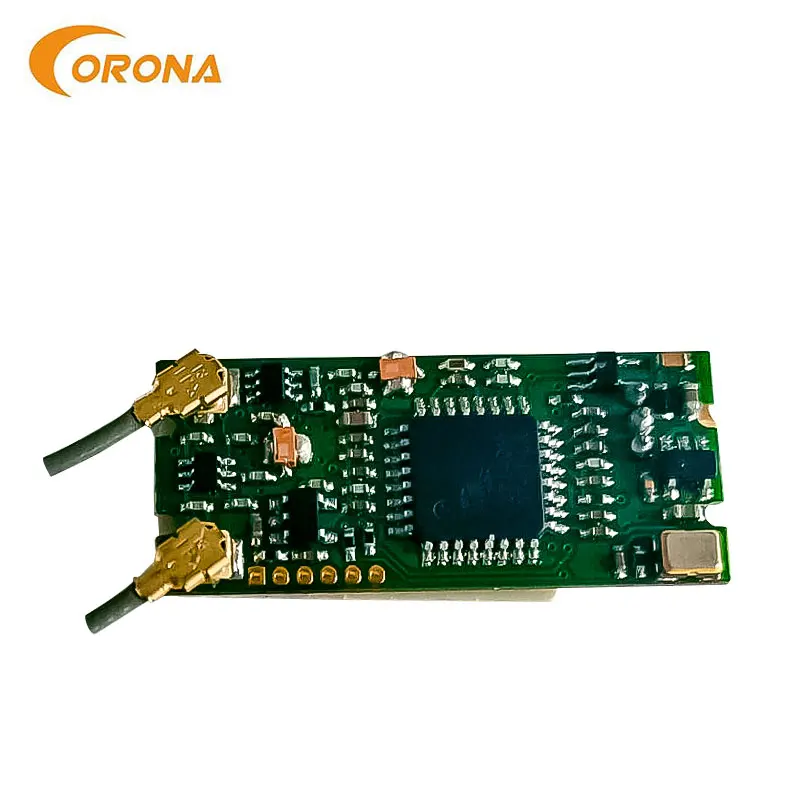

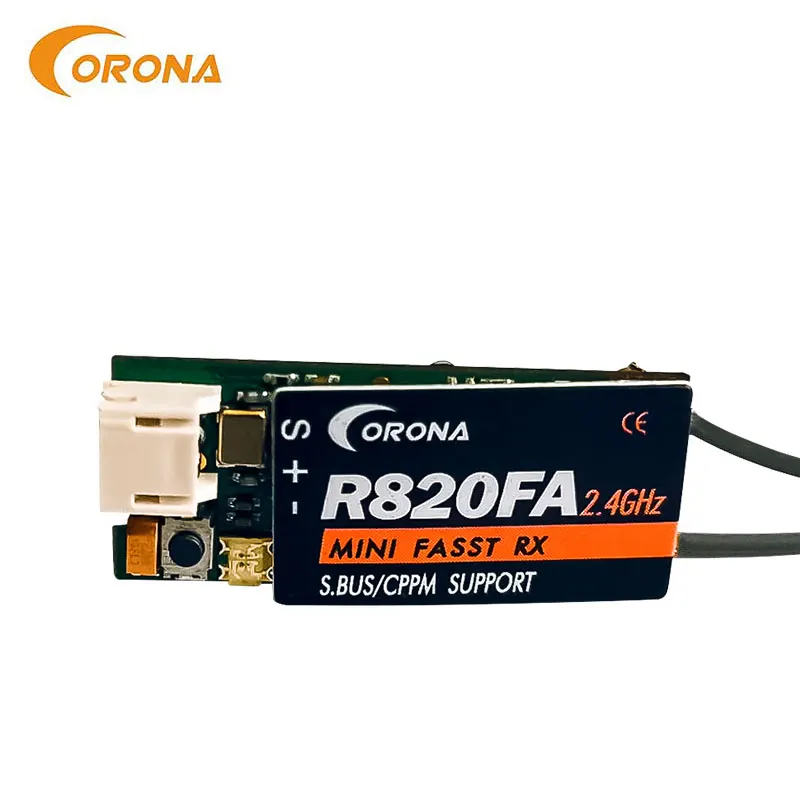

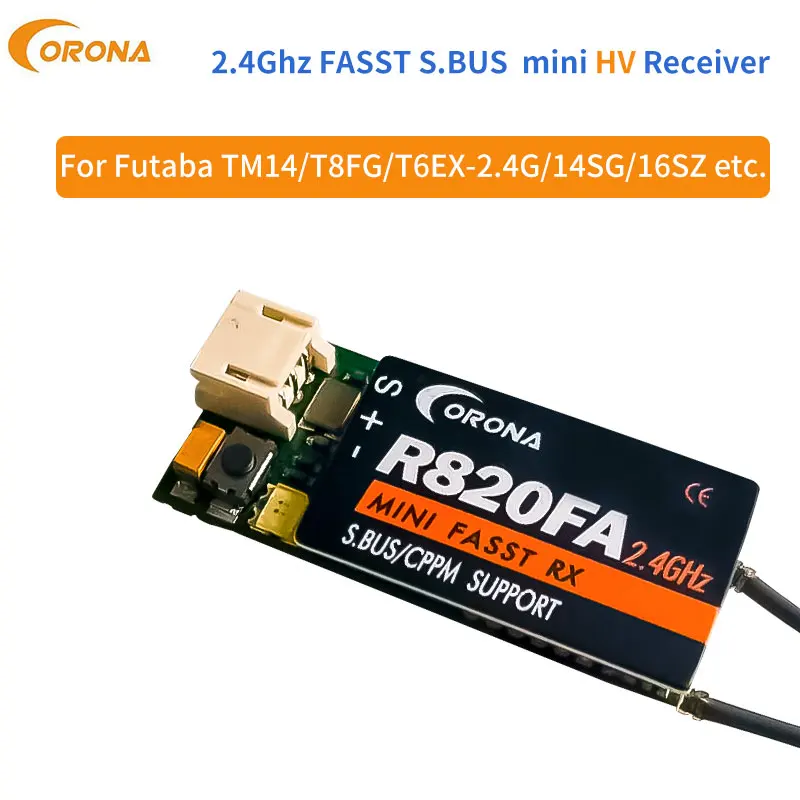

Specs----R820FA:

Specifications:

Operating Current:

50mA max

Operating Voltage:

3.6 ~8.4V

Latency:

S.BUS mode:14mS @ FASST multi-channel mode, 16mS @ FASST 7ch mode
CPPM mode: 21mS @ FASST multi-channel mode, 24mS @ FASST 7ch mode

Sensitivity:

about -90dBm

Weight:

about 2g

Size:

L*W*H=30mm*14mm*3mm

Output mode:

S.BUS or CPPM can be selected

Setup

Bind procedure:

Turn on the FASST transmitter

Connect the battery to the receiver while pressing receiver’s F/S button.

The Dual-color LED’s continuous will cycle through the following:

Red LED light (searching radio signal)

Green LED light (acquired the radio signal)

Red LED off (bind ok)

Green LED flashes 10 times (ID store in memory)

Green LED lights solid (normally operation)

Fail-safe setting:

TX-failsafe feature: This method is to set failsafe on the FASST transmitter (works on channel 3 only under FASST 7ch mode or on multiple-channels under FASST multi-channel mode) while the receiver is working on, just like the FUTABA receivers.

Nore:

We highly recommend you set failsafe feature while flying your models. An example of a useful Failsafe setting would be to shut down the model’s throttle, so that it does not fly or drive away uncontrolled.

Output mode setting:

If your receiver has been linked with your transmitter, please power off your transmitter. When your receiver’s LED light red, push down and hold the button on your receiver for more than 6 seconds and not more than 10 seconds, release the button to see the green led flash, push down the button again right now, receiver get back to light red. Now the MODE status has changed between S.BUS output mode and CPPM(continuous PPM signal on one wire) mode. When green led flash low indicate S.BUS mode to CPPM mode, and green led flash fast indicate CPPM mode to S.BUS mode. And power on the receiver again to take new feature effect.
Do not connect any servo directly to the RX, it maybe get abnormal action or get hot.

LED status indicated under normal working status:

RED LED

GREEN LED

Status

on

off

No signal searched

on

solid

Signal is very good

on

flash

Signal is not very good

on

off-flash

Signal is weak
