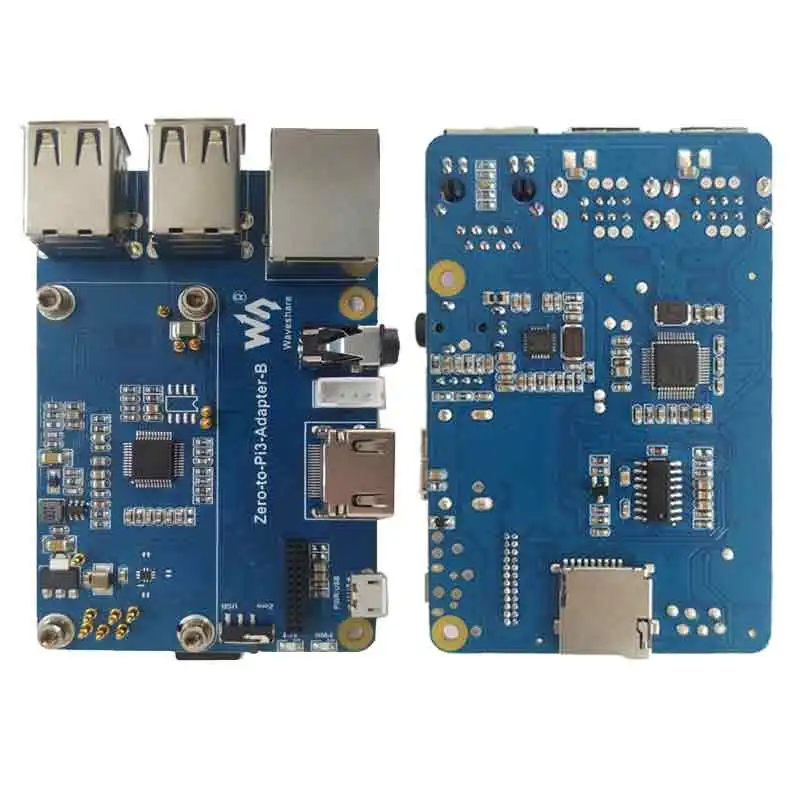

The Raspberry Pi Zero 2 to 3B interface adapter with USB hub and RJ45 10/100M port ,

which is designed refer to the Raspberry Pi 3B size

When the official factory stop to product 3B, Some old project have to change to use 4B.

Now we give another option which use a zero 2 to replace 3B with this adapter

With the unique design , you can make your zero with same USB/HDMI/RJ45 port .

Added USB audio headphone port, solved the problem of zero 2W without audio output, and additionally added speaker interface.

4x USB ports, compatible with USB2.0/1.1

1x RJ45 10/100M port, based on the RTL8152B Ethernet chip

Micro HDMI to 3B HDMI port

Work at zero also can work at a computer/Android phone with micro usb or other mini computer with a micro usb cable

Added USB audio, headphone port and horn port of the board. When inserting headphones, the speaker can be automatically disabled.

Connection Examples

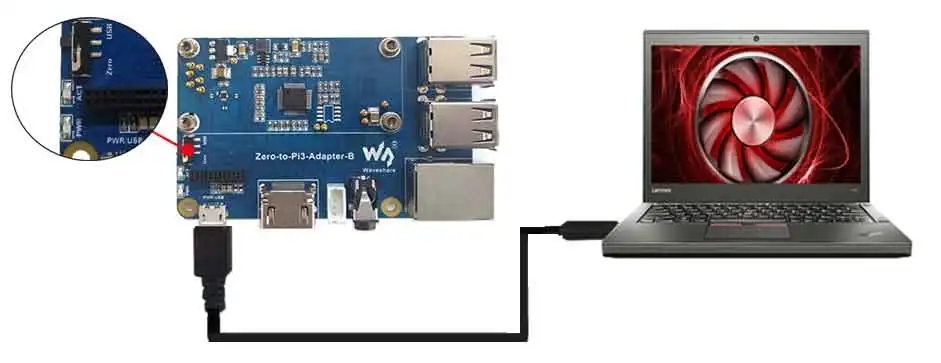

Working With Computer

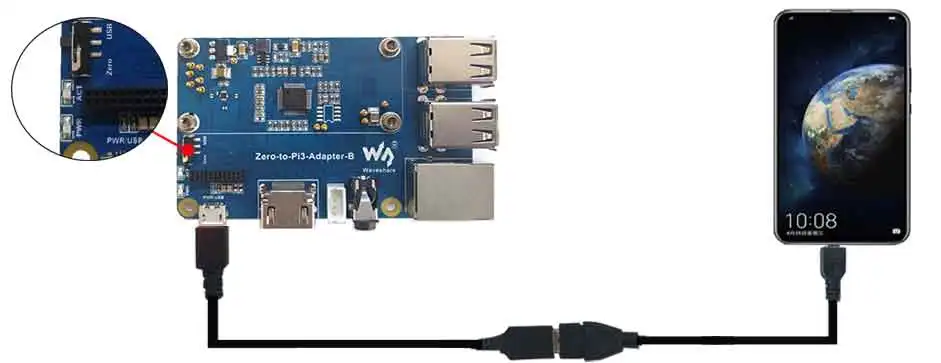

Working With Mobile

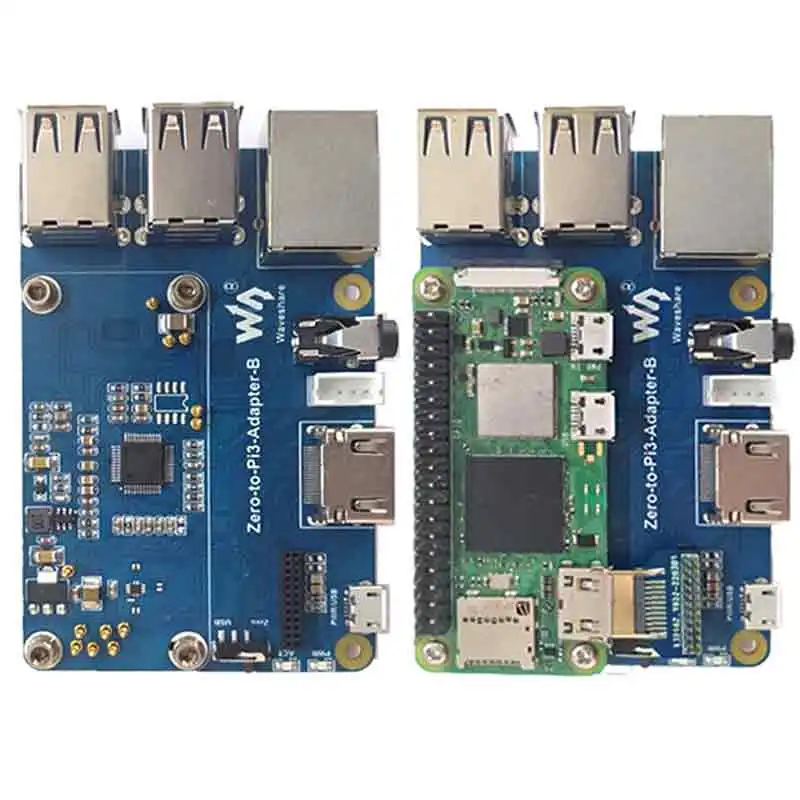

Working With Raspberry Pi ZERO 2

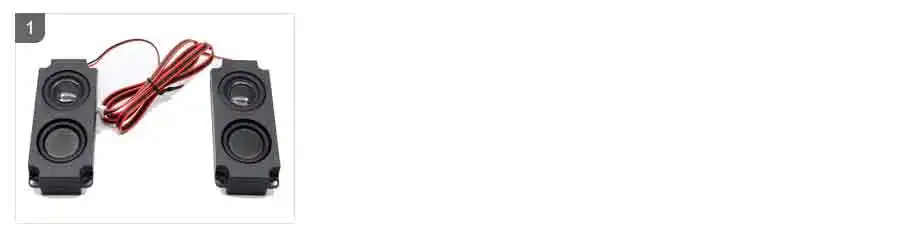

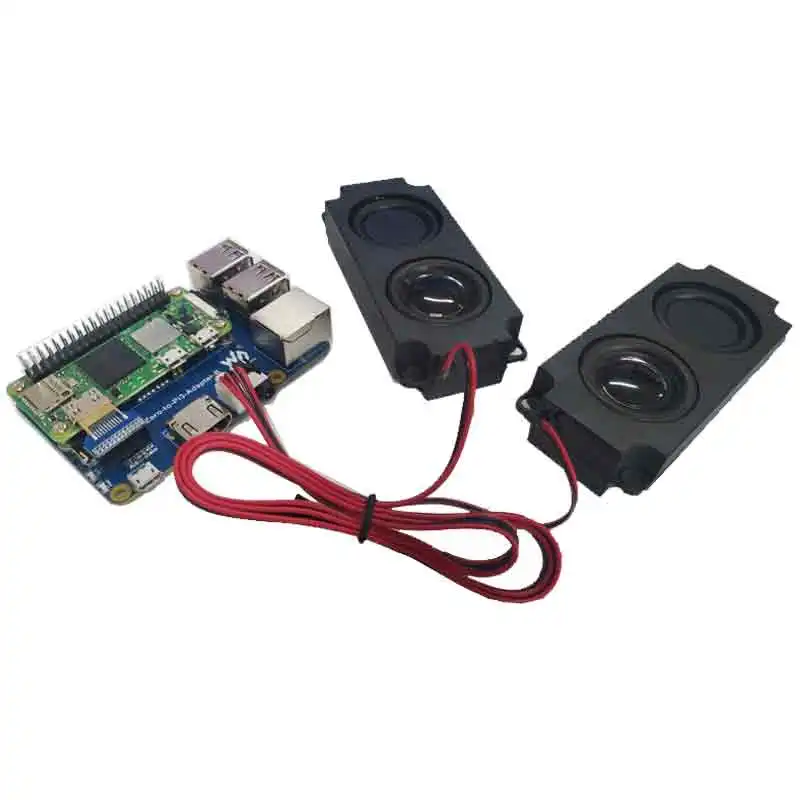

Bundle:8Ω 5W Speaker

Bundle:Just Board

1.ZERO to PI3 Adapter（B） x1

2.Micro USB x1

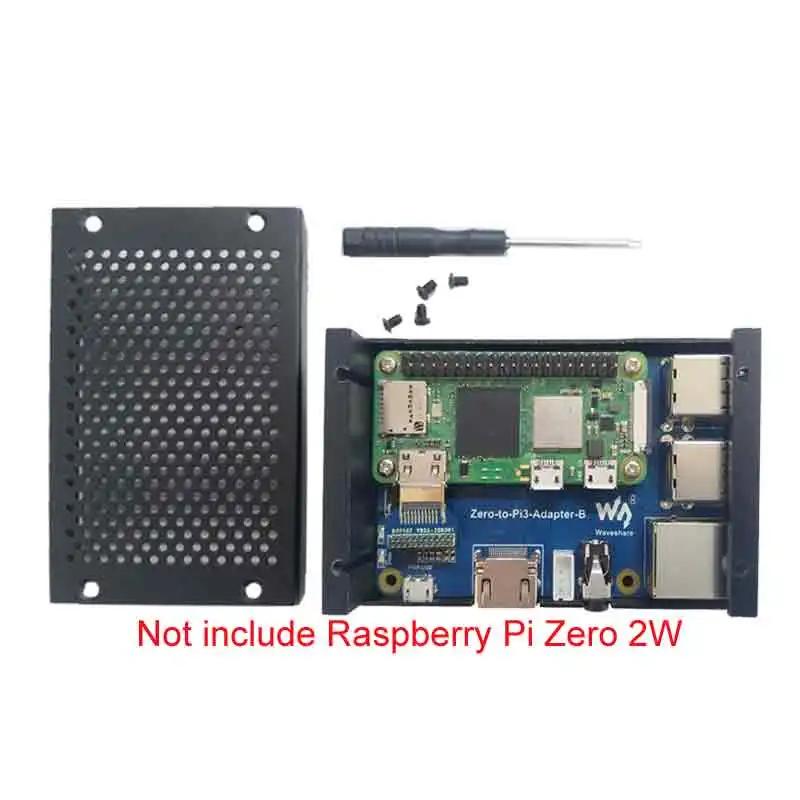

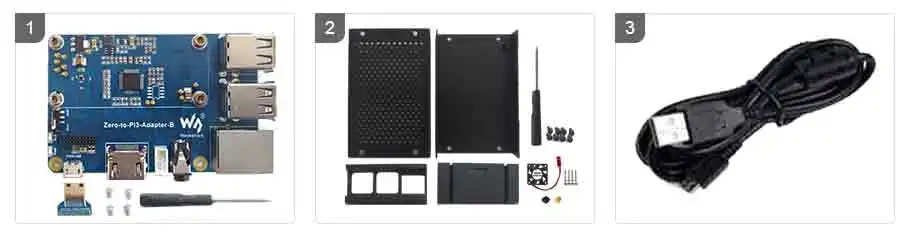

Bundle:KitＡ

1.ZERO to PI3 Adapter（B） x1

2.Alu-Case (with Fan) x1

3.Micro USB x1

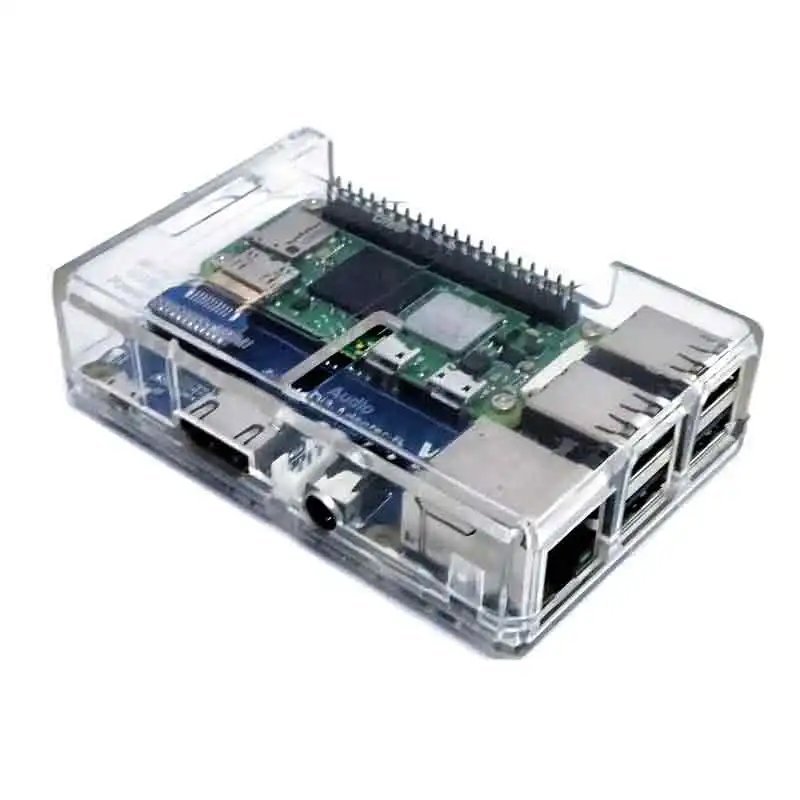

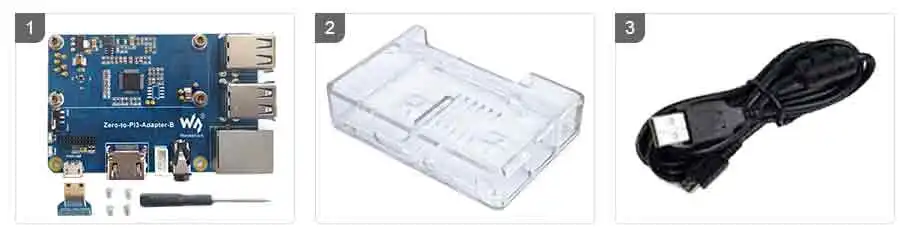

Bundle:KitＢ

1.ZERO to PI3 Adapter（B） x1

2.ABS-Case(white)x1

3.Micro USB x1

Bundle:KitＣ

1.ZERO to PI3 Adapter（B） x1

2.ABS-Case(Black)x1

3.Micro USB x1
