Zigbee Mini Controller DC5-24V Pro 5 in 1 RGBCCT/RGBW/RGB/WWCW/Dimmer LED APP/Voice/RF Remote Control |

Zigbee Mini Controller DC5-24V Pro 5 in 1 RGBCCT/RGBW/RGB/WWCW/Dimmer LED APP/Voice/RF Remote Control |

If you don't have any gateway, please buy one 2.4G RF remote control or wall switch to work with Pro Version Products.

2.4G RF Remote Control and Wall Switch only work with Pro Version Products.(Not ZigBee)

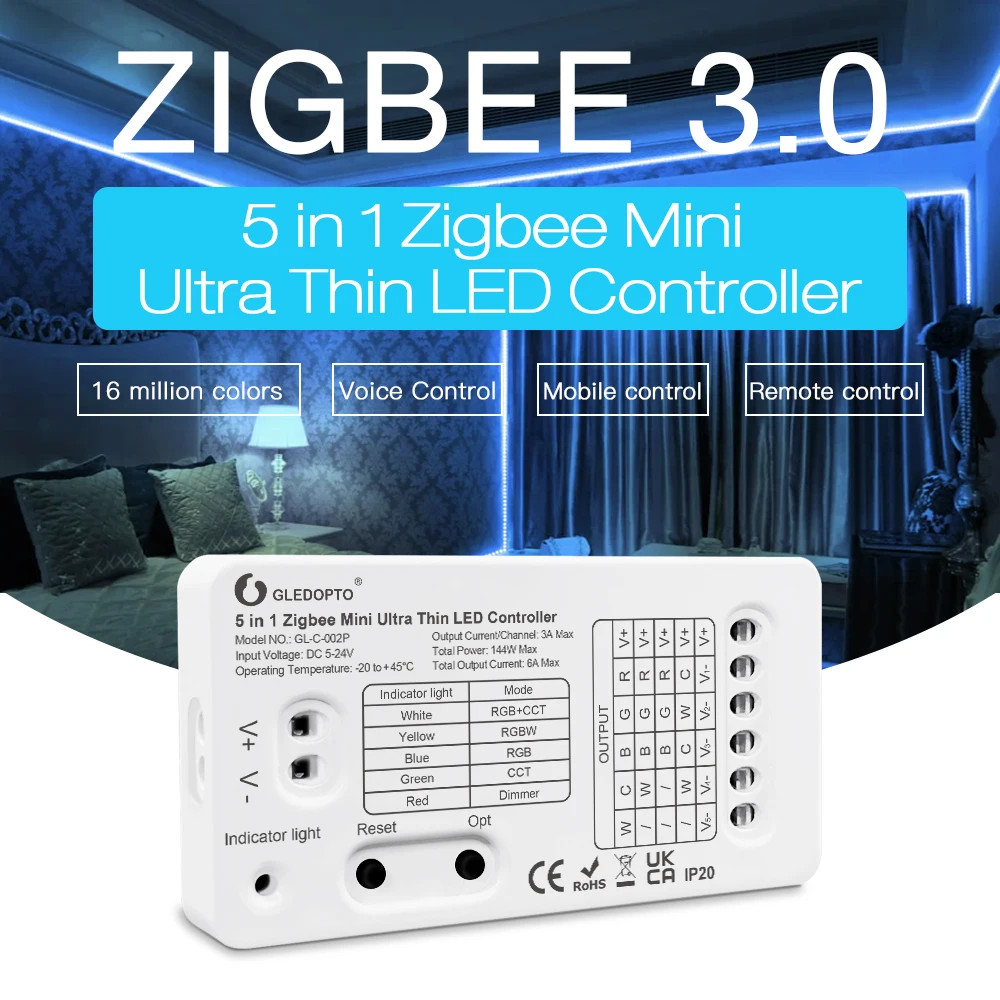

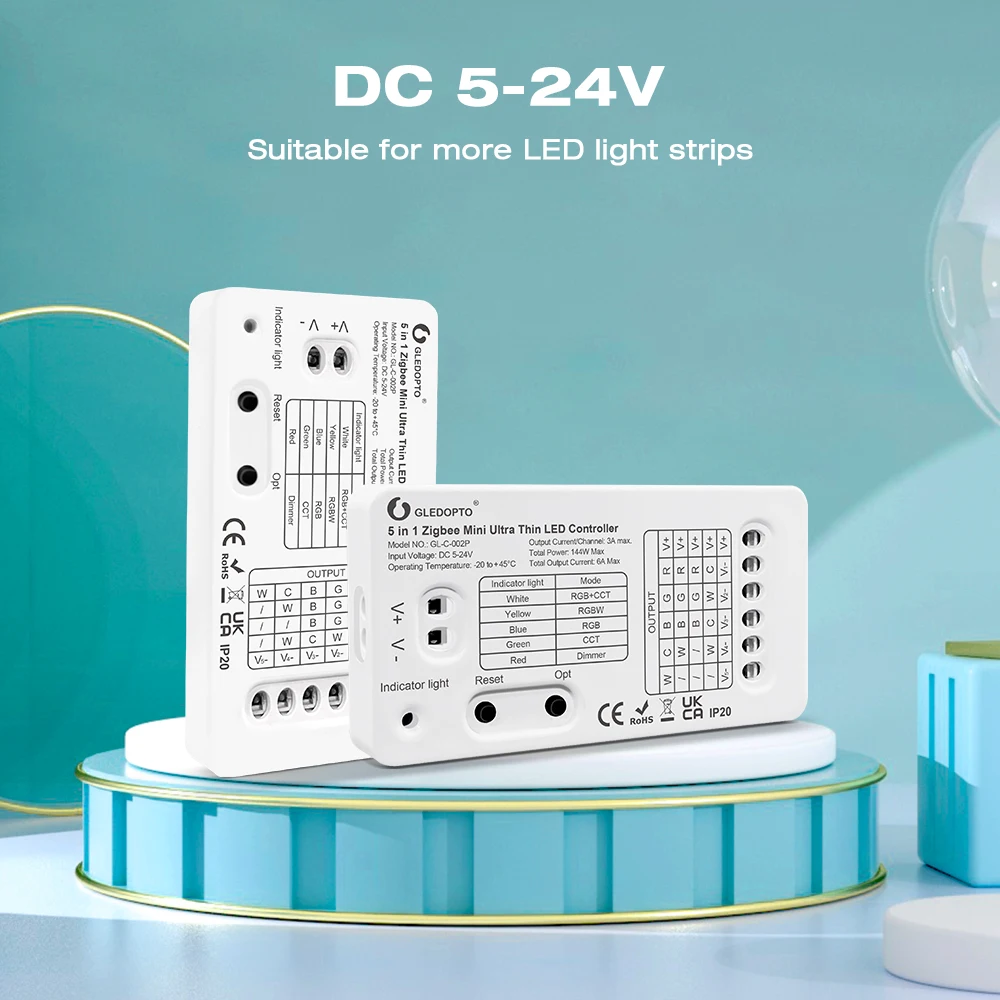

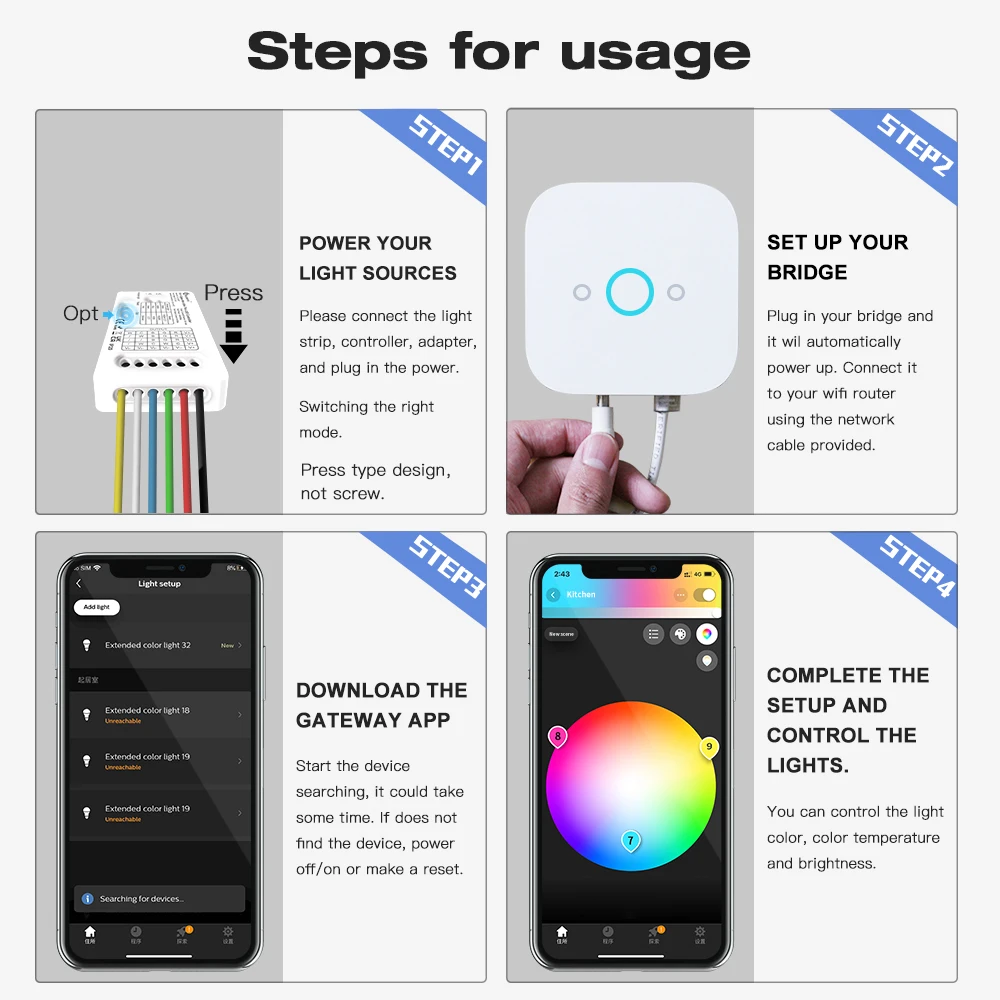

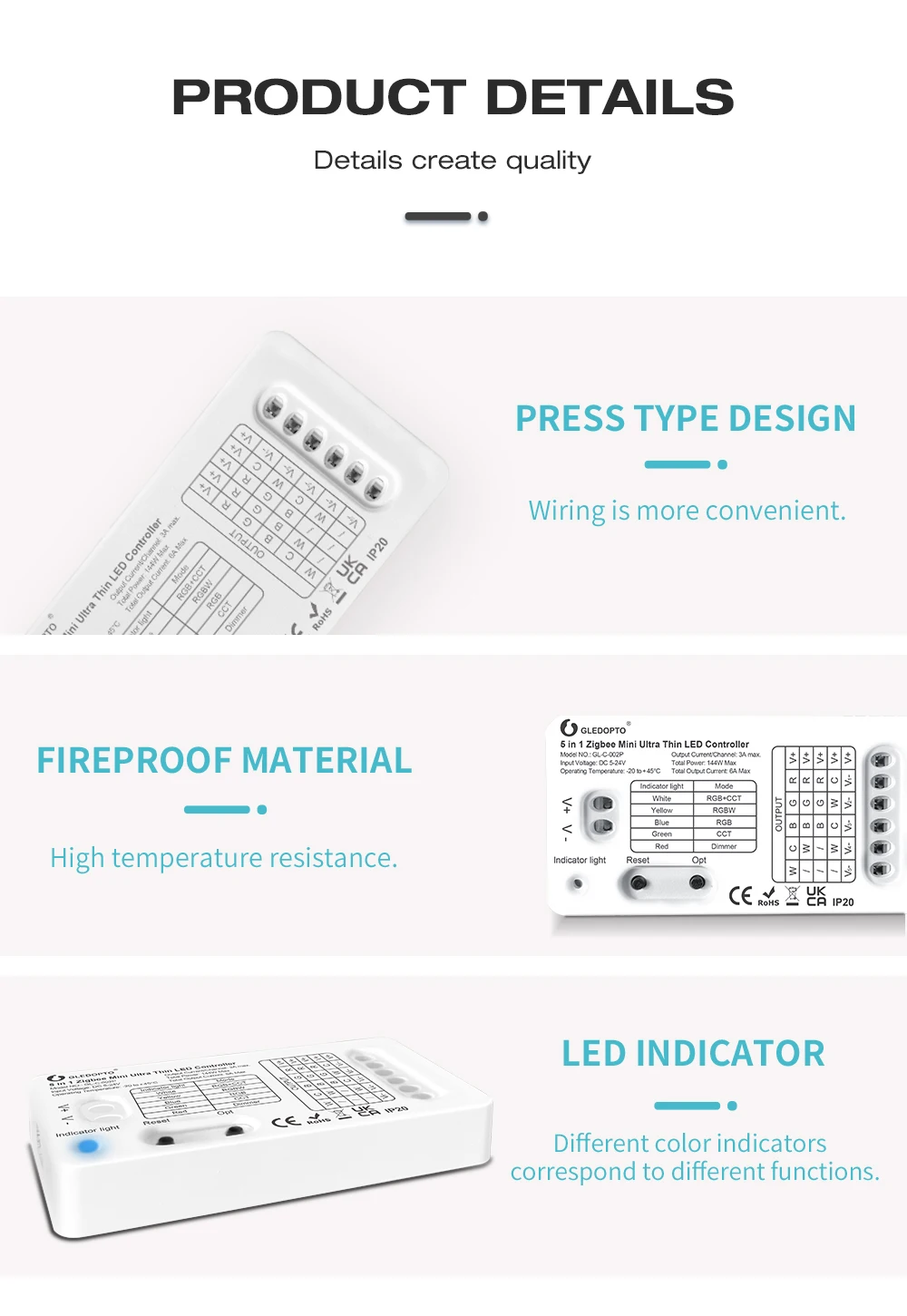

Mini 5 in 1 LED Controller:

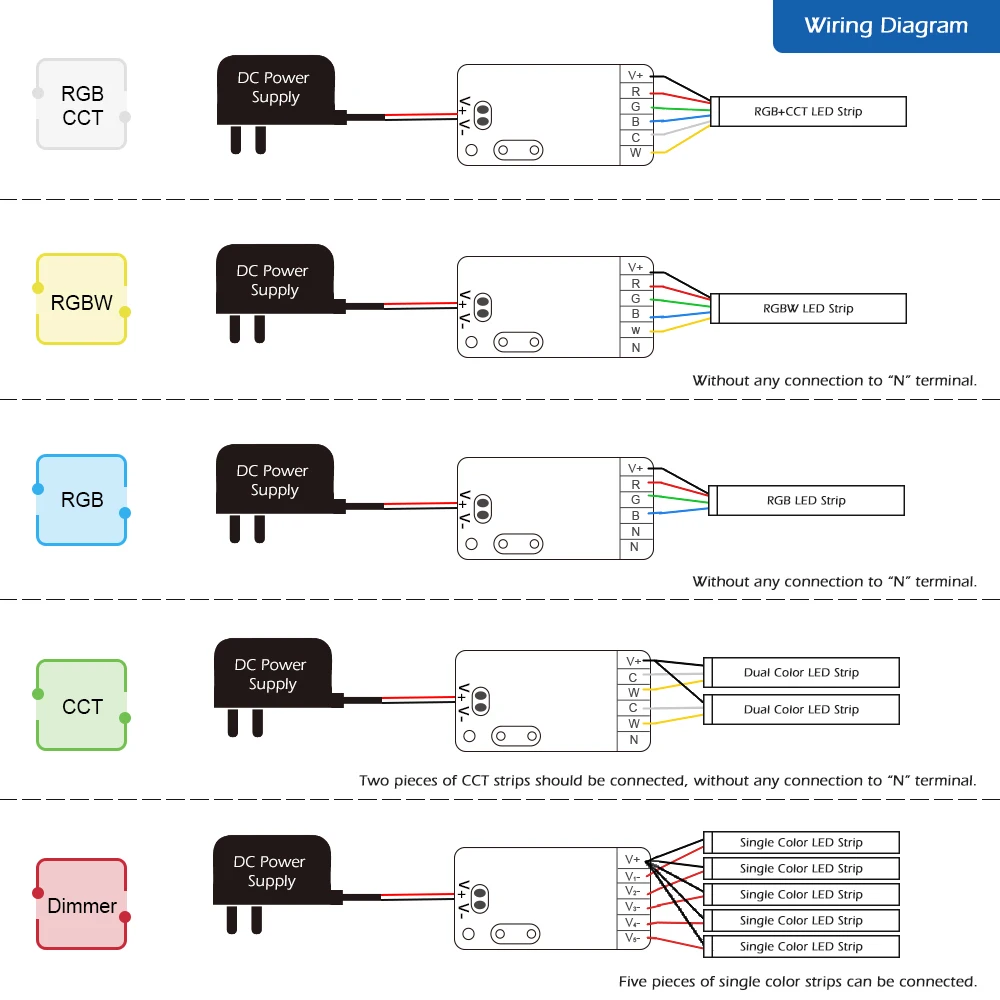

There has five modes to connect with led strip: RGBCCT/RGBW/RGB/CCT/Dimmer, and different color indicator correspond to different functions.
You can click the "opt" button, short press once to switch one of functions that you want according to the different indicator color, then you can connect between the different port of controller and corresponding wires of your led strip.

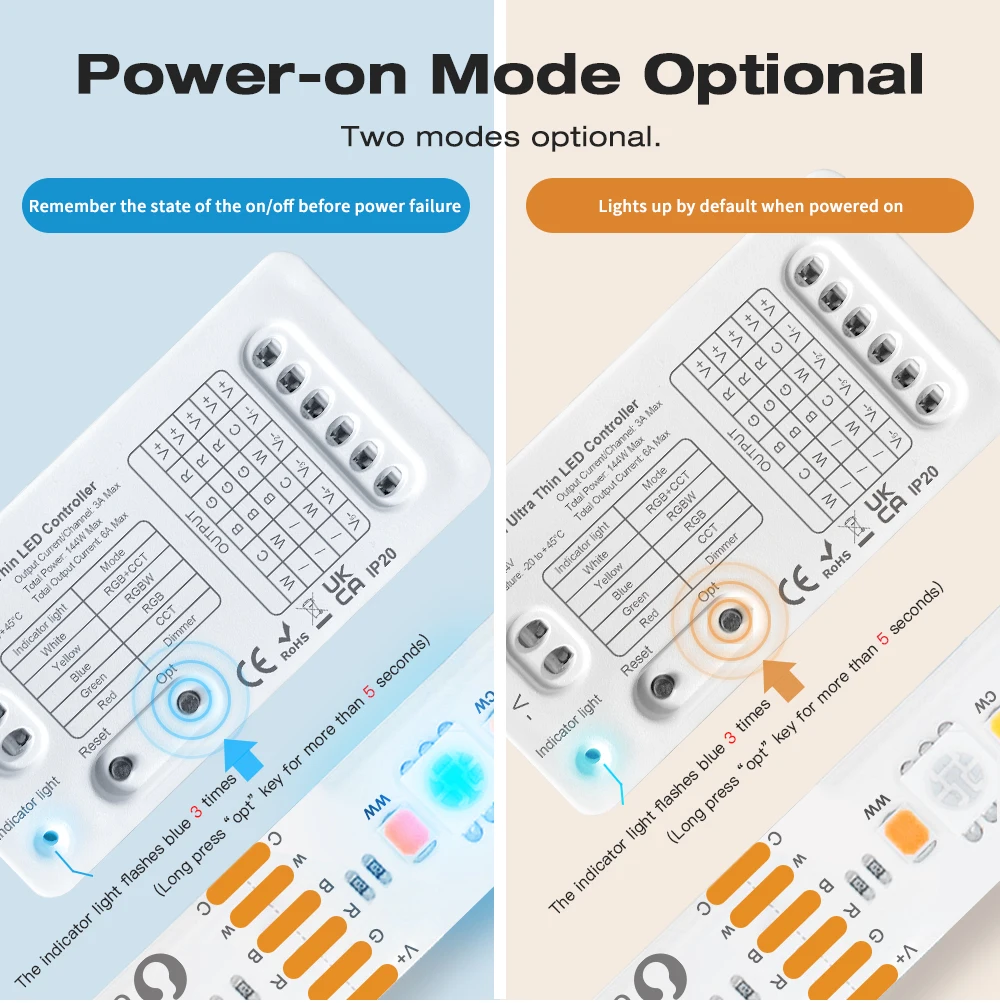

Power On Status Settings:
Long press the "opt" key for 5 seconds, the indicator of device will flash in blue color for 3 times, it will go into the "power on/off status" mode, and the device will save the previous status before power off.

It will has two options state under:
① if the device is powering on, after the electricity drop and power on again, the device will keep on;
② if the device is powering off, after the electricity drop and power on again, the device will keep off.
Repeat the operation again to cancel this function, the device will be on by default status when powered on.

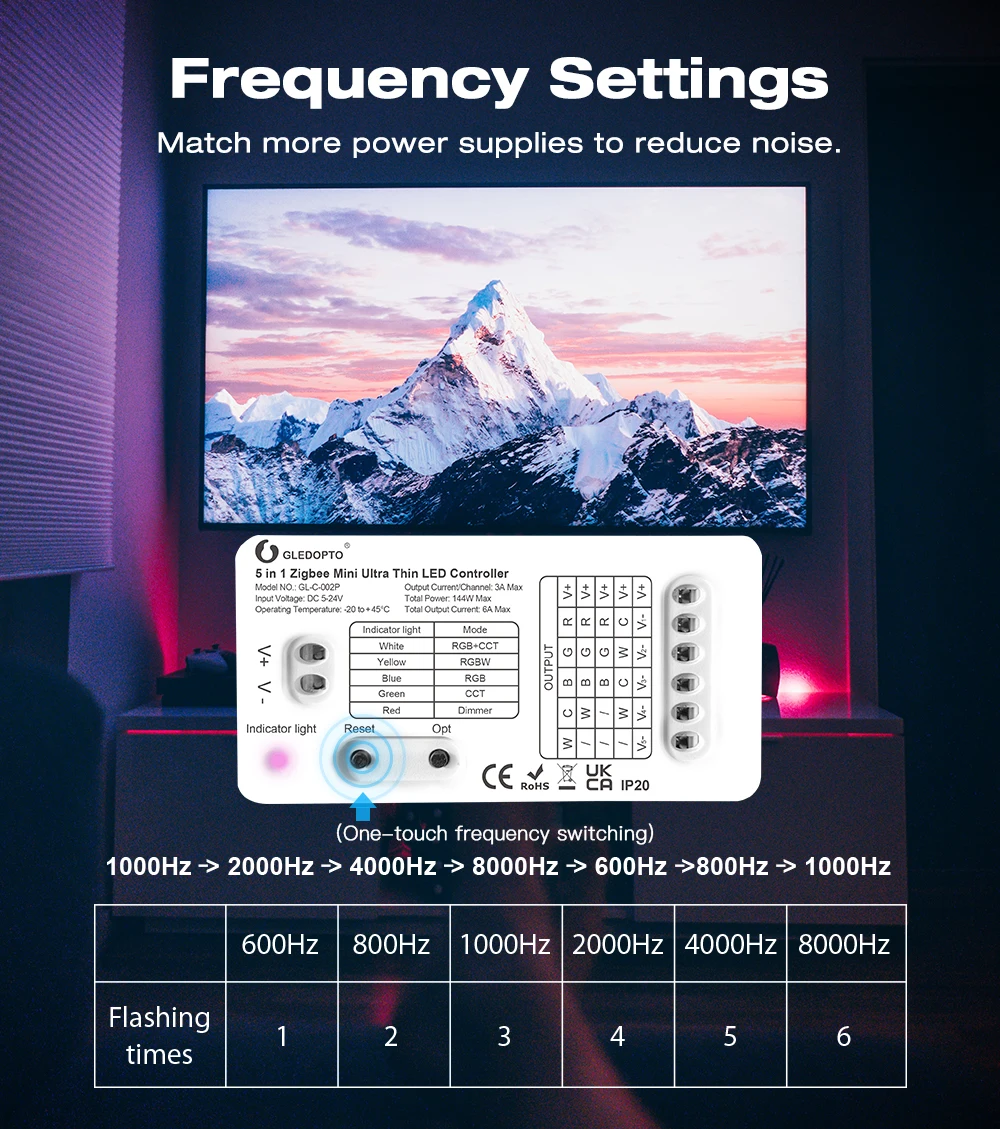

Frequency Settings:
In order to be applicable to different power supplies, the frequency of device is selectable as 600Hz, 800Hz, 1000Hz, 2000Hz, 4000Hz and 8000Hz, and default frequency 1000Hz.
Once short press "reset" key, the frequency will switch into the next one. The indicator will flash in pink color and resume to previous color after "off" for 2 seconds. The indicator flashing times corresponding to different frequency.

(There has specifications in user manual.)

16 million colors for your choice and make your life colorful, to create a relaxing and quiet atmosphere. Such as living room, kitchen, bedroom and so on.

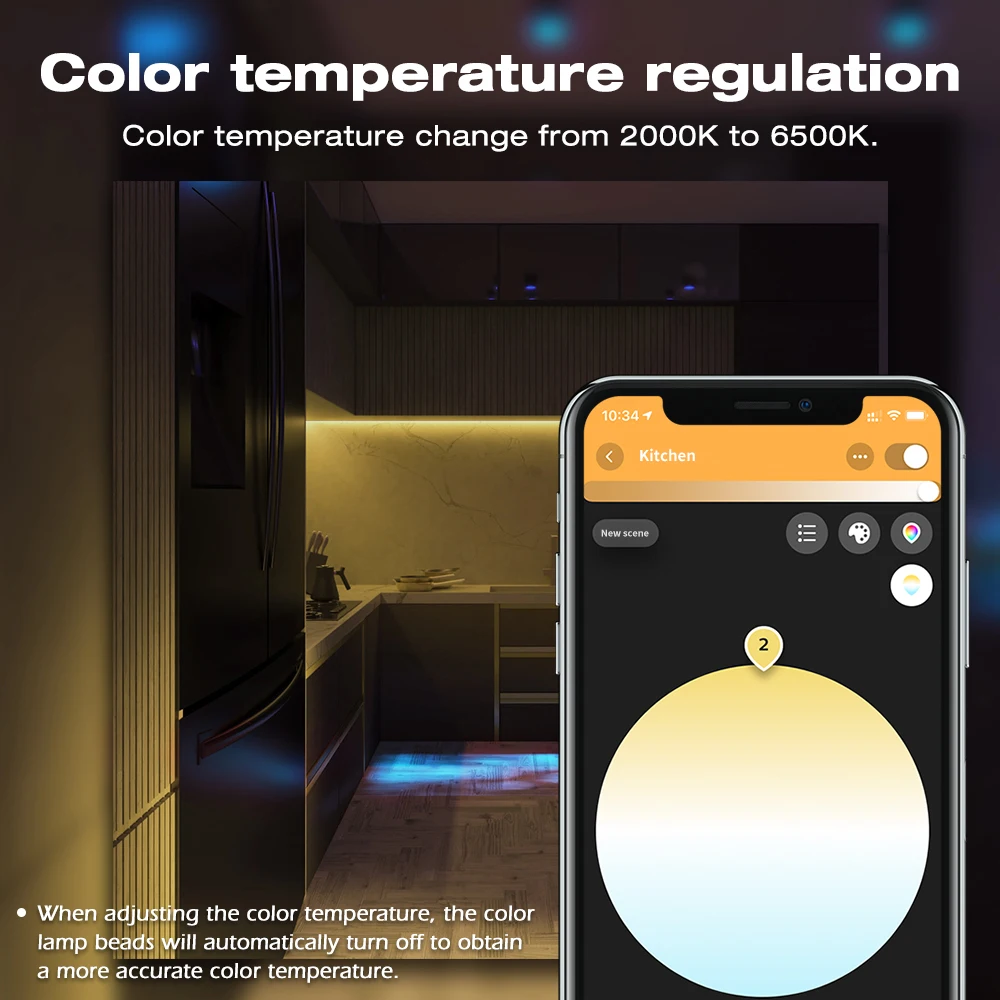

When adjusting the color temperature, the color lamp beads will automatically turn off to get a more accurate color temperure that you want,which can experience the more delicate atmosphere lighting effect;

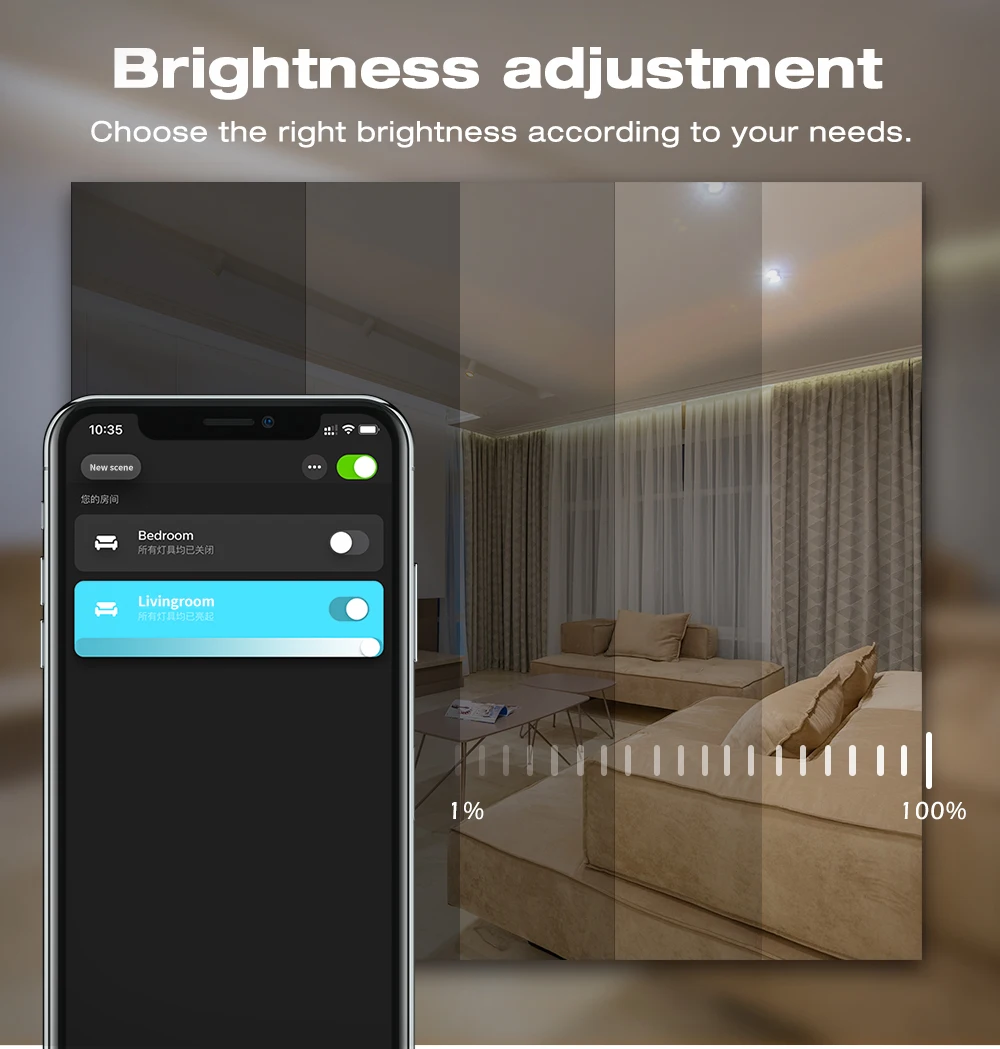

When adjusting the brightness from 1% to 100% that you want, making a vibrant atmosphere anytime.

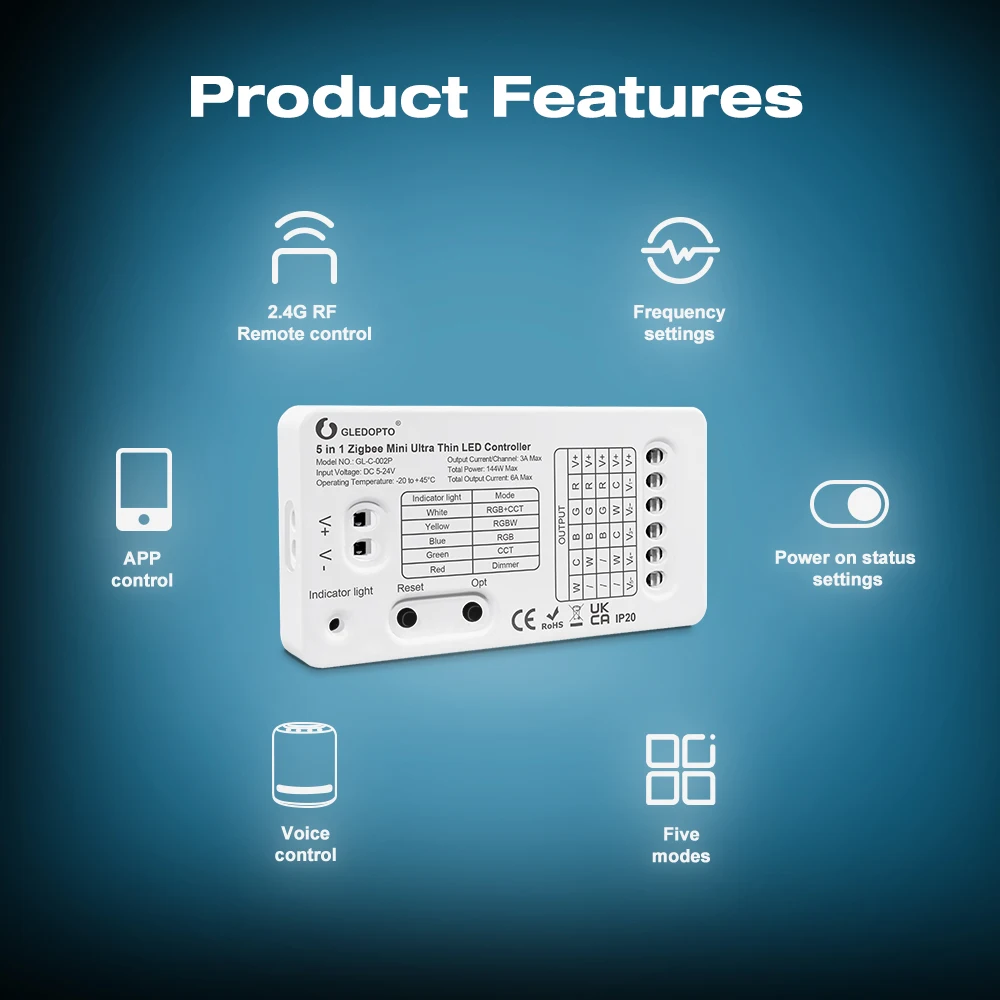

Control ways:

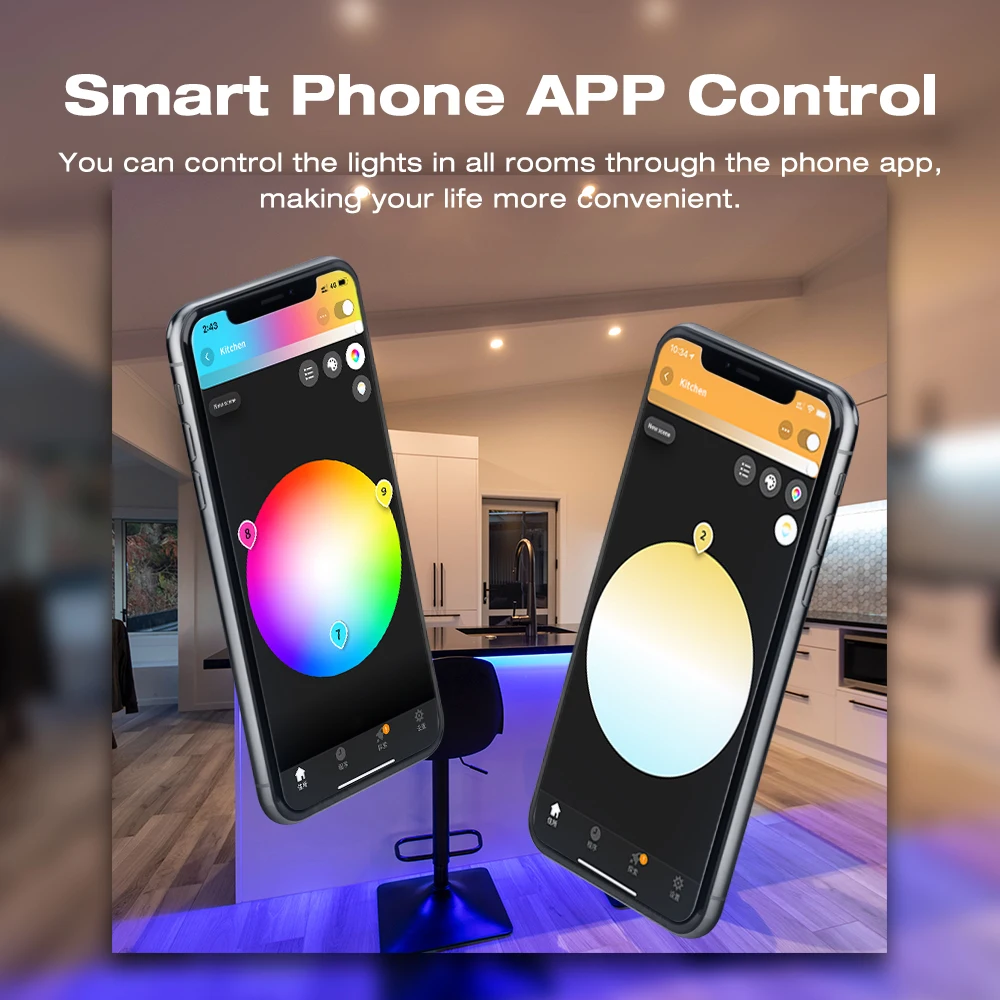

① APP Control: Requires to zigbee gateway such as SmartThings, Tuya ect., support APP control in Android/IOS Phone;

② Voice Control: support Amazon Alexa/Google Home/Homekit via zigbee hub;

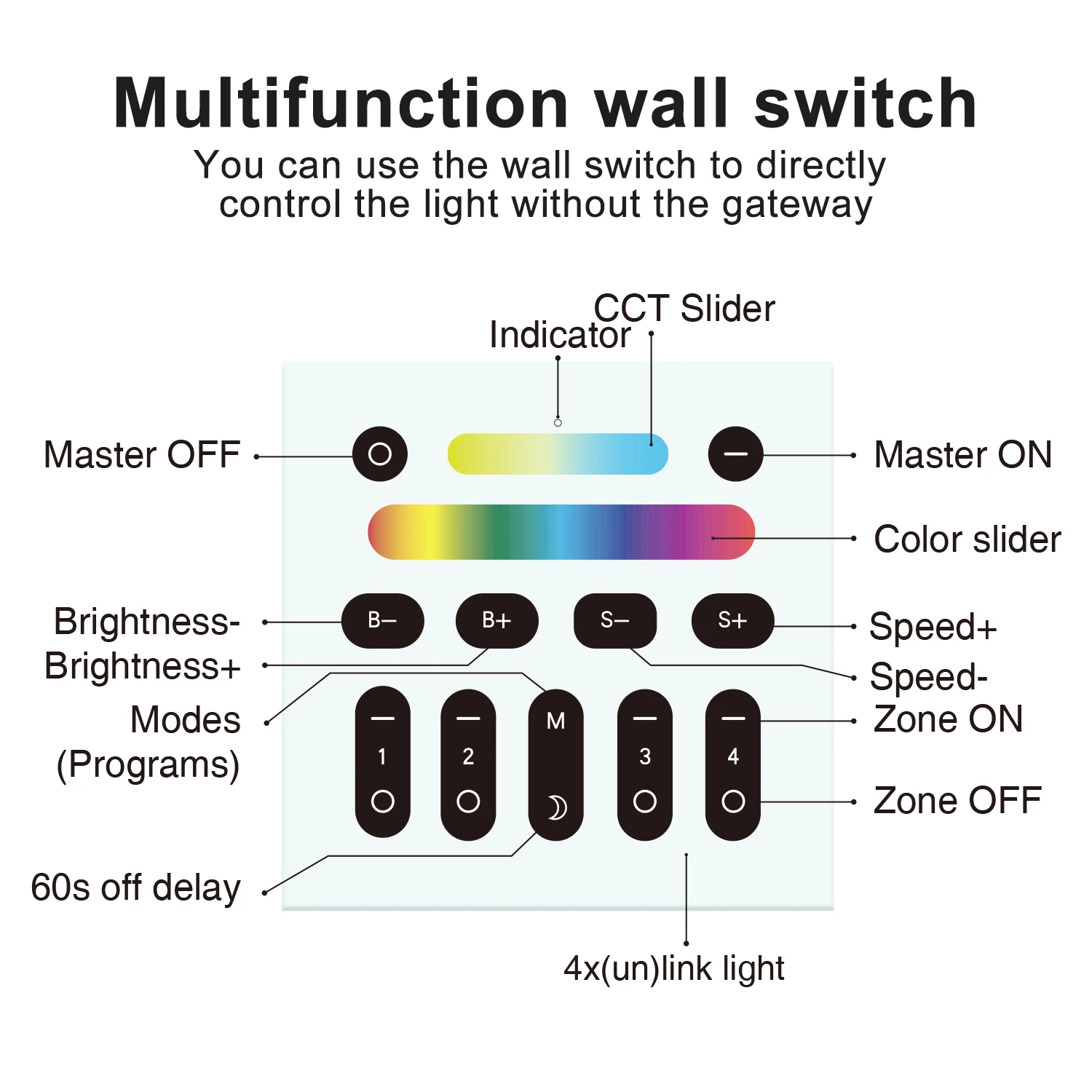

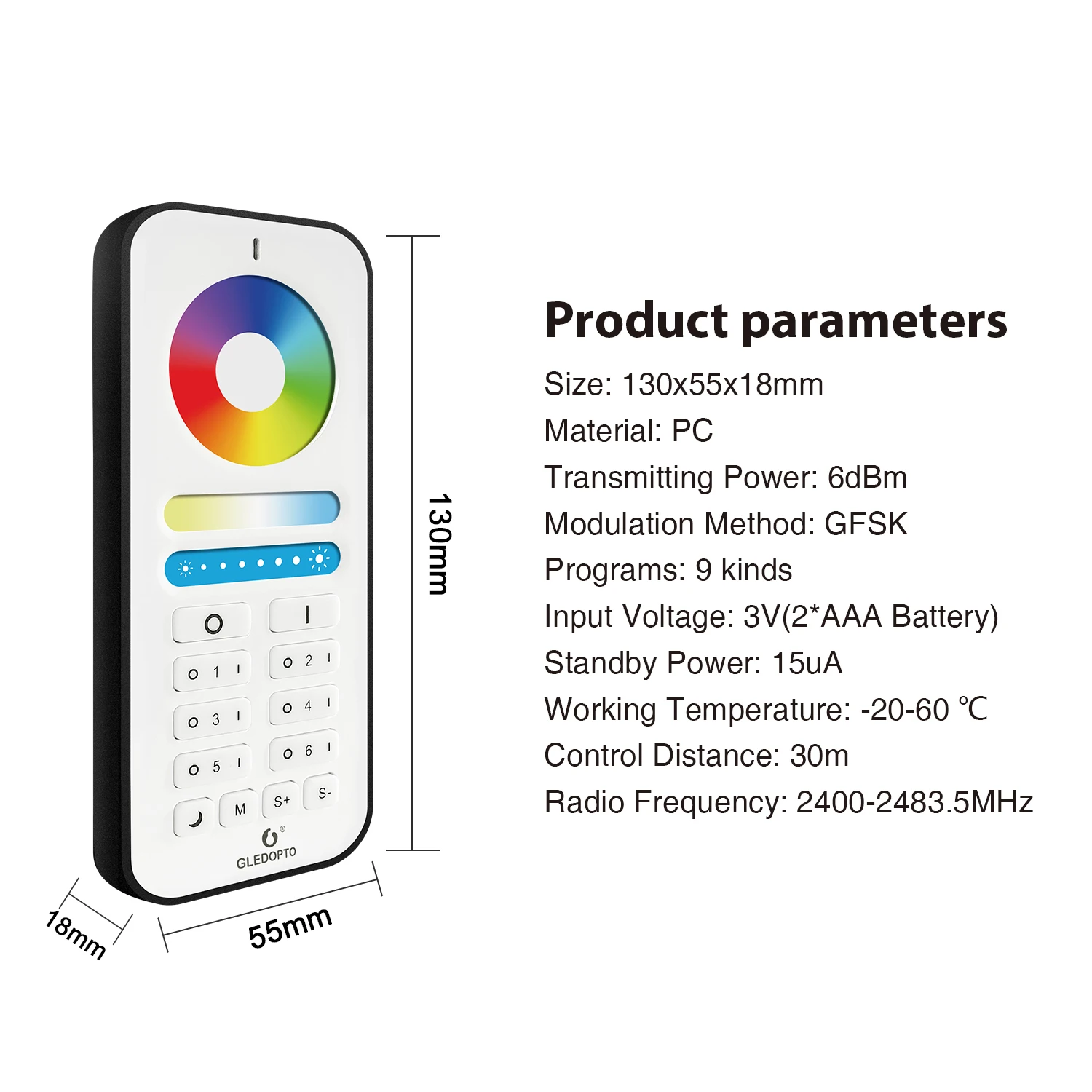

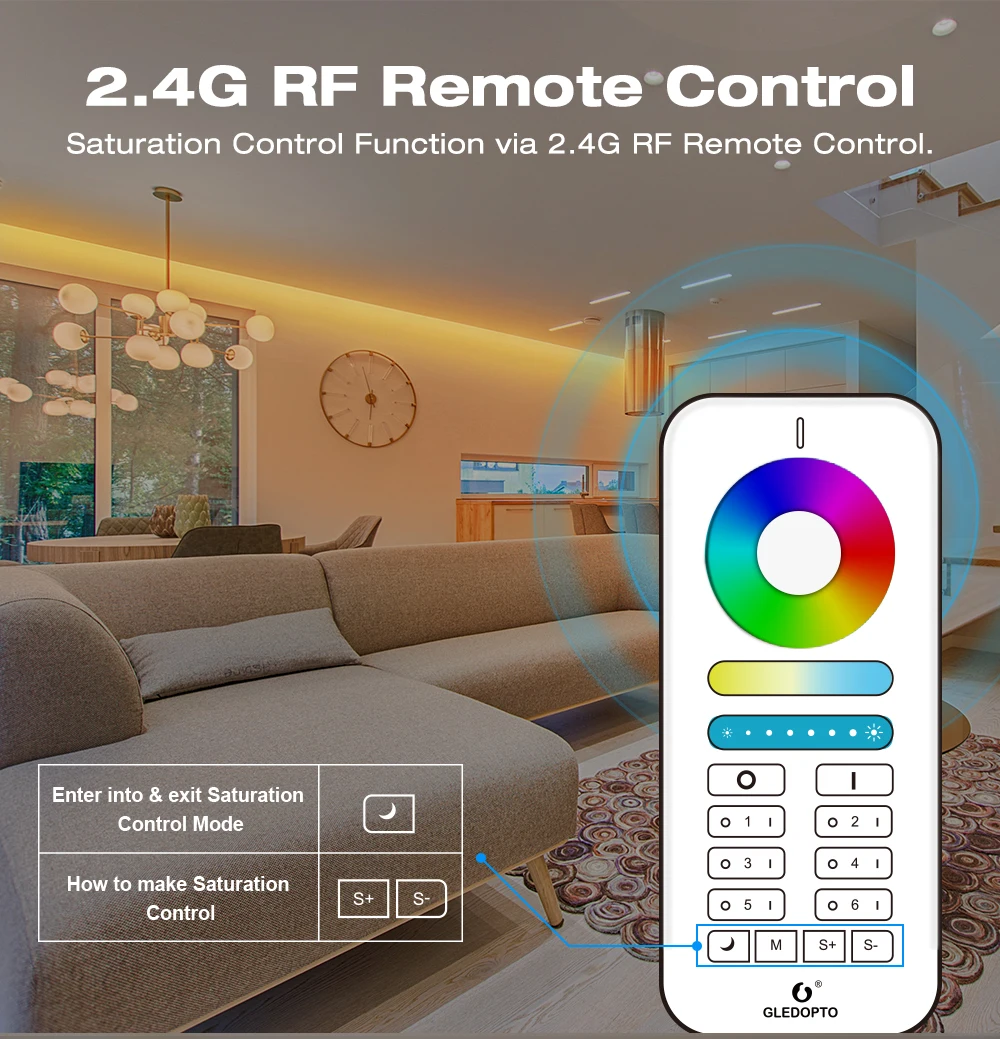

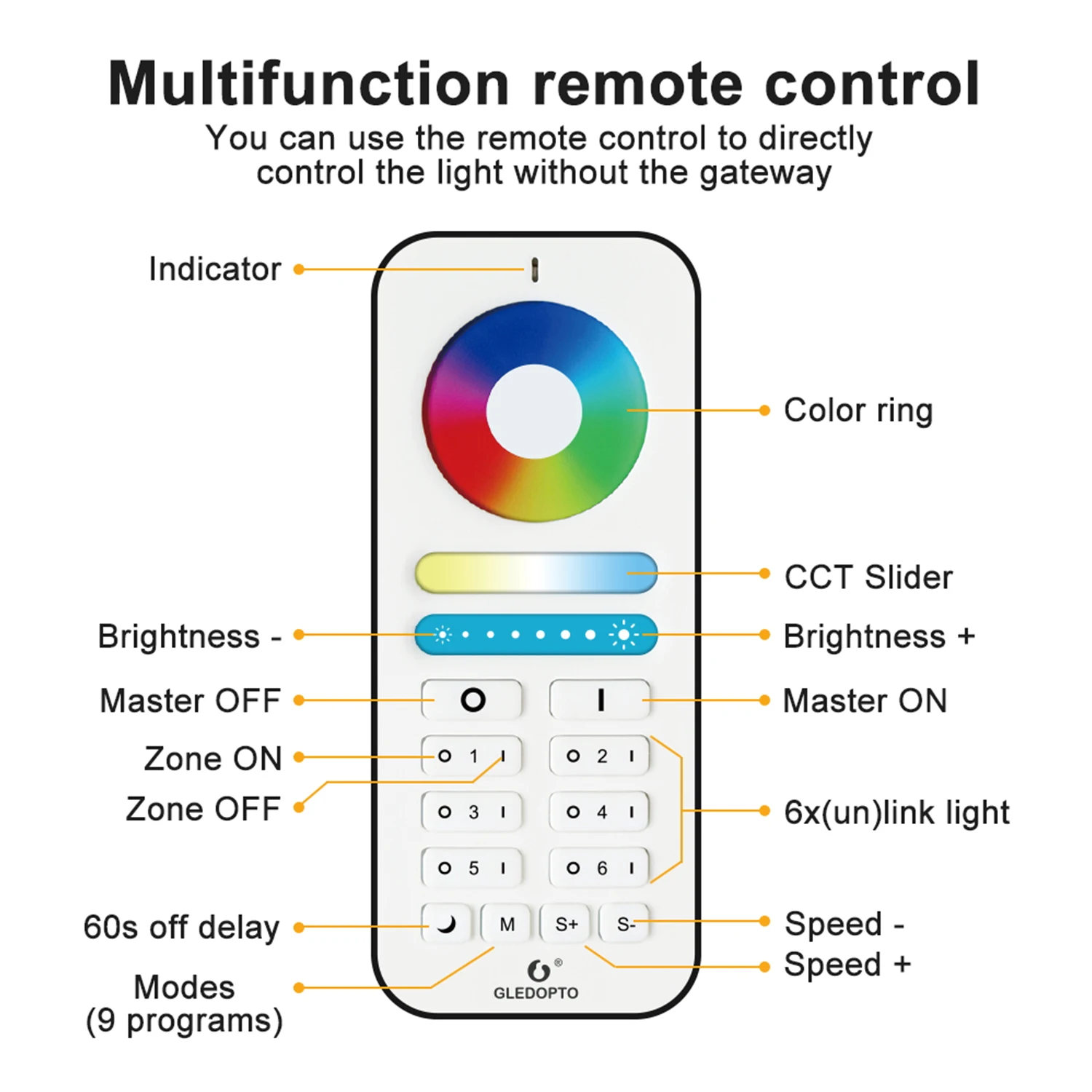

③ Remote Control: support 2.4G RF remote control/wall switch directly, without zigbee hub;

Group: Create rooms, divide your strip lights into one room( to control lights together) or several rooms(to control lights in different room separately).

Set the Scene that can adjust the different lights atmosphere in your room according to your needs.

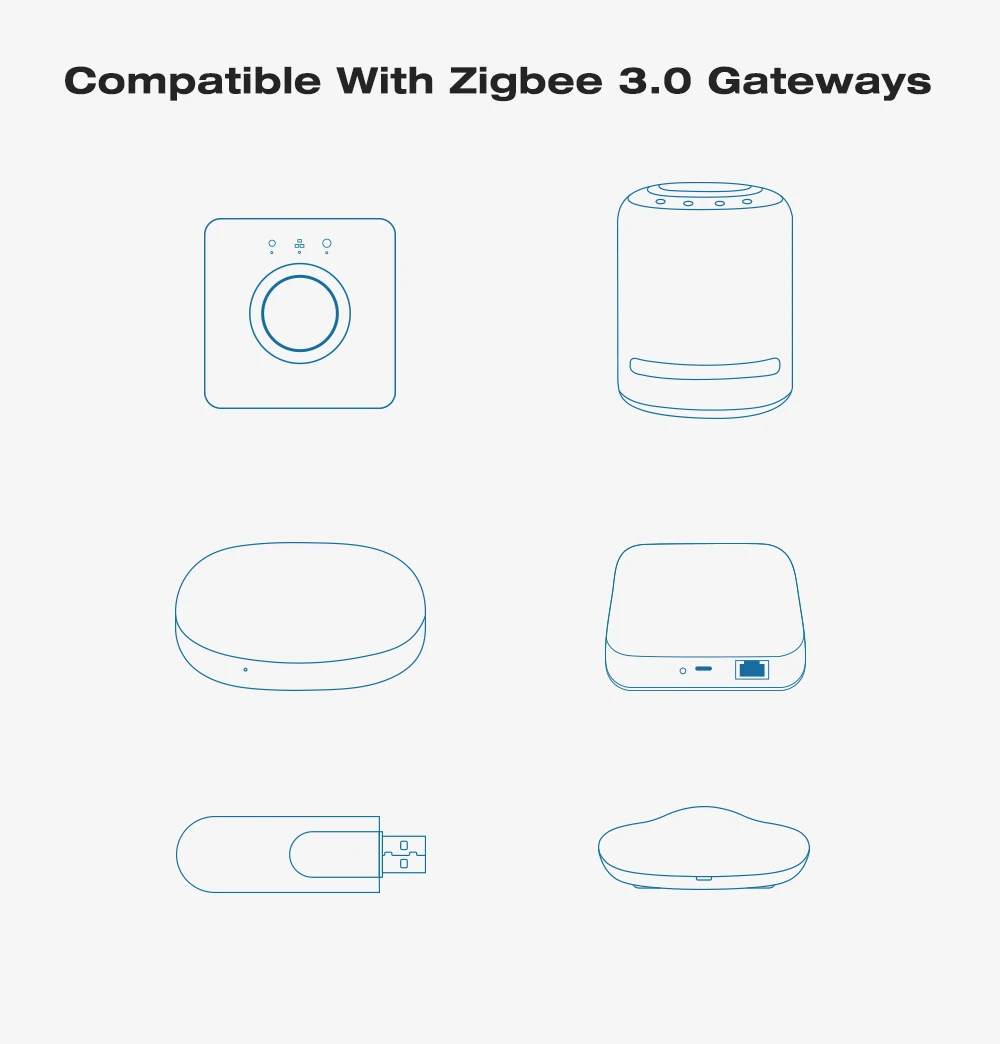

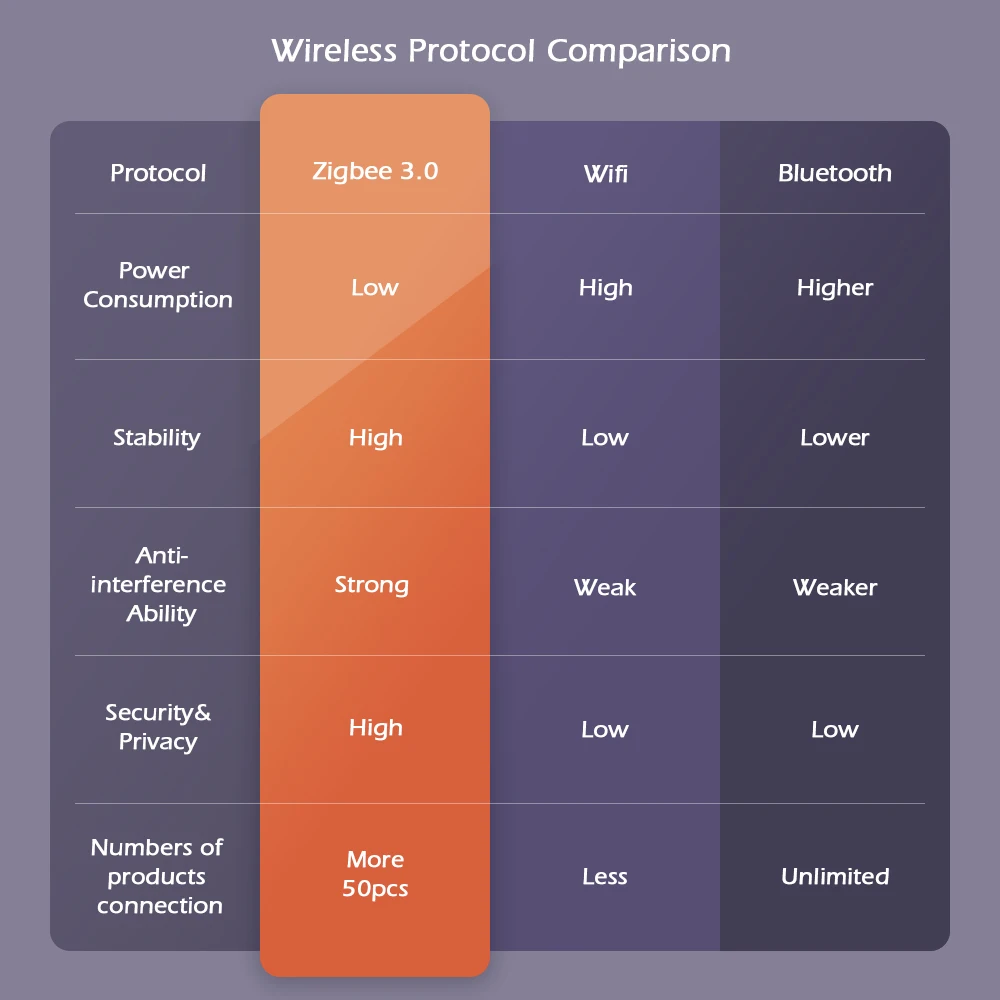

Compatible With Zigbee Gateway: it's using with zigbee light link(ZLL) standard protocol, zigbee transmission technology, mesh, multi signal at the same to to transmit, receive, anti interference ability.

Q&A or more info, please contact us on line, and we will answer you in time.

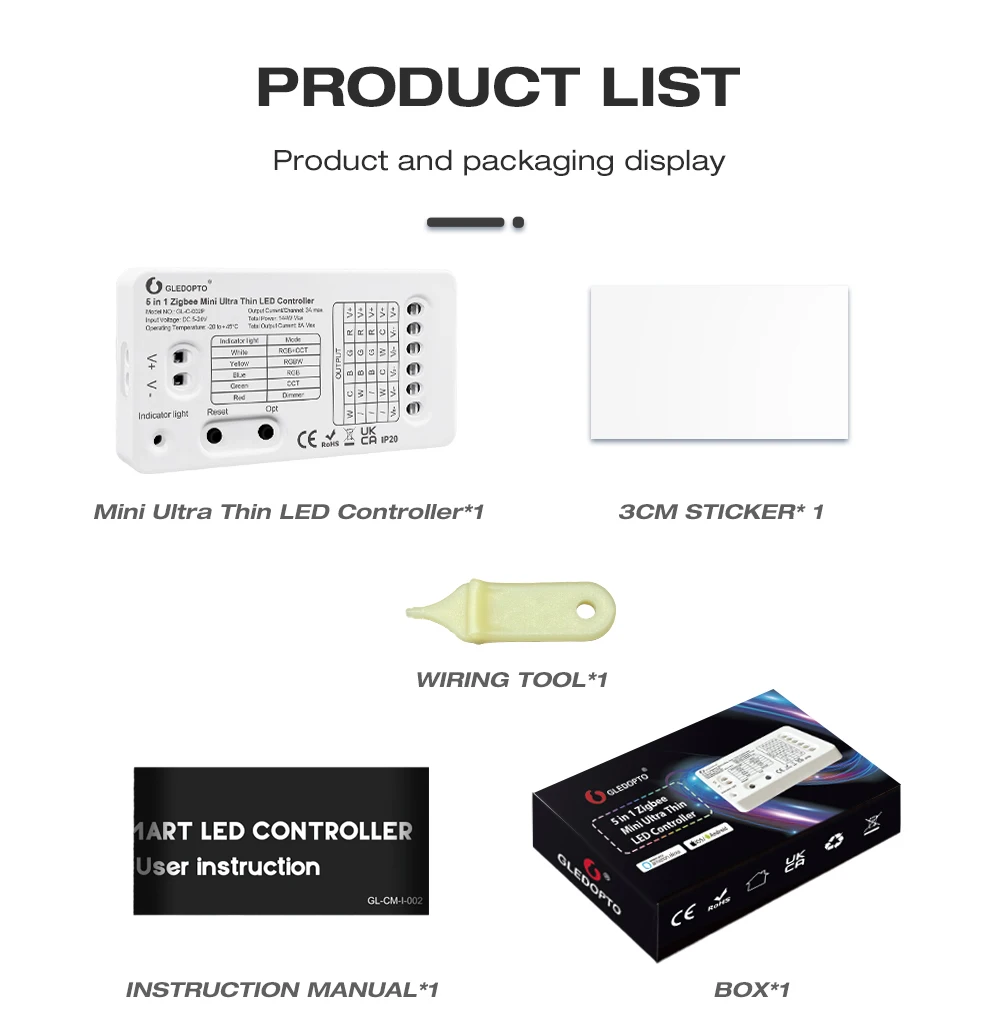

1pcs* ZIGBEE Mini 5 in 1 LED Strip Controller Pro

1pcs* User Manual

1pcs* 3cm Stricker

1pcs* Wiring Tool
