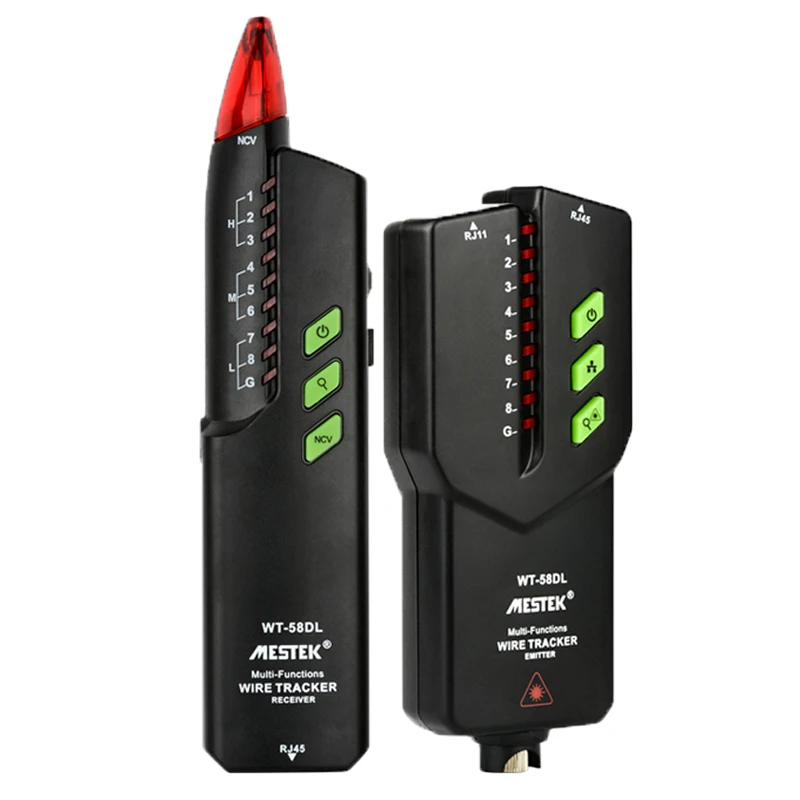

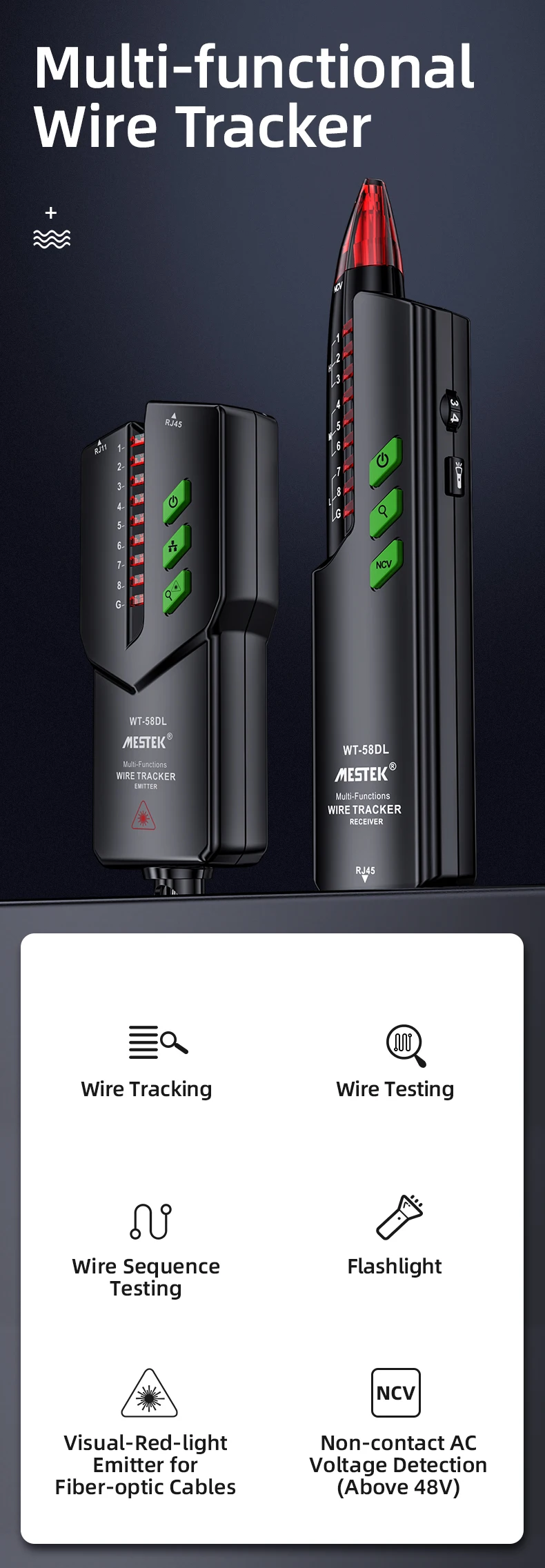

Multi-functional Wire Tracker

-Wire Tracking
-Wire Testing
-Wire Sequence Testing
-Flashlight
-Visual-Red-light Emitter for Fiber-optic Cables
-Non-contact AC Voltage Detection(Above 48V)

What a mess?!How to deal with it?

01Messy Network Cables
02Messy wires
03RJ45 Detect

Application

1.POE Switch
2.Router
3.Optical modem
4.RJ45 cables
5.RJ11 Cable
6.Other Wires

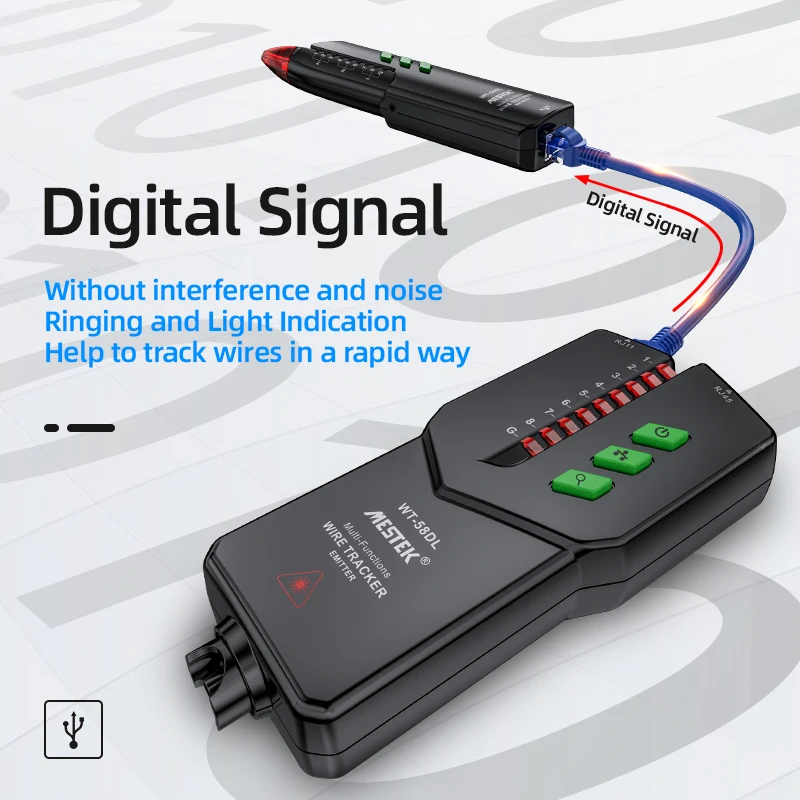

Digital Signal

Without intererence and noise Ringing and light indication Help to track wires in a rapid way

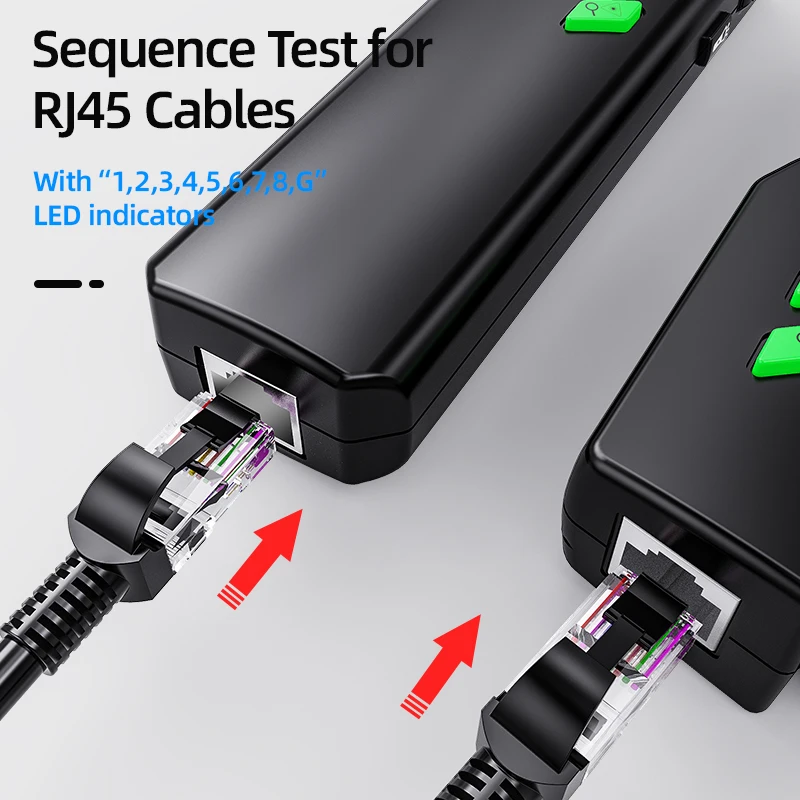

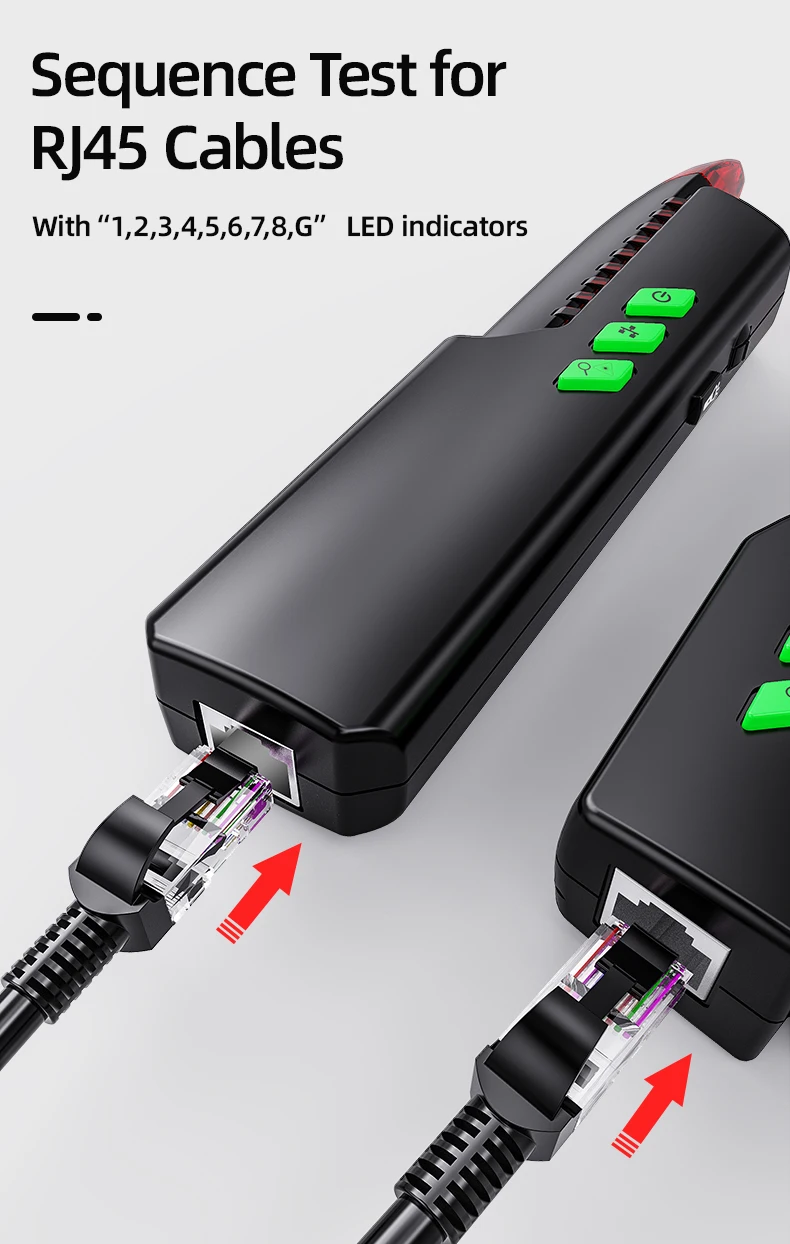

Sequence Test for RJ45 Cables

With"1,2,3,4,5,6,7,8,G" LED indicators

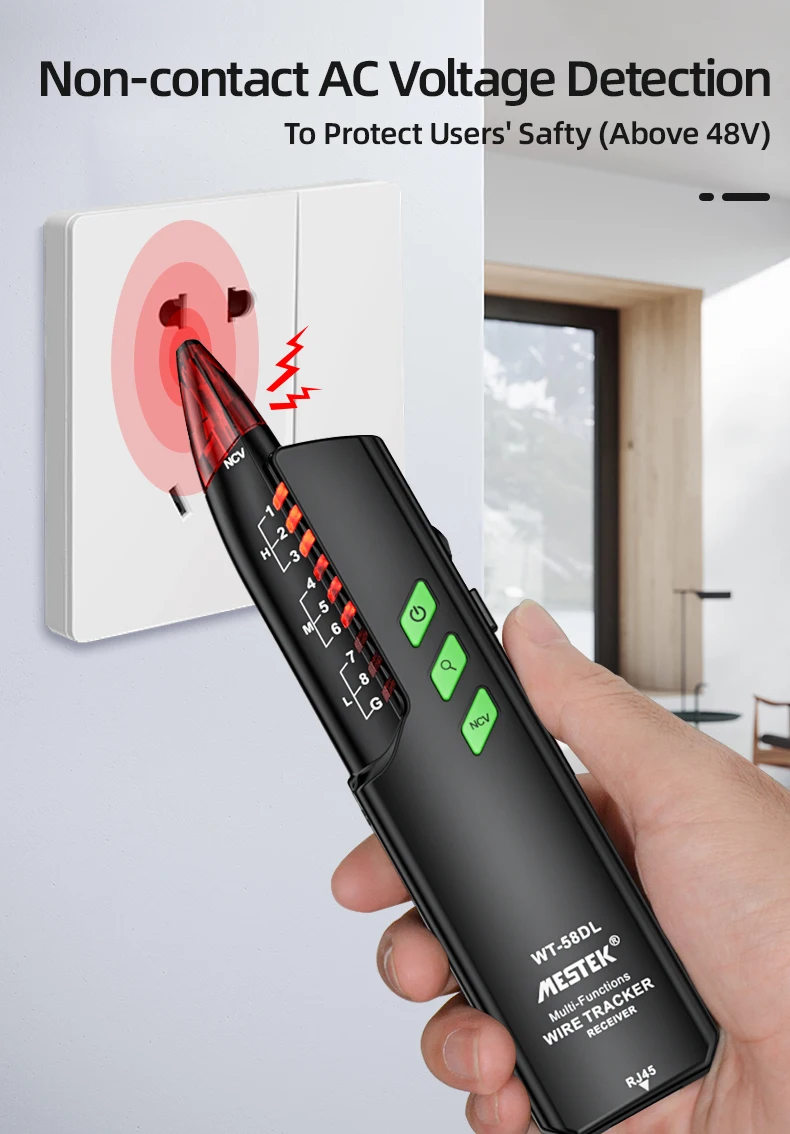

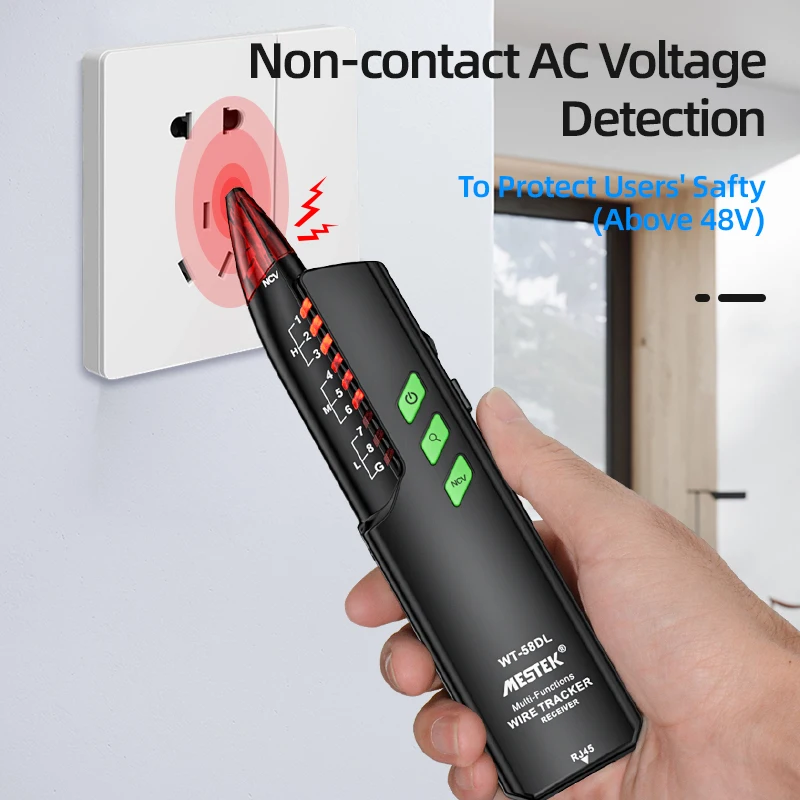

Non-contact AC Voltage detection

To Protect Users'Safty(Above 48V)

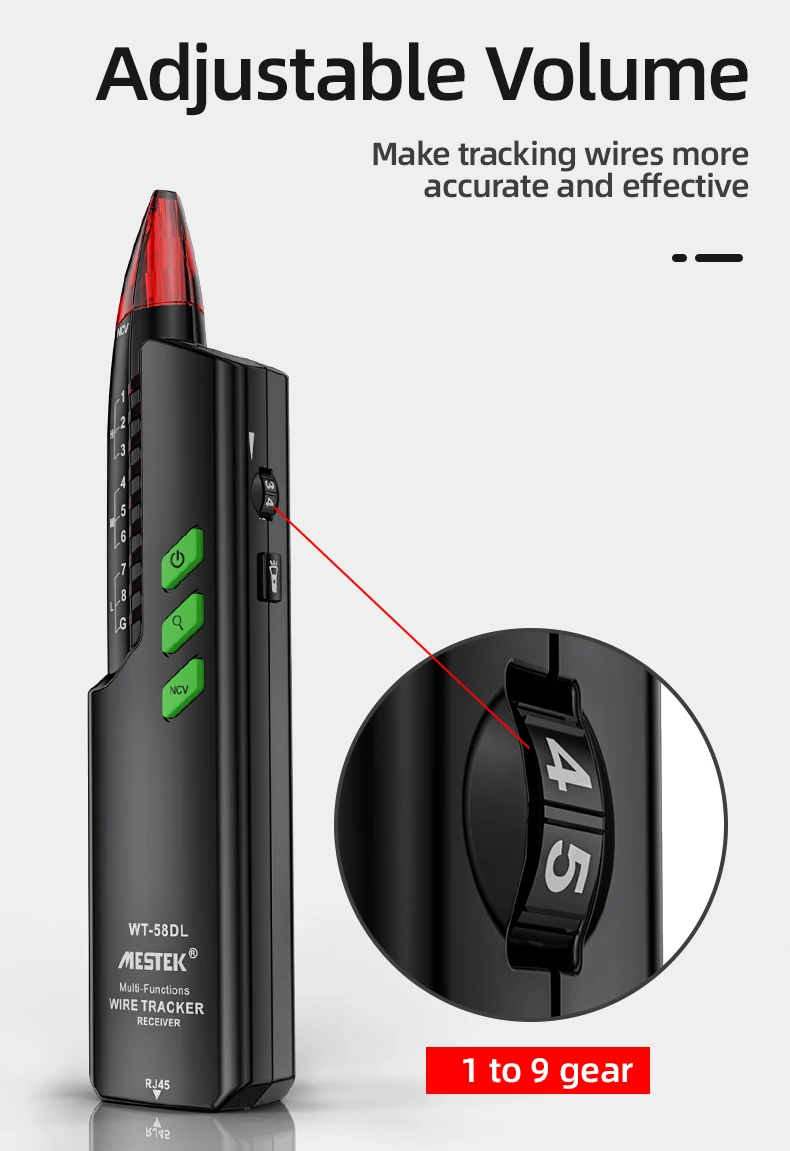

Adjustable Volume

Make tracking wires more accurate and effective

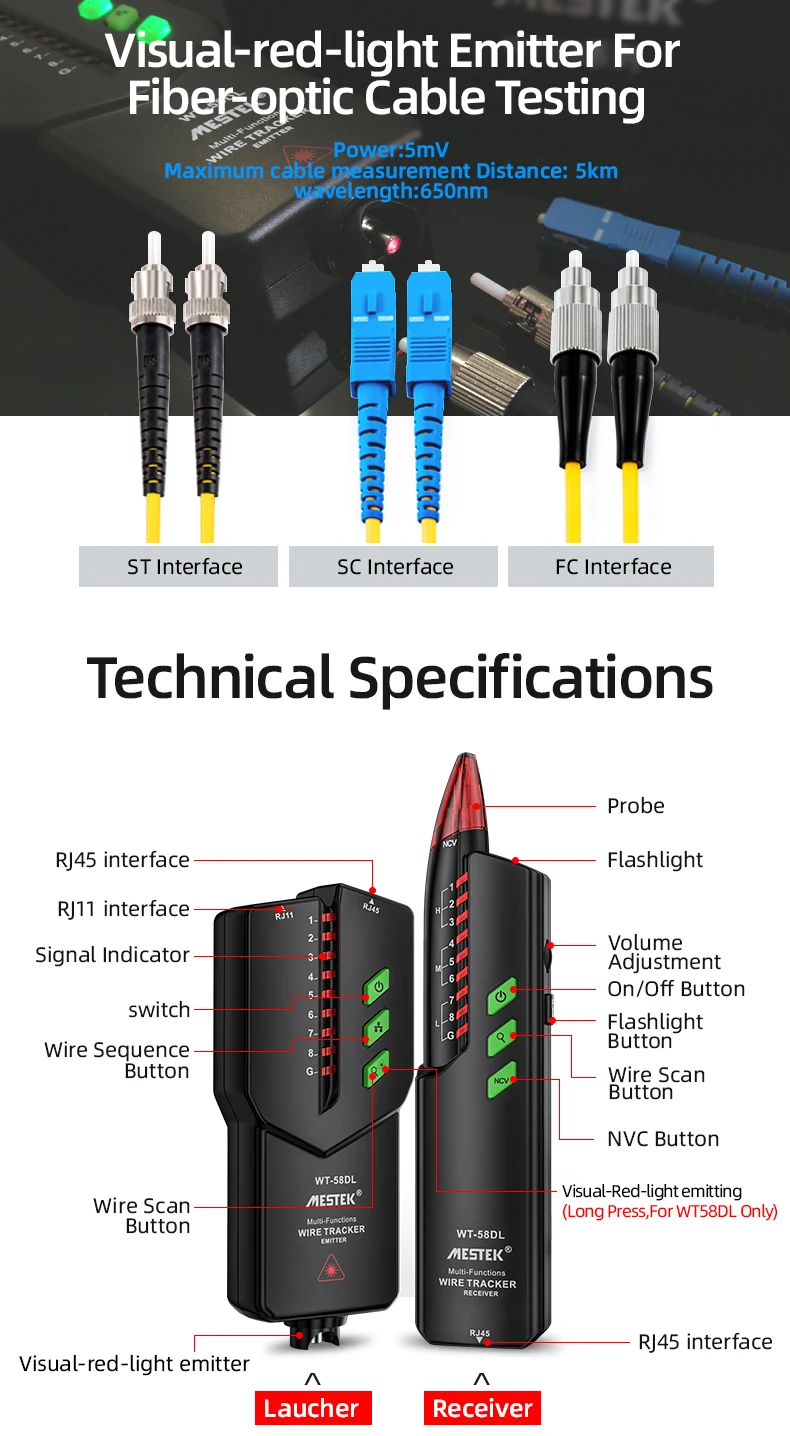

Visual-red-light Emitter For Fiber-optic Cable Testing

Power.5mv
Maximum cable measurement Distance: 5km
Wavelength:650nm

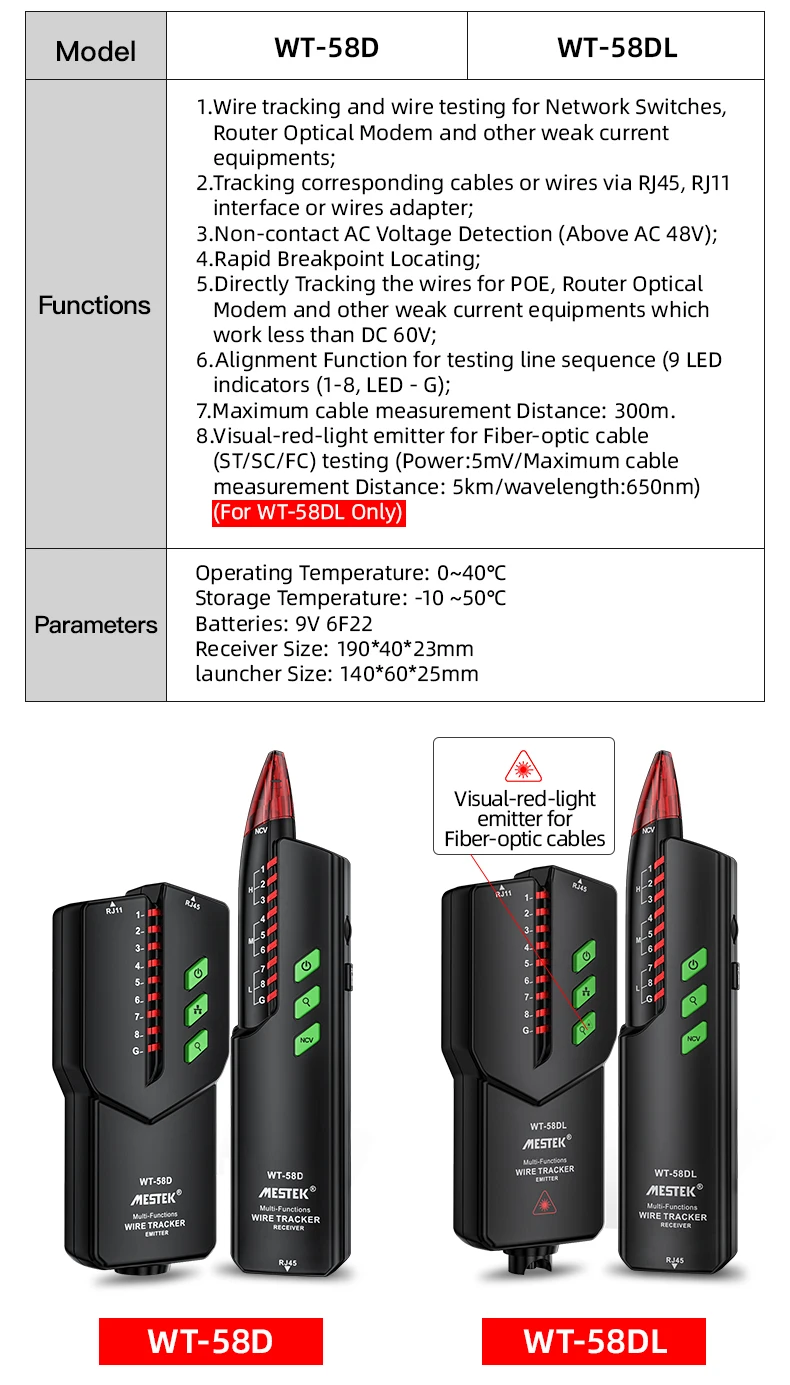

Functions:
1.Wire tracking and wire testing for Network Switches,Router Optical Modem and other weak current equipments;
2.Tracking corresponding cables or wires via RJ45, RJ11 interface or wires adapter;
3.Non-contact AC Voltage Detection (Above AC 48V);
4.Rapid Breakpoint Locating;
5.Directly Tracking the wires for POE, Router Optical Modem and other weak current equipments which work less than DC 60V;
6.Alignment Function for testing line sequence (9 LEDindicators (1-8, LED - G);
7.Maximum cable measurement Distance: 300m.
8.Visual-red-light emitter for Fiber-optic cable
(ST/SC/FC) testing (Power:5mV/Maximum cable measurement
Distance:5km/wavelength:650nm)(For WT-58DL Only)

Parameters
Operating Temperature: 0~40 degree C
Storage Temperature: -10 ~50 degree C
Batteries: 9V 6F22
Receiver Size: 190x40x23mm
launcher Size: 140x60x25mm

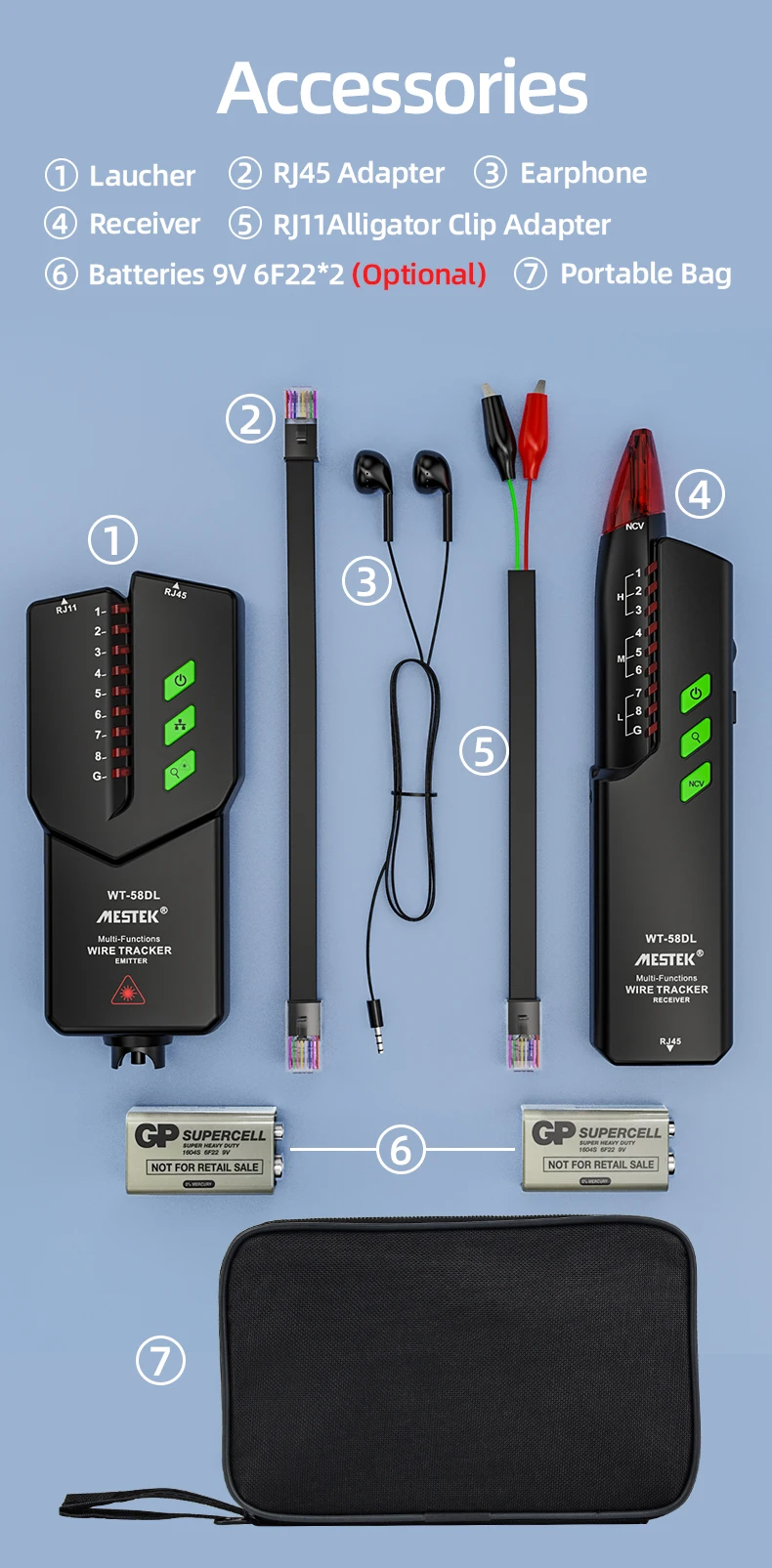

Accessories

1.Laucher
2.Rj45 Adapter
3.Earphone
4.Receiver
5.Rj11Alligator Clip Adapter
6.Batteries 9V 6F22x2(Optional)
7.Portable Bag
