Высокоточный мини-роутер для гравировки 3020 USB 500 Вт Резьба белый блок управления

Высокоточный мини-роутер для гравировки 3020 USB 500 Вт Резьба белый блок управления

Shipping Attention :
Please understand that if the TAX-FREE service is shipped from China, it is shipped by the seller's shipping method, not by international express, thanks .
1> For EU:
NO Free DDP&VAT from our EU Warehouse to your door, fast and safe, 5-10 days shipping. (PS: Please select ship from China then do not pay VAT to AE)Other goods can also be sent by rail transportation including Free DDP-free DDP services.
(Germany/ France/ Spain/ Italy/ Poland/ Austria/ Belgium/ Czech Republic/Denmark/ Lithuania/ Bulgaria/ Estonia/ Greece/ Romania/ Slovenia/ Croatia/ Luxembourg/ Finland/ Ireland/ Portugal/ Sweden/ Slovakia/ Hungary/ Latvia)

2> For Russia / Ukraine
No Free DDP from our Moscow warehouse to your door, fast and safe, 5-10 days shipping. Ukraine may need pay some Free DDP, but can got machine very fast 5-10 days .(Kazakhstan/Belarus Free DDP free too, ship from China, 22-35 days shipping)

3> For United States/Canada/Australia
TAX free to US/CA/AU countries, ship from China by sea, transfer to your door by local country, 22-35 days shipping.

4> For Southeast Asia
TAX free to Southeast Asia countries, ship from China by sea, transfer to the door by local shipping, 15-20 days shipping.
(Singapore/ Malaysia/ Thailand/ Vietnam/ Indonesia/Philippine)

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designedfor large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

Model and Technical Parameters

MODEL

3020

Attribute

T-500W

3axis

T-500W

4axis

Z-500W

3axis

Z-500W

4axis

Interface

USB + LPT Port

USB + LPT Port

USB + LPT Port

USB + LPT Port

Toolauto-checking

Yes

Yes

Yes

Yes

Spindle Motor:

500W

500W

500W

500W

Type of screw

1404

Trapezoidal
Screw

1404

Trapezoidal
Screw

1605

Ball screw

1605

Ball screw

Weigh

25KG

29KG

26KG

30KG

Machine Dimensions：

560X450X450mm

Rack material：

6061 and 6063 Hard aluminum alloy (The unique
and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area：

300X200mm

Z-Axis Stroke：

60mm, Engraving depth depends on the length of
the tool edge

Acceptable material thickness：

≤60mm

Rail type：

Chromeplate shaft+Linear Bearings,Surface
hardening 61HRC

Spindle
motor：

500W/12000r/min(Very
small noise)

Collet type：

ER11,1/8"(3.175mm) Collet

Stepper motor and drive：

two-phase hybrid stepping motor3A/PHASE,150N.cm, 8 segments drive.

Maximum operating speed：

4000mm/min (Engraving speed :300-3000mm/min)

Repeat positioning Accuracy：

≤0.03mm

Software Compatability：

Mach3/Emc2/Kcam, (Type3,Wentai,
ArtCAM,coppercam)

Command code：

G code/.nc/.ncc/.tab/.txt

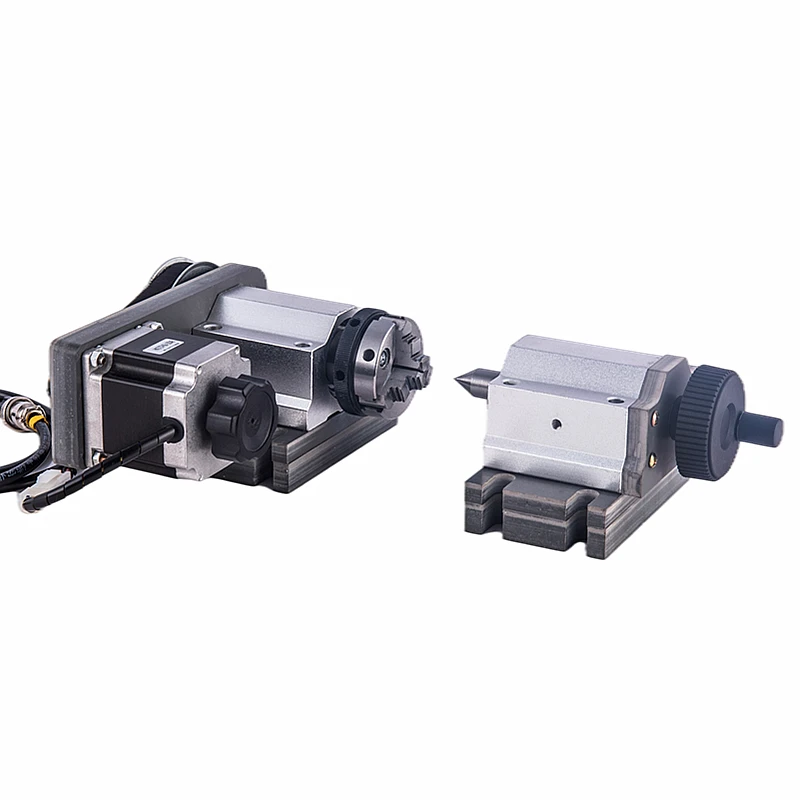

Rotation
Axis (4th Axis)

Description:

Chuck Size: 50mm self-centering chuck

Center height: H = 51mm

Clamping diameter: 50mm or less

Deceleration ratio: 4:1

Stepper motor:NEW 57 type / 3A

Stepper Drive: T65-axis drive

Positioning accuracy: 0.075 °

Weight: 4kg
