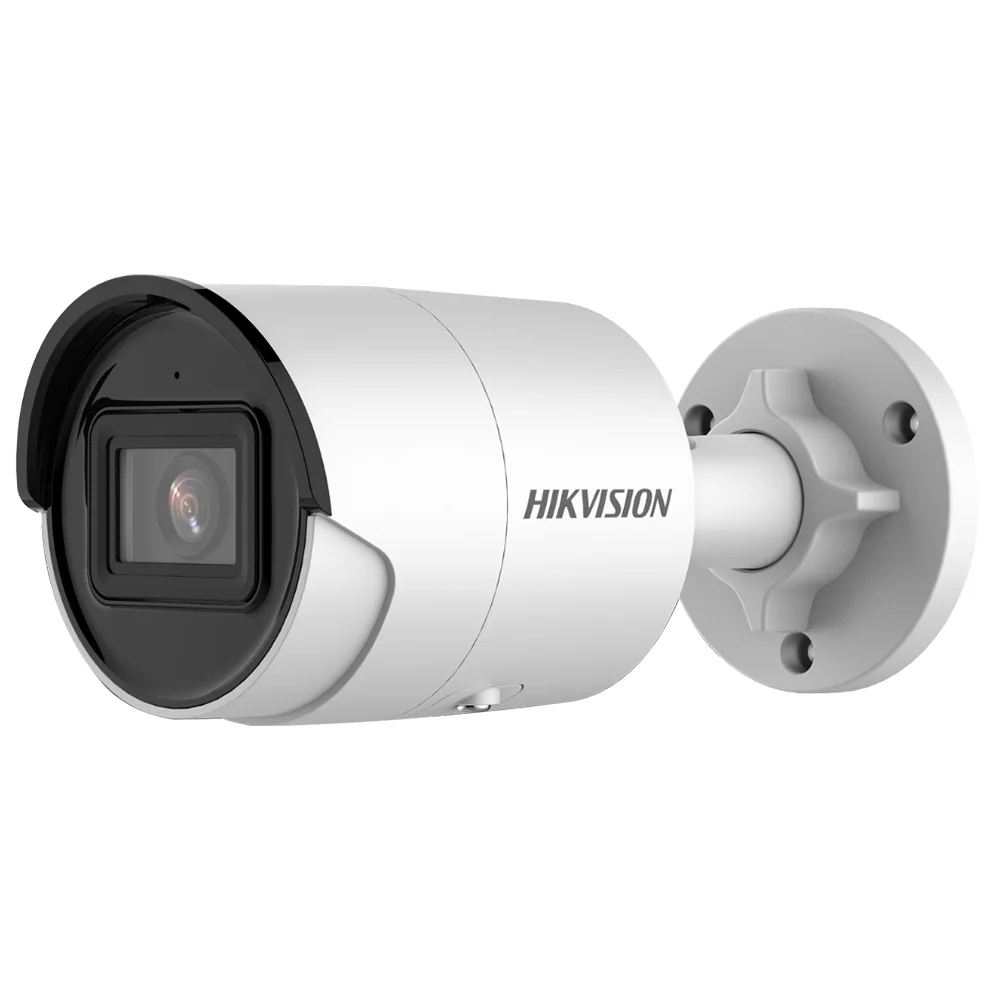

Hikvision 8Мп 4К IP-камера Poe с встроенным микрофоном DS-2CD2083G2-IU IR 40м AcuSense фиксированная пуля сетевого видеонаблюдения CCTV Security.

Hikvision 8Мп 4К IP-камера Poe с встроенным микрофоном DS-2CD2083G2-IU IR 40м AcuSense фиксированная пуля сетевого видеонаблюдения CCTV Security.

Unavailable in

DS-2CD2083G2-IU

High quality imaging with 8 MP resolution

Efficient H.265+ compression technology

Clear imaging against strong backlight due to 120 dB WDR technology

Focusing on human and vehicle classification based on deep learning

-U: Built-in microphone for real-time audio security

Water and dust resistant (IP67)

Camera

Image Sensor1/2.8" Progressive Scan CMOS

Max. Resolution3840 × 2160

Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Shutter Time1/3 s to 1/100,000 s

Day & NightIR cut filter

Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional

2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°

4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°

6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63°

Lens MountM12

Iris TypeFixed

ApertureF1.6

DORI

2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m

4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m

6 mm: D: 177 m, O: 70 m, R: 35 m, I: 18 m

Illuminator

Supplement Light TypeIR

Supplement Light RangeUp to 40 m

Smart Supplement LightYes

IR Wavelength850 nm

Video

50
Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080,
1280 × 720); 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 ×
1520, 1920 × 1080, 1280 × 720)

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),

*Third stream is supported under certain settings.

Video Bit Rate32 Kbps to 16 Mbps

H.264 TypeBaseline Profile,Main Profile,High Profile

H.265 TypeMain Profile

Bit Rate ControlCBR,VBR

Scalable Video Coding (SVC)H.264 and H.265 encoding

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264 (*Third stream is supported under certain settings.)

Region of Interest (ROI)1 fixed region(s) for main stream and sub-stream

Audio

Audio Type-U: Mono sound

Audio Compression -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC

Audio Bit Rate-U:
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to
192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering-U: Yes

Network

ProtocolsTCP/IP,
ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP,
WebSocket, WebSockets

Simultaneous Live ViewUp to 6 channels

APIOpen Network Video Interface (Profile S, Profile G),ISAPI,SDK

Up to 32 users

3 user levels: administrator, operator, and user

SecurityPassword
protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS
1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)

ClientiVMS-4200,Hik-Connect,Hik-Central

Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

Local service: Chrome 57.0+, Firefox 52.0+


Image Parameters SwitchYes

Image SettingsRotate,
mirror, privacy mask, saturation, brightness, contrast, sharpness,
gain, white balance adjustable by client software or web browser

Day/Night SwitchDay,Night,Auto,Schedule

Wide Dynamic Range (WDR)120 dB

SNR≥ 52 dB

Image EnhancementBLC,HLC,3D DNR

Privacy Mask4 programmable polygon privacy masks

Interface

Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB

Built-in Microphone-U: Yes

Reset KeyYes

Event

Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Smart EventLine
crossing detection, intrusion detection (support alarm triggering by
specified target types (human and vehicle)), face detection

LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture

General

12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7.2 W

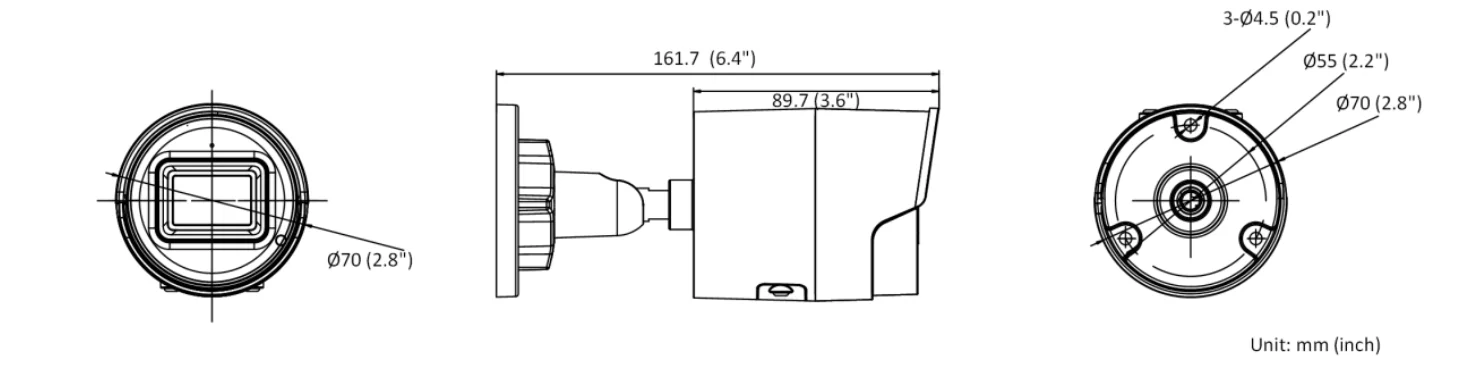

Ø70 mm × 161.7 mm (Ø2.8 × 6.4\")"

MaterialAluminum alloy body, bubble: plastic

Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")

Approx. 495 g (1.1 lb.)

With Package WeightApprox. 759 g (1.7 lb.)

Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

33
languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek,
German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese,
Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian,
Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil),
Ukrainian

General FunctionHeartbeat,anti-flicker,password reset via email,pixel counter

Approval

FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

ProtectionIP67: IEC 60529-2013

UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
