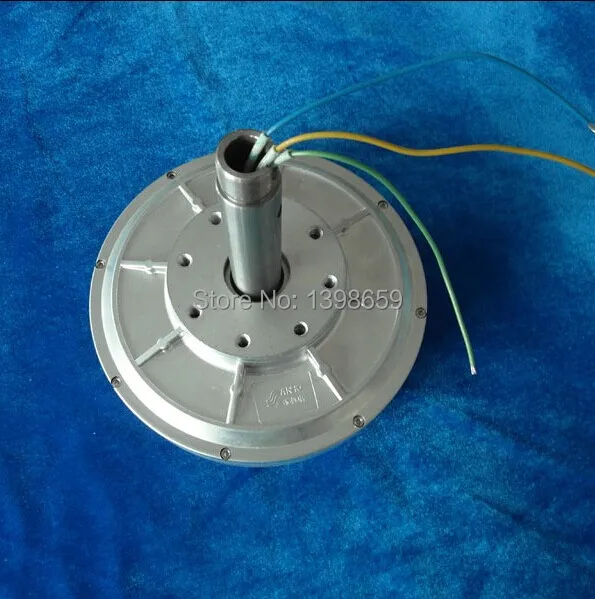

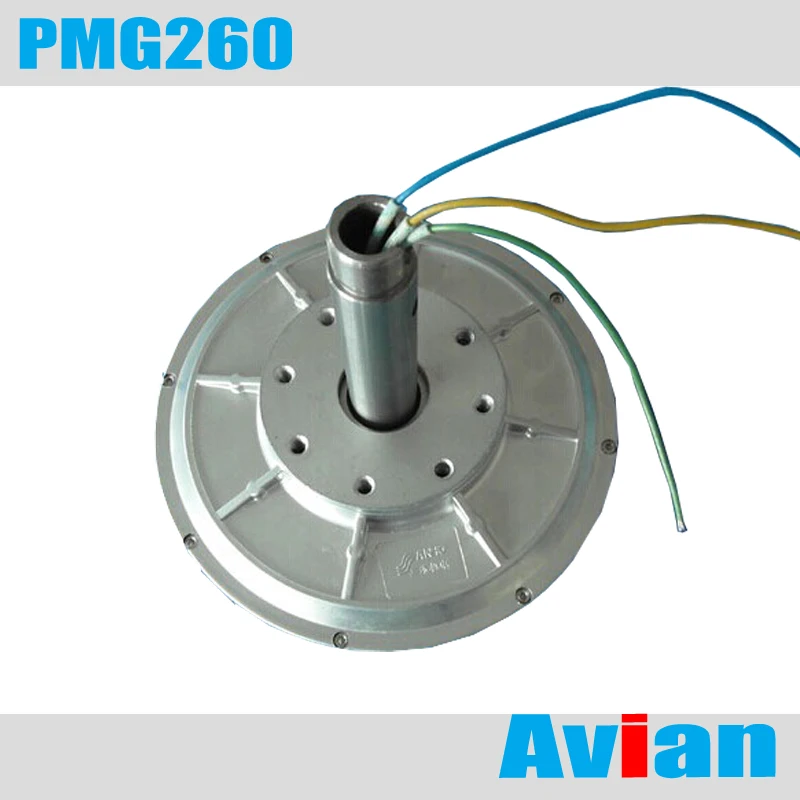

1. MODEL: PMG260-0.3KW/300RPM

2. CHARACTER

Our disc coreless PMG have advantage in low Rated speed, Low starting wind speed, Small volume, Energy Small, Light weight, Compact structure,High efficiency etc.

1 Coreless, anhysteresis, slotless, have low starting torque.

2 No iron loss, have high efficiency

3 Adopt unique coreless precision winding technology design precision coil

4 Adopt the rare earth permanent magnet, which is multipole, mean gap, high power density and high output power.

5 Low speed direct driving, no torque fluctuations

6 Compact structure, high ratio of power to volume

7 No iron loss, low calorific value,small temperature rise

8 Simple structure, easy to install

9 The brushless structure, free maintenance

3. RANGE OF APPLICATION

0.1-0.5kw vertical axis wind turbine; gasoline generators; hydroelectric generator

4. SHAPE DRAWING

5. PERFORMANCE PARAMETER

NO.

PARAMETER

UNITS

DATA

1

Rated power

KW

0.3

2

Rated speed

RPM

300

3

Rated voltage

V

12V/24V/48VAC

4

Rated Current

A

3.8/7.6

6

Efficiency

>85%

7

Resistance (Line-Line)

-

8

Winding type

Y

9

Insulation Resistance

100Mohm Min(500V DC)

10

Leakage level

<5 ma

11

Start torque

N/M

<0.1

12

Phase

Three phase

13

Structure

outer rotor

14

Stator

coreless

15

Rotor

Permanent magnet type (outer rotor)

16

Gen. Diameter

mm

260

17

Gen. Length

mm

192

18

Gen. Weight

kg

11

19

Shaft. Diameter

mm

30

20

Housing Material

Aluminum ( Alloy )

21

Shaft Material

Steel

6. CURVE GRAPH

This table shows DC voltage is for reference,all our PMG generator is AC.
