Long Range Wireless Video Tranmitter 1.2Ghz 10W Analog Video Transmitter 4 channels Broadcast AV Sender

If you are seeking an equipment that can transmit the audio and video to a long distance without cable, for example the villa, small lake, bridge or some other open areas, this transmitter system is the right one you need.

This equipment will cover a long distance in the open area around 30Km. But when there are obstacle between the transmitter and receiver, it will be decided case by case.

This unit is the professional one and the signal is very strong in 1.2G series that can be used to cover the long distance where need strong signal and the industrial project.

Description:

KP-12TX10W wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment. The use of 12dB yagi directional high gain antenna, the open area to ensure the transmission 10~30km or so, it can be reach 60km on UAV/helicopter. And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common BNC interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.

It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.

Features:

1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output power, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.

Specification:

oltage

DC 12V

Current

2A

Frequency

1.2Ghz

Number of channels

4 channels

Frequency band

1.080Ghz, 1.120Ghz, 1.160Ghz, 1.200Ghz

Transmit Power

10W (full 40dBi)

Video Output

1 Vp-p(FM)

Audio Output

1 Vp-p(FM)

Audio Carrier Ware

5.5M  6.0M

Distance

10~30km LOS; 5km NLOS on ground; 60km from air

Overall Configuration

Transmitter, receiver, BNC AV cable, 12dBi yagi antenna

Temperature

-10°C ~ +50°C

Transmitter Weight

200g

Dimensions (L * W * H)

150*65*30mm

Frequency

1.2 Ghz

Channel

8 channels

Frequency band

1.080Ghz, 1.120Ghz, 1.160Ghz, 1.200Ghz, 1.240Ghz, 1.280Ghz, 1.320Ghz, 1.360Ghz

Working voltage

DC 12V

Current consumption

260mA

Weight

120g

Size

120*60*20mm

Accessories

receiver, antenna, BNC AV cable

High gain antenna for Tx:

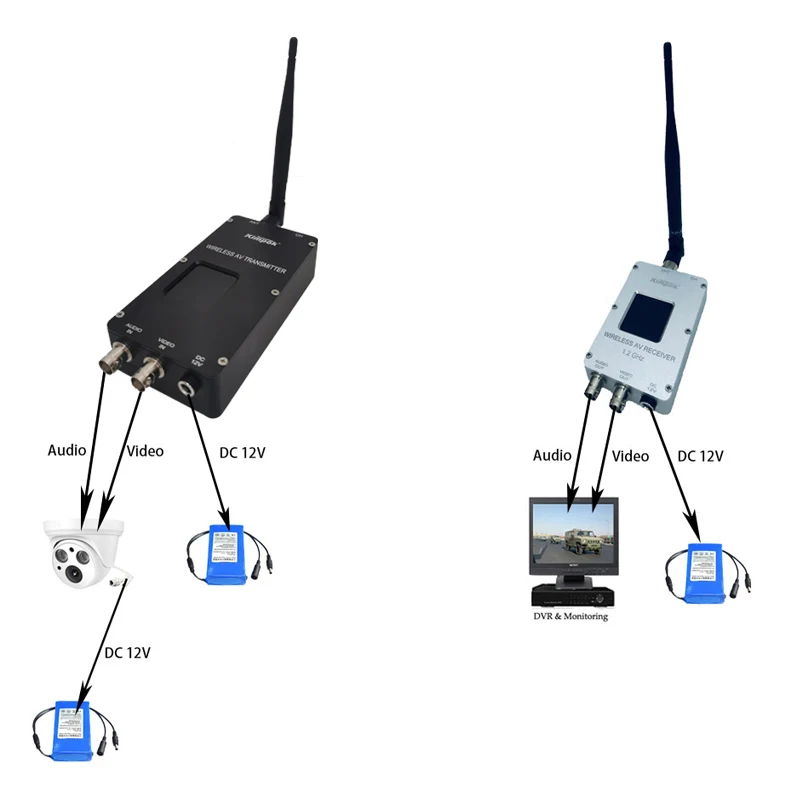

Installing:

FAQ:

Q1: What can I buy from you?

COFDM
digital AV transmitter, IP mesh radio, analog video transmitter, radio
data transceiver, and transmitter receiver OEM main board.

Q2: Why should I choose you?

Our
core R&D team comes from the first-class university in China, major
in communication engineering. We believe that wireless communication
will keep on developing in professional markets in the future.

Q3: Do you have a minimum order quantity?

No MOQ limit, 1pc is acceptable.

Q4: What kind of product service can I have?

OEM & ODM service.

Q5: What is the product warranty?

We offer two-year-warranty and lifelong maintenance.

Q6: What is the average lead time?

5-7 working days for regular model, and 20-30 working days for customized model.

Q7: What kinds of payment methods do you accept?

We accept bank transfer, Western Union, PayPal, or cash payment.

Q8: Can you supply the relevant documentation?

Yes,
we can provide most documentation including Certificates of Analysis /
Conformance; Country of Origin, and other export documents where
required.

Our Service:

One-stop ODM/OEM solution;

24-hour technical support;

Lifelong maintenance (Replacement parts will be charged after a year);

Provide professional system design and construction;

You
will get good price and high quality here since we are an experienced
manufacturer in wireless microwave transmission area since 2008, we are
the source.
