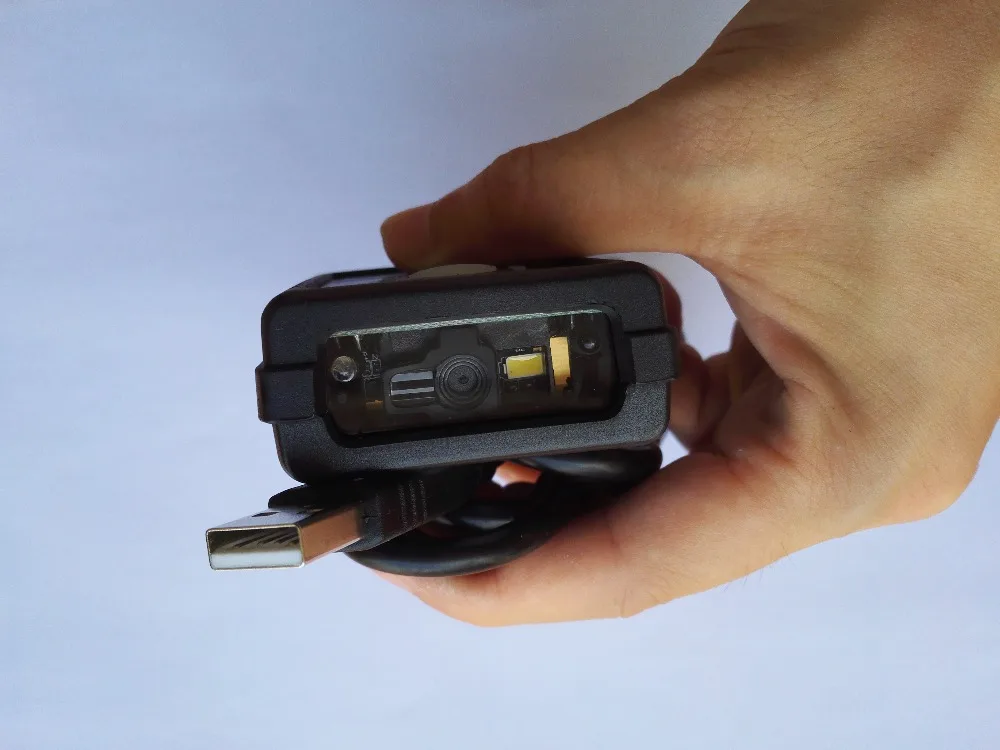

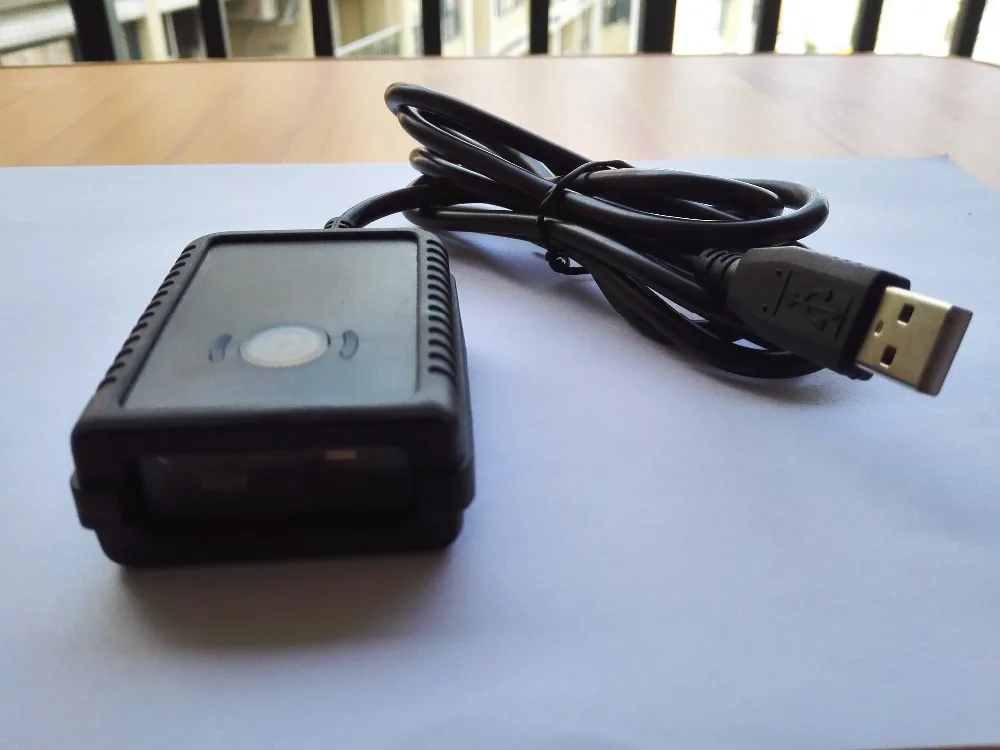

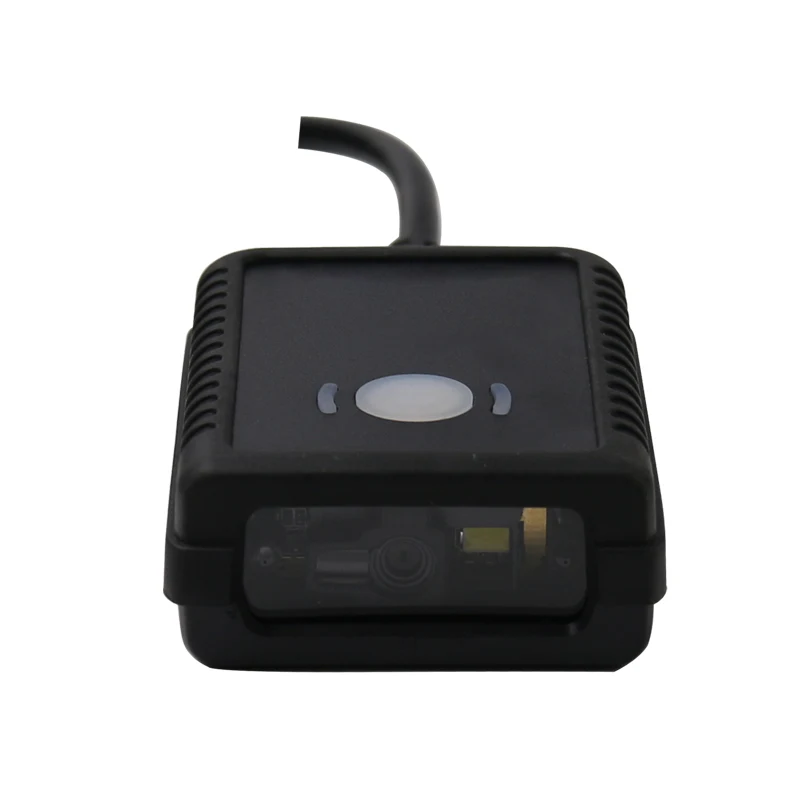

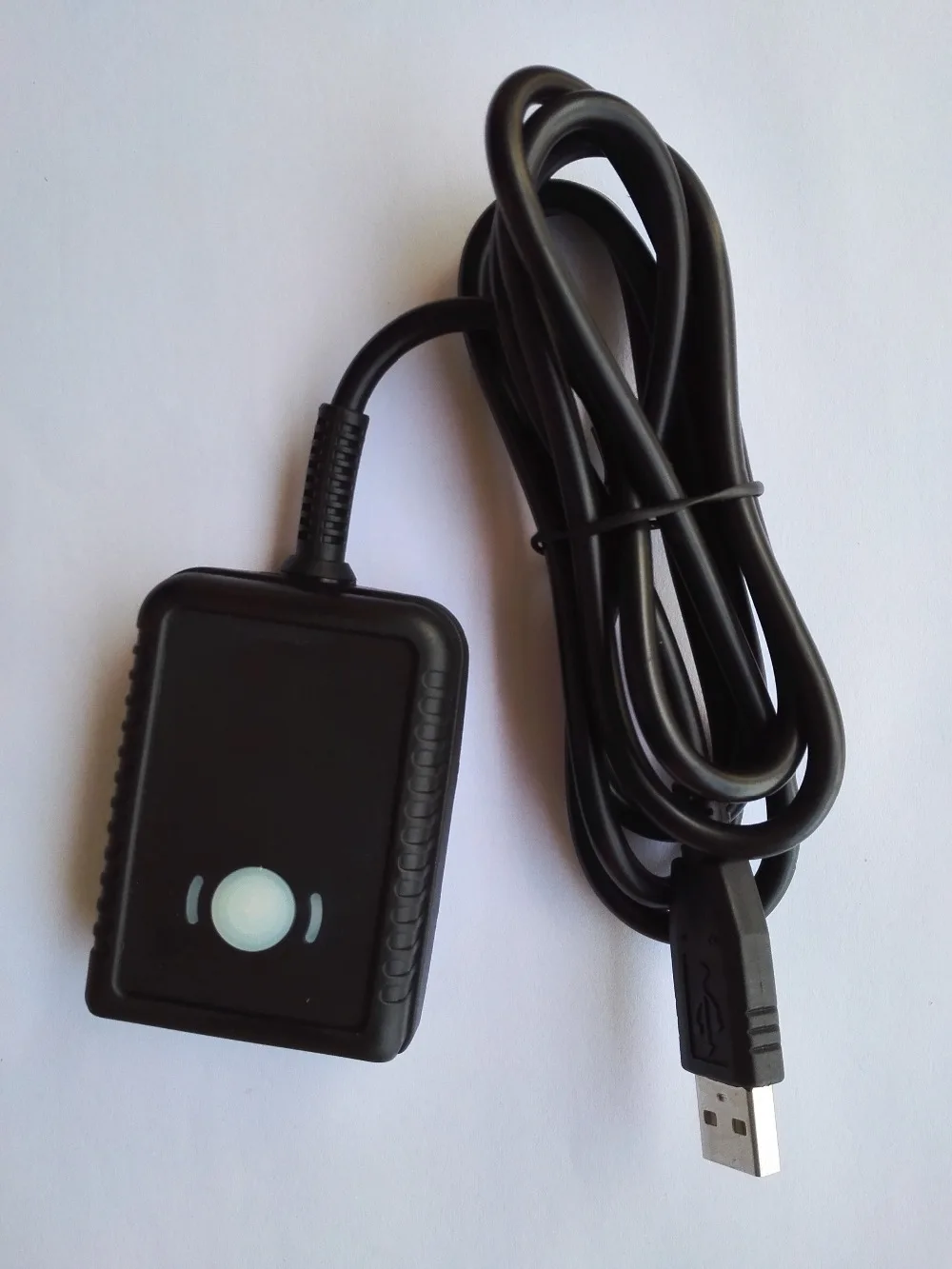

Mini fixed mounted barcode scanner module for 2d and qr pdf417 data matrix barcode with USB or RS232Interface for PC Kiosk M5108 series not only has a flexible and compact design, but also the same outstanding performance. From commercial POS to factory production workshop, the physical dimensions of the micro make it virtually integrated into any finite space. With the aid of comprehensive scanning function, M5108 can be read almost any one dimensional, two dimensional bar code and even direct components (DP version).. Regardless of which type of bar code, regardless of in the bar code printed on the paper label, carved in the product or display on the screen of the mobile phone and breakthrough of digital imaging technology to achieve extraordinary scanning speed.



Features and advantages:

The precision of the unique sight
The image sensor - fast response
Two dimensional scanning - leading platform - high speed, full range of barcode capture Fully read all the mainstream of one- dimensional, two-dimensional bar code
L read the paper, mobile phone and computer display any barcode
- small size - easy integration
- easy to use - plug
Support RS232 interface and USB interface

Features and advantages:

The precision of the unique sight The image sensor - fast response Two dimensional scanning - leading platform - high speed, full range of barcode capture Fully read all the mainstream of one-dimensional, two-dimensional bar code L read the paper, mobile phone and computer display any barcode - small size - easy integration - easy to use - plug Support RS232 interface and USB interface



Applicable scope:

Medical, mobile phone coupons on the bar code or tickets (performances, air tickets, movie tickets, train tickets, etc.), pharmacies,patrolcars,retail,lottery,silver,production,etc..



Mechanical



Dimensions (LxWxH)

55mm×45mm×24mm.

Weight

75 g

Electrical



Input Voltage

3.3 VDC

Operating Power

9.9 W (300mA @ 3.3 VDC)

Standby Power

2.21 W (70mA @ 3.3VDC)

Host System Interfaces

USB virtual COM(Windows OS) , USB-HID, RS232

LED class

EN62471:2008

Electromagnetic compatibility

EN 55022,EN55024,EN 60950-1

Environmental



Operating Temperature

0°C to 40°C

Storage Temperature

-40°C to 60°C

Humidity

5% to 95% relative humidity, non-condensing

Drop

withstand 1.0 m drops to concrete on each of

the faces

Light Levels

0 to 100,000 lux

Scan Performance



Scan Pattern

Area Image

Optical Resolution

752*480 pixels

Rotational Sensitivity

Omnidirectional 360°@ 0°Pitch and 0°Skew

Pitch/Skew Tolerance

60° @ 0°Roll and 0°Pitch

Symbol Contrast

25% minimum reflectance difference

Warranty

1 year factory warranty

Decode Capability

1D:Code 128,EAN-13,EAN-8,Code39,,etc.

2D:PPDF417,QR Code,Data Matrix,etc.

Warranty

1 year factory warranty
