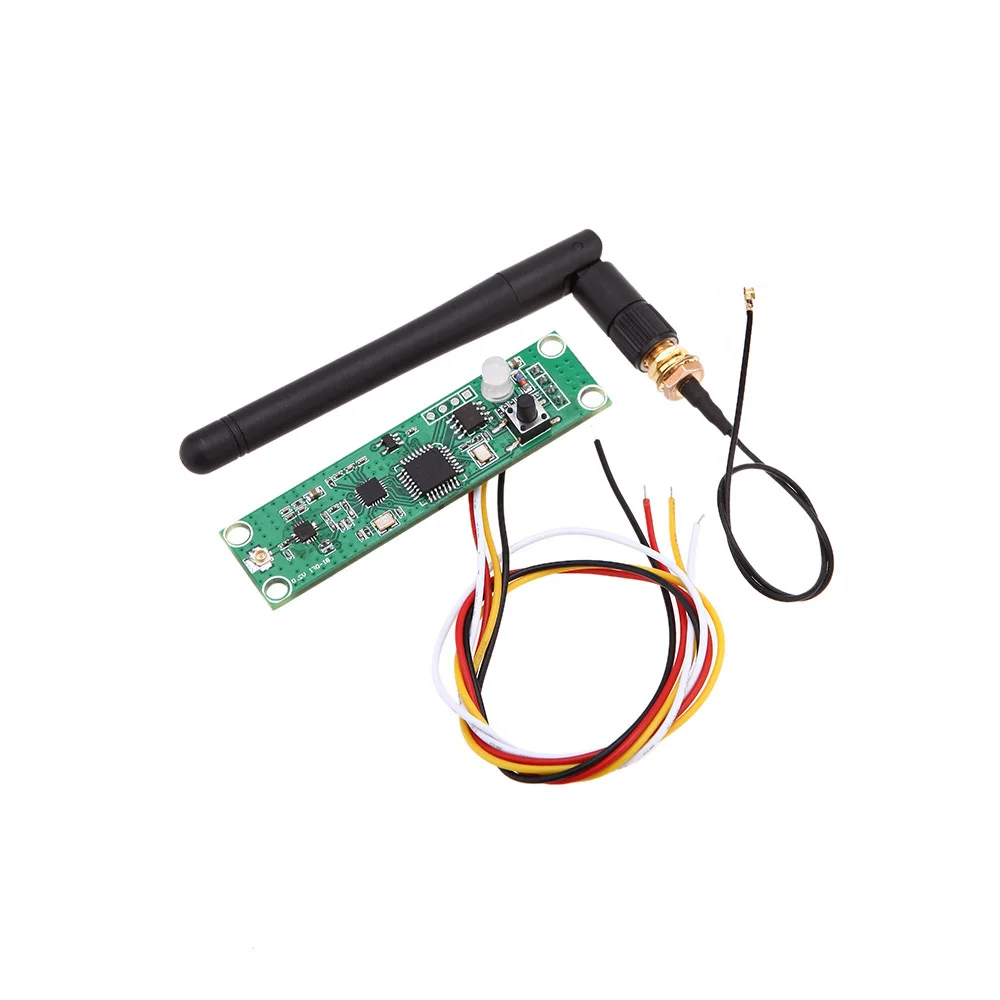

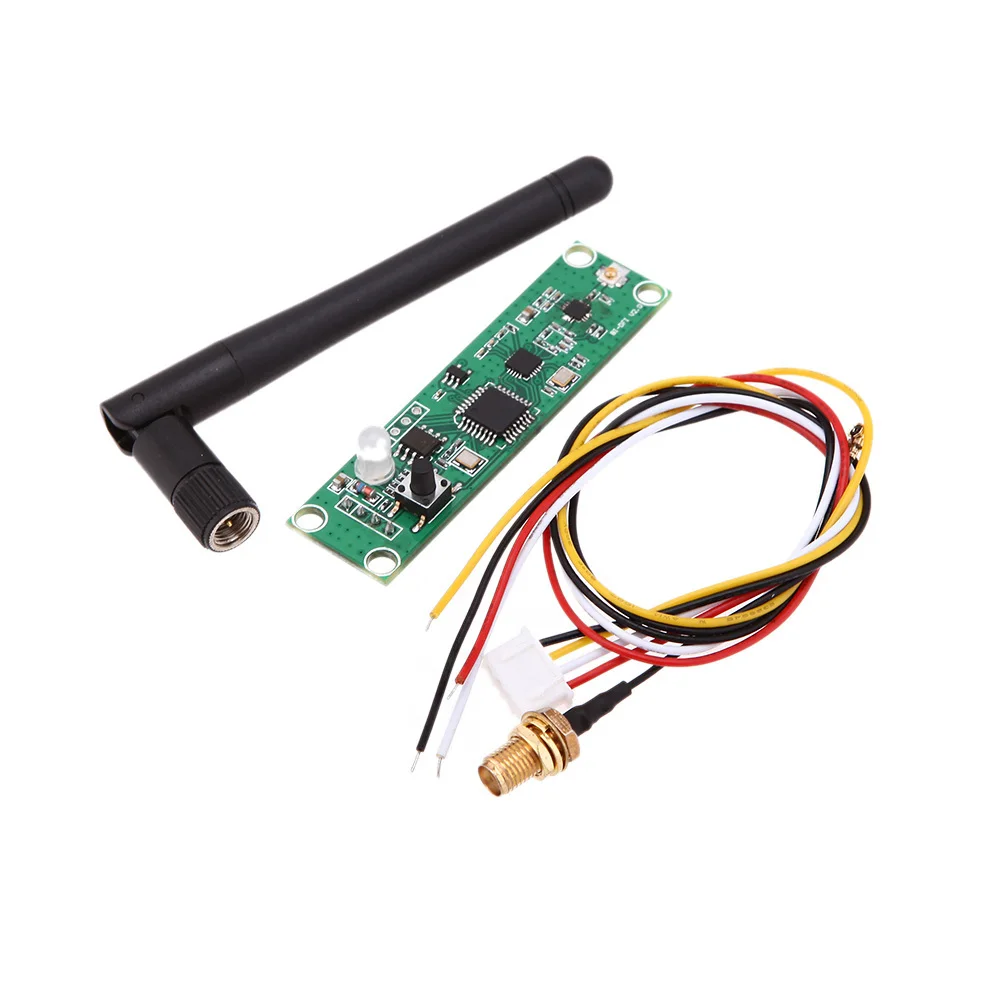

Durable Small Wireless DMX512 2.4G Led Stage Light PCB Modules Board with Antenna LED Controller Transmitter Receiver

With small size, groups of ID code and 126 channels, it is easy to operate and it will help you to hold a woderful parties.

Features:
Tricolor LED displaying.
126 channels jumping frenquecy automaticly.
7 groups ID code settable.
Small size, esay to suit for interior of accessed lighting.

Specifications:
Input voltage: 5V DC 500mA MIN
Communication distance: 400M ( visible distance )
Work frequency section: 2.4G ISM
Max transmitting power rate: 20dBm
Receiver sensitive: -94dBm
Signal port: 3pin female plug
Material: copper
Modules board size: 7 * 1.8cm/2.75 * 0.7in ( L * W )
Item weight: 21g/0.74oz
Package size: 14 * 10.5 * 4.5cm/5.51 * 4.13 * 1.77in ( L * W * H )
Package weight: 65g/2.3oz

Operating manual:
ID code and LED color corresponding relationship:
1: RED
2: GREEN
3: RED+GREEN
4: BLUE
5: RED+BLUE
6: GREEN+BLUE
7: RED+GREEN+BLUE
Press key 1 time to indicate ID setting, press again to set IC.
Working condition:
LED constant lit up: no DMX or wireless singal.
Red LED flash: transmitting.
Green LED flash: receiveing total 126 channels, it’s searching automaticly.
ID Code- “1-7” groups ID code?press ”KEY” for setting.
Establishing Communication:
Power on.
Communication was established correctly then.

Note:
Indoor use only.
1 year warranty, repairment, free replacement except damaged artificially.
The manufacturer willn’t offer free service in warranty period if any repaired or uncapped had happened
It’s better to return to manufacturer if repairment is must, don’t do any repairment unless qualified electrician.
The working condition should be under temperature -20°C~+45°C, 10%?90%RH, no congelation, so as to ensure it’s lifetime.
It cann’t be covered by any superstratum, it should be swept periodly to prevent dust.

Package list:

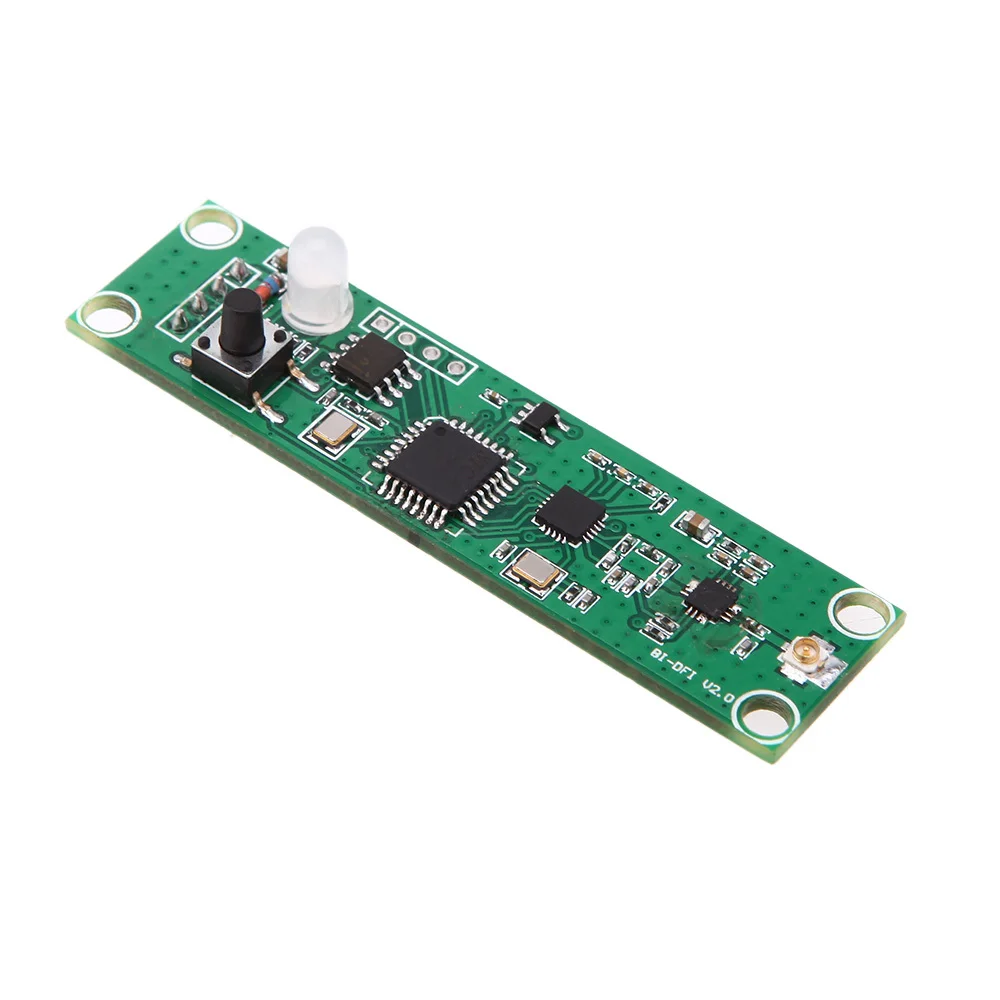

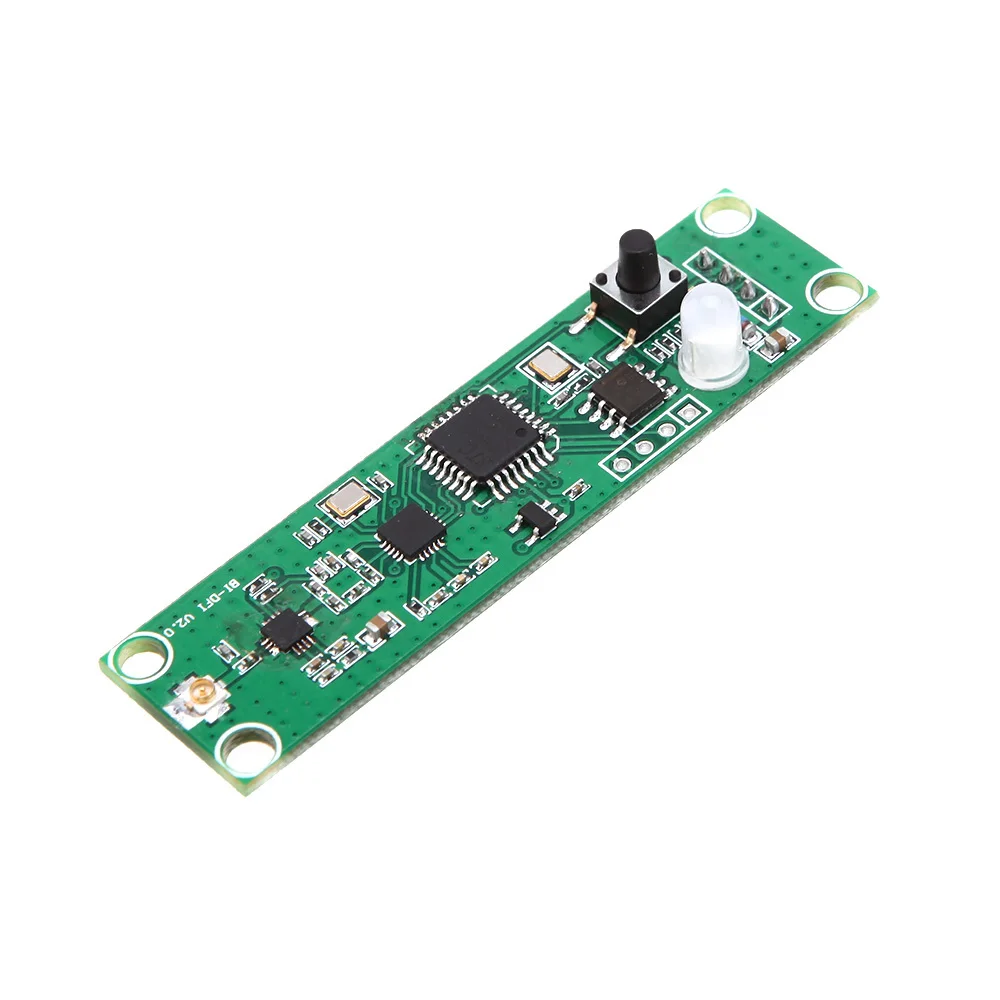

1 * PCB Modules Board

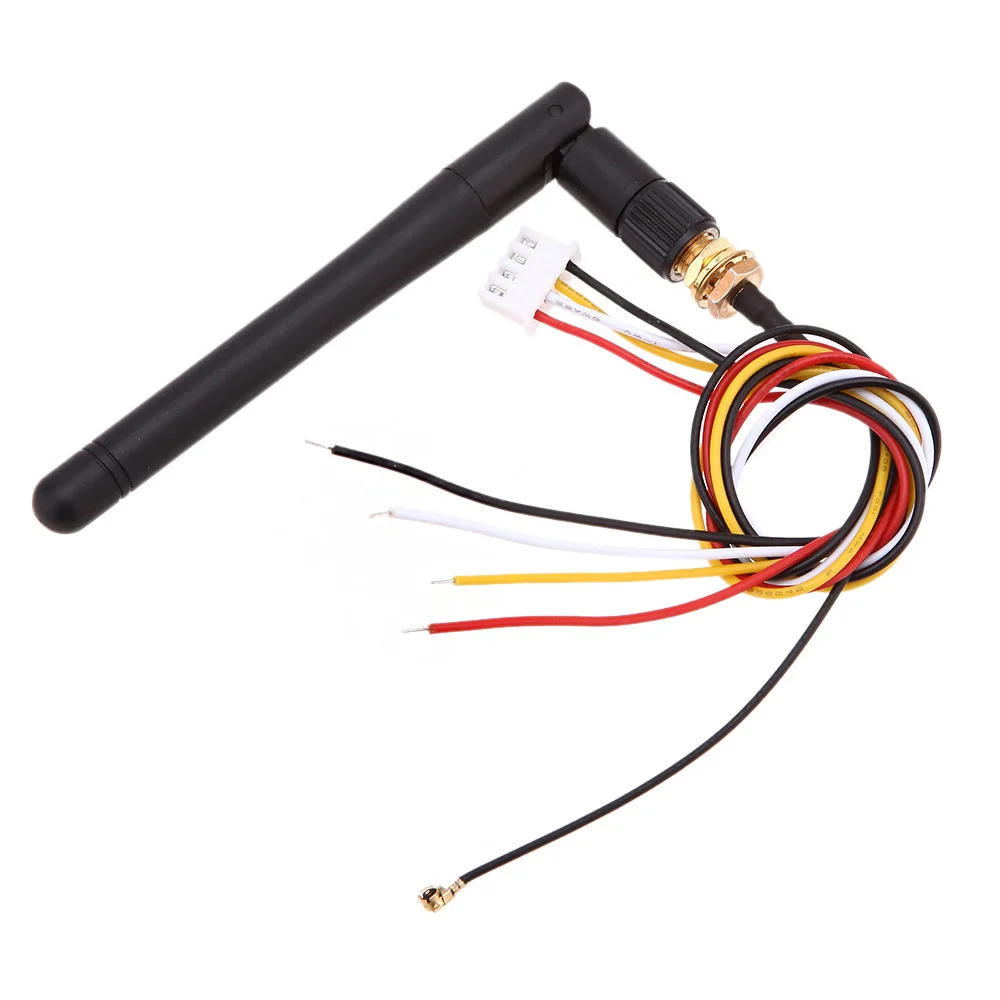

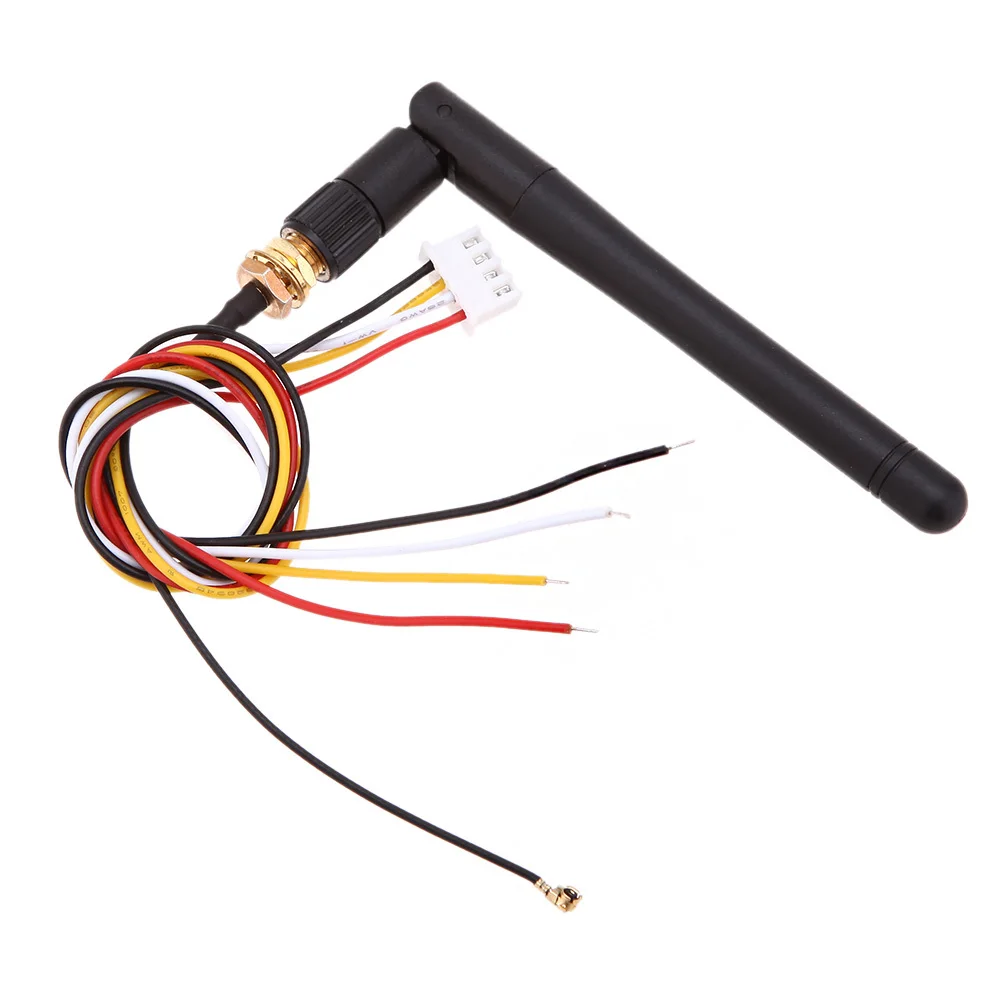

1 * Antenna
