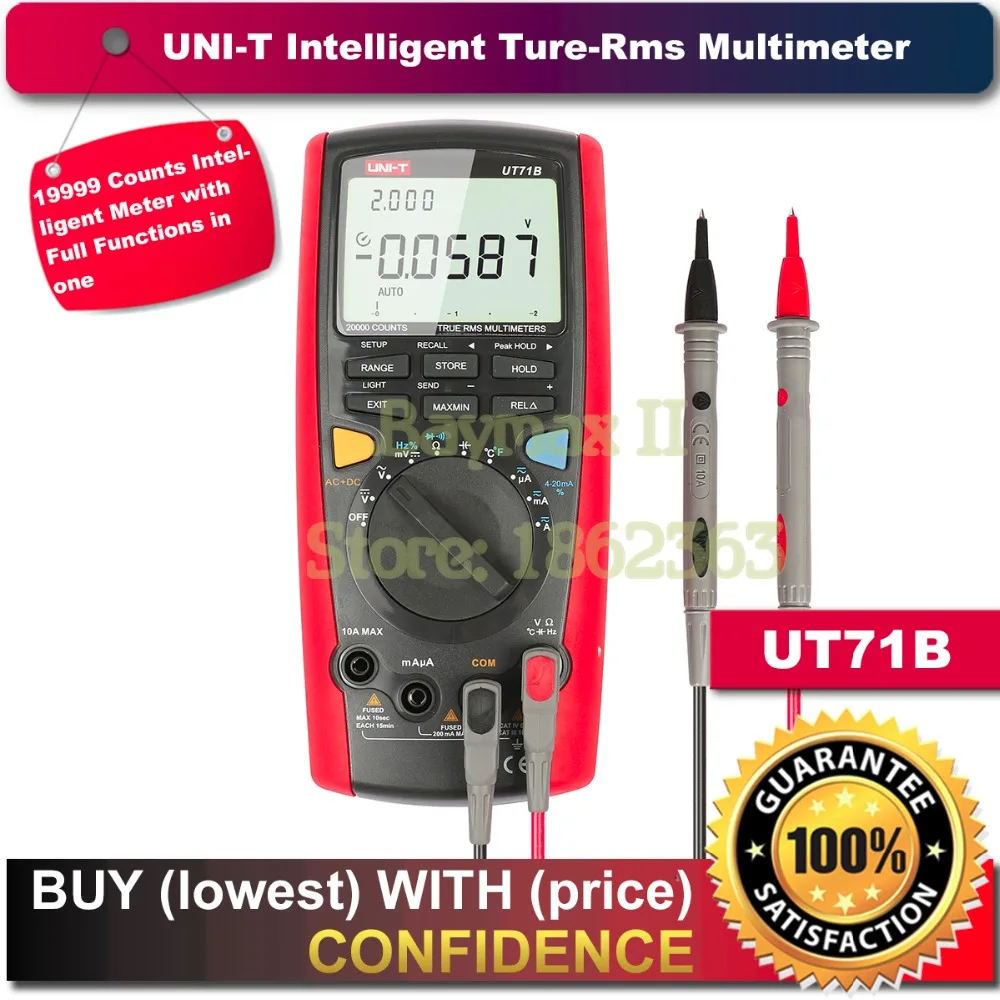

UNI-T UT71B Intelligent Digital Multimeter Tester True RMS LCR AC DC with a USB Cable

Note:Battery Not Included

Basic Functions

Range

Best Accuracy

DC Voltage

200mV/2V/20V/200V/1000V

±(0.05%+5)

AC Voltage

2V/20V/200V/1000V

±(0.6%+40)

AC Bandwidth

100KHz

√

DC Current

200µA/2000µA/20A/200mA/10A

±(0.15%+20)

AC Current

200µA/2000µA/20A/200mA/10A

±(0.8%+15)

Resistance

200W/2kW/20kW/200kW/

2MW/20MW

±(0.4%+20)

Capacitance

20nF/200nF/2µF/20µF/

200µF/2mF/20mF

±(1.2%+20)

Temperature(°C)

-40°C~1000°C

±(1%+30)

Temperature(°F)

-40°F~1832°F

±(1.5%+50)

Frequency

20Hz/200Hz/2kHz/20kHz/200KHz/

2MHz/20MHz/200MHz

±(0.1%+15)

Duty Cycle

10%~90%

±(1%+30)

Special Functions

Fused 10A Range

√

Auto Ranging

√

Current Measurement Alarm

√

Function Set Up

√

Votage & Current :
AC + DC Measurement

√

Data Logging

100

Data Recall

√

Diode

√

Continuity Buzzer

√

True RMS

√

Peak Hold

√

Max/Min Mode

√

Relative Mode

√

Data Hold

√

USB

√

Double Display Backlight

√

Full lcon Disply

√

Sleep Mode

√

Low Battery Display

√

Input Impedance for
DC Voltage Measurement

DC 200mV : Around 2.5GW
All Other Ranges : 10MW

√

Max. Display

20000

√

Analogue Bar Graph

√
