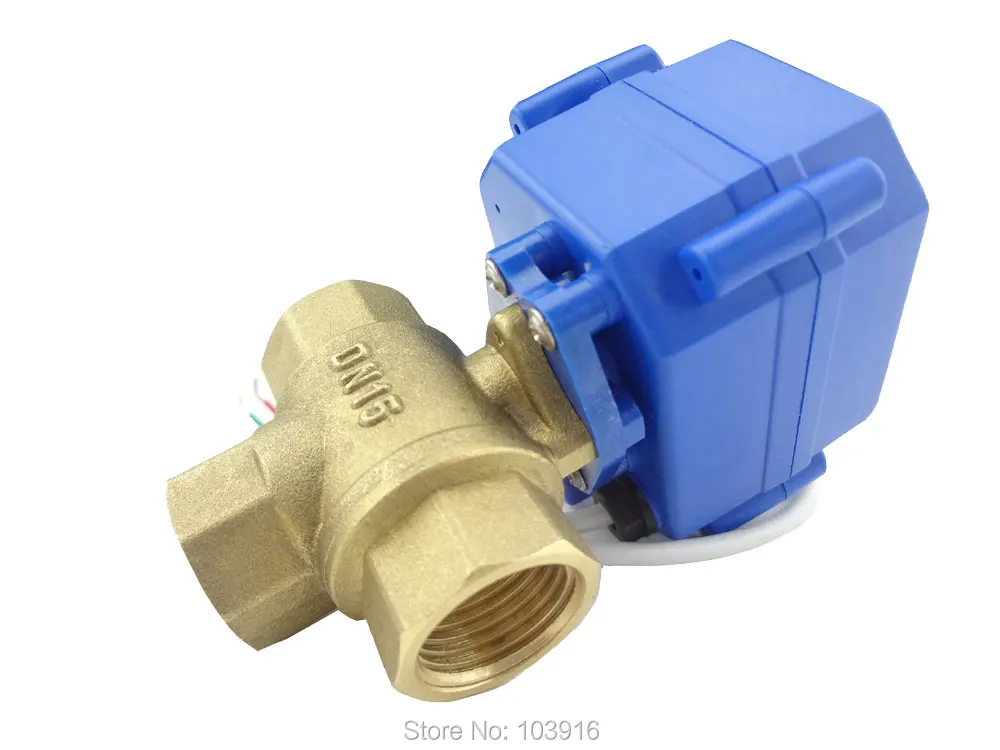

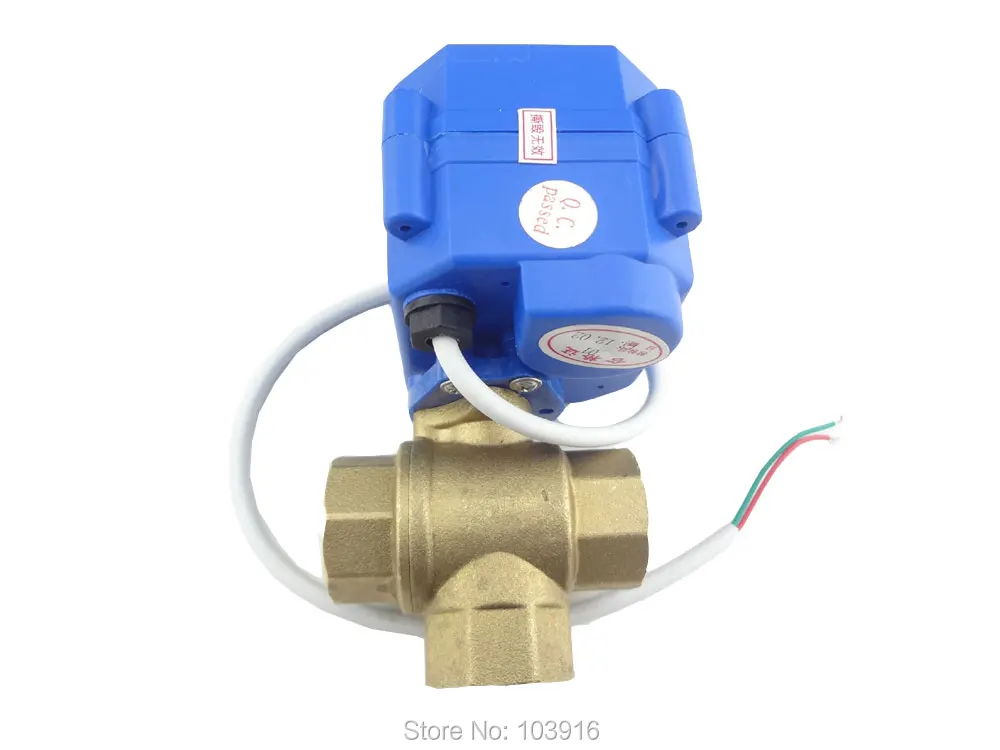

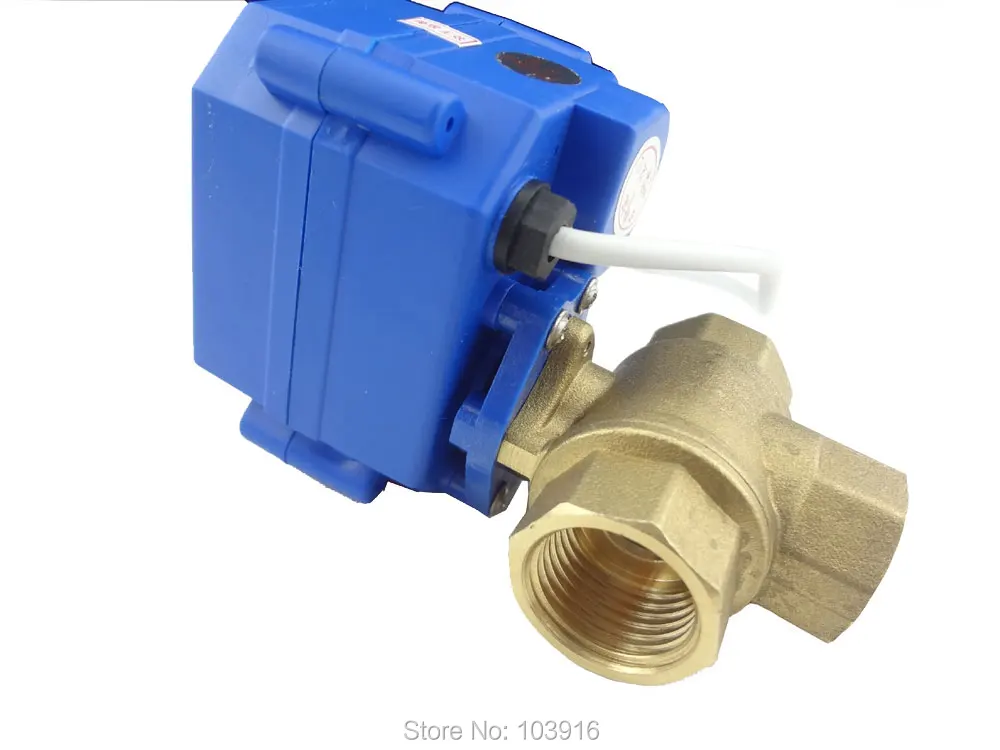

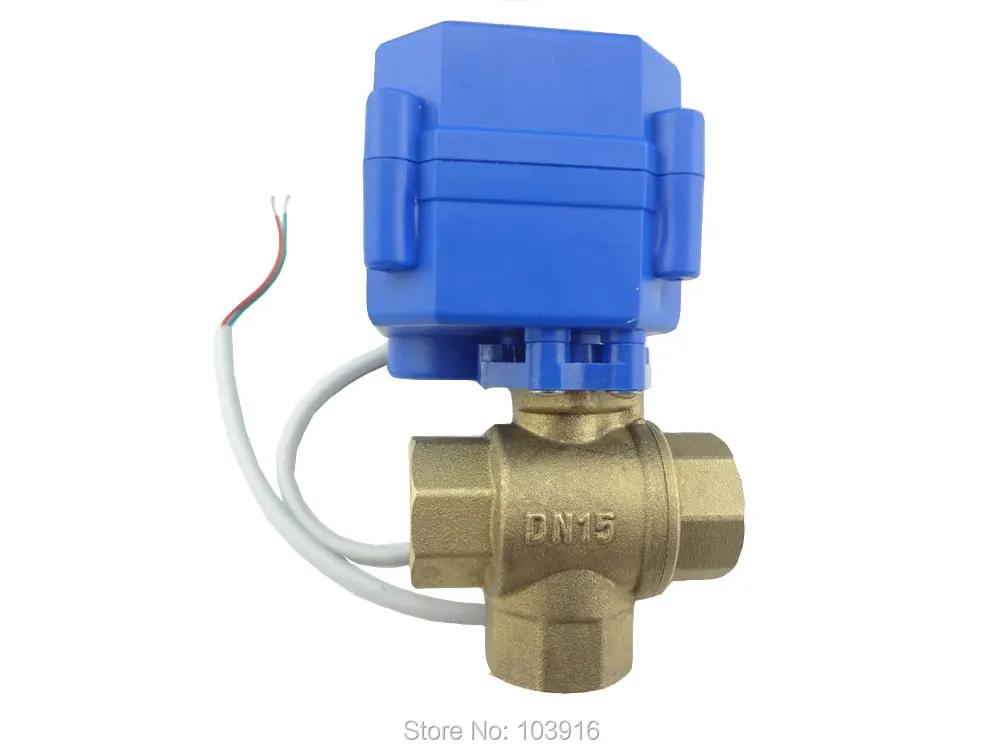

This listing includes 1 unit of motorized ball valve DN15(reduce port),  T port, 12VDC

Thread size: DN15(G1/2", BSP), flow hole size: 12mm(position 1), flow hole size: 8mm (position 2)

(Regarding position 1 & position 2, please see the below diagram of flow direction.)

Features:

Mini dimension suits for small equipment

  Metal gear
  Long life time: 100000 times Min.

  Low working current: less than 100mA
  Protection: IP65

Application:

It is used for home water, solar water heater, smallautomatic control equipment

Technical Parameter:

Nominal Size

Pressure

Body

Medium temperature

Enclosure

DN15(reduce port)

0-1.0Mpa

Brass ball valve

0- 90 Cel.degree

IP65

Work voltage

Input power

Working current

Wiring type

3way flow direction

DC12V

Max. 3W

60-80mA

CR01(see below)

T type

*Nominal Torque: 2N*M

*Open/Close time: 5 second

3 WAY flow direction as below picture:

*Wire type: CR01

1.Connecting SW and OPEN, the valve moves from the position 1 to position 2, automatically power off, the valve remain in position 2.
2.Connecting SW and CLOSE, the valve moves from the position 2 to position 1, automatically power off, the valve remain in position 1.
