24V battery pack 500W 20AH electric bicycle 10AH 13AH 15AH 18AH 25AH 26AH Lithium use samsung cell | Спорт и развлечения

24V battery pack 500W 20AH electric bicycle 10AH 13AH 15AH 18AH 25AH 26AH Lithium use samsung cell | Спорт и развлечения

Parts included

20A BMS suitable motor:         24V     200W--500W

30A BMS suitable motor:         24V     200W--700W

Product Specifications

Battery Model

24v 26ah

Nominal Voltage (V)

24v

Nominal Capacity (AH)

26ah

Source Resistance (mΩ)

about 40

Cell Specification

3.7V 2.6AH

Cell Combination

10-parallel  7-series

Cell Size

3.7v 2600mah Sumsang 18650

Cell Quantity (parallel*series)

70 pcs

Discharge Cutoff Voltage (V)

30+/- 1V

Charge Cutoff Voltage (V)

29.4v

Rated Discharge Current (A)

30A

instantaneous Maximum Discharge Current (A)

90A

Maximum Continuous Discharge Current (A)

30A

Maximum Continuous Charge Current (A)

5A

Charge Mode

CC-CV

Standard Charge Current (A)

2A

Charge Time under Standard Charge Current

13hours

Fast Charge Current (A)

5A

Charge Time under Fast Charge Current

5.2hours

Charge Temperature Range

-20-55°C

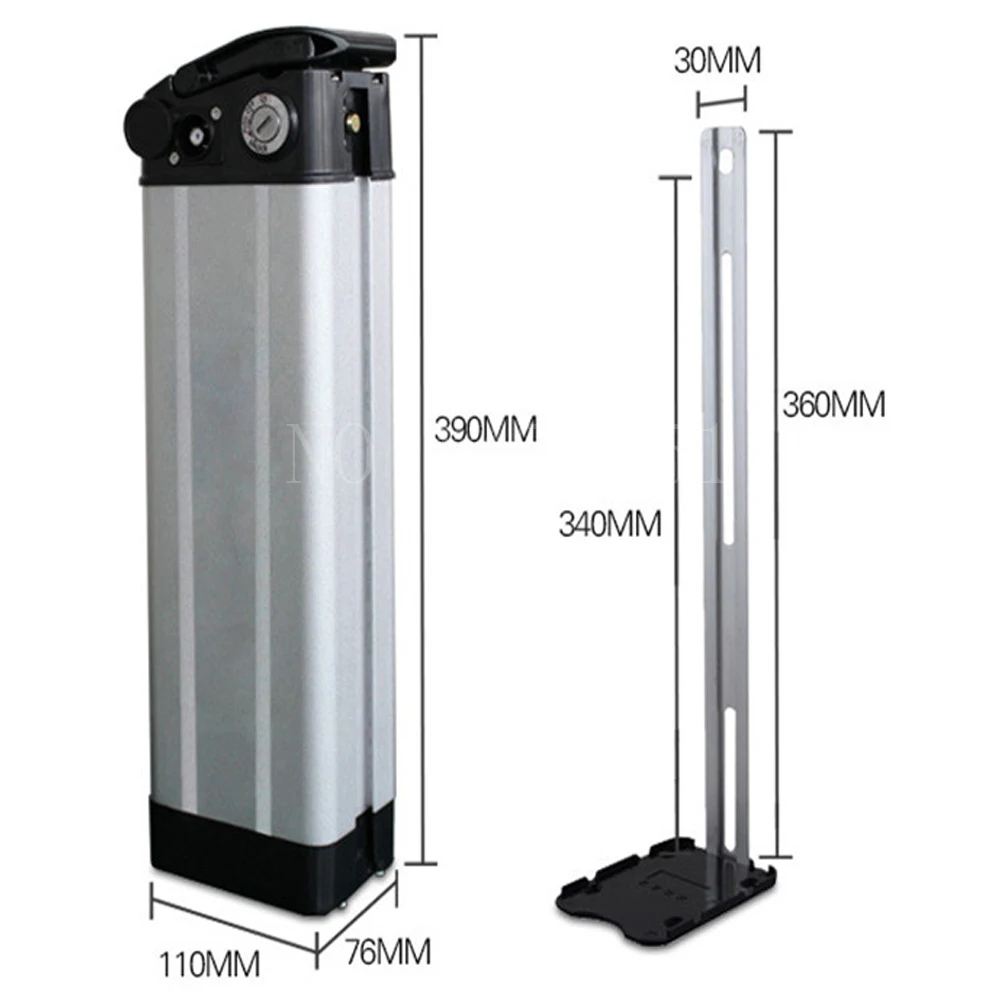

Cell Size (L*W*T )

390*110*76mm

Battery Weight

About 5KG

Battery Power

250W 350W 500W 700W

Feature:

1. Cells - A grade cells to make sure batteries in high and full capacity

2. Protection - Dual IC chips, that can anti-short circuit, anti-over charger,

anti-over current, anti-overload

3. Compose Type : Injection Technology to make battery more stable.

4. Certifications : CE,UL,FCC, RoHS, ISO9001

5.  Long life cycle, No memory, environment friendly.


Lithium battery features:

1.High energy density, Fast charging

2. Light weight, small size  Pollution-free, environment friendly

3. Long cycle life; It extends its cycle life up to 600-800 cycles

4. With short-circuit production function, safe and reliable

5. Large overcharge tolerance and safe performance the battery life is more longer

6. Simplifying battery management system (BMS such as overcharge/ discharge,over current, short circuit,

over temperature and balancing) and Battery Charger

Precautions:

1.Do not reverse the position and negative terminals.

2.Do not connect the battery electrodes to an electrical outlet.

3.Do not discard the battery in fire or a heater.

4.Does not use or leave the battery near a heat source as fire or heater

5.Do not short circuit, over-charge or over-discharge the battery pack

6.Do not strike, trample or throw the battery.

7.Do not directly solder the battery and pierce the battery with a nail or other sharp objects

8.Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.

9.Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.

10.Use the battery charger specifically for that purpose when recharging. Use a constant current, constant voltage

(CC/CV) lithium-ion (Li+)batterycharge controller

11.Do not immerse the battery in water or seawater, and keep the battery  in a cool dry surrounding if it stands by.

12.If shelve a long time suggested that the battery need for regular recharging (even if not use), must charge and

discharge for three months one time;
