500pcs 5colors Sleeve Insulation Terminal Wire End Caps Insulated terminal connector V2.25-2.5 LDDQ | Обустройство дома

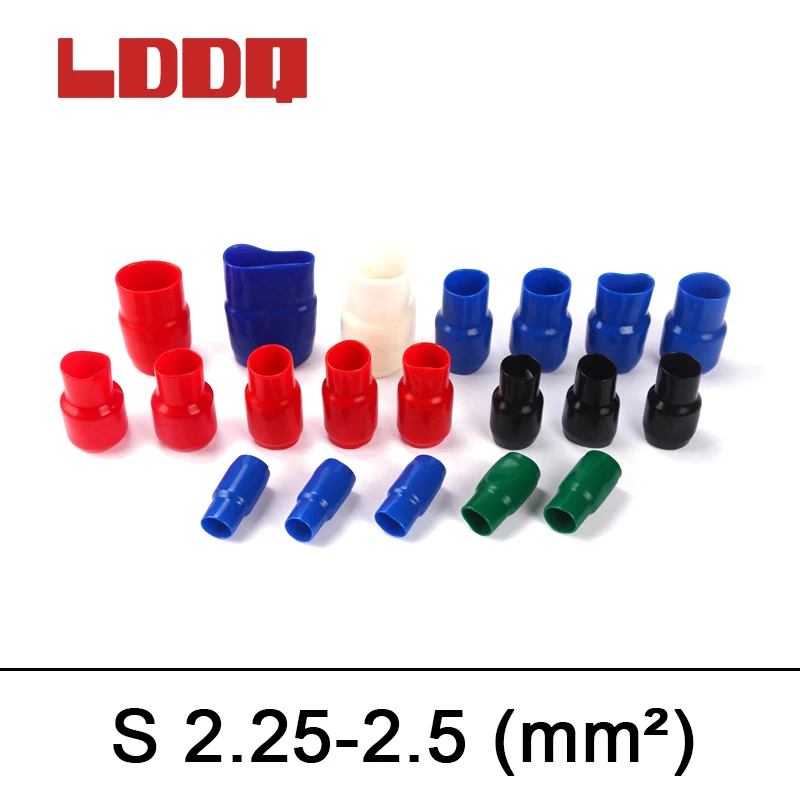

LDDQ 500pcs 5colors Soft Sleeve Insulation Terminal  Wire End Caps Insulated terminal connector V2.25-2.5

Our products has fives colors, Acquiescence send color is black. If you want other colors, Please leaving a message to tell us.

PRODUCT DESCRIPTION Product Name: LDDQ V Soft Sleeve Insulation Terminal Available Color: Red blue yellow  black green Product Specification: V2.25-2.5 Product Material: PVC Packing: bag packing Product Size 2.25-2.5 mm⊃2; Product Function: All kinds of patch panel, mechanical separation in the processing of complex wiring. Can make the line clear, soft material suitable for a variety of terminals, with the use of off easy Precautions Our products has fives colors, Acquiescence send color is black. If you want other colors, Please leaving a message to tell us.



Technical Parameters Pilot Projects Unit Test Results Experiment Method IM-103 Specification Condition Proportion (g/cm63) 1.3 JIS K7112 The Water Displacement Method Hardness degree 70±5 JIS K6301 DUROMETER A Tensile length kg/cm2 160±10 JIS K672 shopper - Experiment Tensile machine speed 200mm/min Elongation % 320±25 100%modulas kg/cm⊃2; 45±5 Cited tear Strength kg/cm⊃2; 35±5 Thermal Stability   No abnormality 200V Cx20min Gia oven use Soft Temperature C -40±5 JIS K6723 Low temperature embrittlement testing machine Brittle Transition Temperature C -40±5 JIS K6723 1mm thick sample Breakdown Voltage Kv/mm 10~15 JIS K6911 set temperature of 25° C Volume Resistance Rate -cm 1.0x1011 JIS K6723   Volatile Loss % >1.0     Self-destructively   UL94V-0 U194   Deep-resistant Organic Material Aromatic ,Carbonized water element ,Ester-based agent Peng Run Deep ,Department of dissolution Ketone



TERMINAL INSULATION ITEM NO DIMENSION D1 D2 D3 L F B C Click TO
PURCHASE mm mm mm mm mm mm mm V1.25-1.5 2.8 3.3 3.1 13 6 7 0.6 Click to buy... V2.25-2.5 3.3 4.5 3.7 14 7 7 0.7 Click to buy... V3.5-4 4.2 5.7 4.1 17 9 8 0.8 Click to buy... V5.5-6 4.8 5.7 5.2 17 9 8 0.8 Click to buy... V8-10 6.2 7.2 6.2 19 10 9 1.0 Click to buy... V14-16 7.5 10 8 25 14 11 11 Click to buy... V22-25 10.5 12 9.5 30 15 15 1.2 Click to buy... V35-38 12.5 14 11.8 34 17.5 16.5 1.5 Click to buy... V50-60 15 16.8 13.5 39 20 19 1.5 Click to buy... V70-80 17 19 16 47 25 22 1.6 Click to buy... V90-100 19 22 18 54 30 24 1.7 Click to buy... V120-125 21 24 20 57 32 25 1.8 Click to buy... V150 23 24.5 22 65 35 30 2.0 Click to buy... V185-200 27 32 24 65 35 30 2.0 Click to buy...



PRODUCT SHOW



COMPANY PROFILE



  Making factory   Making factory



  Making factory



ABOUT LOGISTICS 1 ) Lead time: 3 days for all order. 2 ) Russian customers need to provide the English full name, otherwise, it will affect the delivery. 3 ) Shipping way: All retail orders will be shipped by China Post / Russian Air / Posti Finland. Wholesale orders may be      shipped by UPS at your own expenses. Any other requirements about the shipping way, please contact us.



FAQ                              1 ) The loss of the goods not received goods.                                  If you do not receive the goods within a specified period of time, we give two suggestions.                                  First: we return the full amount;                                  Second: we send again;                            2 ) The damage to the goods delivery problem.                                  When receiving the parcel or damage to the goods found.                                  Please do not sign, please take a speed to us, and please give proof of the post office.                                  Next we will return your money, or re delivery for you. LDDQ ZheJiang LangDao-Electric Co., Ltd. on
