STM32 Board Open103C Standard STM32F103CBT6 STM32F103 ARM Cortex-M3 Development + PL2303 USB UART Module Kit | Электроника

Communication interfaces:1 x 8I/Os, 1 x ONE-WIRE, 1 x CAN, 1 x USB Device etc.
Programming interface:JTAG/SWD
Eamples:Comes with examples in C, C/OS-II
Place of Origin:Guangdong, China (Mainland)
STM32 development board designed for STM32F103C series, features the STM32F103CBT6 MCU, and integrates various standard interfaces, pretty easy for peripheral expansions.

Overview

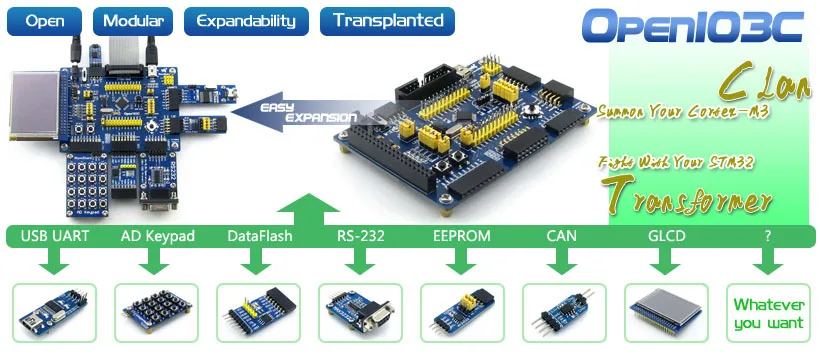

Open103C is an STM32 development board that features an STM32F103CBT6 device as the microcontroller. There are further expansions with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with STM32F family.

---

What\\\'s On Board

STM32F103CBT6: the high performance STM32 MCU which features Core: ARM Cortex-M3 32-bit RISC Operating Frequency: 72MHz, 1.25 DMIPS/MHz Operating Voltage: 2-3.6V Package: LQFP48 I/Os: 37 Memories: 128kB Flash, 20kB RAM Communication Interfaces: 2 x SPI, 3 x USART, 2 x I2C, 1 x USB, 1 x CAN AD & DA converters: 2 x AD (12-bit, 1s, shares 10 channels) Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP AMS1117-3.3: 3.3V voltage regulator Power supply switch: 5V DC or USB Power indicator LEDs: for indicating I/O status or program debugging running state Reset button User key: for I/O input test Joystick: for I/O input test (five positions) 32.768K crystal oscillator: used for internal RTC, also supports clock calibration 8M crystal oscillator: enables the MCU run at 72M frequency by frequency multiplication 8 I/O Interface: easily connects to keypad, motor, etc. CAN interface: communicates with accessory board which features the CAN device conveniently SPI1 / SPI2 interface easily connects to SPI peripherals such as FLASH (AT45DBxx), SD card, MP3, etc. convenient for connecting AD module, thanks to the SPI1 alternative AD function I2C1 / I2C2 interface: easily connects to I2C peripherals such as I/O expander (PCF8574), EEPROM (AT24Cxx), etc. LCD interface: easily connects to the touch screen LCD ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc. USART1 interface: easily connects to RS232, RS485, USB TO 232 USART2 interface: easily connects to RS232, RS485, USB TO 232 USB port: USB communication between board and PC 5V DC jack 5V/3.3 V power input/output, usually used for power output, or common ground with other user board MCU pins connector: all the MCU pins are accessible on expansion connectors for further expansion JTAG/SWD interface: for debugging/programming Boot mode selection: for configuring the BOOT0 and BOOT1 pins USB enable jumper short the jumper to enable the PC auto detection while USB connecting open the jumper to disable LEDs jumper short the jumper to connect the LEDs to I/Os used in example code open the jumper to connect the LEDs to other custom pins via jumper wires User key jumper short the jumper to connect the user key to I/Os used in example code open the jumper to connect the user key to other custom pins via jumper wires Joystick jumper short the jumper to connect the joystick to I/Os used in example code open the jumper to connect the joystick to other custom pins via jumper wires VBAT selection jumper short the jumper to use system power supply open the jumper to connect the VBAT to external power, such as battery

---

Photos
Open103C Development Board
Connecting to touch screen LCD
Connecting to debugger
Connecting to various peripherals
Connecting to touch screen LCD
Connecting to RS232 Board via USART
Connecting to RS485 Board via USART
Connecting to USB UART Board via USART
Connecting to CAN Board via CAN
Connecting to Ethernet Board via SPI
Connecting to VS1003B MP3 Board via SPI
Connecting to NRF24L01 RF Board via SPI
8 Push Buttons on the 8Bit I/O
Connecting to 5 IO Keypad
Connecting to AD Keypad
Connecting to EEPROM Board via I2C
Multi I2C peripheral Module connected to the I2C bus
Connecting to DataFlash Board via SPI
Connecting to Micro SD Board
Connecting to any accessory board you need

---

Note:
The Open103C supports programming via STM32 USART bootloader, a USB TO UART accessory board is also provided in the package.
The Open103C does NOT integrate any debugging function, a debugger is required.
The Open103C Standard includes only ONE accessory board -- PL2303 USB UART Board (mini).

---

JTAG/SWD Interfaces

The figure 1, and 2 show the header pinouts of JTAG/SWD interface

Figure 1. JTAG Header Pinout
Figure 2. SWD Header Pinout

---

Development Resources

The User Guide CD includes development resources listed as follows:

Related software (KEIL etc.) Demo code (examples in C, C/OS-II) Schematic (PDF) STM32 development documentations (Datasheet etc.)

---

Package Contains Open103C development board x 1 PL2303 USB UART Board (mini) x 1 USB type A to Mini-B cable x 1 4-pin wire x 2 2-pin wire x 2 USB power cable x 1 User Guide CD x 1 1 2 3 4 5 6 7
