Notice:This LCD controller board kits are for resolution1600x900, Signal Interface 2ch 6-bit, 40 pins LCD Panel, Please kindly check your LCD panel Information before place the order. Or let us know your lcd model number first by sending us the aliexpress message before you place the order, So we can check if the controller board kits are compatible with your lcd panel, Then we can prepare correct kit for you urgently.Thanks.

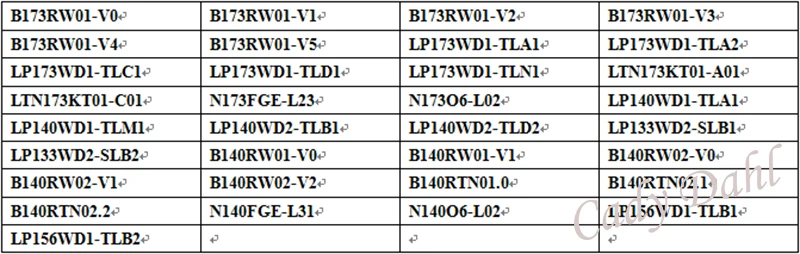

LCD Model Support:

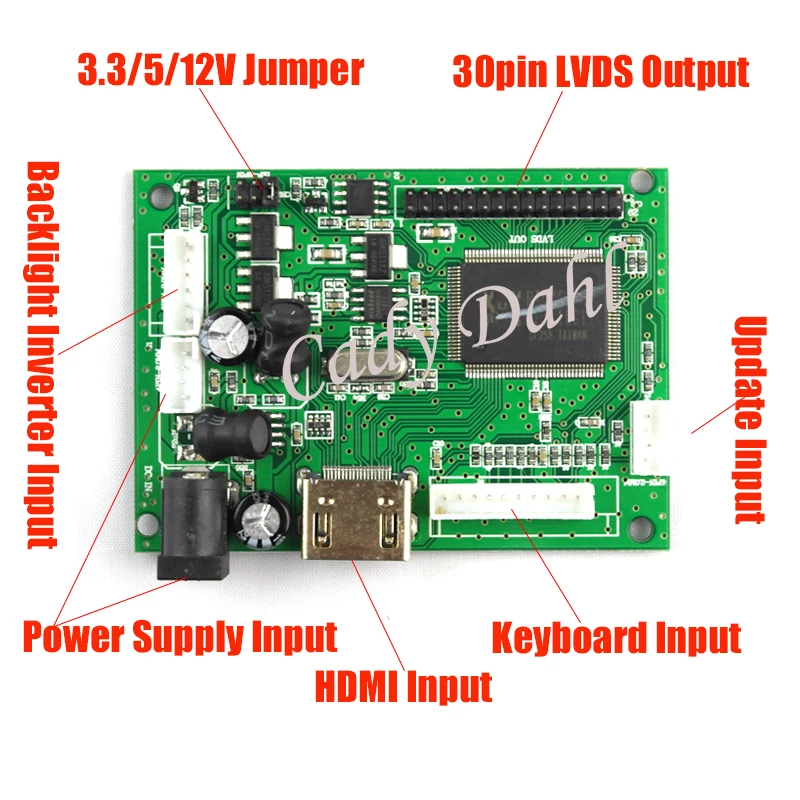

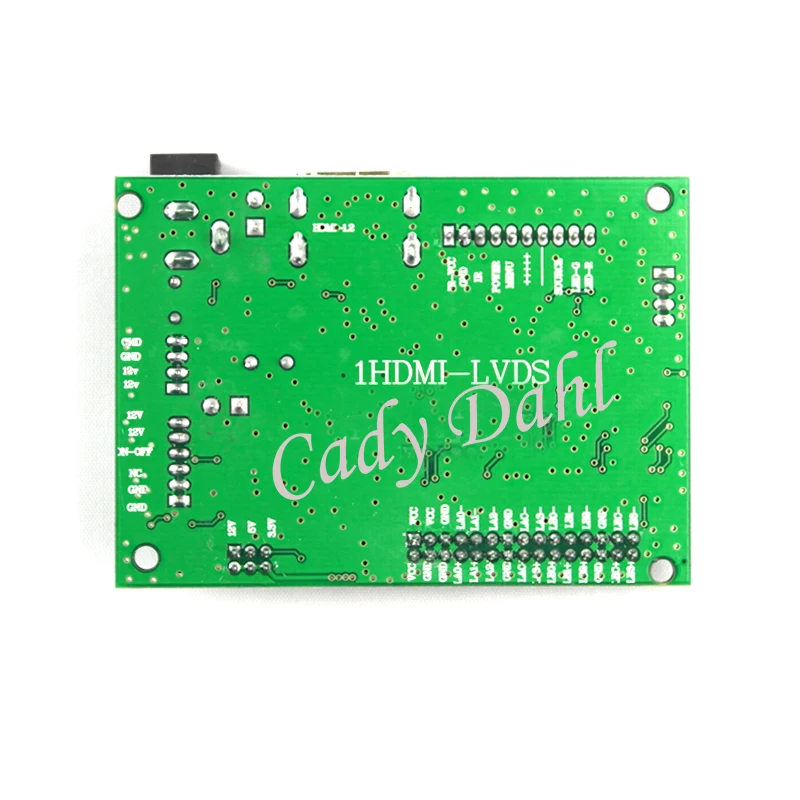

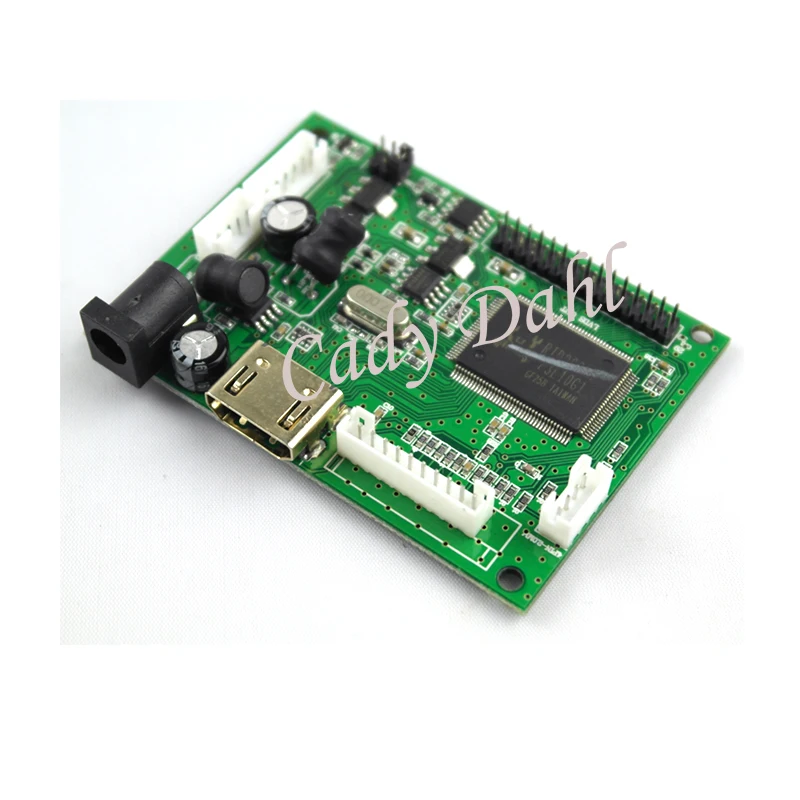

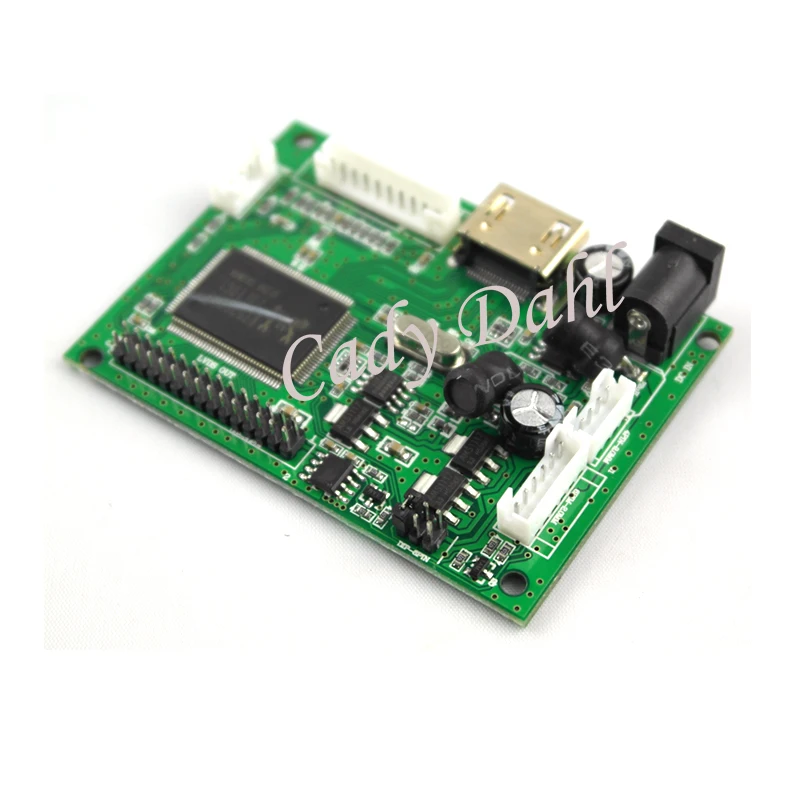

LCD Board Specification:

1   1*HDMI input, Support HDMI1.2 version

2   Output voltage of panel requirement: 5V/12V-2A.

3   6PIN,7 Extra high voltage board

4   LVDS output,6/8/double 6/double 8 LVDS ( for 3.3V/5V/12V Input Voltage of the LCD Display Panel)

5   5-button switch and adjustment panel

6   Led backlight power

7   LVDS input

8  Size:73*52*1.6mm

LVDS Cable Specification:

Connection the LCD Panel:

PIN #

SIGNAL NAME

DESCRIPTION

1

NC

No Connection

2

VDDIN

Power Supply

3

VDDIN

Power Supply

4

VDC

VDC for EDID

5

NC

No Connection

6

CLK EDID

EDID Clock

7

DATAEDID

EDID Date

8

RXO0-

Negative LVDS differential data input

9

RXO0+

Positive LVDS differential data input

10

GND

11

RXO1-

Negative LVDS differential data input

12

RXO1+

Positive LVDS differential data input

13

GND

14

RXO2-

Negative LVDS differential data input

15

RXO2+

Positive LVDS differential data input

16

GND

Ground

17

RxCLKIN-

LVDS EVEN Clock - Signal

18

RxCLKIN+

LVDS EVEN Clock + Signal

19

NC

No Connection

20

RXE0-

LVDS EVEN 0 - Signal

21

RXE0+

LVDS EVEN 0 + Signal

22

GND

Ground

23

RXE0-

LVDS EVEN 0 - Signal

24

RXE0+

LVDS EVEN 0 + Signal

25

GND

Ground

26

RXE0-

LVDS EVEN 0 - Signal

27

RXE0+

LVDS EVEN 0 + Signal

28

GND

Ground

29

RXEC-

LVDS EVEN Clock - Signal

30

RXEC+

LVDS EVEN Clock + Signal

31

VLED_GND

LED Ground

32

VLED_GND

LED Ground

33

VLED_GND

LED Ground

34

NC

No Connection

35

PWM

System PWM Signal Input

36

LED_EN

LED Enable

37

NC

No Connection

38

VLED

LED Power Supply

39

VLED

LED Power Supply

40

VLED

LED Power Supply

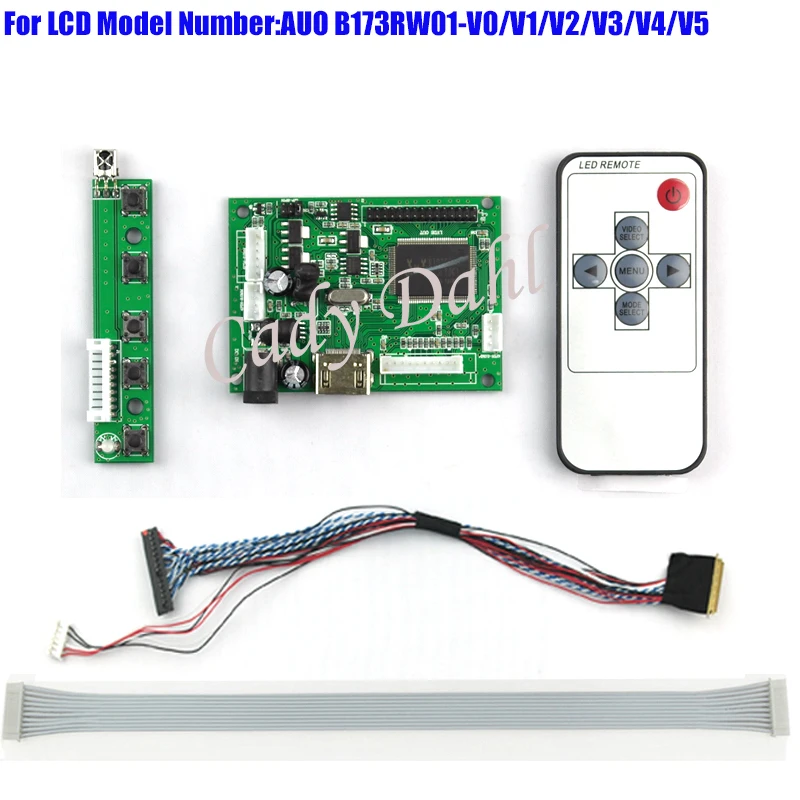

Package includes:

1 HDMI LVDS Controller Board Module

1 10 Pin Cable

1 Remote

1 Keyborad

1 I-PEX 20455-040E-12 0.5 mm 40 Pins 2 ch 6-bit LVDS cable
