HDMI VGA 2AV 30P LVDS Controller Board Monitor for Raspberry PI 2 For CHIMEI INNOLUX ZJ070NA 7" 1024x600 TFT LCD Display Panel |

HDMI VGA 2AV 30P LVDS Controller Board Monitor for Raspberry PI 2 For CHIMEI INNOLUX ZJ070NA 7" 1024x600 TFT LCD Display Panel |

Please kindly contact with us if your lcd model number is different, We will check if we can program your lcd model number before you place the order, Thanks.

LCD Model Support:

ZJ070NA

  This is a great set of easy-reassembling LCD controller kit which is used to turn a bare LCD panel into a desktop/PC monitor. It will be a surprise that your bare LCD will be of good use, and no longer be a waste. Or it is a very insteresting things that we make a monitor successfully by ourselves.

   How to find a right lcd model number? Please check the following picture. It is A080SN01.......

Necessary Accessories for turning a bare LCD to desktop monitor: LCD Controller board, VGA cable/HDMI /AV cable, Power Adapter. If you have already had a VGA/HDMI/AV cable and a power adapter (Ouput 5V/12V,2A --), this kit is a great choice for you, else there are some other kind of kits for options in our store, Click here:

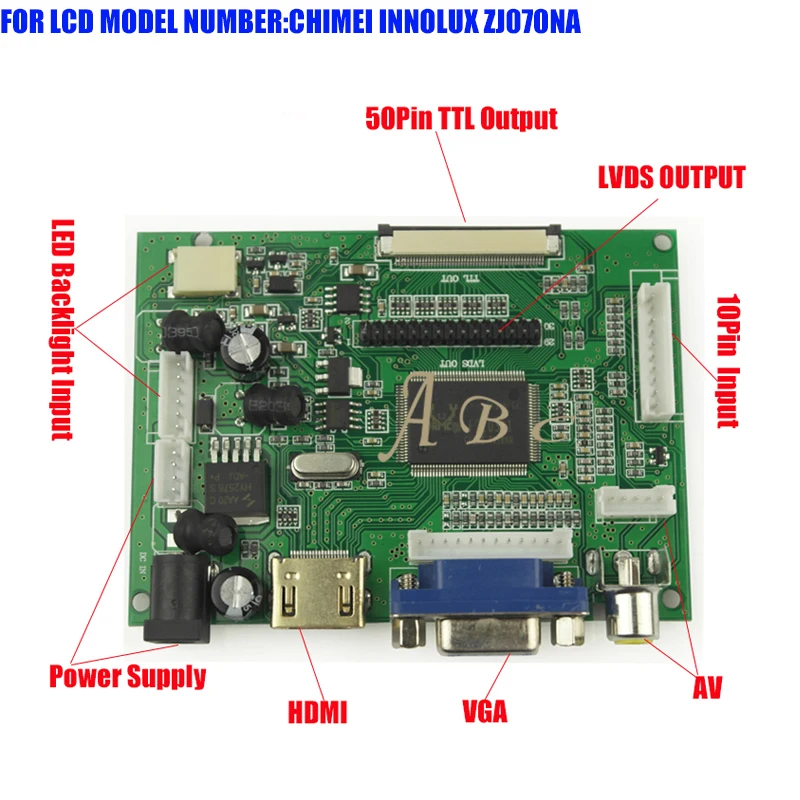

Specification:

1   1*VGA input

2   2*AV    input

3   1*HDMI input, Support HDMI1.2 version

4   1*Reverse image input

5   Output voltage of panel requirement: 5V/12V-2A.

6   6PIN,7 Extra high voltage board

8   LVDS output,6/8/double 6/double 8 LVDS (only for 3.3V Lcd Display)

9   5-button switch and adjustment panel

10 Led backlight power

11 TTL input

12 LVDS input

13 Size:90*65*1.6mm

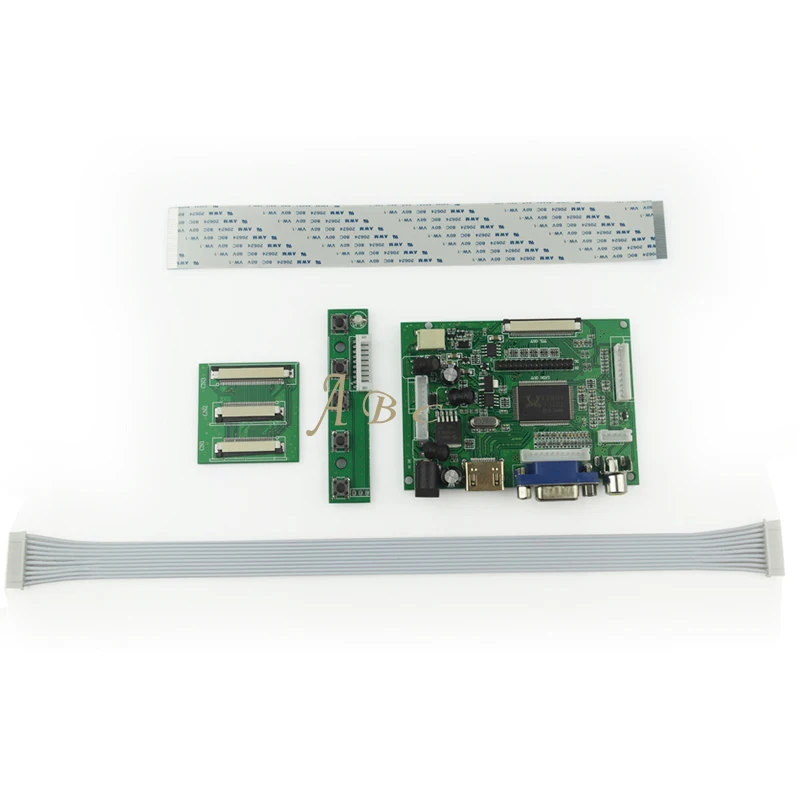

Package includes:

1 HDMI VGA 2AV 50PIN TTL LVDS Controller Board Module

1 10 Pin Cable

1 50 Pin cable

1 50 Pin Adapter Board

1 Keyborad
