HDMI VGA 2AV Controller Board+Backlight Inverter+30Pins Lvds Cable for LTN141W1 - L01 L02 L04 1280x800 1ch 6 bit LCD Display | Компьютеры

HDMI VGA 2AV Controller Board+Backlight Inverter+30Pins Lvds Cable for LTN141W1 - L01 L02 L04 1280x800 1ch 6 bit LCD Display | Компьютеры

Notice:This LCD controller board kits are for resolution1280*800, Signal Interface 1ch 6-bit, 30 pins LCD Panel, Please kindly check your LCD panel Information before place the order. Or let us know your lcd model number first by sending us the aliexpress message before you place the order, So we can check if the controller board kits are compatible with your lcd panel, Then we can prepare correct kit for you urgently.Thanks.

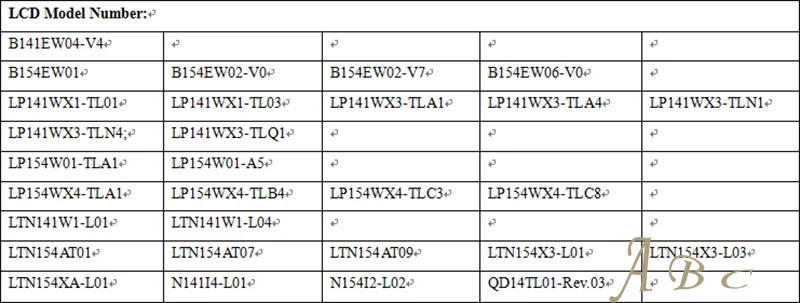

LCD Model Support:

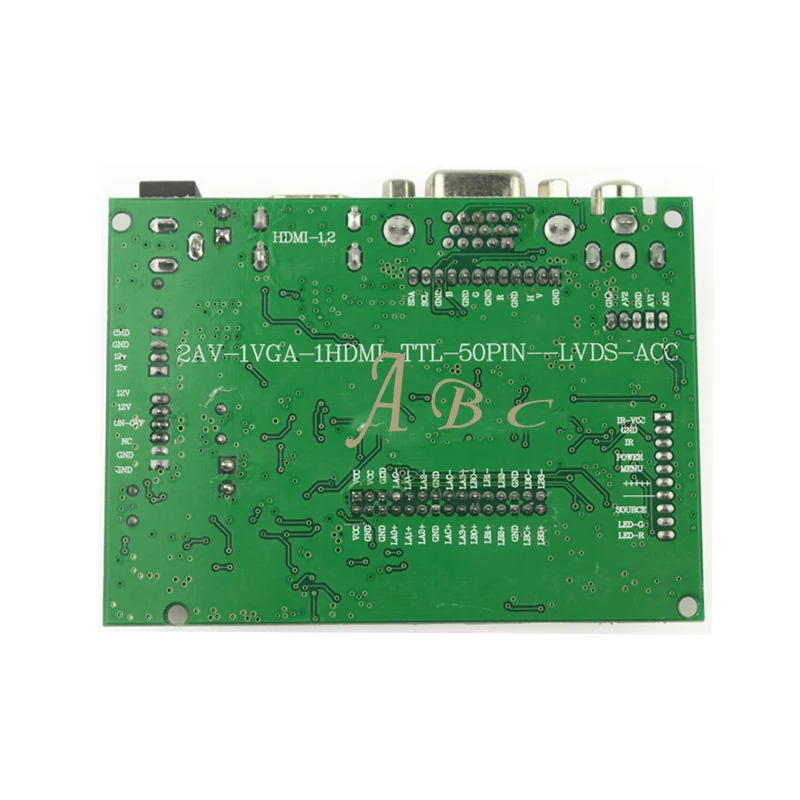

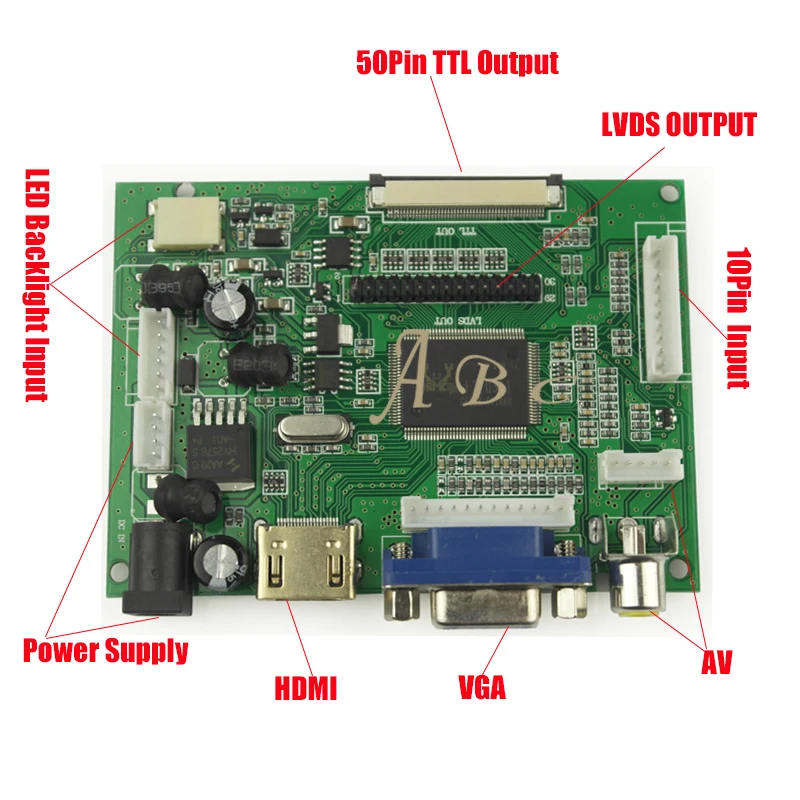

LCD Controller Board Specification:

1   1*VGA input

2   2*AV    input

3   1*HDMI input, Support HDMI1.2 version

4   1*Reverse image input

5   Output voltage of panel requirement: 5V/12V-2A.

6   6PIN,7 Extra high voltage board

8   LVDS output,6/8/double 6/double 8 LVDS (only for 3.3V Lcd Display)

9   5-button switch and adjustment panel

10 Led backlight power

11 TTL input

12 LVDS input

13 Size:90*65*1.6mm

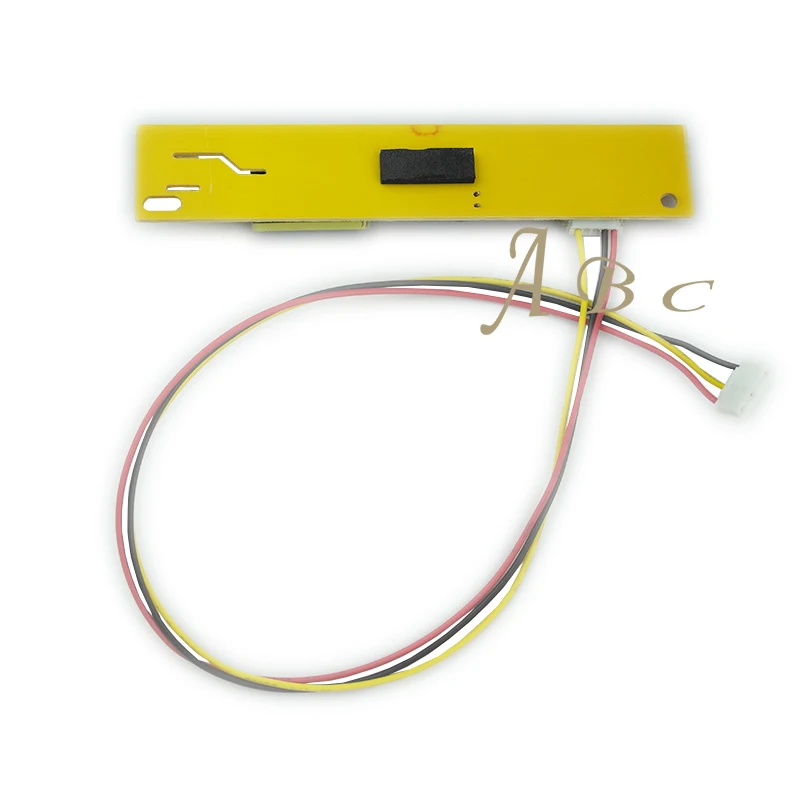

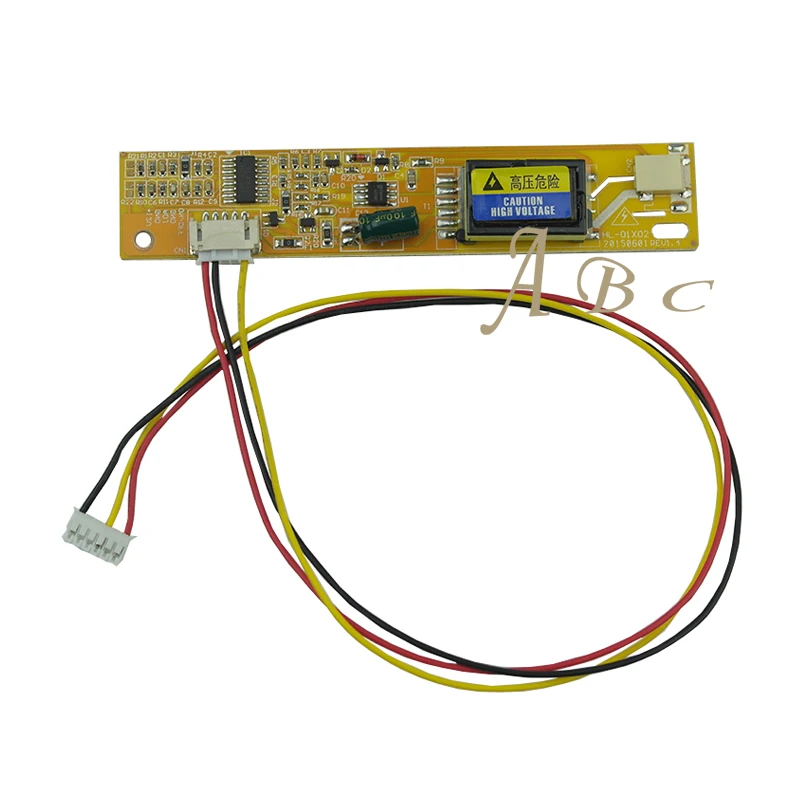

Baclight Inverter Specifications:

Description:

This DC-AC Inverter was developed for 1CCFL lamps of LCD back lighting system.High performance low consumption special operating temperature,Open lamp protection,Lamp Current Balance Control

The DC to AC back-light inverter is special designed on any type LCD display in implement (Is suitable in 17 -22 inches the liquid crystal display runs).

Feature:

Size:120*23*1.6mm.

Weight:25g

DC Input:Controled by 5x2.0 connector to this PCB board

PIN

SYMBOL

DESCRIPTION

1

Vin

12VDC

2

Von/Off

Von/Off CONTRL

3

Vbr

Vbr

4

NO

NO

5

GND

GND

OUTPUT ELECTRICAL CHARACTERISTICS:

LVDS Cable Specifications:

The 30Pin (the Connector to LCD LVDS Interface):

PIN #

SIGNAL NAME

DESCRIPTION

1

GND

Ground

2

VCC

Power Supply

3

VCC

Power Supply

4

VEDID

DDC Power

5

NC

No Connection

6

CLKEDID

DDC Clock

7

DATAEDID

DDC data

8

Odd_RxIN0-

-LVDS differential data input

9

Odd_RxIN0+

+LVDS differential data input

10

GND

Ground

11

Odd_RxIN1-

-LVDS differential data input

12

Odd_RxIN1+

+LVDS differential data input

13

GND

Ground

14

Odd_RxIN2-

-LVDS differential data input

15

Odd_RxIN2+

+LVDS differential data input

16

GND

Ground

17

Odd_RxCLKIN-

-LVDS differential clock input

18

Odd_RxCLKIN+

+LVDS differential clock input

19

GND

Ground

20

GND

Ground

21

NC

No Connection

22

NC

No Connection

23

NC

No Connection

24

NC

No Connection

25

NC

No Connection

26

NC

No Connection

27

NC

No Connection

28

NC

No Connection

29

NC

No Connection

30

NC

No Connection

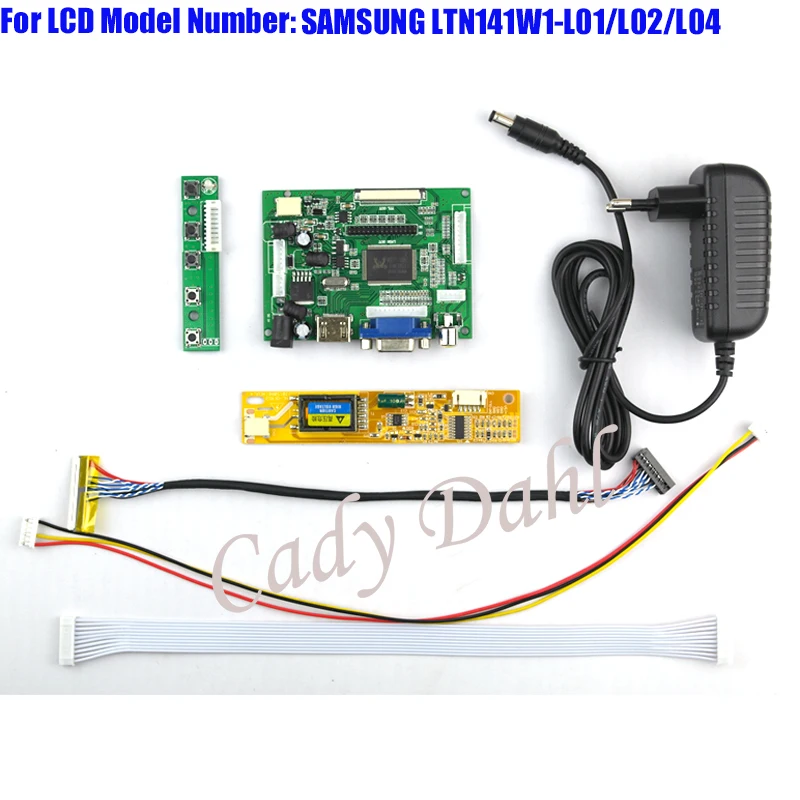

Package includes:

1 HDMI VGA 2AV 50PIN TTL LVDS Controller Board Module

1 10 Pin Cable

1 Keyborad

1 Backlight Inverter

1 6 Pin Cable

1 FIX 30 Pins 1 ch-6it LVDS cable

1 Power Adapter
