Be attention please:

Pleae leave messages for the socket style you need when placing order.(A photo is better)

Or will arrange the universal socket for you as below.Need more costs for some special style.

Delivery time:1-4days with universal socket.5-10days with required socket.

And please check the power/Hz/volts in item specifics.

Non-standard parameters can be customized

Sometimes,the color of the inverter will be change,Because the production of different batches.

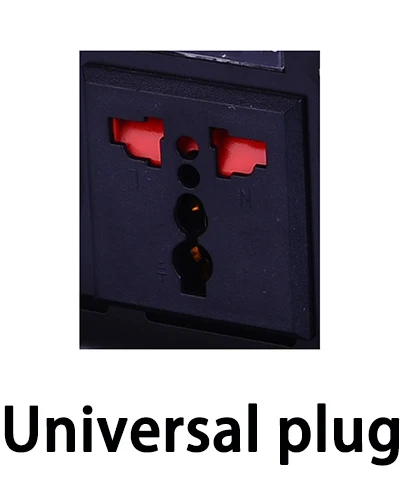

Dear buyer,The inverter Default Universal plug,if you need Other standards plug,please Leaving a message.

Output power

1000W

Peak power

2000W

Input voltage

DC12V

DC24V

DC48V

DC12V

DC24V

DC48V

Input voltage range

9.55-15.5V

19.8-30.2V

40.2-60.4V

9.55-15.5V

19.8-30.V

40-60.4V

Output voltage

100VAC or 110VAC or 120VAC ±5%

220VAC or 230VAC or 240VAC ±5%

No-loadcurrent

less-than

0.8A

0.4A

0.2A

0.8A

0.4A

0.2A

Output frequency

50HZ±1HZ or 60HZ±1HZ

Output wave

Pure sine wave

Charging current

10A/20A

10A

10A/20A

10A

Transfer Time

≤8MS

Battery priority

Optional/Default Battery priority

USB

5V 1000MA/2000MA

Max. working efficiency

93.80%

Operating temperature range

-10°- +50°

Storage temperature

-30°- +70°

Humidity

Max. 90%, non-condensing

Warranty

One year

Dimensions(W*H*D)

400x150x72mm

Package size(W*H*D)

470x210x150mm

Starting

bipolar soft start

Low voltage alarm

10V±0.5V

21V±0.5V

42V±1V

10V±0.5V

21V±0.5V

42V±1V

Low voltage shut down

9.5±0.5V

20V±0.5V

40V±1V

9.5±0.5V

20V±0.5V

40V±1V

Low voltage recovery

13±0.5V

24V±0.5V

48V±1V

13±0.5V

24V±0.5V

48V±1V

Over voltage shut down

15.5±0.5V

31V±0.5V

61V±1V

15.5±0.5V

31V±0.5V

61V±1V

Over voltage recovery

14.8±0.5V

29V±0.5V

59V±1V

14.8±0.5V

29V±0.5V

59V±1V

LED Lights

Blue indicator light (inverter output, normal operation); the red indicator flashes (under / over voltage, overload, temperature, short circuit)

Protection

Battery over under / over voltage, overload, temperature, AC short circuit

protection (positive and negative polarity protection)

Fuse

                   DC short circuit protection

Display

                LED high-definition digital display

Circuit Topology

                      Frequency link

Cooling way

            Intelligent cooling, built-in cooling block

We usually use below business express to deliver samples or small quantity orders.It takes 3-7 business days in general. Or can use the express you required.

Please inform us if you have express account, or well arrange the shipment.

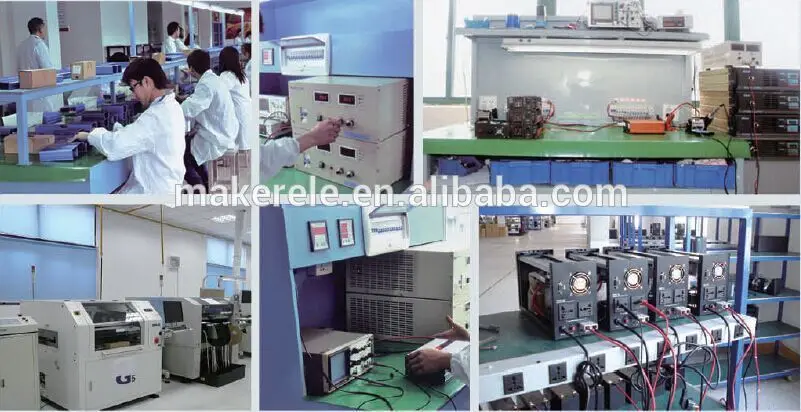

Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing - The world-famous city for low-voltage electric apparatus.We owns followed subsidiary corporations:

Yueqing Maker electric Co., Ltd. concentrates on Import and Export.
