100% Original Hobbywing EZRUN WP SC8 Waterproof 120A Brushless ESC RC Car EZRUN-WP-SC8 | Игрушки и хобби

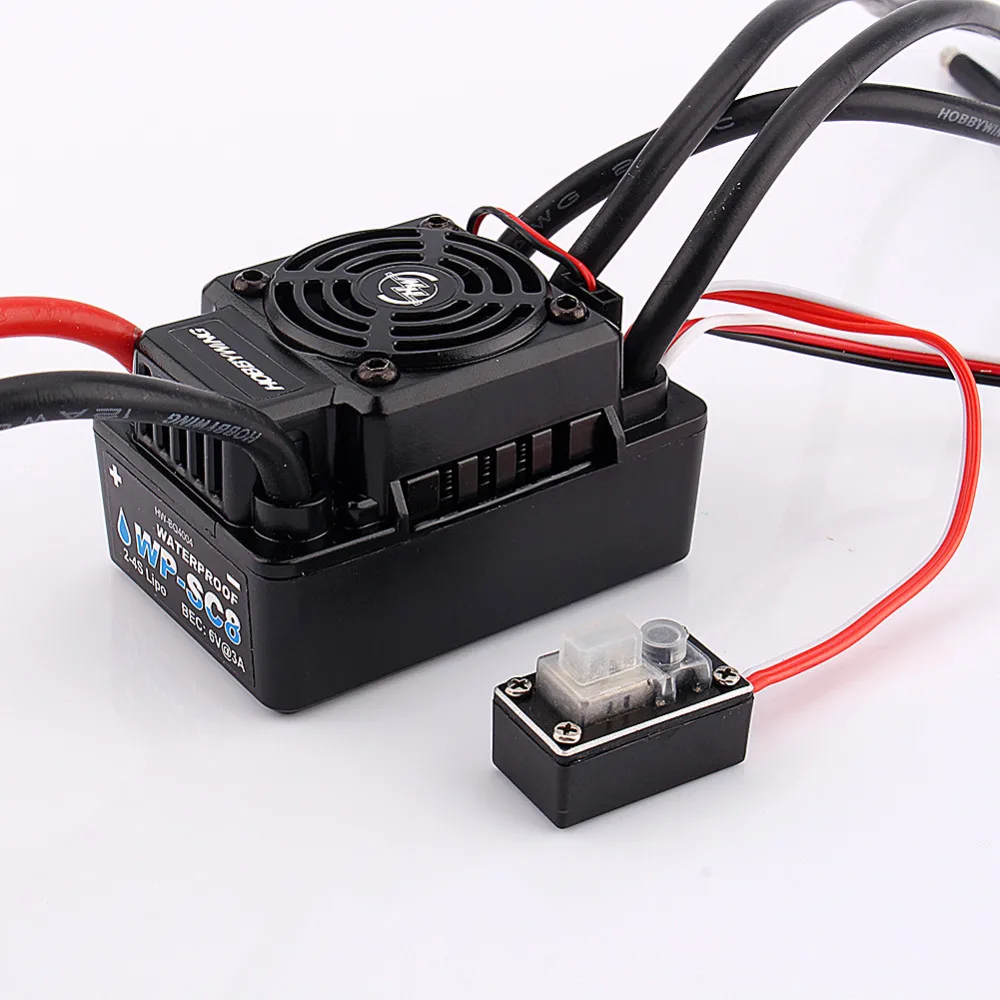

   HOBBYWING HOBBYWING EZRUN WP SC8 Waterproof 120A Brushless ESC Speed Controller
for 1/10

Specification

Feature: For: 1/10 4WD SCT / 1/8 2WD and 4WD Buggy / SCT (Include TRAXXAS 1/10 SCT); Design: Sensorless-Based Completely water-proof and dust-proof Powerful built-in switching mode BEC Excellent start-up, acceleration and linearity features Plenty of programmable items, suitable for various of chassis's, tires and racing tracks Electric brake function, also compatible with mechanical disc-brake system Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection Internal timing can be changed easily to make the ESC suitable for various of motors Easily programmed with the SET button, LED Program Box, Multifunction LCD Program Box and USB Link Software Special program port for easily setting the ESC ESC firmware can be updated through the USB adapter in the LCD Program Box Mounting stand for installing the ESC on chassis easily and firmly



Specification: Output: Continuous 120A / burst 760A Input: 6-12 cells NiMH/NiCd or 2-4S Lipo BEC Output: 6V/3A (Switching mode) [* Note #1] Resistance: 0.0004 Ohm Motor Supported: Sensorless Brushless Motor Suitable Brushless Motor: With 6 cells NiMH/NiCd or 2S Lipo: KV≤6000 With 7-9 cells NiMH/NiCd or 3S Lipo: KV≤4000 With 10-12 cells NiMH/NiCd or 4S Lipo: KV≤3000 Size: 59mm(L) * 38mm(W) * 34mm(H) Weight: 113g
