10set 315Mhz/433Mhz Rf Transmitter and Receiver Module Kit for arduino Raspberry pi Wireless Diy | Электронные компоненты и
Описание товара

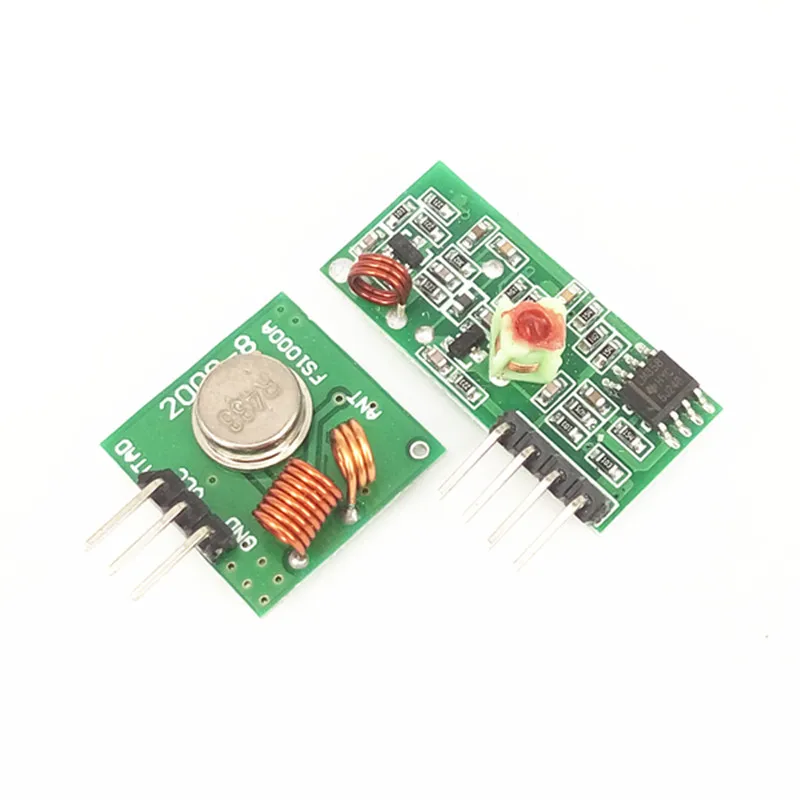

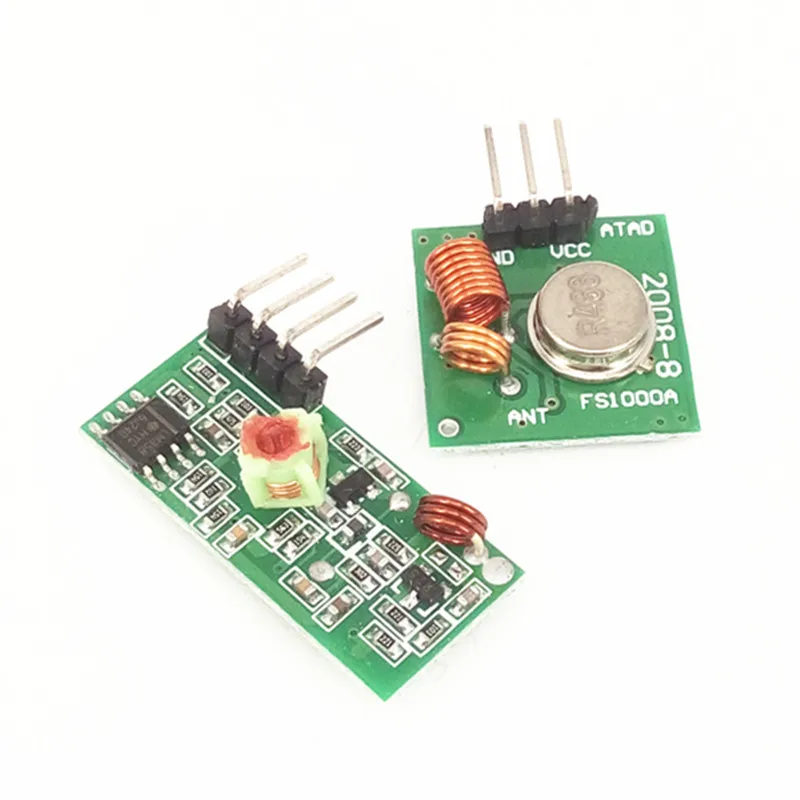

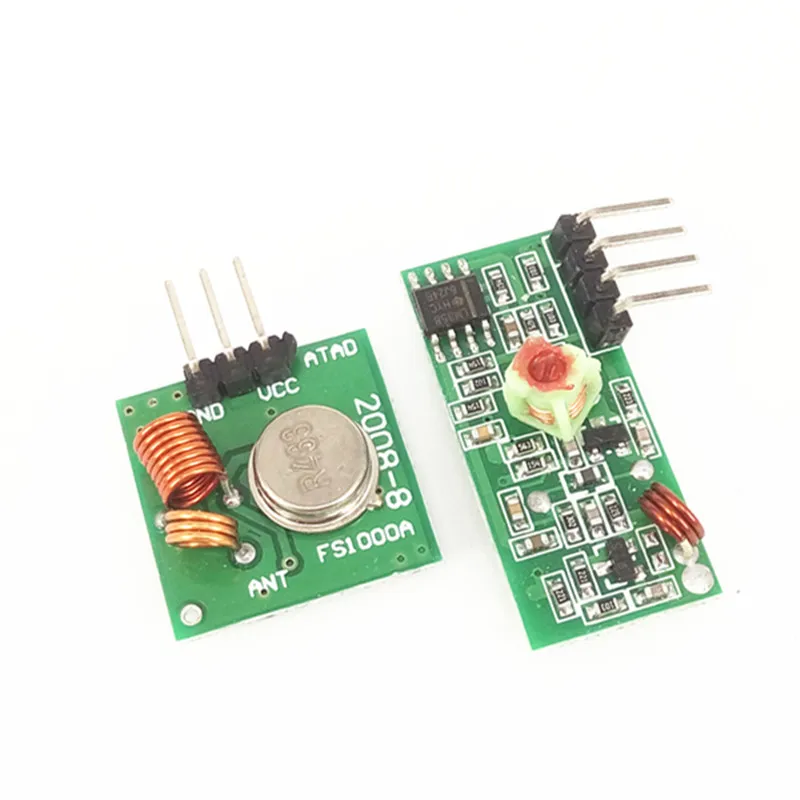

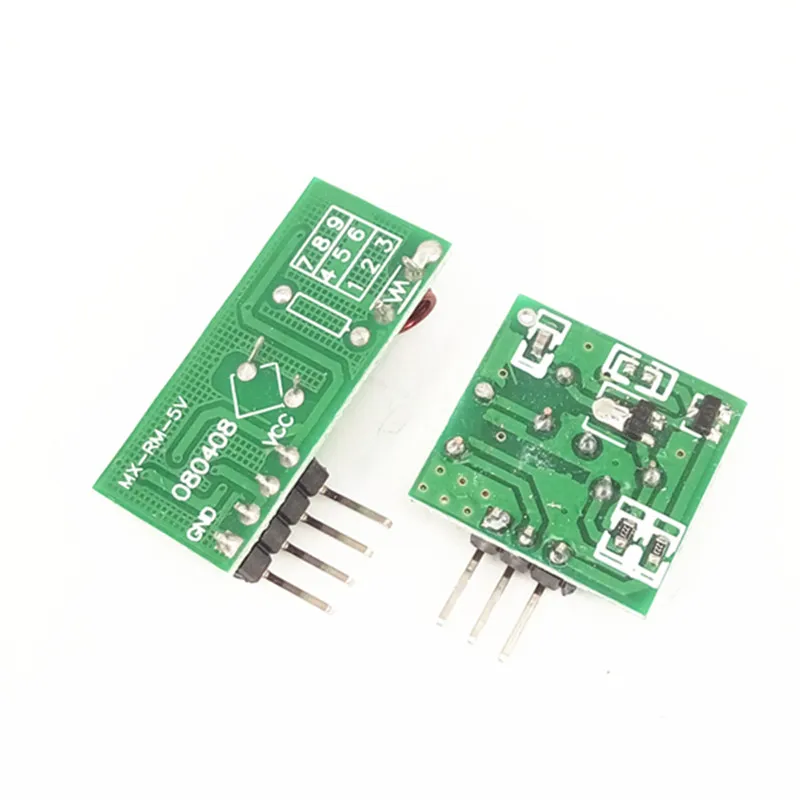

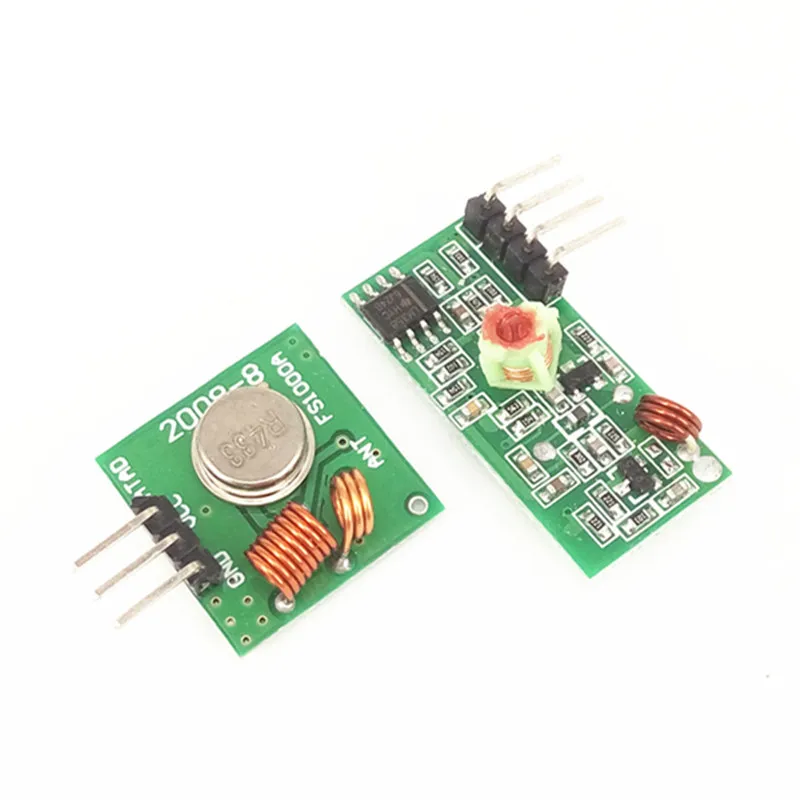

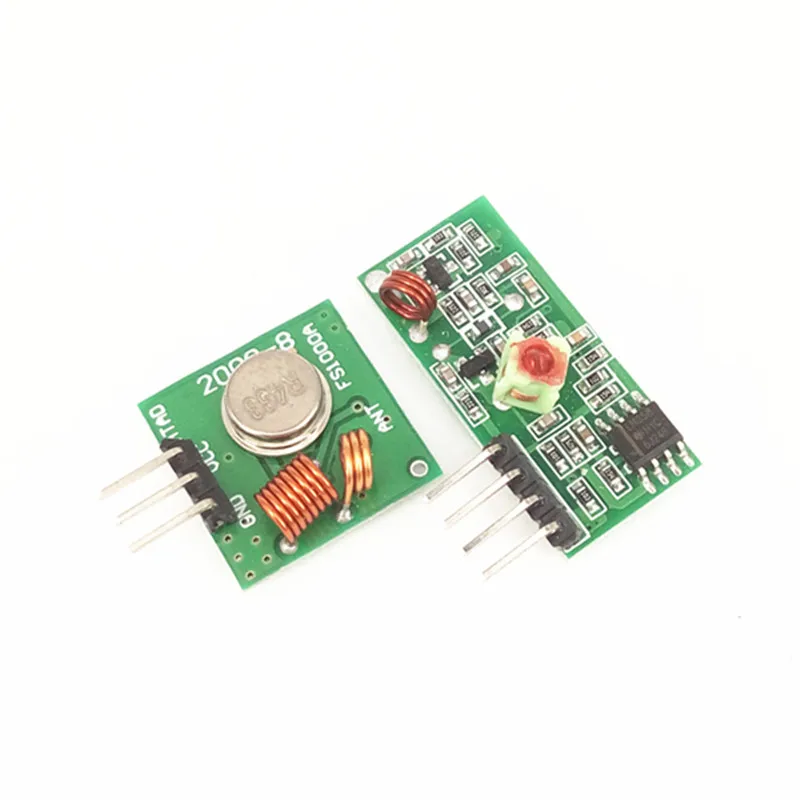

Product specifications and operation instructions of transmitter and receiver module
Technical parameters of receiving module
Product model mx-05v
Working voltage: DC5V, static current: 4mA
Receiving frequency: 433.92mhz
Receiving sensitivity: - 105dB
Size: 30 * 14 * 7mm external antenna: 32cm single core wire, wound in spiral shape
Technical parameters of Launcher
Product model: mx-fs-03v
Launch distance: 20-200m (different voltage, different effect) working voltage: 3.5-12v, external dimension: 19 * 19mm
Working mode: AM transmission rate: 4KB / s transmission power: 10MW
Transmission frequency: 433M
External antenna: 25cm common multi-core or single core wire
Pin arrangement from left to right: (data; VCC; GND)
application environment
Remote control switch, receiving module, motorcycle, automobile anti-theft products, home anti-theft products, electric door, rolling shutter door, window, remote control socket, remote led, remote audio, remote control electric door, remote garage door, remote control retractable door, remote control rolling gate, translation door, remote door opener, door closing machine, remote curtain, alarm host, alarm, remote motorcycle, remote control Control electric vehicle, remote control MP3, etc.
Optional accessories
It can be used with the company's remote control products.
remarks
The VCC voltage should be consistent with the working voltage of the module, and the power filter should be done well;
The antenna has a great influence on the receiving effect of the module. It is better to connect the antenna with 1 / 4 wavelength. Generally, 50 ohm single core wire is used. The length of 433M antenna is about 17cm;
When installing, the antenna should be as straight as possible, far away from the shielding body, high voltage and interference source; when using, the receiving frequency, decoding method and oscillation resistance should match with the transmission
Technical parameters of receiving module
Product model mx-05v
Working voltage: DC5V, static current: 4mA
Receiving frequency: 315MHz
Receiving sensitivity: - 105dB
Size: 30 * 14 * 7mm external antenna: 32cm single core wire, wound in spiral shape
Technical parameters of Launcher
Product model: mx-fs-03v
Launch distance: 20-200m (different voltage, different effect) working voltage: 3.5-12v, external dimension: 19 * 19mm
Working mode: AM transmission rate: 4KB / s transmission power: 10MW
Transmission frequency: 315m
External antenna: 25cm common multi-core or single core wire
Pin arrangement from left to right: (data; VCC; GND)
application environment
Remote control switch, receiving module, motorcycle, automobile anti-theft products, home anti-theft products, electric door, rolling shutter door, window, remote control socket, remote led, remote audio, remote control electric door, remote garage door, remote control retractable door, remote control rolling gate, translation door, remote door opener, door closing machine, remote curtain, alarm host, alarm, remote motorcycle, remote control Control electric vehicle, remote control MP3, etc.
Optional accessories
It can be used with the company's remote control products.
remarks
The VCC voltage should be consistent with the working voltage of the module, and the power filter should be done well;
The antenna has a great influence on the receiving effect of the module. It is better to connect a quarter wavelength antenna. Generally, 50 ohm single core wire is used. The length of the antenna is about 23cm for 315m
When installing, the antenna should be as straight as possible, far away from the shielding body, high voltage and interference source; when using, the receiving frequency, decoding method and oscillation resistance should match with the transmission
Technical parameters of receiving module
Product model mx-05v
Working voltage: DC5V, static current: 4mA
Receiving frequency: 433.92mhz
Receiving sensitivity: - 105dB
Size: 30 * 14 * 7mm external antenna: 32cm single core wire, wound in spiral shape
Technical parameters of Launcher
Product model: mx-fs-03v
Launch distance: 20-200m (different voltage, different effect) working voltage: 3.5-12v, external dimension: 19 * 19mm
Working mode: AM transmission rate: 4KB / s transmission power: 10MW
Transmission frequency: 433M
External antenna: 25cm common multi-core or single core wire
Pin arrangement from left to right: (data; VCC; GND)
application environment
Remote control switch, receiving module, motorcycle, automobile anti-theft products, home anti-theft products, electric door, rolling shutter door, window, remote control socket, remote led, remote audio, remote control electric door, remote garage door, remote control retractable door, remote control rolling gate, translation door, remote door opener, door closing machine, remote curtain, alarm host, alarm, remote motorcycle, remote control Control electric vehicle, remote control MP3, etc.
Optional accessories
It can be used with the company's remote control products.
remarks
The VCC voltage should be consistent with the working voltage of the module, and the power filter should be done well;
The antenna has a great influence on the receiving effect of the module. It is better to connect the antenna with 1 / 4 wavelength. Generally, 50 ohm single core wire is used. The length of 433M antenna is about 17cm;
When installing, the antenna should be as straight as possible, far away from the shielding body, high voltage and interference source; when using, the receiving frequency, decoding method and oscillation resistance should match with the transmission
Technical parameters of receiving module
Product model mx-05v
Working voltage: DC5V, static current: 4mA
Receiving frequency: 315MHz
Receiving sensitivity: - 105dB
Size: 30 * 14 * 7mm external antenna: 32cm single core wire, wound in spiral shape
Technical parameters of Launcher
Product model: mx-fs-03v
Launch distance: 20-200m (different voltage, different effect) working voltage: 3.5-12v, external dimension: 19 * 19mm
Working mode: AM transmission rate: 4KB / s transmission power: 10MW
Transmission frequency: 315m
External antenna: 25cm common multi-core or single core wire
Pin arrangement from left to right: (data; VCC; GND)
application environment
Remote control switch, receiving module, motorcycle, automobile anti-theft products, home anti-theft products, electric door, rolling shutter door, window, remote control socket, remote led, remote audio, remote control electric door, remote garage door, remote control retractable door, remote control rolling gate, translation door, remote door opener, door closing machine, remote curtain, alarm host, alarm, remote motorcycle, remote control Control electric vehicle, remote control MP3, etc.
Optional accessories
It can be used with the company's remote control products.
remarks
The VCC voltage should be consistent with the working voltage of the module, and the power filter should be done well;
The antenna has a great influence on the receiving effect of the module. It is better to connect a quarter wavelength antenna. Generally, 50 ohm single core wire is used. The length of the antenna is about 23cm for 315m
When installing, the antenna should be as straight as possible, far away from the shielding body, high voltage and interference source; when using, the receiving frequency, decoding method and oscillation resistance should match with the transmission
