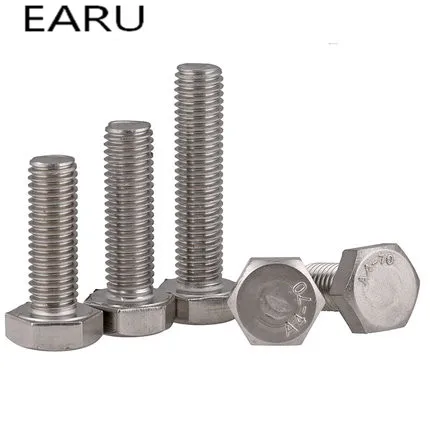

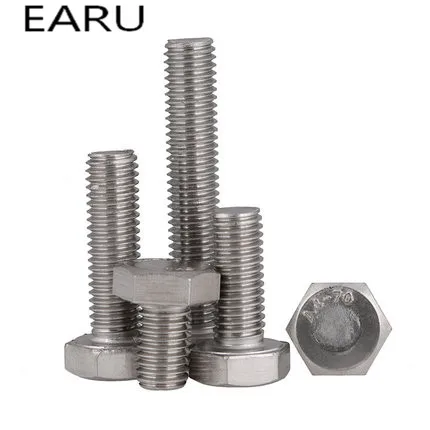

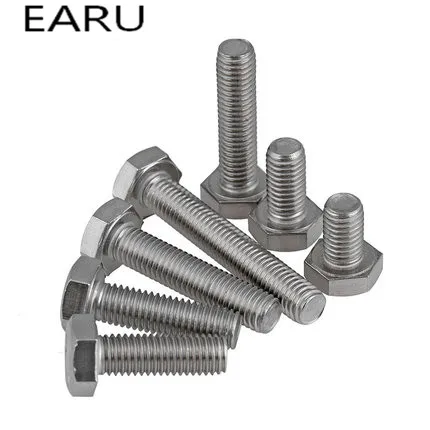

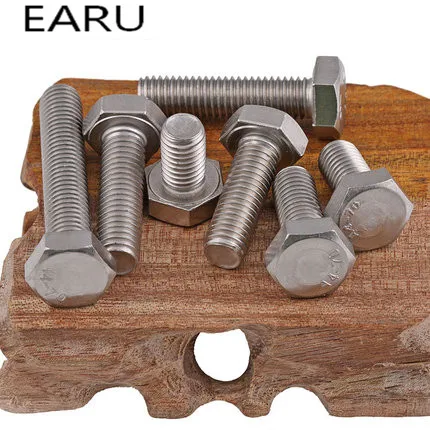

Болт-шестигранник DIN933 стандарта Rich размеров из нержавеющей стали 316 с гайкой, онлайн оптовая продажа от завода M6*10-M6*150.

Description



Minimum 5 characters





Brand BRT / Bai Ruite Material 316 stainless steel Name Hex Bolts Surface treatment Untreated Standard DIN933 Package instruction Plastic bags / cartons Size For example: M6 * 30 (thread diameter 6mm thread length 30mm without head) Hex bolts304 nut series201 stainless steel nutsGeneral material nut series

















Minimum 5 characters



Note: The value of a single batch of manual measurement, there is a certain error, please prevail in kind, mind careful shot or contact customer service!

Unit: mm Nominal
Diameter
D Thread
Gt; K Lt; / RTI & gt; Max Min Max Min M3 0.5 2.2 1.9 5.5 5.25 M4 0.7 3 2.8 7 6.65 M5 0.8 3.74 3.26 8 7.65 M6 1 4.24 3.76 10 9.65 M7 1 5.04 4.56 11 10.57 M8 1.25 5.54 5.06 13 12.57 M10 1.5 6.69 6.11 17 16.57 M12 1.75 7.79 7.21 19 18.48 M14 2 9.09 8.51 Twenty two 21.16 M16 2 10.29 9.71 Twenty four 23.16 M18 2.5 11.85 11.15 27 26.15 M20 2.5 12.85 12.15 30 29.16





Minimum 5 characters



Chemical composition,%, max Group C Si Mn Gt; Lt; / RTI & gt; Cr Mo Ni Cu Characteristic 304-A2 0.1 1 2 0.05 0.03 15-20   8-19 4

Work hardening rate is moderate, suitable for general cold processing and stretching, cold processing performance is better, generally used in hexagonal screws, nuts and gasket products

316-A4 0.08 1 2 0.045 0.03 16-18.5 2-3 10-15 1

Plus molybdenum, corrosion resistance than 304 strong, especially for seawater and chemical media, more corrosion resistance and pitting resistance.

Note:

1) If the nickel content is less than 8%, the minimum content of manganese must be 5%
2) When the nickel content is more than 8%, the minimum content of copper is not limited
3) If the chromium content is less than 17%, then the minimum nickel content of 12%
4) For the maximum 0.03% carbon content of austenitic stainless steel, nitrogen content of up to 0.22
5) For larger diameter products, in order to achieve the specified mechanical properties in the manufacturer\'s instructions, may have a higher carbon content, but martensitic steel should not exceed 0.12%

Mechanical behavior Category Group Performance level Screw diameter Tensile strength mpa / mm2 The specified non-proportional elongation shall be mpa / mm2 Elongation after breaking mpa / mm2 Austenite A2, A4 50

Lt;

500 210 0.6d 70

Lt;

700 450 0.4d 80

Lt;

800 600 0.3d





'

---
