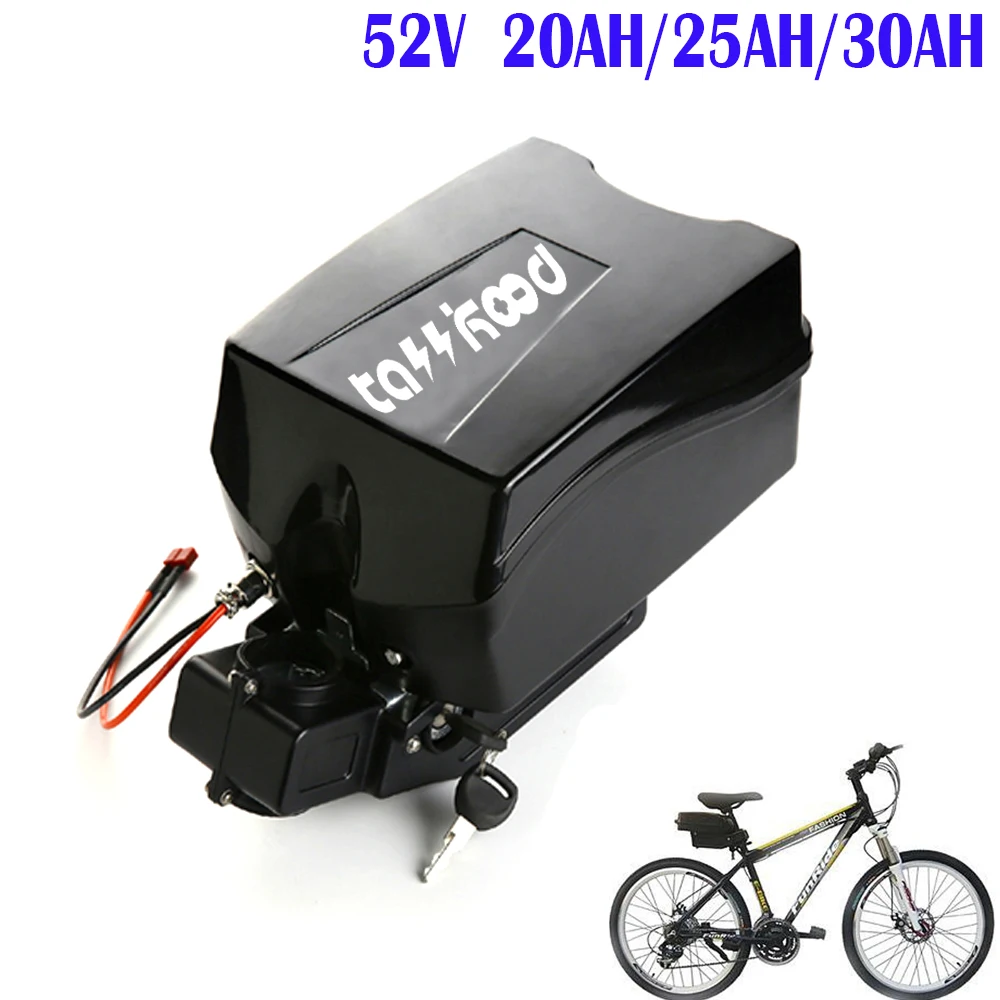

48V Frog style lithium battery for electric bicycle 52V 30ah 20ah 25ah 1500w bafang pack with Charger + bms | Спорт и развлечения

48V Frog style lithium battery for electric bicycle 52V 30ah 20ah 25ah 1500w bafang pack with Charger + bms | Спорт и развлечения

Battery Specification

Parameter

52V 20AH

52V 25AH

52V 30AH

Nominal Voltage

52V

52V

52V

Nominal Capacity

20AH

25AH

30AH

Nominal Power

1040Wh

1300Wh

1560Wh

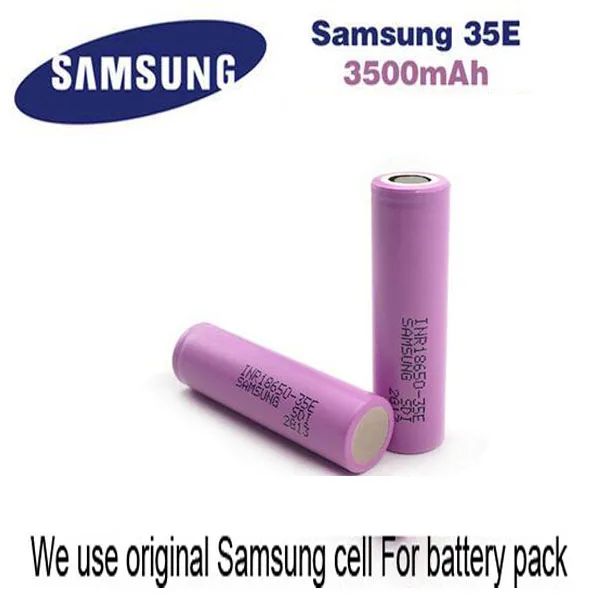

Battery Pack Cell

3.7V 3C 18650 2500MAH

SAMSUNG

3.7V 3C 18650 3000MAH

SAMSUNG

3.7V 3C 186503550MAH

SAMSUNG

Built-in BMS

30Amp

(can be Customized)

30Amp

(can be Customized)

30Amp

(can be Customized)

Fit Motor Power

200W TO 1500W

200W TO 1500W

200W TO 1500W

Riding Mileage

40-50km

45-55km

50-60km

Charge Current

2-5A

2-5A

2-5A

Charge Cut-off Voltage

58.8V

58.8V

58.8V

Discharge Cut-off Voltage

39.2V

39.2V

39.2V

Battery Weight

4.5KG

4.7KG

4.9KG

Battery Charger

5A/2A

5A/2A

5A/2A

Dimensions

120*160*260MM

120*160*260MM

120*160*260MM

Charge Temperature

0°C
to 45°C

Discharge Temperature

'-20°C
to 65°C

Cycle Life

≥80%
Capacity After 1000 Cycles

Charger Parameters

Applying Battery Type: Lithium

Input Voltage (AC/V): 100 to 240V

Output Current (A): 2 A/5A

Output Voltage (DC/V): 58.8V

Charging Mode: CC/CV

Type of DC Output Connector: PLUG

Includes:

Applications: E-Bike, Electric Bike, E-Scooter, Electric Scooter !

(Suitable Wattage of Motor:  from 250 Watt to 1500 Watt suggested.)

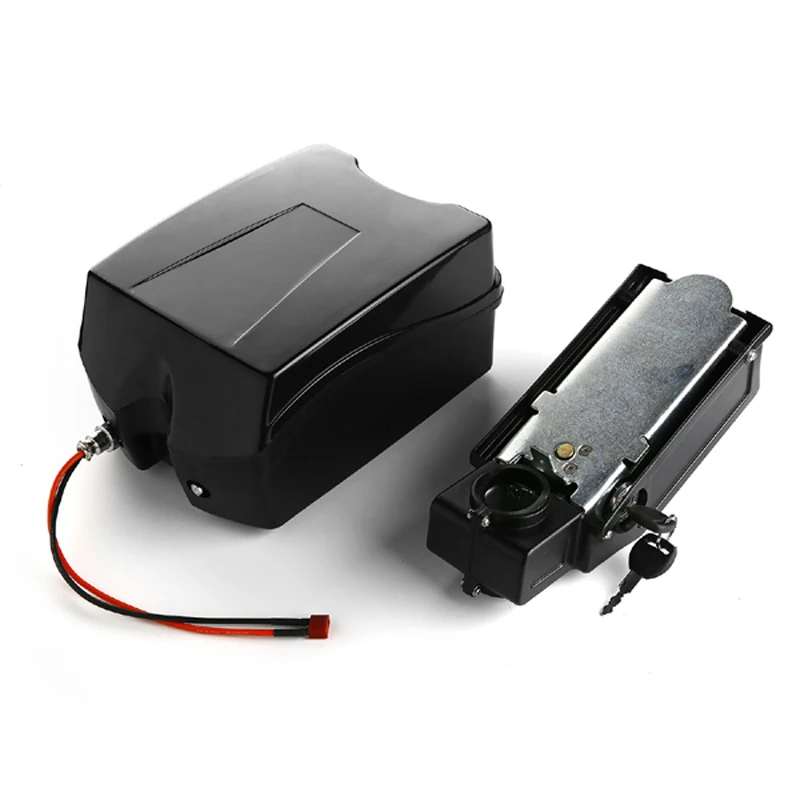

1. Lithium Battery with Frog case

2. Built-in BMS board

3. Charger (58.8V 2.0A 50/60HZ 100-240v US ,EU,UK ,AU PLUG)

Battery Quality:

1. Long life, large capacity and good shock resistance

2. Low self-discharge and good discharge performance at low temperature

3. Strong charging acceptance and quick-charging capability

4. Strong over-discharge resistance and charge retention

5. Maintenance-free and no acid or water for maintenance in usage

6. Most safe no explosion no fire

7. High temperature performance

8. Environmental friendly

9. Lighter weight smaller size

10. Excellent large current discharge performance, and have obvious advantages in startup and

climbing
