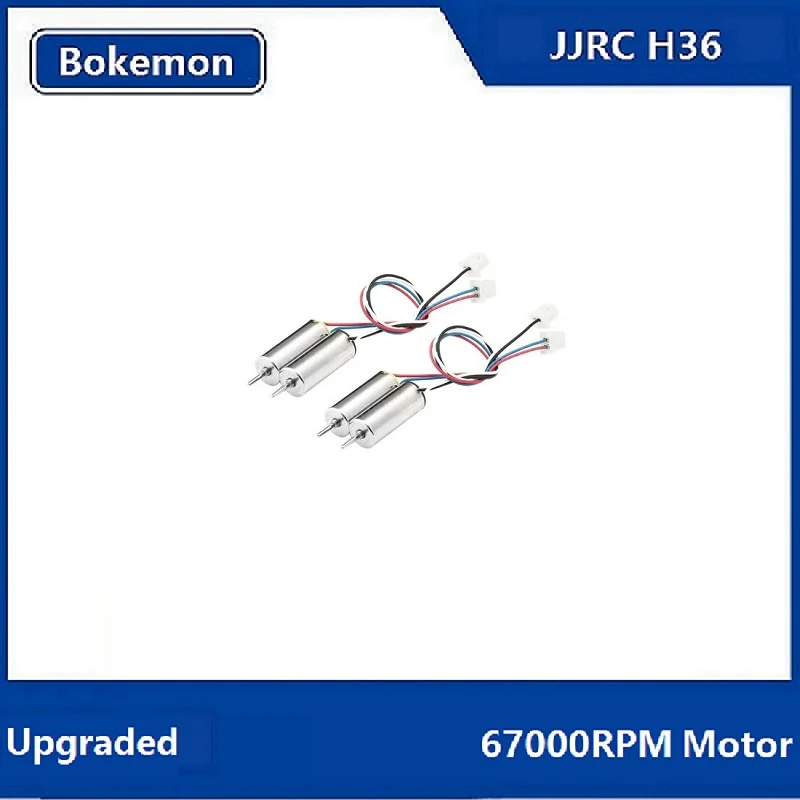

0615 67000RPM Motor for JJRC H36 NH010 Eachine E010 E010C E010S E013 E011 E011C E012 E012HC E012HW GoolRC T36 FuriBee F36 | Игрушки и

This motor is more power than original JJRC H36 Motor

Description:
Motor Diameter: 6.0mm
Motor Length: 15mm
Shaft Diameter: 0.05-0.3mm
Cable Length: 70mm
Weight: about: 1.8g/1pcs
Option: Clockwise Motor(With Red Blue Wire), Anti-clockwise Motor(With Black White Wire)
Option: With 1.25mm Plug

1.Operating condition

Rated voltage 3.4V DC Direction of rotation CW and CCW Operating voltage range DC2.0--4.5V DC perating temperature range -10-50°C Motor position all position



2.Mearsuring condition





Motor position horizontal or vertical Power supply regulated DC power supply assuring unquestionable measuring regulated DC power supply assuring unquestionable measuring 10-30°C  30-95%
If the judgment is questionable,Measurent is to be made based on JIS Standard Testing Condition(20+2°C,65+5% ) Direction of rotation viewed from output shaft side



3.Electrical characteristics







Items Specification Standard value No Load speed 67000rpm±15% 67000 rpm No Load current 200mA max 180mA Starting voltage 0.8V max 0.5V DC Stall current 240mA±5% 240mA Terminal resistance 0.9Ω ±5% 0.9Ω Insulation resistance 10MΩ min AT 250V DC between
motor terminal and case





Cautions:
1) Please use the motor in this technology index range for the performance of the motor is affected by environmental temperature seriously.
2) It is not allowed to operate in the high temperature with high humidity, and not allowed to contact with corrosive liquid and corrosive gas,should not to be stored and without running Continuously for more than six months.
3) Do not lock the motor shaft while the electric is on. The motor will be burnt out after the motor shaft was locked for more then 1 second.
4) Do not hit the motor directly.
