Features:

Special PLC for motion control, support 3 channels pulse output, 2 channels AB phase counter

Transistor output and 220V AC or DC24V power supply

Support interpolation and following instructions

Larger capacity and higher processing speed

Can be connected with expansion module and BD board, support MODBUS

With PID calculation

General Specifications

Item

Specification

32 points

Program Operation Mode

Circulation scanning mode, timing scanning mode

Programming mode

Instructions and ladder chart

Processing speed

0.5us

Power-off retentive

FlashROM and Li battery

User program capacity

128KB

I/O

input 18 / output 14

coil (M)

8512 points

flow(S)

1024 points

timer (T)

points

640 points

spec

100mS timer: set time 0.1~3276.7 seconds

10mS timer: set time 0.01~327.67 seconds

1mS timer: set time 0.001~32.767 seconds

with interruption accuracy timer

counter(C)

points

640 points

spec

16 bits counter: Set value K0~32767

32 bits counter: Set value K0~2147483647

data register(D)

4512 words

FlashROM register(FD)

474 words

extension register(ED)

36864 words

high speed function

High speed counter, pulse output, external interruption

Timing Scanning Interval Setting

0~99mS

password protection

6-bit ASCII code

Self-diagnose Function

Power on self-diagnose, monitor timer, grammar check

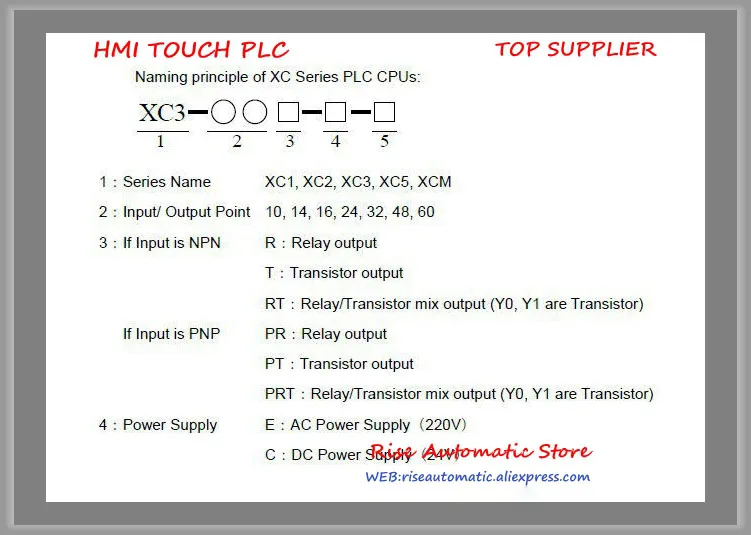

XCM series

TYPE

FUNCTION

XCM-60T-E

36DI/24DO, transistor output, AC90~260V, can work with BD cards, 10 axes pulse output

XCM-32T4-E

18DI/14DO, transistor output, AC90~260V, can work with BD cards, expansion modules. 1 channel AB phase counter, 4 channel high speed pulse (support 2-axis linear circular interpolation), support PID. 1 RS485 interface can realize tracking control function.

XCM-32T4-C

18DI/14DO, transistor output, DC20~30V, can work with BD cards, expansion modules. 1 CH AB phase counter, 4 CH high speed pulse (support 2-axis linear, circular interpolation), support PID. 1 RS485 interface can realize tracking control function.

XCM-32T3-E

18DI/14DO, transistor output, AC90~260V, can work with BD cards, expansion modules. 2 CH AB phase counter, 3 CH high speed pulse, support PID. 1 RS485 interface can realize tracking control function.

XCM-32T3-C

18DI/14DO, transistor output, DC20~30V, can work with BD cards, expansion modules. 2 CH AB phase counter, 3 CH high speed pulse, support PID. 1 RS485 interface can realize tracking control function.

XCM-24T4-E

14DI/10DO, transistor output, AC90~260V, can work with BD cards, expansion modules. 1 CH AB phase counter, 4 CH high speed pulse (support 2-axis linear, circular interpolation), support PID. 1 RS485 interface can realize tracking control function.

XCM-24T4-C

14DI/10DO, transistor output, DC20~30V, can work with BD cards, expansion modules. 1 CH AB phase counter, 4 CH high speed pulse (support 2-axis linear, circular interpolation), support PID. 1 RS485 interface can realize tracking control function.

XCM-24T3-E

14DI/10DO, transistor output, AC90~260V, can work with BD cards, expansion modules. 2 CH AB phase counter, 3 axes high speed pulse, support PID. 1 RS485 interface can realize tracking control function.

XCM-24T3-C

14DI/10DO, transistor output, DC20~30V, can work with BD cards, expansion modules. 2 CH AB phase counter, 3 axes high speed pulse, support PID. 1 RS485 interface can realize tracking control function.

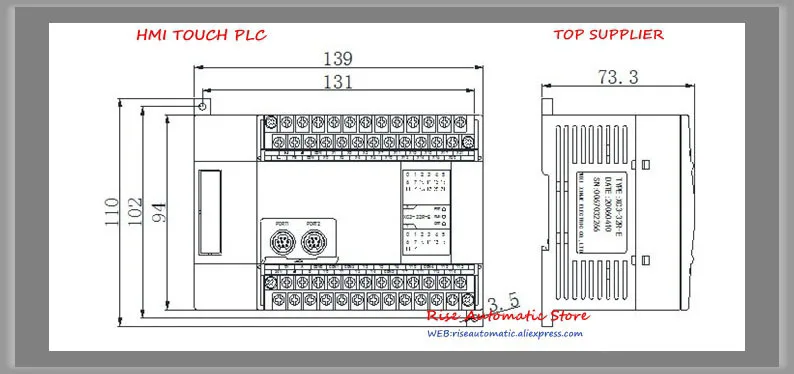

Product appearance and size chart
