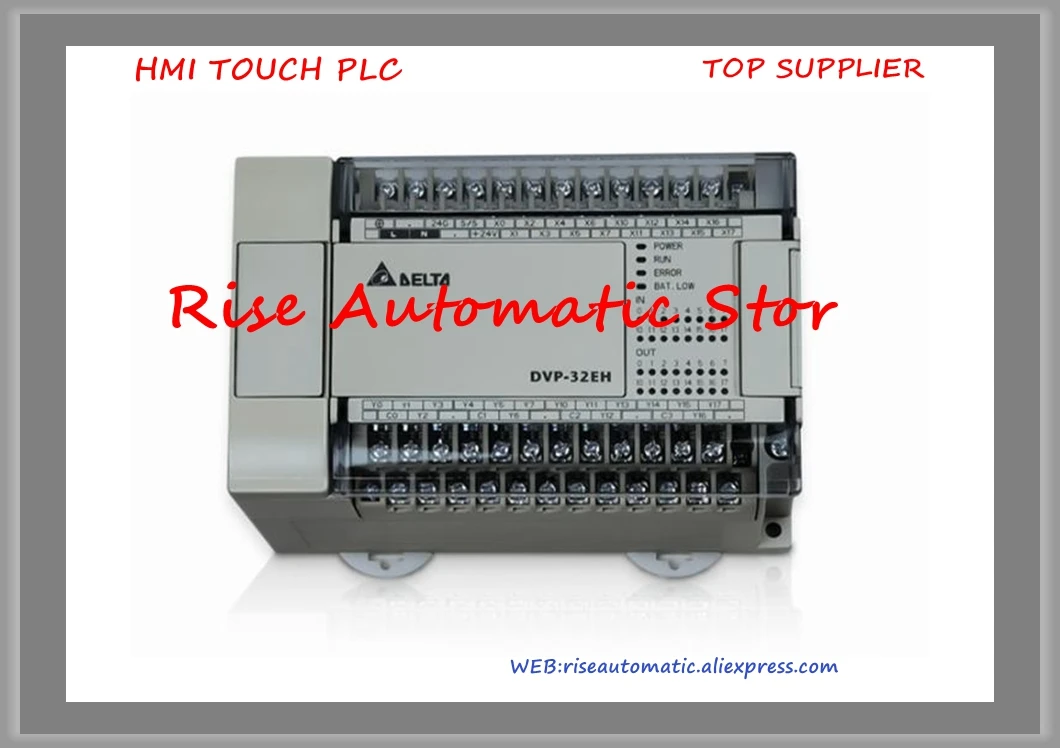

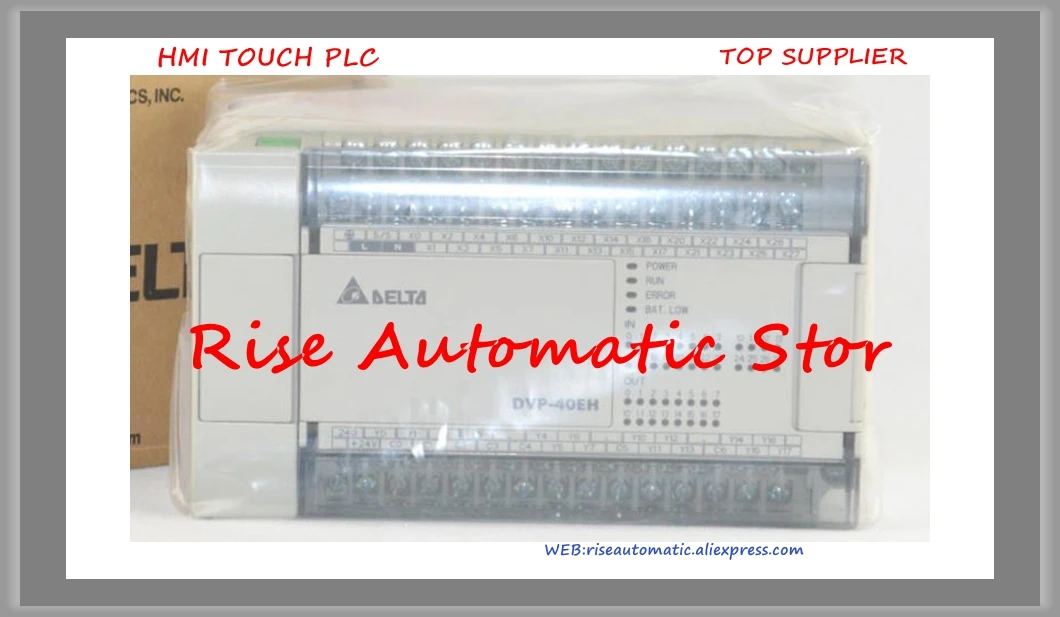

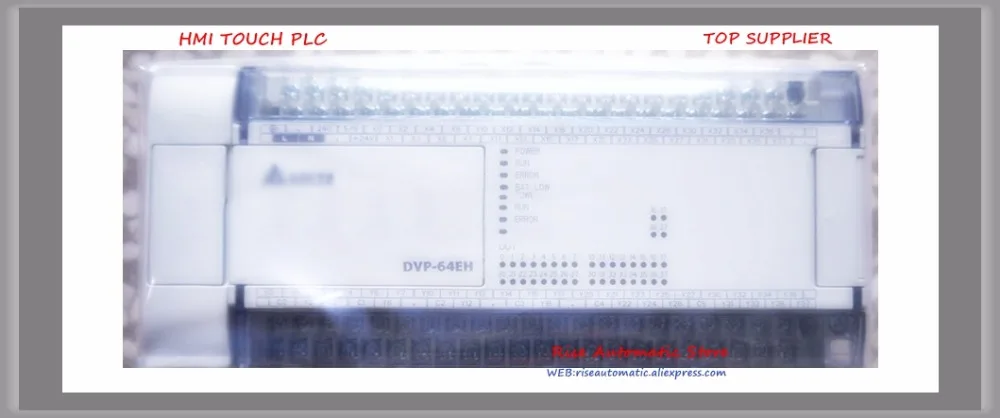

The new generation DVP-EH3 PLC is the high-end model of the Delta DVP-E series.

It provides larger program capacity and data registers for more demanding and complex applications.

Applications

High-speed 3-axis servo welding machine, high-speed cutting machine, bar feeder, distributed monitor system in production line.

Specifications

Excellent Motion Control

1)        High-speed ulse output: 4sets of 200kHz pulse output (DVP40/48/64/80EH00T3)

2)        Supports max. 4 hardware 200kHz high-speed counters

3)        Increases many motion control instructions to meet the applications that require high-speed and high-precision

4)        positioning control such as labeling machines, packaging machines and printing machines

5)        Offers linear / arc interpolation motion control

6)        Provides up to 16 external interrupt pointers

Complete Program Protection

1)        Auto backup function to prevent losing programs and data even when the battery runs out

2)        Second copy function provides a backup for extra insurance in the event that one set of programs and data are damaged

3)        Up to 4-level password protection protects your source programs and intellectual property

Outstanding Operation Performance

1)        CPU + ASIC dual processors support floating point operations.

2)        The max. execution speed of basic instructions is able to reach 0.24μs.

Flexible Function Extension Modules & Cards

The multiple selections of extension modules and function cards provide analog I/O, temperature measurement,additional single-axis motion control, high-speed counting, 3rd serial communication port and Ethernet communication card are available.

PLC-Link

C-Link allows the user to link up a max. 32 units to the network without having to install extra communication extension modules.

Brand-New High-Speed Extension Modules

The brand-new extension modules greatly shorten the data transmission time among the PLC and its extension modules as well as enhance the efficiency of the PLC program.

Built-in 4 Hardware High-Speed Counters

Standard

Hardware high-speed counter

1 phase 1

1 phase 1

1 phase 2

2 phase 2

sets

bandwidth

sets

bandwidth

sets

bandwidth

sets

bandwidth

8

10KHz

4

200KHz/20KHz

2/2

200KHz/20KHz

2/2

200KHz/20KHz

Electrical Specifications

Model

Items

16EH

00_3

20EH

00_3

32EH

00_3

32EH

00M3

40EH

00_3

48EH

00_3

64EH

00_3

80EH

00_3

Power supply

voltage

100 ~ 240VAC (-15% ~ 10%); 50/60Hz + - 5%

Fuse capacity

2A/250VAC

Power

consumption

50VA

60VA

80VA

DC24V current

output

500mA

Power supply

protection

DC24V output short circuit protection

Voltage

withstand

1,500VAC (Primary-secondary), 1,500VAC (Primary-PE),

500VAC (Secondary-PE)

Insulation

resistance

> 5M Ohm at 500VDC (between all I/O points and ground)

Noise immunity

ESD: 8KV Air Discharge

EFT: Power Line: 2KV, Digital I/O: 1KV, Analog & Communication I/O: 250V

Damped-Oscillatory Wave: Power Line: 1KV, Digital I/O: 1KV, RS: 26MHz ~

1GHz, 10V/m

Grounding

The diameter of grounding wire shall not be less than that of L, N terminal of

the power supply. (When many PLCs are in use at the same time, please

make sure every PLC is properly grounded.)

Operation/

storage

Operation: 0 °C ~55 °C (temperature), 50~95% (humidity), pollution degree 2

Storage: -25 °C ~70 °C (temperature), 5~95% (humidity)

Vibration/shock

resistance

International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 &

IEC 68-2-27 (TEST Ea)

Weight (g)

R

500

520

652

644

710

748

836

948

T

480

500

612

675

688

756

848

Input Point

Spec

Items

Two Differential

inputs (200kHz)

24VDC single common port input

200kHz

20kHz

Normal input

Input wiring type

Independent

wiring

Change wiring from S/S to SINK or SOURCE

Input indicator

LED display; light on = ON, light off = OFF

Input voltage (+ - 10%)

5~24VDC

24VDC

Input point configuration

#1

#2

#3

#4

#5

Input impedance

4.7K Ohm

3.3K Ohm

3.3K Ohm

4.7K Ohm

4.7K Ohm

Active Level

OffàOn

> 1mA (5V)

> 2mA (15V)

OnàOff

< 0.4mA (2V)

< 0.5mA (5V)

Responsetime #5

OffàOn

< 150ns

< 150ns

< 3.5us

< 8us

< 10ms

OnàOff

< 3us

< 3us

< 20us

< 60us

< 20ms

#1:For DVP32EH00M3, the bandwidth of the two differential input points X0, X1, X4, and X5 is 200kHz.

#2:The bandwidth of the input points X0, X1, X4, X5, X10, X11, X14, and X15 is 200kHz (excluding X10 and X11 on DVP20EH3).

#3:For DVP20EH00R3/T3, the bandwidth of the input points X10 and X11 is 20kHz.

#4:The bandwidth of the input points X2, X3, X6, X7, X12, X13, X16, and X17 is 10kHz.

#5:X20 and above on EH3 are normal input points.

#6:The filter times of X0~X7 and X10~X17 can be adjusted by D1020 and D1021 respectively within 10~60ms.

Output Point

           Spec

Items

Two

differential

outputs

Single common port

transistor output

Single common port

relay output

Low speed

High speed

Normal

output

Max. frequency

200kHz

10kHz

200kHz

Load ON/OFF control

Minimum load

/

2mA/DC power

Working voltage

5VDC

5 ~ 30VDC

< 250VAC, 30VDC

Insulation

Line Driver

Photo coupler isolation

Magnetic isolation

Maximum

load

Resistive

< 25mA

0.5A/1 point (4A/COM)

2A/1 point (5A/COM)

Inductive

/

12W (24VDC)

#1

Lamp

/

2W(24VDC)

20WDC/100WAC

Max. output response

time

0.2us

0.2us

OffàOn: 20us

OnàOff: 30us

10ms

#1:For DVP32EH00M3, the bandwidth of the two differential output points Y0~Y3 is 200kHz,

and that of the single output points Y4~Y7 is 10kHz.

#2: For DVP40/48/64/80EH3, the bandwidth of the output points Y0~Y3, Y4 and Y6 is

200kHz. For DVP16/20/32EH3, the bandwidth of the output points Y0 and Y2 is 200kHz.

#3:For DVP40/48/64/80EH3, the bandwidth of the output points Y5 and Y7 is 10kHz. For

DVP16/20/32EH3, the bandwidth of the output points Y1 and Y3~Y7 is 10kHz.

#4:Y10 and above on EH3 are normal output points.

#5:Life curves
