ANL-100 Digital Torsion testing machine price with Torque Meter Screw driver/Wrench measure/Tester

Features:

1. Easy to carry
2. High accuracy
3. Can connect to PC
4. One year warranty
5. Complete functions

Digital torque meter is an intelligent multi-functional measuring instrument which is designed for testing various kinds of torque. It main used in testing and calibration various kinds of electric pneumatic screwdriver set, the torque of torque wrench, all kinds of products refer to testing of screw down force, parts torsion destructive testing etc. With features of simple operation, high precision, easy to carry, complete functions etc. It's widely used in various kinds of electric, light industry, machinery manufacturing, research institutions, etc.

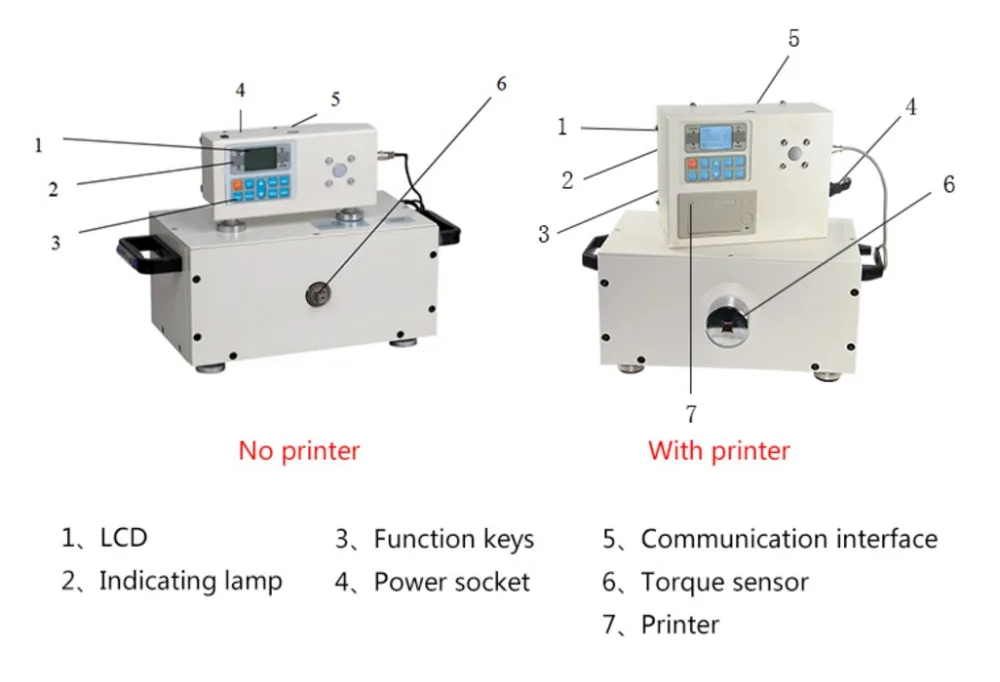

Type

With printer

ANL-50P

ANL-100P

ANL-200P

ANL-300P

ANL-500P

No printer

ANL-50

ANL-100

ANL-200

ANL-300

ANL-500

Measuring range / Division value

N·m

50.000/0.001

100.00/0.01

200.00/0.01

300.00/0.01

500.00/0.01

Kg·cm

510.52/0.01

1021.0/0.1

2042.0/0.1

3063.1/0.1

5105.2/0.1

Ib·in

443.11/0.01

886.2/0.1

1772.4/0.1

2658.6/0.1

4431.1/0.1

Precision

±0.1%

Peak Value Sampling Frequency

2000HZ

Power

8.4V  1.2VX7Ni-MH Battery group

Charging Time

4~6 Hours

Continuous using time of battery

About 10 Hours

Battery life

≥300 times

Size

With printer: Host display part  230 mm x 95 mm x 180 mm

Measuring device part  480 mm x 190 mm x 180 mm

No printer: Host display part 230 mm x 70 mm x 125 mm

Measuring device part  480 mm x 190 mm x 180 mm

Net Weight

With printer: 36 KG     No printer: 34 KG

Power adapter

Input: Optional, Output: DC 10 V 300 mA
