The ACCURL® Hydraulic press, engineered with great care for details, is a high quality machine tool. The studies made on the framework flections have allowed us to design a product that reacts in the most appropriate and responsive way to the mechanical solicitations, therefore guaranteeing a stable structure, thus a higher precision in deep drawing.

ACCURL® design & manufactures High-speed C-Frames Hydraulic Presses from 250 to 2500 kN for high-rate, deep-drawing processes in several industrial application areas for Aluminum & Stainless Steel parts (i.e. automotive, houseware, cookware, job type works and others).

ACCURL® chooses the best products to guarantee long-lasting and high-techmachines.
ACCURL® selects the best components.

APPLICATIONS:
• Graphic color CNC
•The composite series has been designed for applications in which structural rigidity and lexibility in terms of production are the particular rerogatives required. Machines with several actions from the top or bottom or pecial solutions enable complex shapes and large dimensions to be achieved in a number of different industries, such as:
• domestic appliances
• car and vehicle bodies
• structural elements
• stainless steel sinks
• cooker tops Laser beam safety photocells
• Silent and reliable internal gear pump
• High precision optical lines
• Electrical panel with high quality components
• Start&Stop system


Customized for your Production:

- In addition our Presses are produced on the basis of Accurl china standard or, alternatevely, on technical specifications agreed with customers.

- User-friendly control

Precision:

- Force from 600 to 30.000 kN

- Monolithic and composite structures

- Customizable Table dimensions

- Customizable Stroke

- Safety Standards: CAT3 e CAT4

- Mold Change systems available

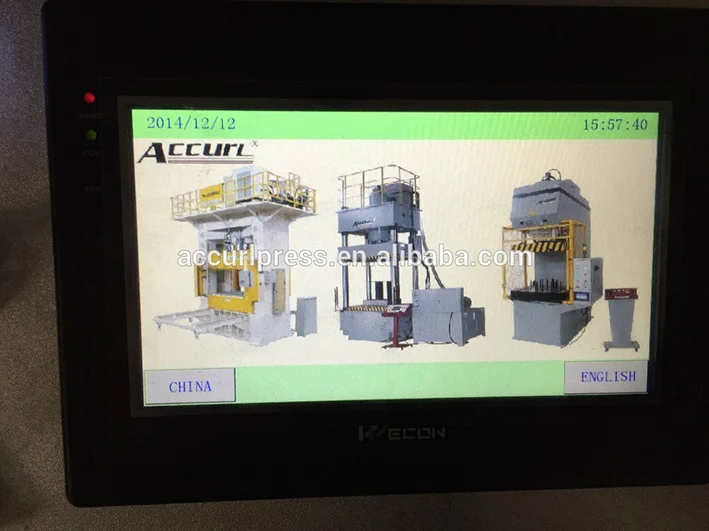

- Software: Siemens touch screen

Safety:

ACCURL® has a strict policy for the choice of its components, on the basis of an extensive experience acquired over decades. All components are certified in accordance with European standards and their main sources are Germany, USA, Holland, Italy and Switzerland. All structural parts are calculated by the finite element method and only high quality steel S275 and S355 JR namely J2 (+ N) is used.

Reliability:

ACCURL® All structural plates used are made of steel alloys ( i.e. S355 or higher), are certified and verified for chemical analysis and mechanical testing. The assembled elements are welded together and normalized, i.a.w. UNI-EN10025 regulations. The structures are designed to improve load distribution and lower associated tensions, so to minimize distortions.

ACCURL® machines comply with the strictest EU regulations with referenceto safety. The devices installed guarantee thorough safety of the operatorwithout reducing the pace of work.

• The most advanced laser systems

• Safety PLCs able to manage and monitor the action of the proportional valves

• Visible dual beam linked to the upper tool: should it be is interrupted, it blocks the movement of the Deep drawing

• Easy adjustment by means of a grading scale

• Constant monitoring of parameters related to safe

The design of these presses provides a robust structure in electrowelded steel that ensures stability and firmness to the machine so as to minimize the deformation during the work cycles. Components are selected only between Main and qualified suppliers that exist in the market and each press is equipped with all legal requirements and security safeguards to comply with Category 4 of the EC Machinery Directive. Through a simple selection on the machine control panel, it is possible to set various types of data such as setting molds on RAM and lower sheet press cushion, manual setting being set up production cycle up to the semi-automatic and automatic cycles in phase of active and integral production.

* Technical solution.

* Online video authentication machine work.

* Cutting samples provided by DHL.

* Supplier will provide detail manual for software, hardware and trouble shooting, also supplier should give necessary guidance online if Buyer need. If it’s necessary, Buyer should send regular his technical staff to Supplier for technical training.
