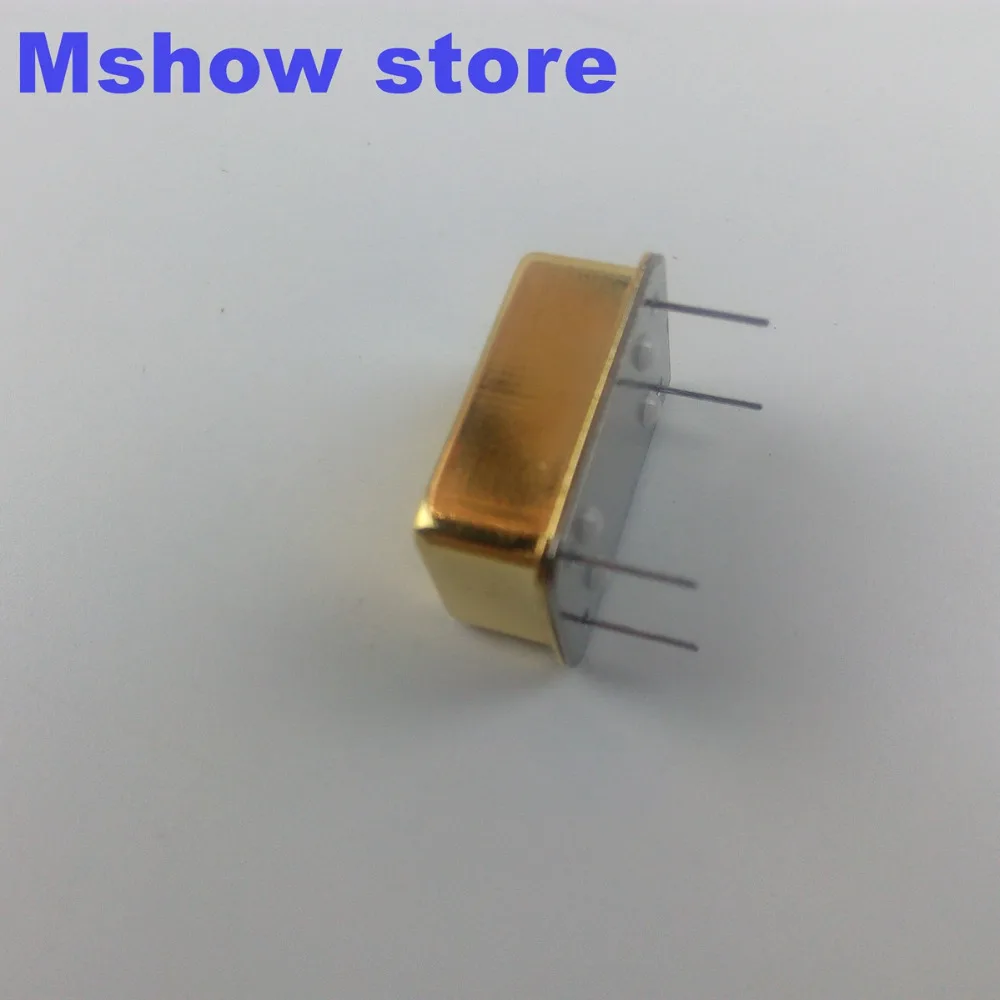

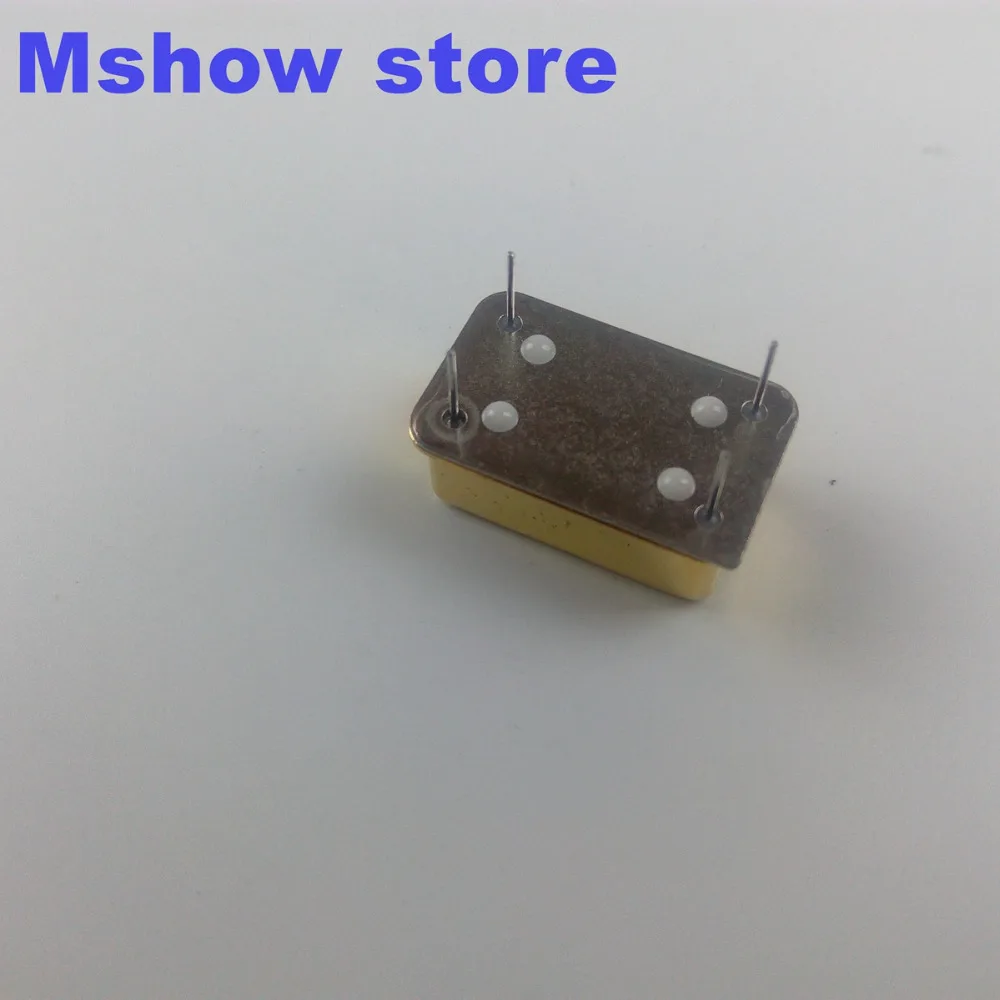

 This auction is for 1 PCS TCXO 0.1ppm 36.000MHz or 52MHZ or 54Mhz Ultra precision Golden Oscillator for audio DIY
If you need other frequency crystal, we can also be customized, please contact us,

The crystal is active, you need to with + 3.3V OR + 5V power supply before work is recommended to use inside the CD player circuits + 5V voltage; 7805 can also be used to make the regulator, the filter capacitor ends and small-capacity polypropylene capacitors, Although the crystal power requirements are not very demanding, but experiments show that pure power, it can bring out the ultra-high performance of this crystal

We have on this oscillator power supply circuit board, independent power supply, you can check our store


Specification:

Power voltage : +5Vdc /+3.3Vdc

(Power current : 20mA (MAX)

Waveform :  TTL/CMOS

Duty cycle : 40/60%

Frequency stability Vs Temp : +/- 5ppm (0 _ +50)
 Frequency Accuracy:±5.0ppm Max

Phase noise :-130dBc/1KHz@10M

Package : 20.4 x 12.8 x 7.5mm

Aging : +/- 3ppm/Yr
