Xiegu X 108G Открытый издание x108's обновленная версия 0.5 30 мГц CB ВЧ любительского

Dear buyer, We stop delivering packages to Mexico because of Mexico earthquake from 2017/09/25. Please don't choose ship from China to Mexico. We apologize that. Here are product content

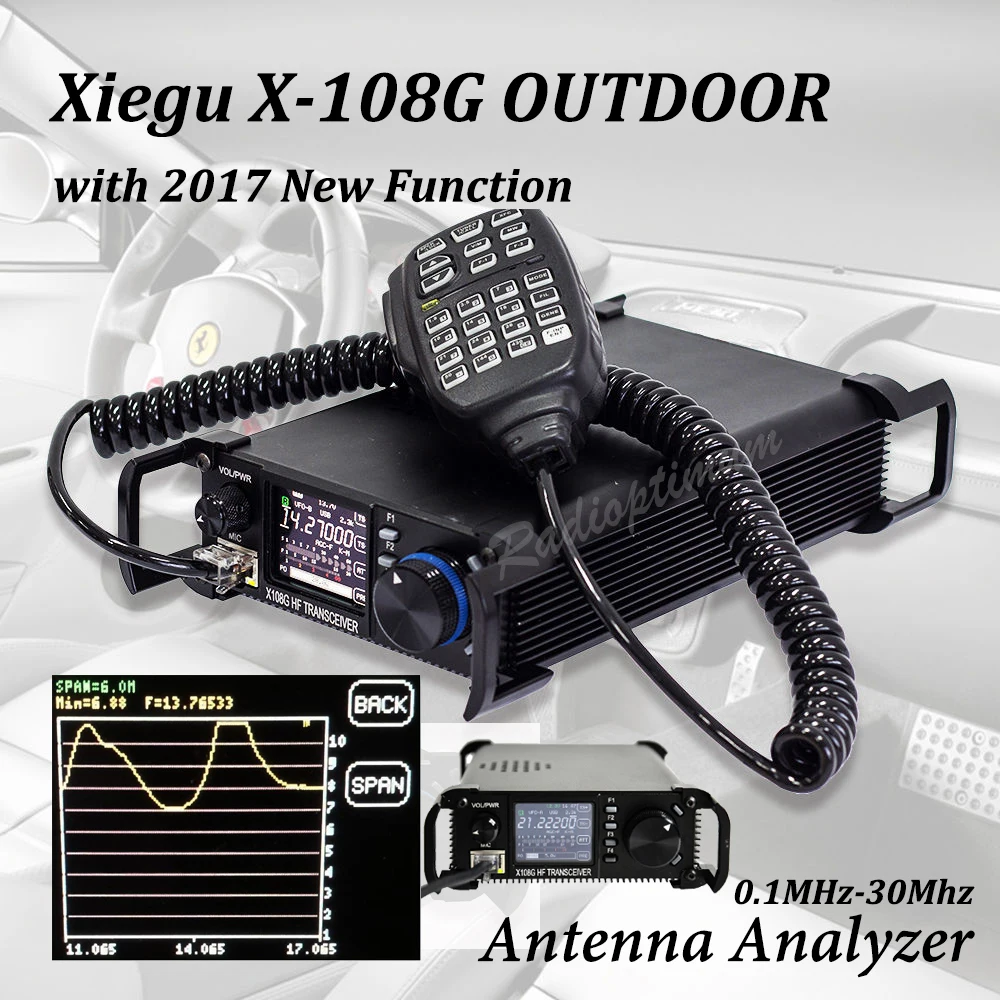

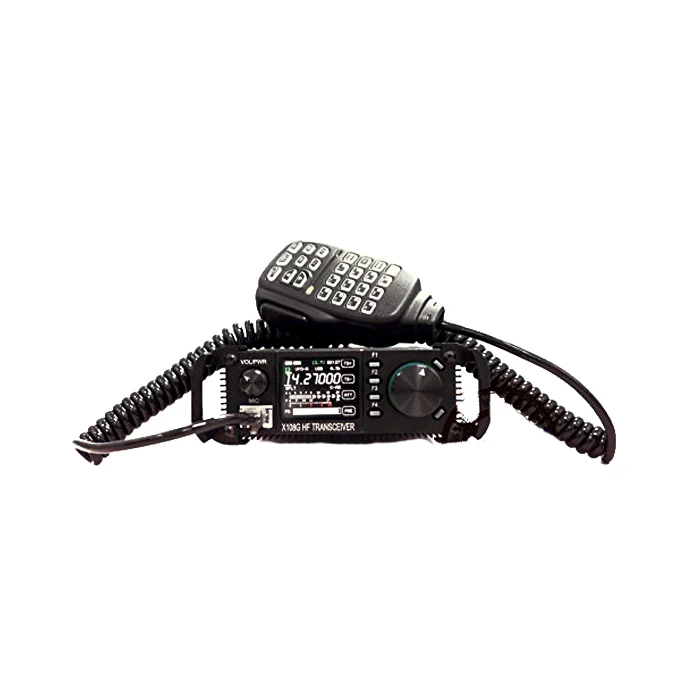

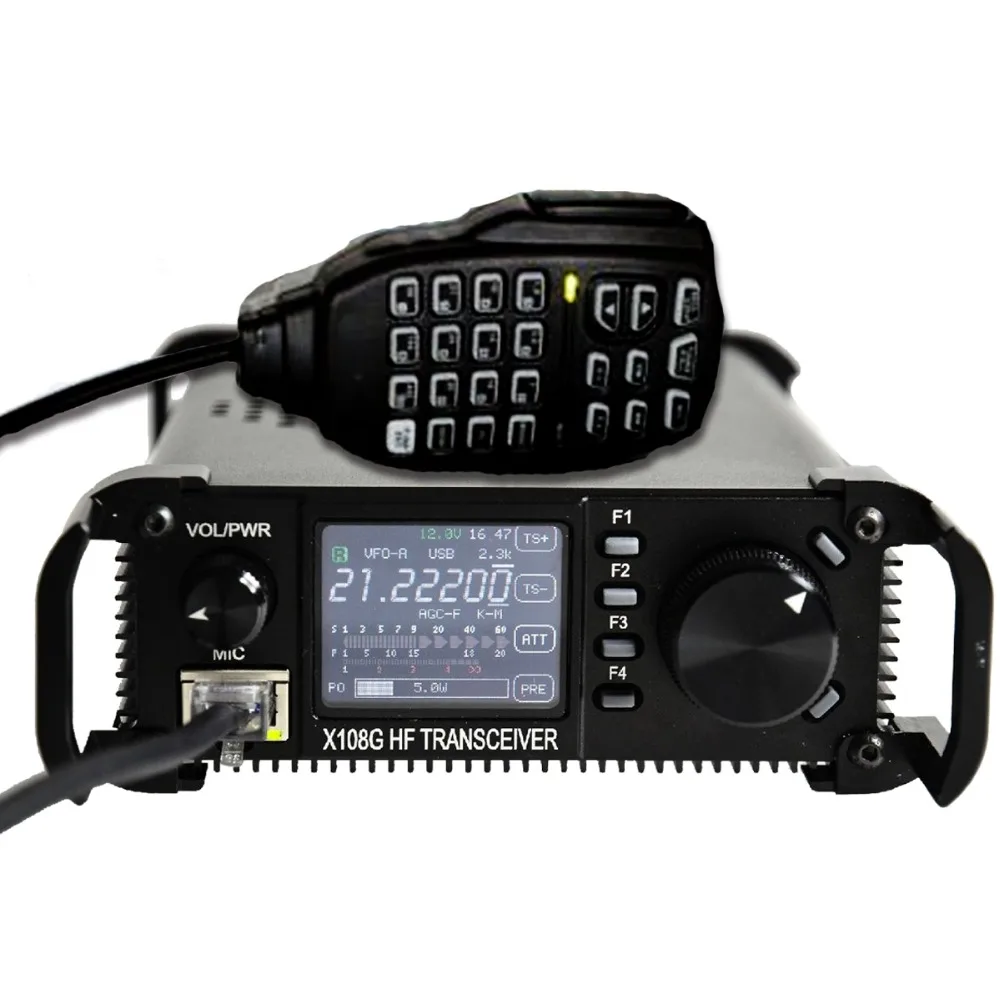

Xiegu X-108G OUTDOOR VERSION 0.5-30MHz 20W HF Transceiver QRP SSB CW AM PTT Mic

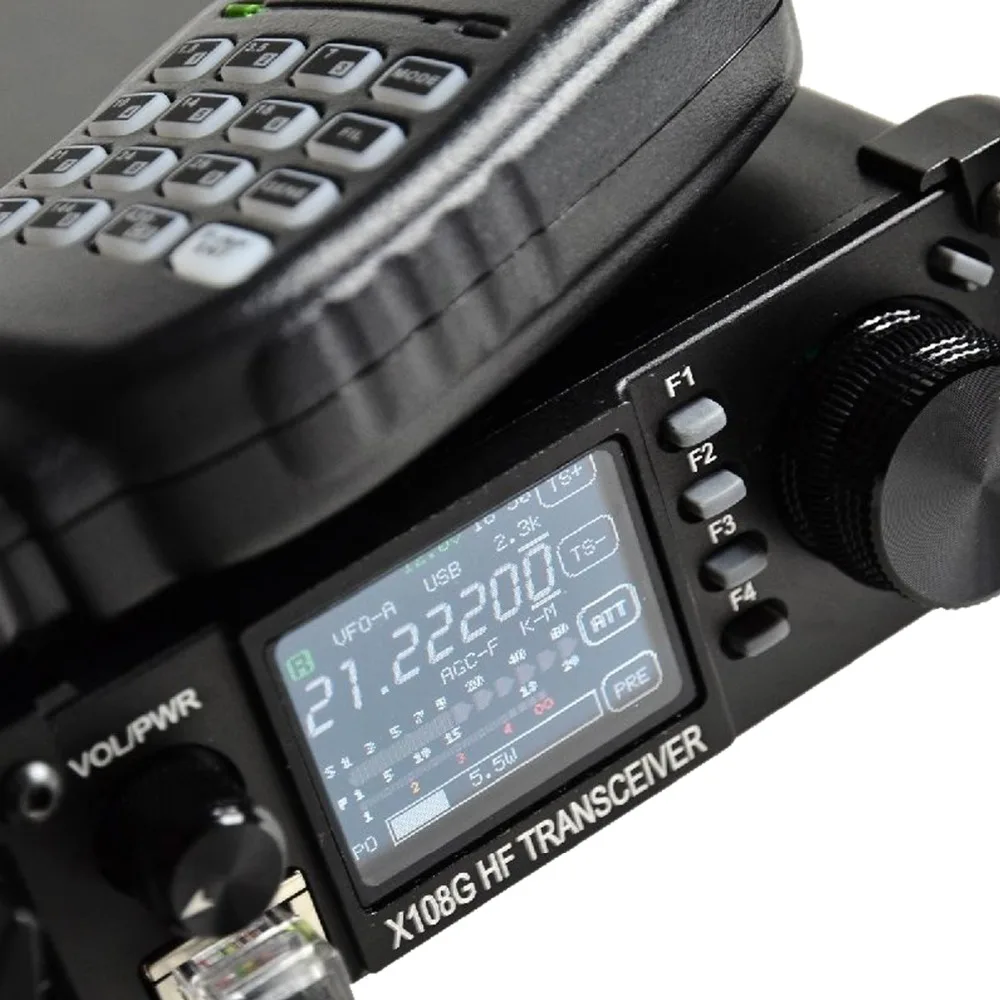

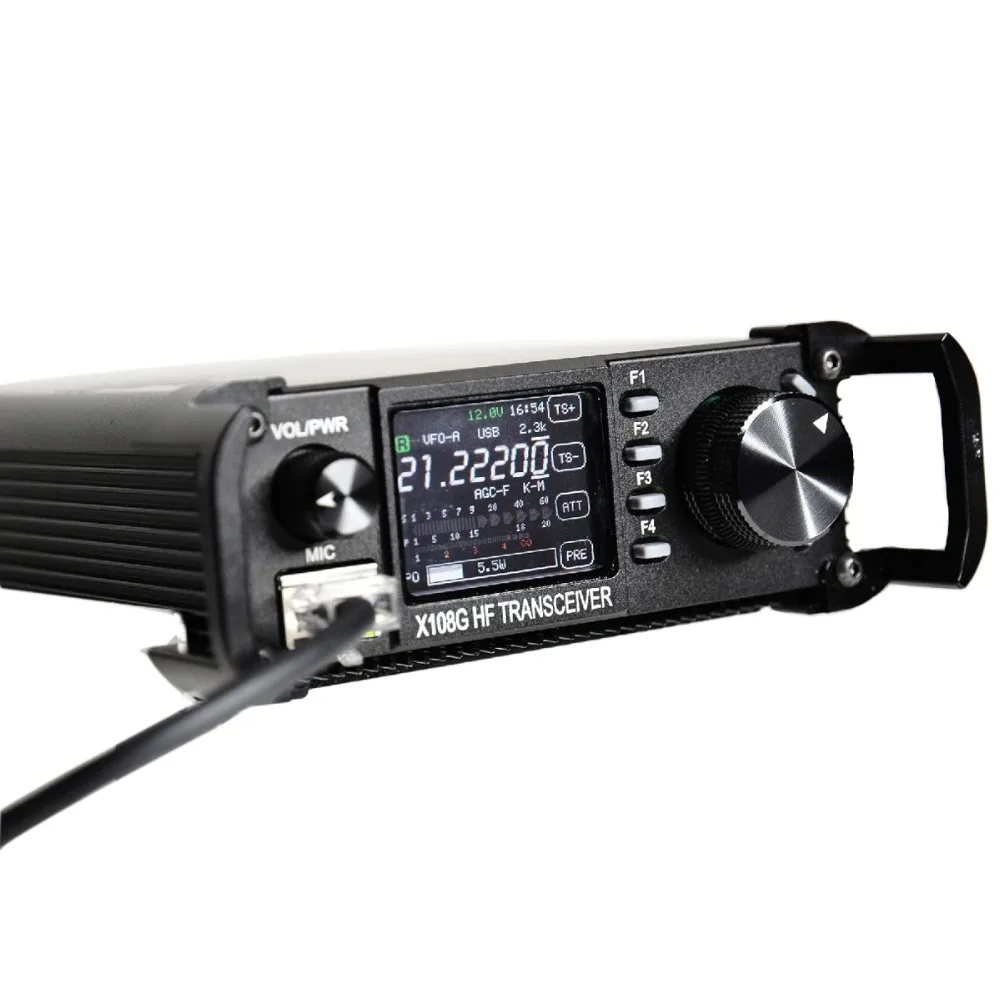

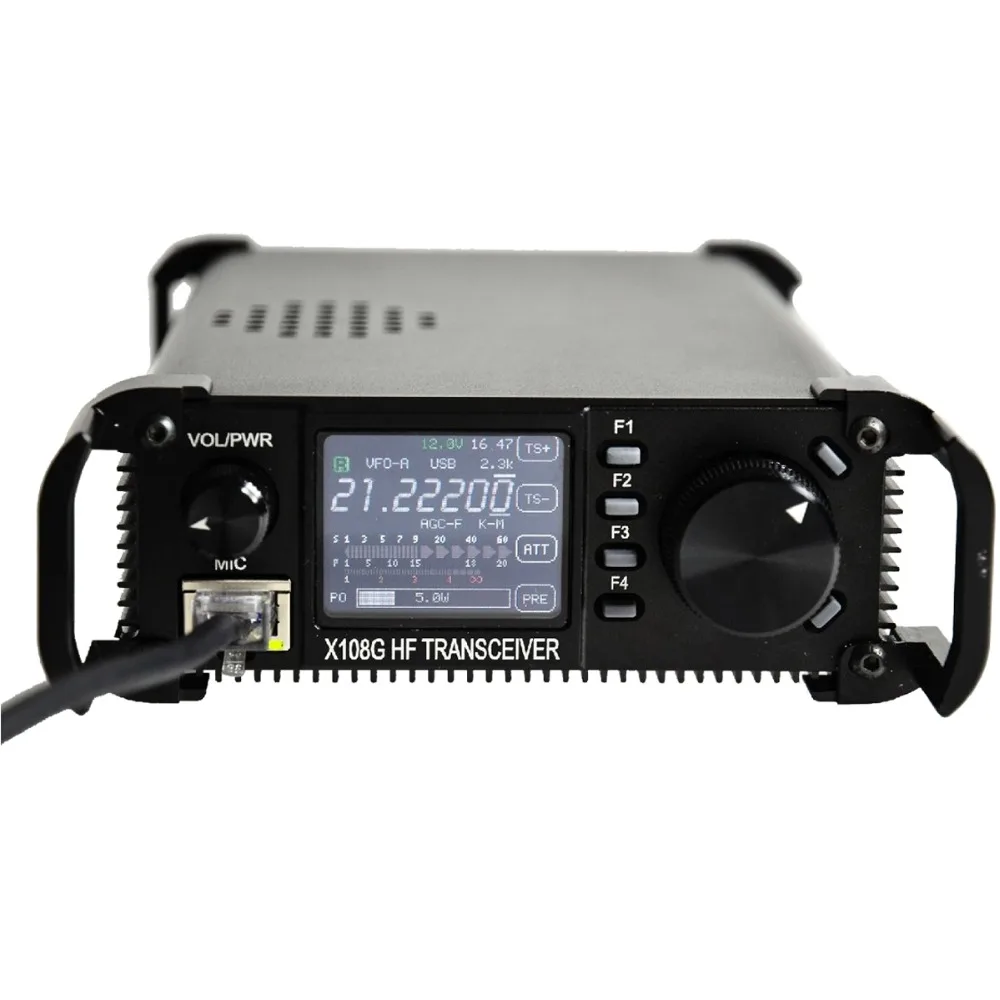

X108G Outdoor is X108’s upgraded version, It is a compact single conversion HF transceiver covering 0.5 to 30 MHz.   Special optimized the Receive Channel, It has lower Background noise; and higher SNR, Up to 0.25uV&12dB；   Equipped with a 2.3k SSB filter and a 500 Hz CW narrow-band filter, excellent filtering characteristics. It include a switchable AGC circuit, large dynamic range.   Other features include a preamplifier and signal attenuator, RIT control for SSB use, and RF output power variable from 1 to 20 Watts. The front panel meter can display incoming signal strength, RF output power and VSWR, and the transceiver includes high VSWR protection circuitry to guard against potential damage to the output stage caused by antenna mismatching.   The RF output stage features imported RF MOS tubes and APC circuitry for constant output across all bands.   A noise blanker (NB) module is available as an option, as is a high stability 0.5 ppm TCXO module. Its performance to meet the FCC (or CE) certification requirements. X108G outdoor version equipped with a color OLED solid-state screen, Ignoring the strong outdoor sunlight irradiation, still clear.   It also has four full aluminum handle for better protect the machine.

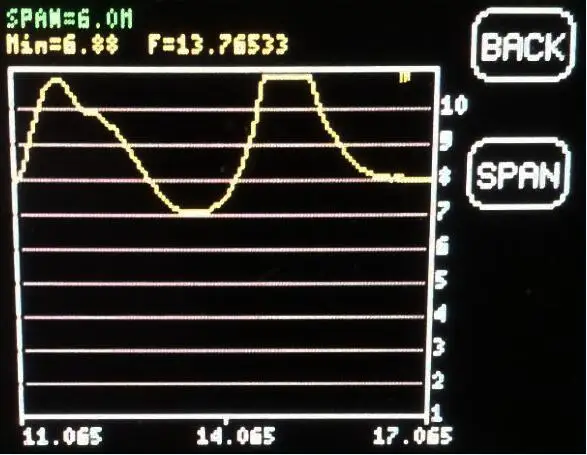

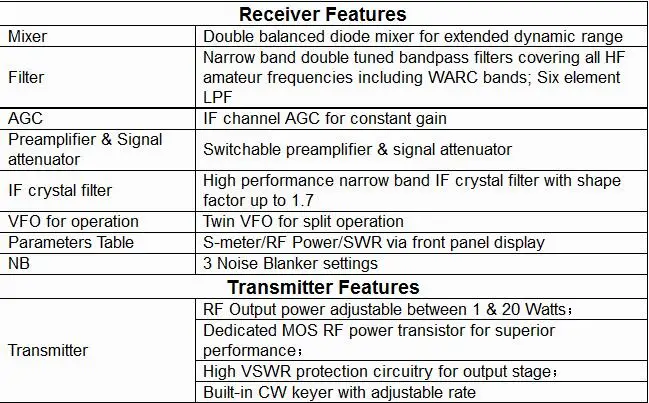

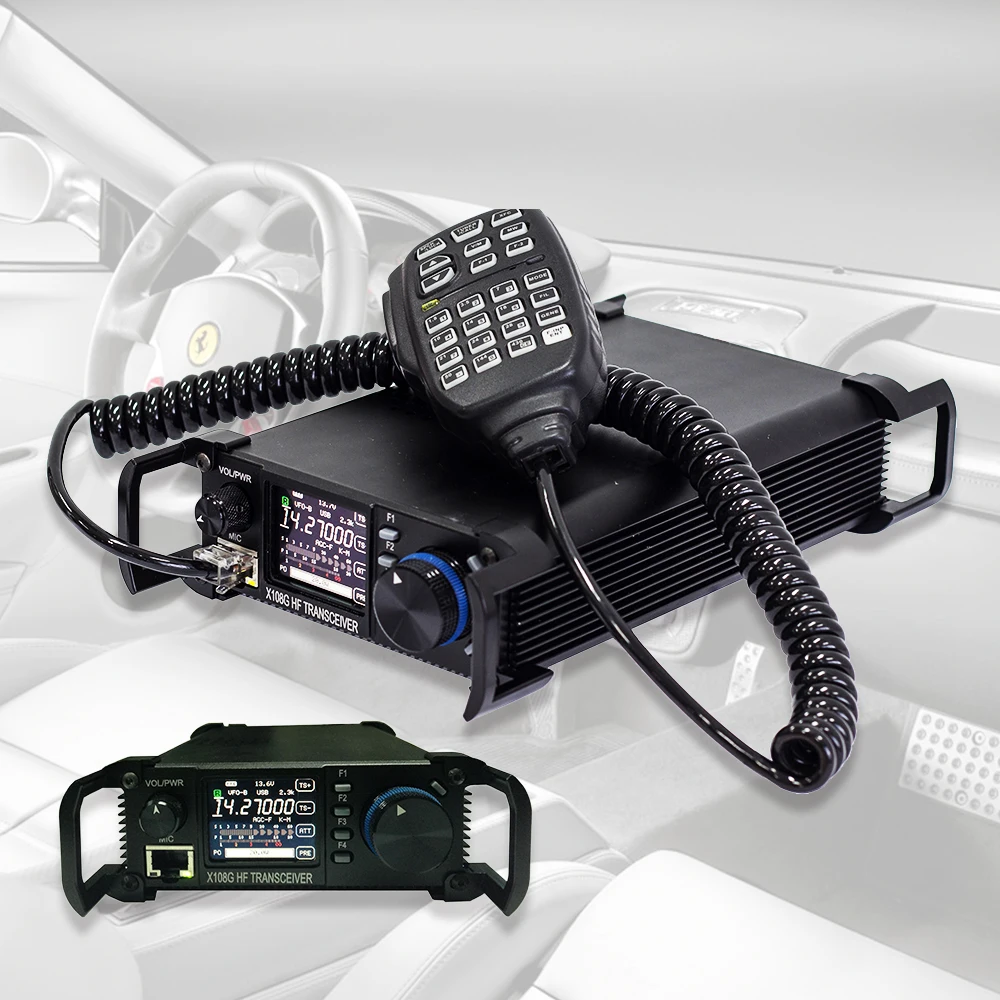

Upgraded New Function: Antenna Analyzer (0.1MHz-30Mhz) since 2017   Note:   There are some differences between outdoor and indoor versions. Please make sure what you need is an outdoor one. 　 Features:   X-108G upgraded from X108 and it is outdoor version for car, motorcycle and more. Low noise, single-conversion super heterodyne receiver. Double-balanced diode mixers provide excellent dynamic range. Receiving sensitivity: 0.25uV (preamplifier open,> 1.8MHz band). Narrow double-tuned band-pass filter covering the realization of all amateur bands (WARC bands). Built NC APC circuit, the transmission power constant, high control accuracy. Standard 0.5ppm TCXO circuit of high-quality clock source. Narrowband standard 500Hz CW filter. Very stable receiver and is always right-on frequency. Amazing microphone, had all knobs and buttons function as labeled. Running into open or high SWR antenna load, folds back very nicely. Sunlight display. Nice and bright, easy to read. Complete computer support through a USB port. Machine design parameters: X-108G is with Host + Handle + 2.3khz filter + 500Hz CW filter + 0.5ppm TCXO. The package includes hand PTT speaker mic with keypad, Power cable, USB Cable and the manual

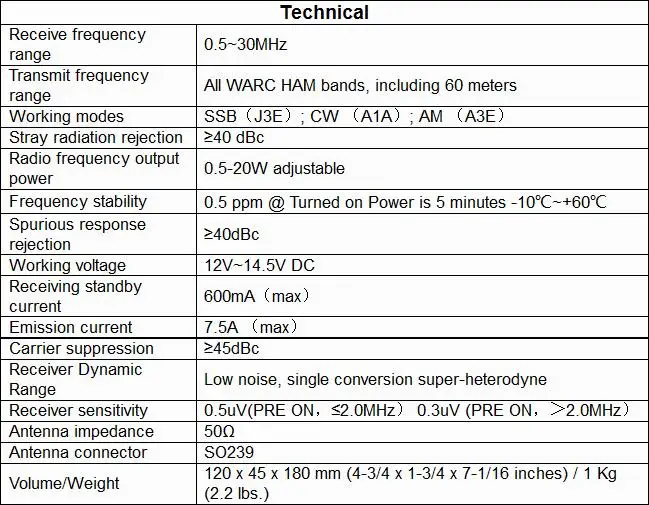

Specifications:

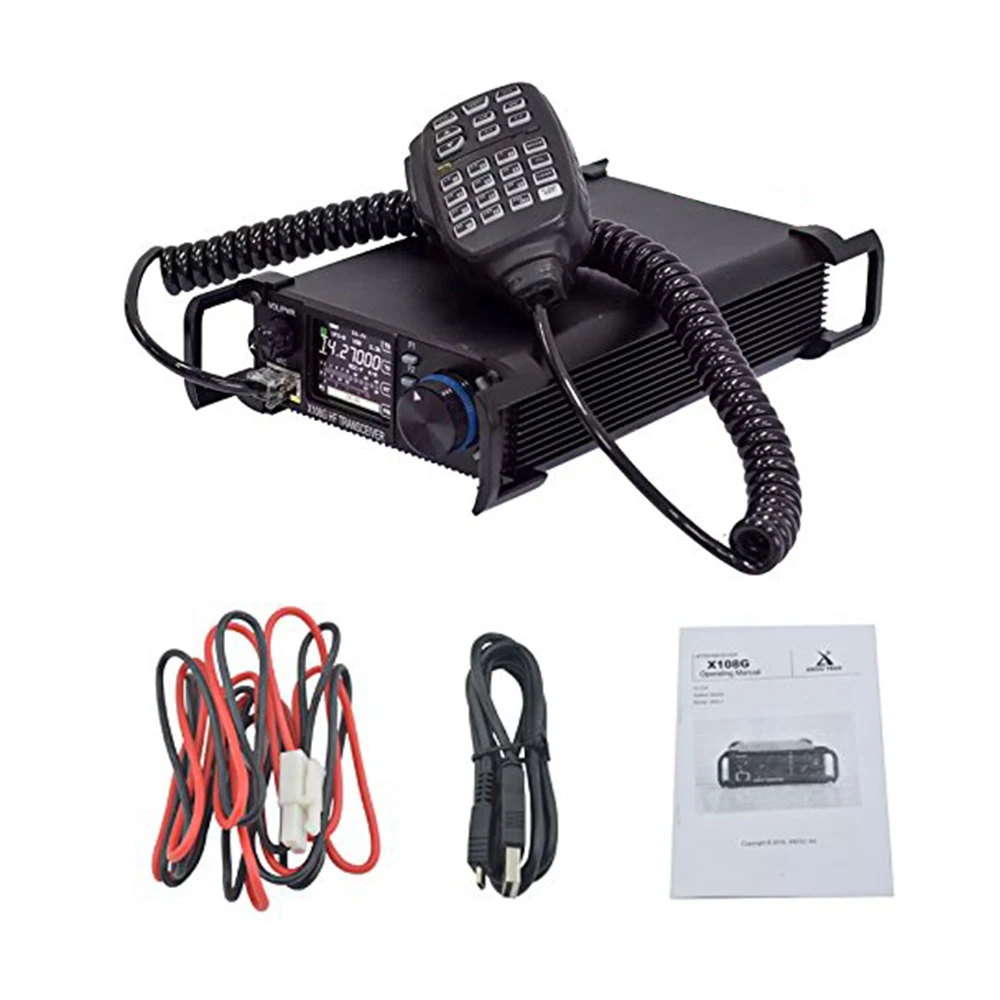

Item Includes   1X Outdoor version X108G HF Transceiver with Latest Firmware 1X PTT Mic with Keypad 1X Power cable 1X USB cable 1X Ham Radio map 1X Contact log





  We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment processor ESCROW. Payment must be made within 3 days of order. If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 3 days.

.



Orders processed timely after the payment verification. Tracking Number will be sent to all customers upon package shipment. For shipping to Russia/Europe our standard shipping method refers to Economy Post. It will take 20-25 business days to delivery.  We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address. We will delievery the goods by China Post mail,PostNL mail,Singapore Post,etc other postmail,and if not particular remarked,we will choose the best one according to your address.It usually takes15~35days to reach you there,but we don't guarantee the exact delievery time on your shippments,due to diffferences in custom clearing times in individual countries,which may affect how fast your parcel will be inspected and passed. Please note that buyers are responsible for your local custom charges and taxes,but we will try to declare your item as a "gift"or "sample" on the invoice to lower your custom charges. We also have Warehouse in DE, UK, IT, RU and U.S.A. If you wanna get this item in one week, please feel free to contact us to upgrade the shipping. We also offer Aliexpress Standard Shipping to our customers. Aliexpress Standard Shipping guarantee to protect shipping problems for buyers and sellers. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season. Of course if you have not received your shipment within 30 days from payment, just feel free to contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction! Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.



Return:



Problem

Return "Y or N"

Replace "Y or N"

Valid

Proof

Shipping fee

Comment

Quality

Y

Y

14 days

Photoes or Video

Seller

No man-made Damage,Complete package

Wrong item

Y

Y

14 days

Photoes or Video

Seller

Goods in goood condition, Complete package

Appearance

Y

Y

14 days

No

Buyer

Goods in goood condition, Complete package

Dislike

Y

Y

14 days

No

Buyer

Goods in goood condition, Complete package

  Warranty:   All item Comes with Basic 3 Month Sellers Warranty,if item defective in 3 Month,We will offer replacement withour extra Charger(including shipping fee)After we Receive the Defective item. If item Defective after 3 Month,Buyers can still send it back,We will contact suppliers or Manufactory for Warranty.Buyers Might Need pay the Shipping fee For resend the replaced item.
