Топливные быстрые соединители для трубки 5/16 дюйма, женские, 7,89 мм, 7,89-ID6, автомобильные, из пластика нейлона, 2 шт. в упаковке.

Топливные быстрые соединители для трубки 5/16 дюйма женские 7 89 мм 89-ID6 автомобильные из пластика нейлона 2 шт. в упаковке.

Description:

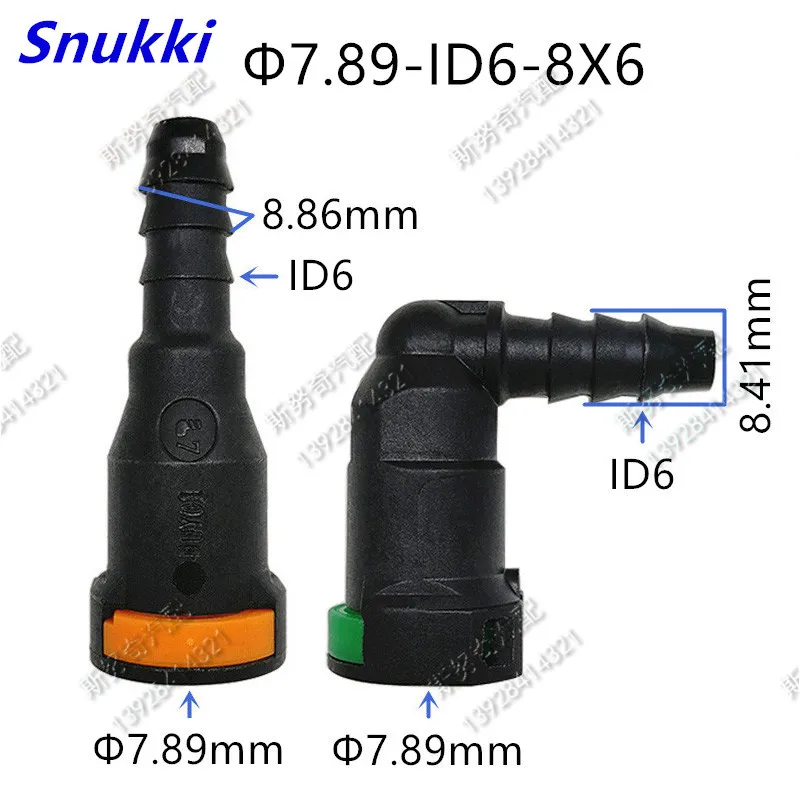

Size: Φ7.89-ID6-8x6

Fit male connector with 7.89mm outer diameter

Fit rubber pipe with 8mm inner diameter

Fit nylon pipe with 6mm inner diameter

Gentle reminder:

1. Please confirm the size carefully before order, if you do not know how to check size, pls contact us freely.

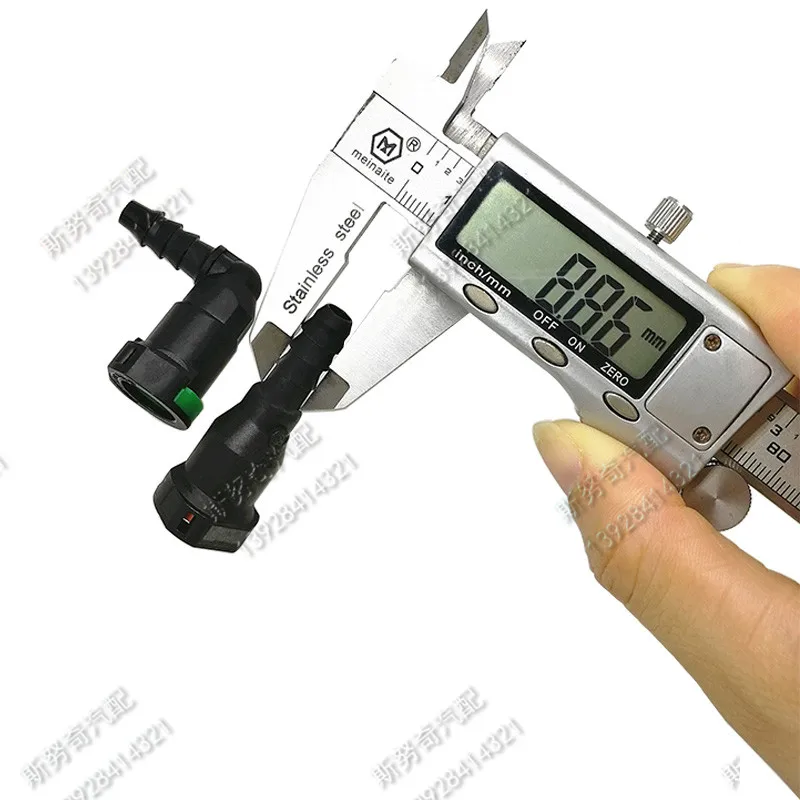

2. Please allow 0.001-0.1mm error due to manual measurement.

3. The color of the connector is may different from the picture, because of different batch of products. Please refer to the actual object you received.

4. You may need to pay some import duty or tax while you receive the parcel, it depends on your country’s customs policy.

Feedback:

If you are satisfied with our products, pls kindly leave us 5 star feedback, thank you so much.

If you have any questions, pls contact us before you give neutral or negative feedback.

Why choose us ?

1. Quality: Our products with 100% super quality.

2. Package: All parcels will be packed very well.

3. Delivery time: within 24-48 hours after your order(except holiday).

4. Shipment: faster shipping method(Epacket, Aliexpress stand, China post registered air mail…)

5. We have hundreds of connectors for choice.

SAE Quick connector is made up of Body, In O-Ring, Out O-Ring, Spacer Ring, Securing Ring & Locking Spring. When a mating tube end piece inserts the connector,as locking spring has certain elasticity,Tie clip fastener makes the two connectors connect together and then pull back to assure a complete connection. So that the quick connector takes effect. While disassembly, you just need to insert the Maleendpiece and then press the button of the Locking Spring at both side to make the Lock Spring expand, you can easily pull out the connector.

Standard materials

SAE connectors are made up of body, in O-ring, out O-ring,spacer ring,securing ring and locking spring.

Body: 12 with 20 - 50% glass fiber content.

O-ring:  NBR HNBR and FVMQ

Technical features

Medium

 gasoline , diesel ,air ,water ,oil vapor

Operating pressure

 approx. 10 bar excess pressure

Operating temperatures

 -40°C up to +115°C

engine compartment

 -40°C up to +115°C

 short time up to +150°C

Product advantages

· Fast assembly without tool -> time and cost reduction

· robot assembly possible  -> automated processes

· compact building method -> employment in extremely close installation  conditions possible

· integrated seal - > optimal tightness

Applications in the automotive industry

· Can be used to make both line-to-line or line-to-equipment connections.

· Fuel feed / return lines

· tank breathing

· Ventilation lines

· Oil cooler lines

· Vacuum control lines

Description:

Size: Φ7.89-ID6-8x6

Fit male connector with 7.89mm outer diameter

Fit rubber pipe with 8mm inner diameter

Fit nylon pipe with 6mm inner diameter
