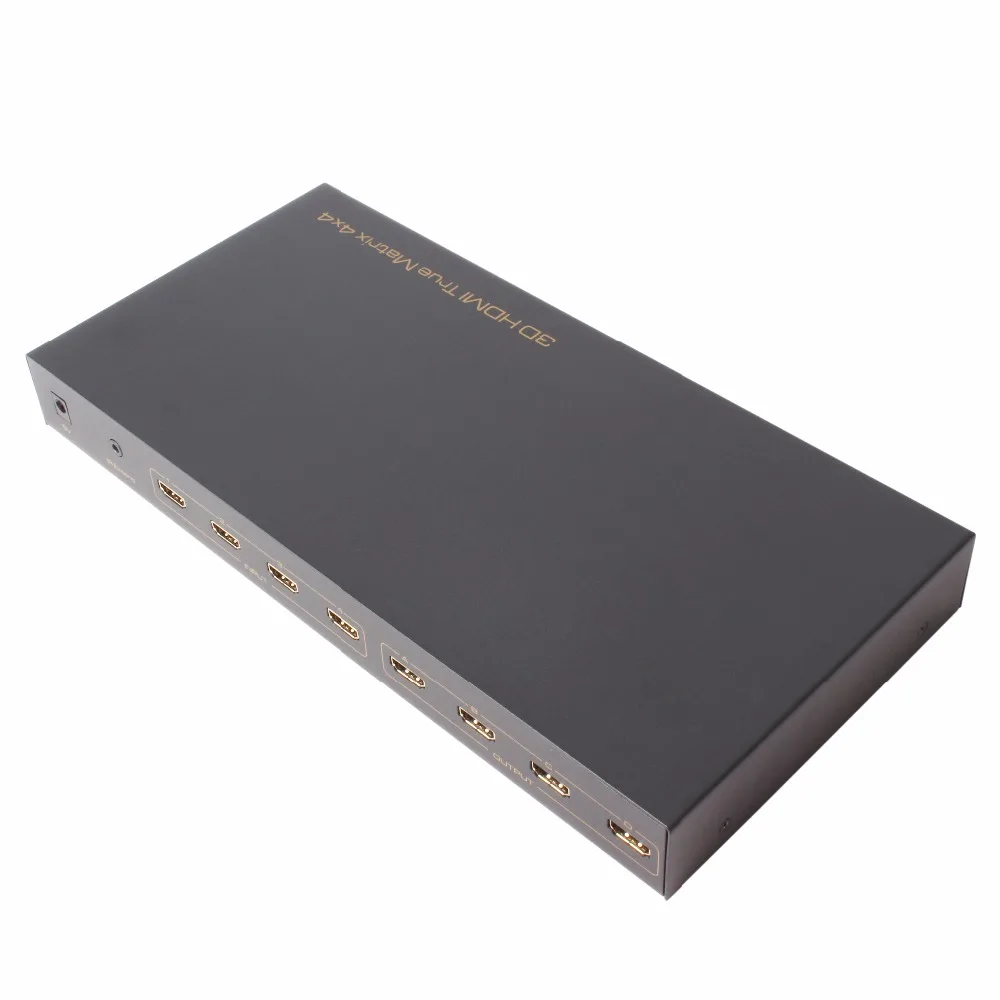

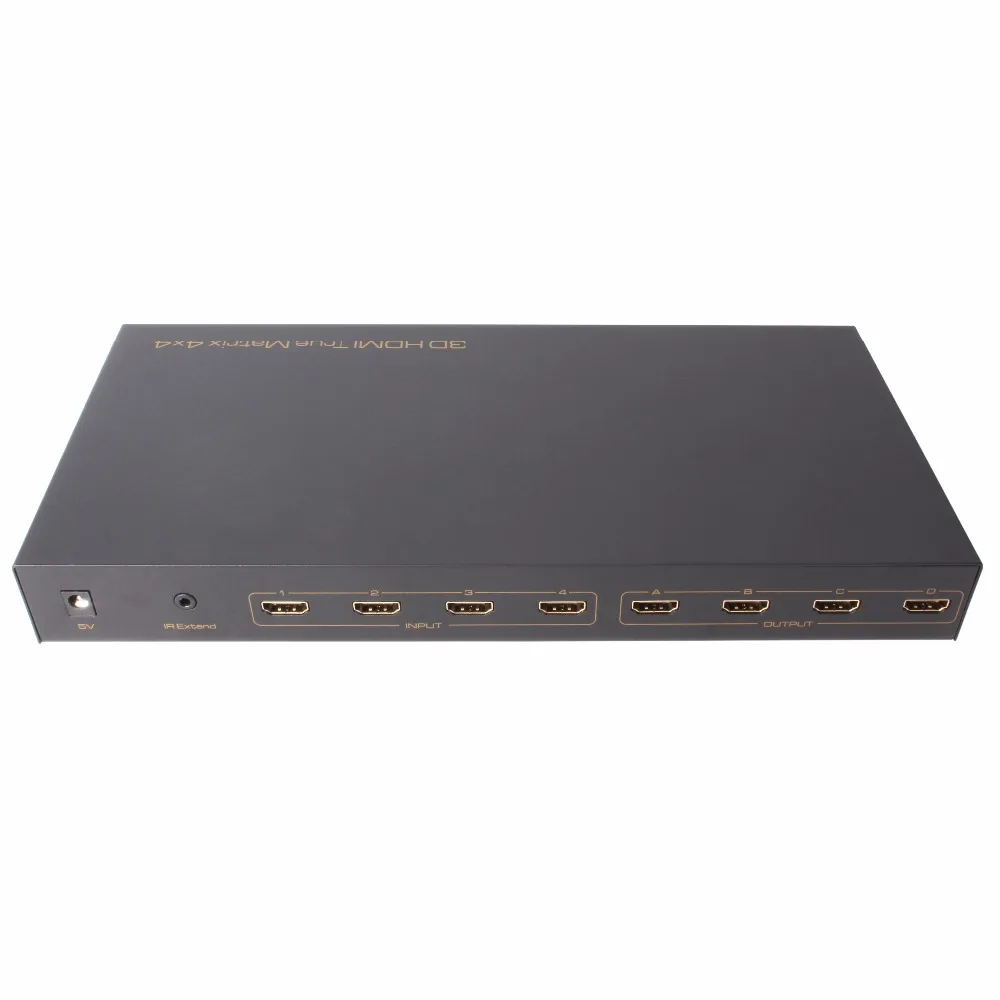

High Quality HDMI 4x4 Matrix Switch Splitter Amplifier 4in 4out 1080p 3D with Remote Control RS232 control HD |

High Quality HDMI 4x4 Matrix Switch Splitter Amplifier 4in 4out 1080p 3D with Remote Control RS232 control HD |

Dear customer

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

Our series of HDMI converters, switchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient, more comfortable, more productive and more cost-efficient.

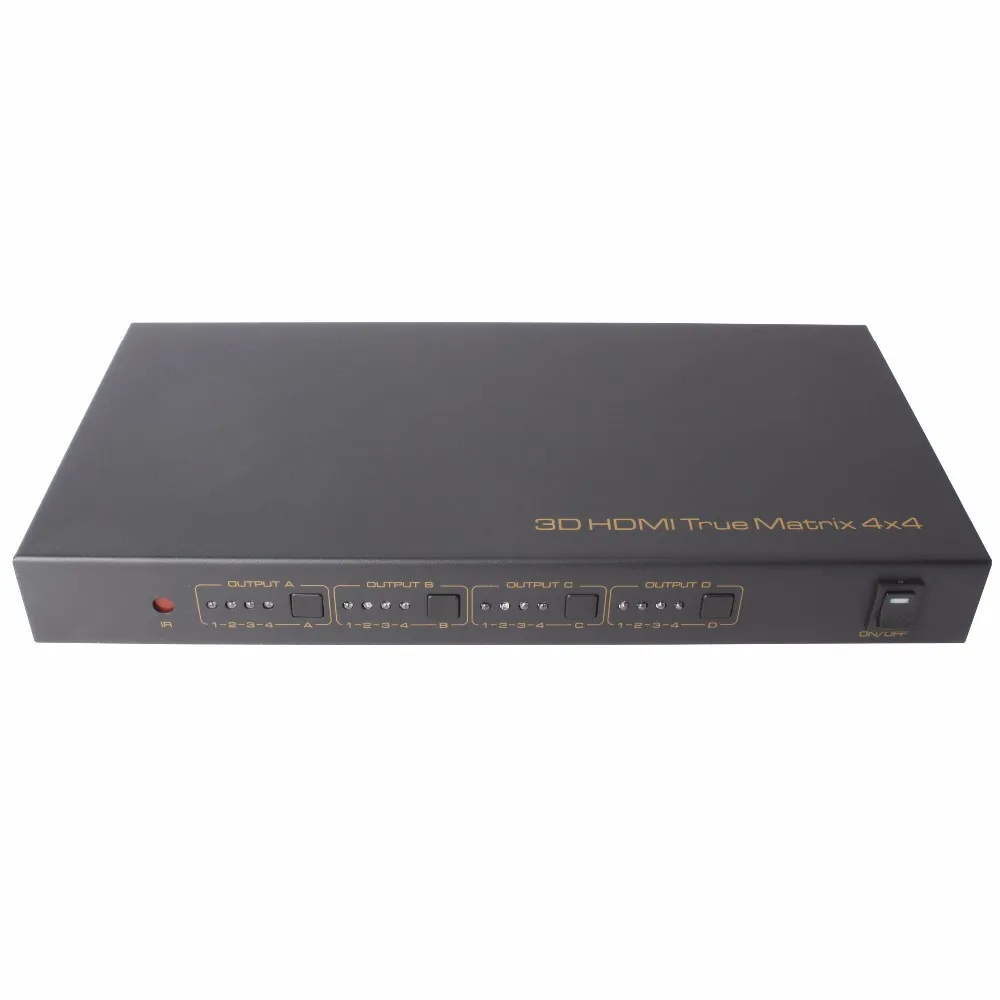

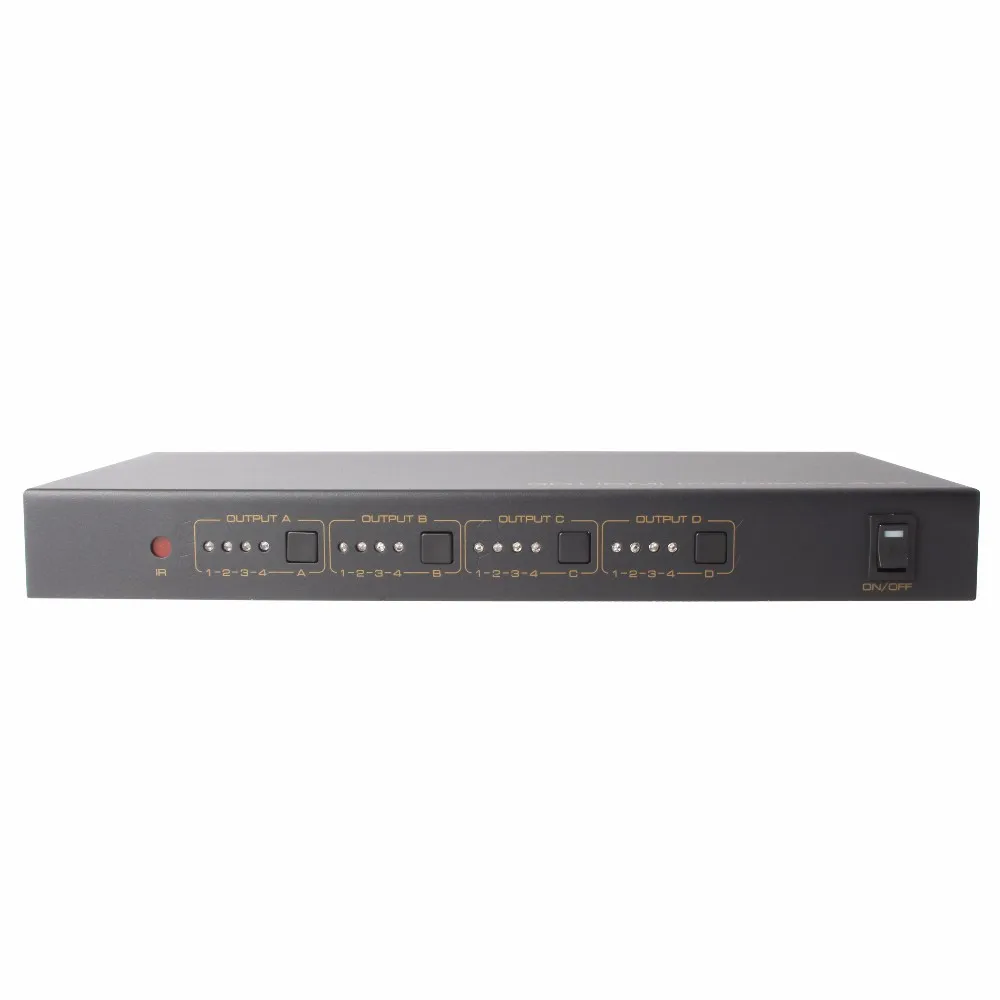

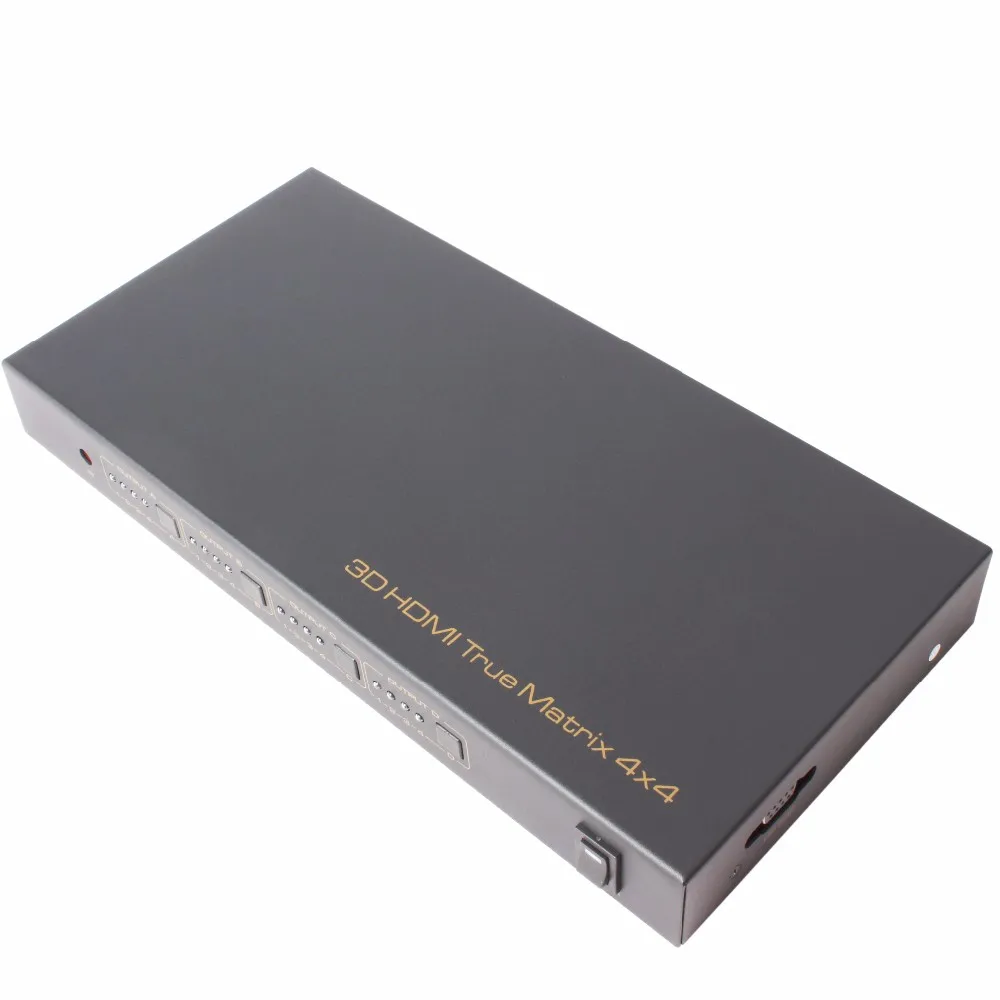

The 4x4 HDMI Matrix can connect four HD Sources with four HD Displays; it can easily switch and distribute four HD Source signals to four HD displays at the same time.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Feature:

OPERATIONG AND CONNECTION:

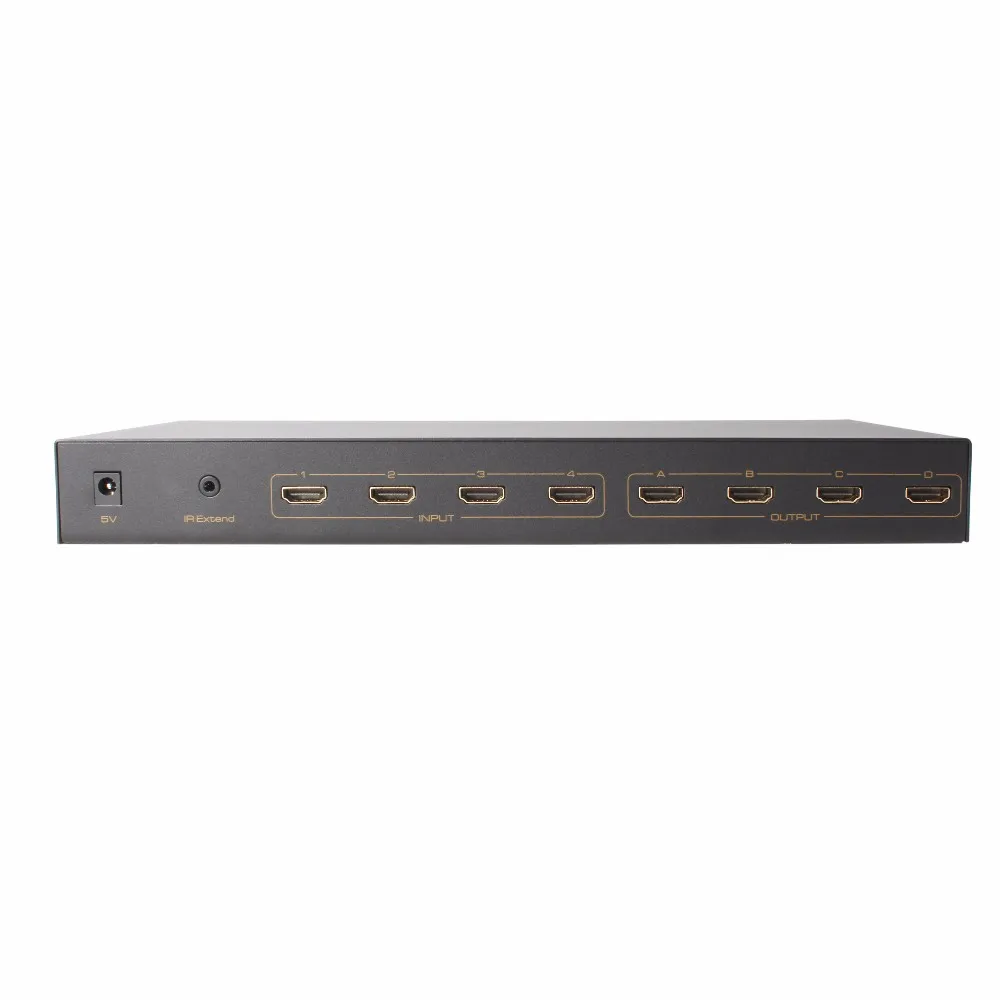

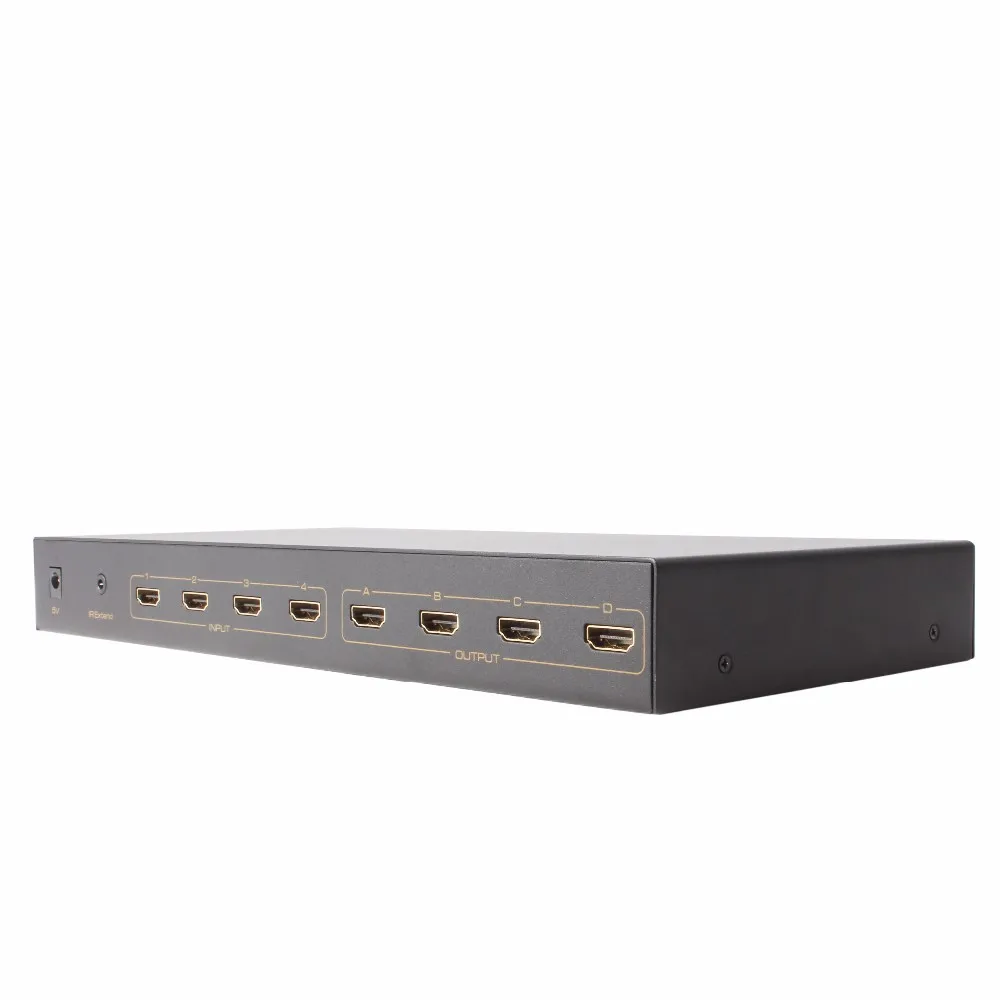

1.          To use the HDMI cable to connect the four HD sources with the HDMI input port of the matrix.

2.          To use the HDMI Cable to connect the four HD displays with the HDMI output port of the matrix.

3.          To connect the power adaptor with the matrix.

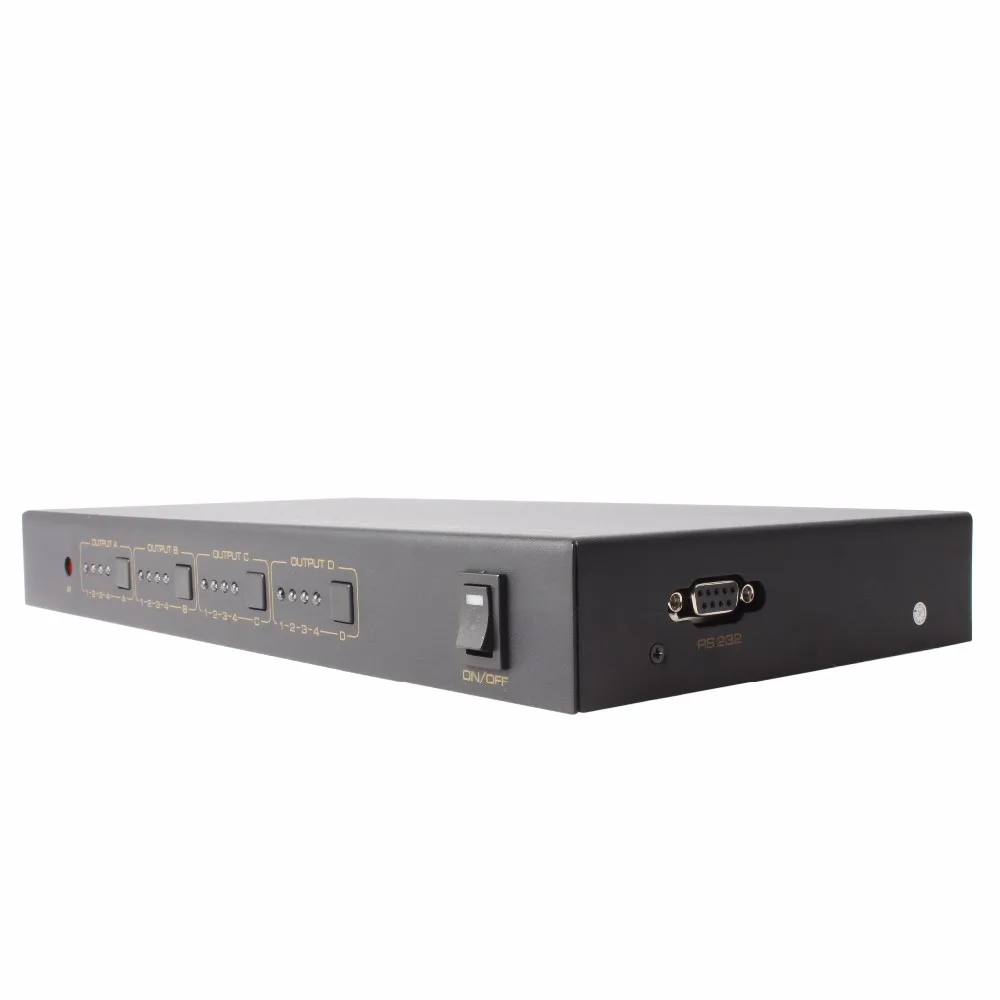

4.          To use the RS232 cable and the IR cable to connect the RS232 port and IR port of the matrix with the control equipment to do control to the matrix.

SPECIFICATION:

HDMI Input/Output Resolution24/50/60fs/3D/1080p/1080i/720p/576p/576i/480p/480i

Deep Color...24bit/deep color 30bit,36bit

HDMI Audio Format.DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

HDMI Max bandwidth225MHz

HDMI Max baud rate....6.75Gbps

Input/Output TMDS signal ...0.5~1.5Volts p-p(TTL)

Input/Output DDC signal... 5Volts p-p (TTL)

HDMI Input cable distance.... .10m AWG26 HDMI standard cable

Output cable distance....15m AWG26 HDMI standard cable

Max working current..........2A

Power adapter format...5V/3A

Operating Temperature range.....(-15 to +55)

Operating Humidity range..5 to 90%RH (No Condensation)

Product size (L x W x H).308X151X36 (mm)

Weight....1216g

Notes:

Pls use the machine as the instruction listed to keep the long use lifetime of the machine.

1  The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.

2  All parts will be free from the strong shake, hit, fall.

3  Touching the power adapter with the wet hands is prohibited.

4  Pls hold the power adapter head and do not pull the power cord when cut off from the socket.

5  Pls turn the power off when the machines not used for long time.

6  Pls do not open the cover and do not touch the inside parts.

7  Pls use the original factory power adapter.

FAQ:

Before power on, pls check the connection line carefully. And make sure that all interfaces are normally connected. The common trouble shooting way shows below:

Serial NO

Problem Description

 Solutions

1

Non-Power-Connected

1. Check if the power adaptor head is truly and correctly inserted the power socket.

2. Check input signal source if it is in standby status.

2

No Picture

1. Pls to make sure that the TV is on and has been connected with the machine.

2. To check if the signal source is on and well connected.

3. Check if the line is all good quality.

4. Check signal source channel selection is correct

3

Obscure Picture

1. To try again to connect the cable to be free from the unsuccessful connection.

2. HDMI Cable Quality

4

Remote

1. Pls check if the insulation film at the rear of remote have been pulled out.

2. Pls check if the cell button power have been used out?
