Warm Reminder

The neutral product is Gigabit dual band openwrt wireless router. If you need 3g or 4g or want to use SIM card to dial out Internet, here also need 3g or 4g module. If you purchase the neutral product, it just comes with four antennas. Other bundles will come with 6 antennas.

As for 3g/4g, 3G can support 3g/2g, 4G can support 4g/3g/2g.

Bundle Situation (Important!!!)

Neutral(no 3G 4G): Gigabit+dual band openwrt wireless router.

3G Version:  3G 300mbps openwrt wireless router.

                          HSPA+/UMTS dual-band 900/2100 MHz

                          GSM/GPRS quad-band 850/900/1800/1900 MHz

4G Asia version: 4G 300Mbps openwrt wireless router.

4G USA version 2:  4G 300Mbps openwrt wireless router.

                                    GLONASS: 1602 MHz

4G EU version: 4G 300Mbps openwrt wireless router.

                              FDD LTE: B1/B3/B5/B7/B8/B20

                              TDD LTE: B38/B40/B41

                              WCDMA: B1/B5/B8

                              GSM: B3/B8

If you don't know which version that you need to choose, here are some countries' version for your reference.

If your country is not mentioned and you don't know which version need to choose, please ask me and i will help you.

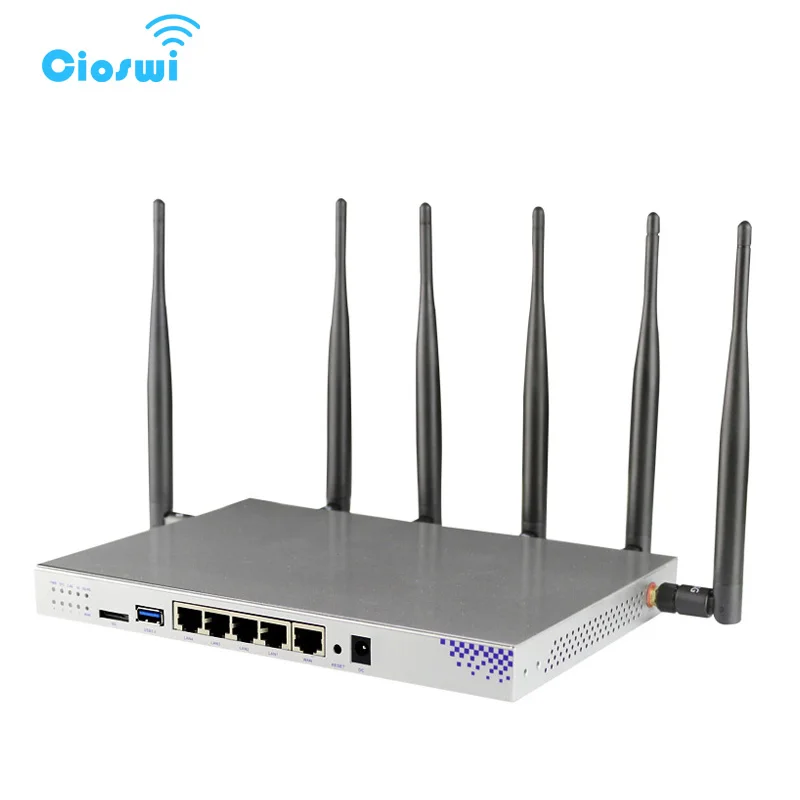

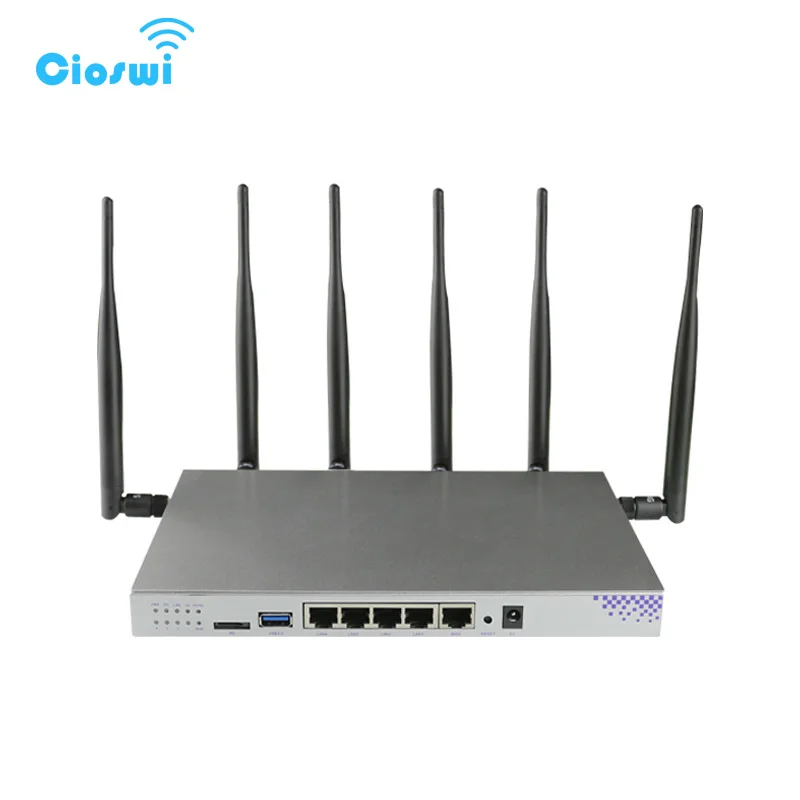

ZBT-WG3526 uses the latest MTK wireless solution ,the MT7621 , the clock frequency is as high as 880MHZ, provide 5 gigabit Auto MDI/MDIX Ethernet port, 1 ×USB 3.0 port, 1×SIM card slot, 1×PCI-E ,1×Micro SD card and so on. Support IEEE802.11AC/N/G/B/A wireless protocol, max wireless rate could be 1200Mbps, 4×5Dbi high gain antennas, perform better and cover larger.

3G 4G Module Setting Guide

1. Connect to all the antennas correctly.

2. The sim card must insert firstly, and the chip of the sim card should be upward, then connect to the power. If you need to remove the sim card, in order to avoid damaging the SIM card, please remember to cut off the power before you remove sim card.

Upgrade the firmware

If you can access into the recovery mode, that means the router hardware is ok. You can flash the firmware I sent you.

But if you can not access into the recovery mode, sorry, you have damaged the router hardware.

Please note: If you purchase the neutral product, the below picture is the shipping list (only four antennas) for your reference. If you purchase other bundles, here will be 6 antennas.

Shipping List

1*openwrt router (ZBT-WG3526)

1*12V/2.5A power adapter

4 or 6*5dbi external antennas

Product Specification

Main Chipset

MT7621A/Dual Core /880Mhz

RAM

DDR3 RAM  512MB

FLASH

SPI FLASH  16MB （MAX32MB） Higher Flash, need to redraw the PCBA

Protocol Standard

IEEE 802.11ac、IEEE 802.11a

IEEE 802.11n、IEEE 802.11g、IEEE 802.11b；
IEEE 802.3、IEEE 802.3u；

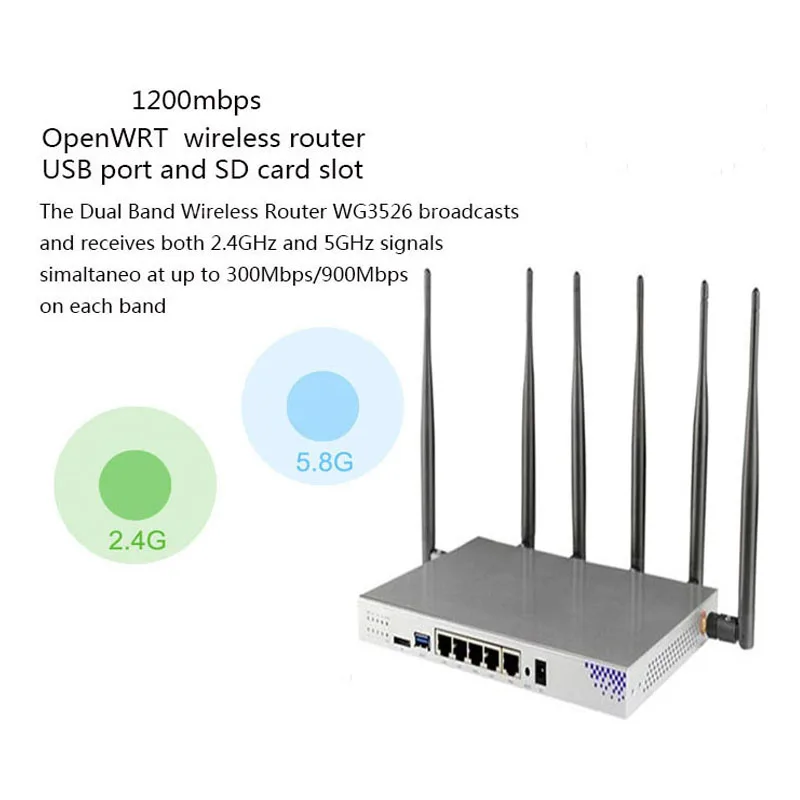

Wireless Rate

5G  : 900Mbps

2.4G: 300Mbps

Work Frequency

2.4GHz/5G

Antenna

4 * 5dBi high gain antenna

Interface

1*10/100M/1000M WAN Port， Auto MDI/MDIX
4*10/100M/1000M LAN Port,  Auto MDI/MDIX

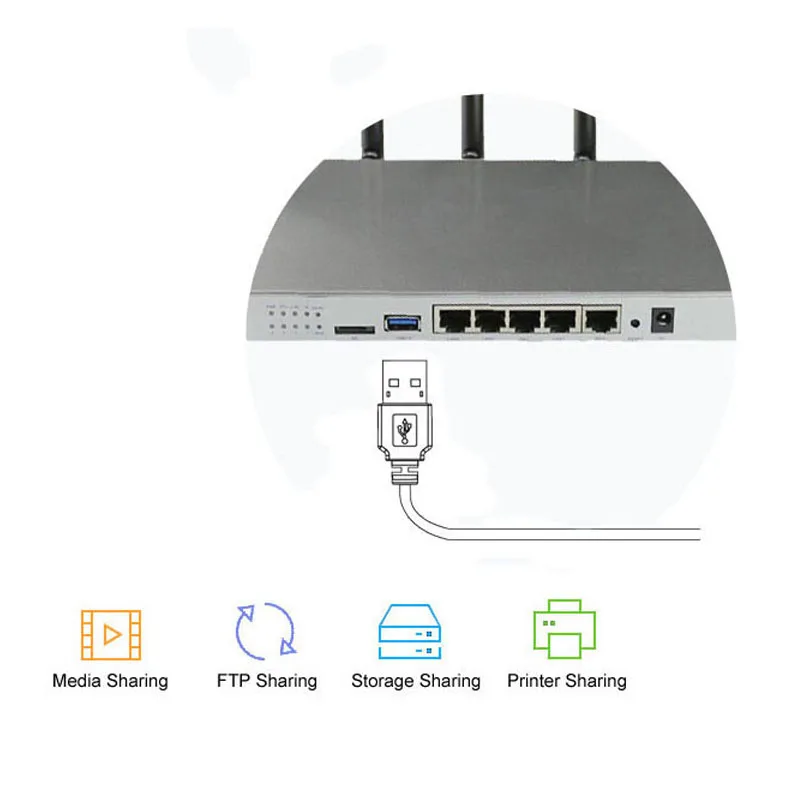

1*USB 3.0 port

1*PCI-E Slot

1*SIM card slot

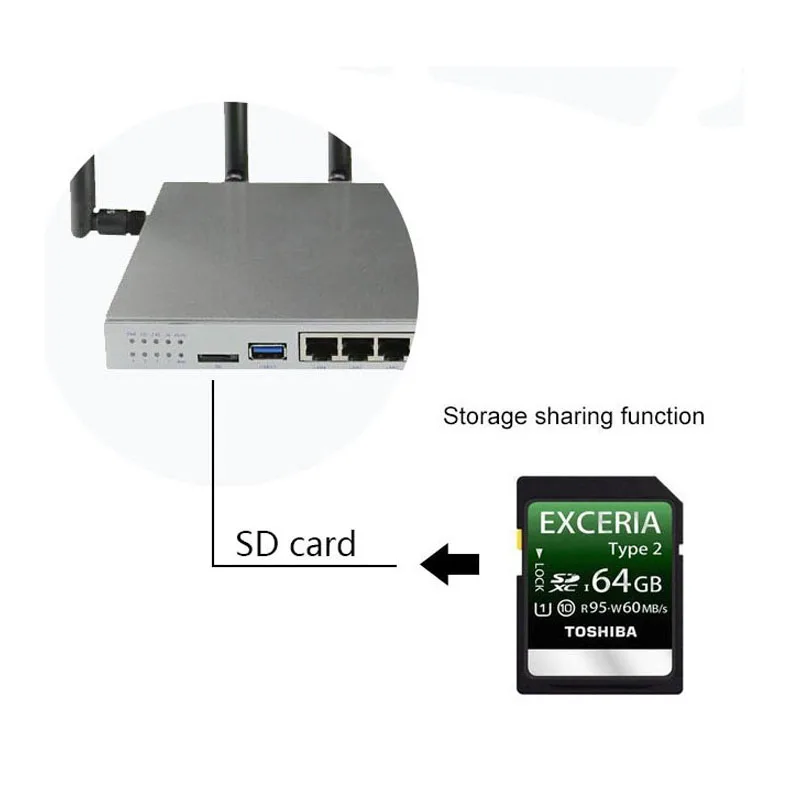

1* Micro SD card slot

LED

PWR.SYS.USB.2G.5G.WAN.3.2.1.0

Button

1*RESET

Power consumption

< 12W

Adapter

DC 12V2.5A

Management

IP:192.168.1.1

USER/root admin/admin

OS

OpenWRT (14.07)

WAN Type

PPPoE、DynamicIP、Static IP

Work Mode

AP;

Router;

DHCP

Server, Client, DHCP Client List, Address Reservation

Port Forwarding

Virtual Server, Port Triggering, UPnP, DMZ

Firewall Security

Dos, SPI Firewall

IP Address Filter/MAC Address Filter/ Domain Filter

IP and MAC Address Binding

DDNS

Support

VPN Pass-Through

PPTP, L2TP, IPSec (ESP Head)

Static Router

Support

System Log

Support

Other Function

Mac clone
NTP Synchronize
Web firmware upgrade
