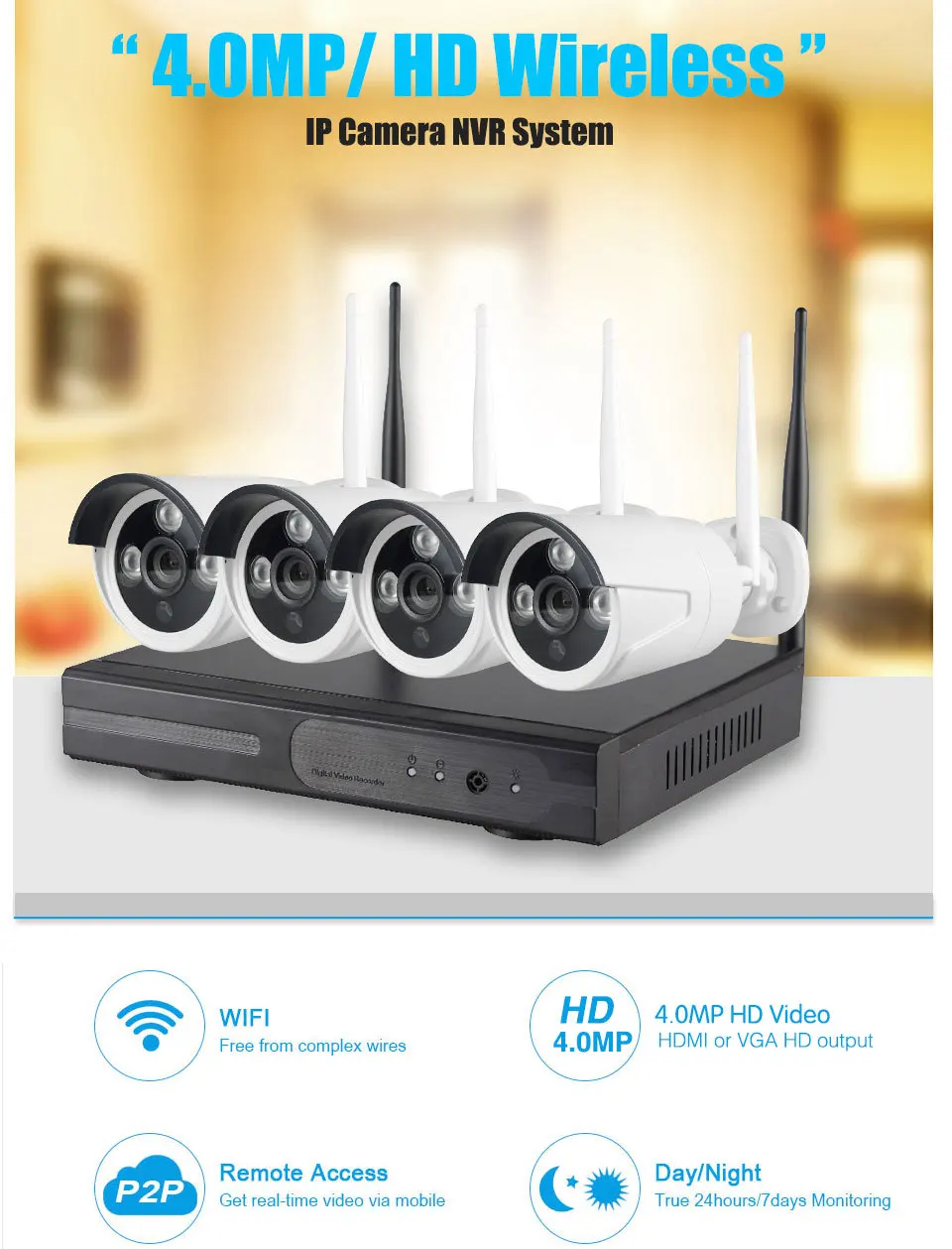

4CH 4MP WI-FI системы Беспроводной NVR 4 шт. MPMP ИК Открытый P2P Wi-Fi ip-cctv безопасности Камера



What is 1440P ?



1440p is much higher definition of 1080p, and it means a resolution of 2560×1440. A 1440p super HD security camera also refers to a 4 MP (4 Megapixel) video security camera. It enables you to view sharp and supper clearer images with live video streaming. Compared to a 1080p and 720p IP camera, it’s a huge step forward for a 4MP security IP camera to offer higher definition videos.

1440p (4MP) security cameras are much better than 1080p (2MP) security cameras, in terms of the images. All 1440p security cameras record super HD video, which has twice the detail of the 1080p. For example, 1440p security cameras can capture a vehicle’s license plate number even when it’s in long distance like 70 feet or 80 feet away. And the 1080p and 720p security cameras can do that.

  A 1440p (4MP) security video camera enables you to choose from 1440p resolution, 1080p resolution and 720p resolution, according to your needs. 4MP IP cameras are an important emerging trend in video surveillance.

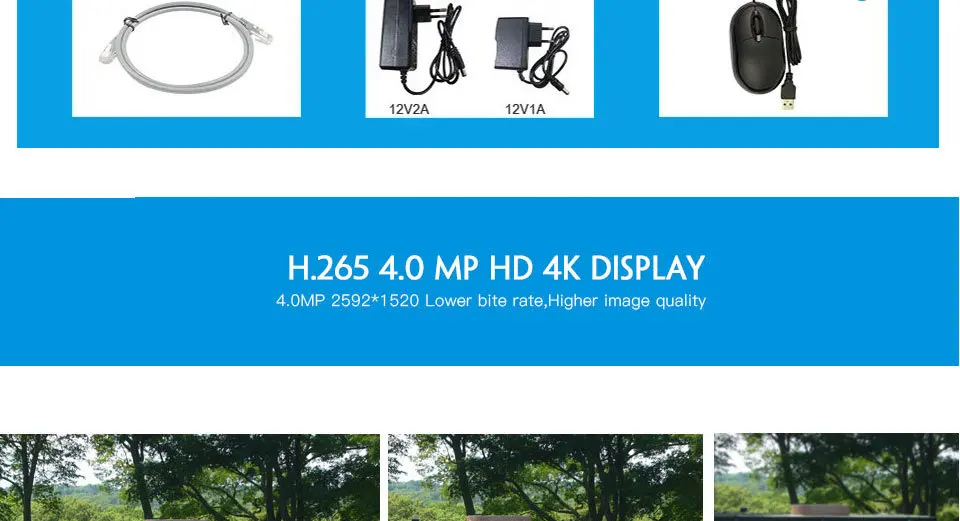

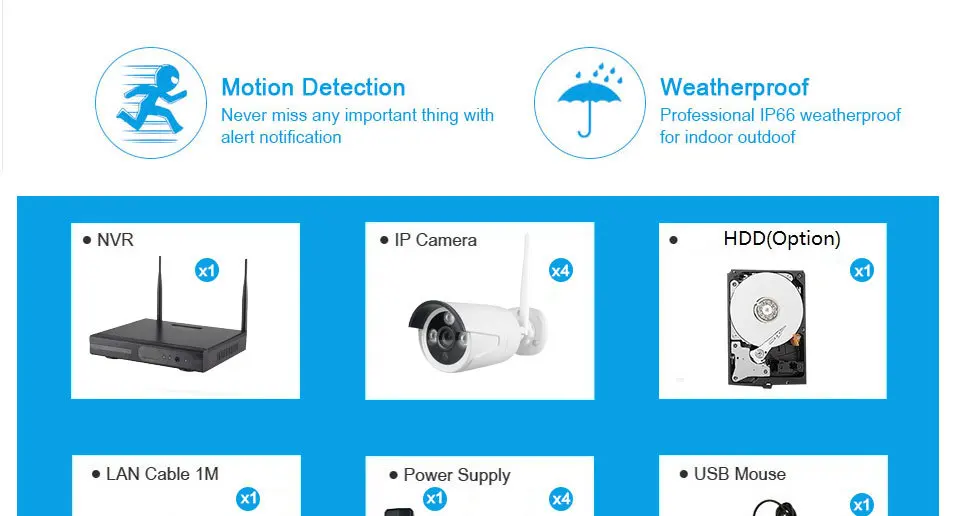

Package includes
4x 4MP WIFI CCTV Camera
1 x WIFI NVR without  HDD/hard disk/WITH 2TB/3TB HDD
1 x 12V Power Supply for NVR
4 x 12V Power Supply for Camera
4x Screw set
1 x Network cable
1 x USB Mouse
1 x Quick Guide

(we will ship US/EU/AU /UK Plug Power supply for you according to your country use)



Wireless Camera Specification :



Image Sensor 1/3” 4.0 Megapixel CMOS Sensor Effective Pixels 2560(H)*1440(V) Scanning System Progressive Compression H.265(Default), H.264 Resolution 2560x1440/D1(720x480) Frame Rate Mainstream: 2560x1440(1~20fps),Sub-stream:D1(1~30fps) Bitrate H.264: 32K~8192Kbps Electronic Shutter Auto/Manual 1/25~1/100000s S/N Ratio ≥38.3dB Night Vision IR Distance:20M. IR Leds:14μx18PCS Min. Illumination 0.1Lux/F1.8(Color),0Lux/F1.8(IR on) Lens Board Lens 2.8mm/3.6mm/6mm Day/Night LDR Auto/Video Auto/Color/B/W Backlight Compensation BLC/WDR White Balance Auto/Manual Gain Control Auto/Manual Noise Reduction 2D/3D Privacy Masking Up to 3 areas

Network Protocol

HTTP, HTTPS, TCP/IP, RTSP,SMTP, NTP, DHCP, DNS, DDNS,FTP Network Bandwidth 100Mbps Ethernet RJ-45(10/100Base-T) Wi-Fi Wi-Fi(802.11b/g)

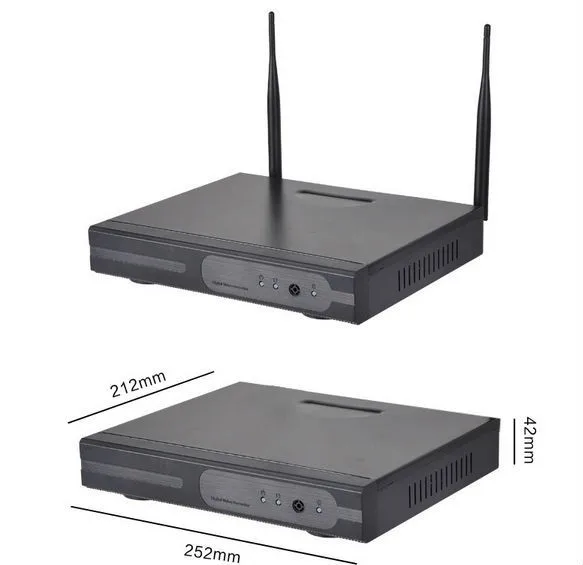

Wireless NVR Specification :





Main Processor Hisilicon Embedded Processor Operating System Embedded LINUX Compression H.264 / H.265 IPC Input 4CH (2560x1440, 1920x1080, 1280x960, 1280x720 etc.) HDMI 1xHDMI; Resolution: max 4k(3840x2160) VGA 1xVGA; Resolution: max 4k(3840x2160) Preview Resolution 4xD1/1x4mP(Main stream for full screen, Sub-stream for multi-screen) Record Resolution 4CHx4MP/ 4CHx960P/4CHx720P etc.(Depends on IPC) Frame Rate PAL: 25fps; NTSC: 30fps Playback 1x4MP Video Detection Motion Detection,MD area: 396(22x18) Trigger Events Motion alarm recording ,Mail, FTP, Buzzer alarm Backup Support USB backup, Network backup USB 2 x USB2.0 HDD 1x SATA (Max 6TB for each SATA) Ethernet 4 ports, RJ-45 port (10/100Mbps) 1WAN 3LAN Network Bandwidth 10Mbps/100Mbps Network Protocol

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,

RTP,RTSP,RTCP,NTP,UPnP,PPPOE,SMTP,SNMP,SNTP

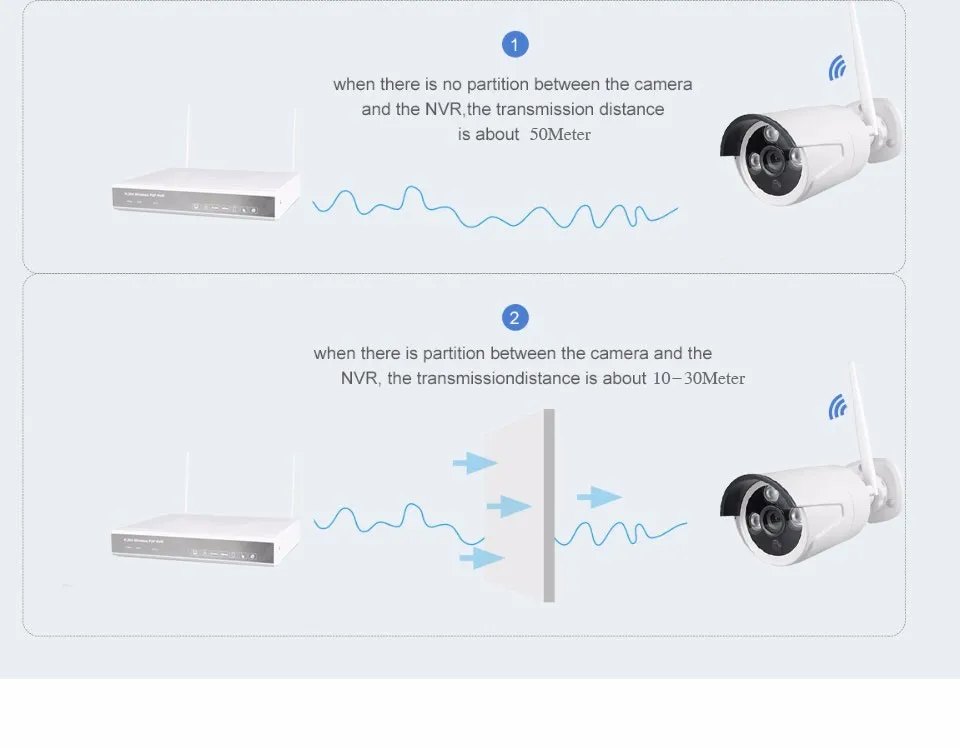

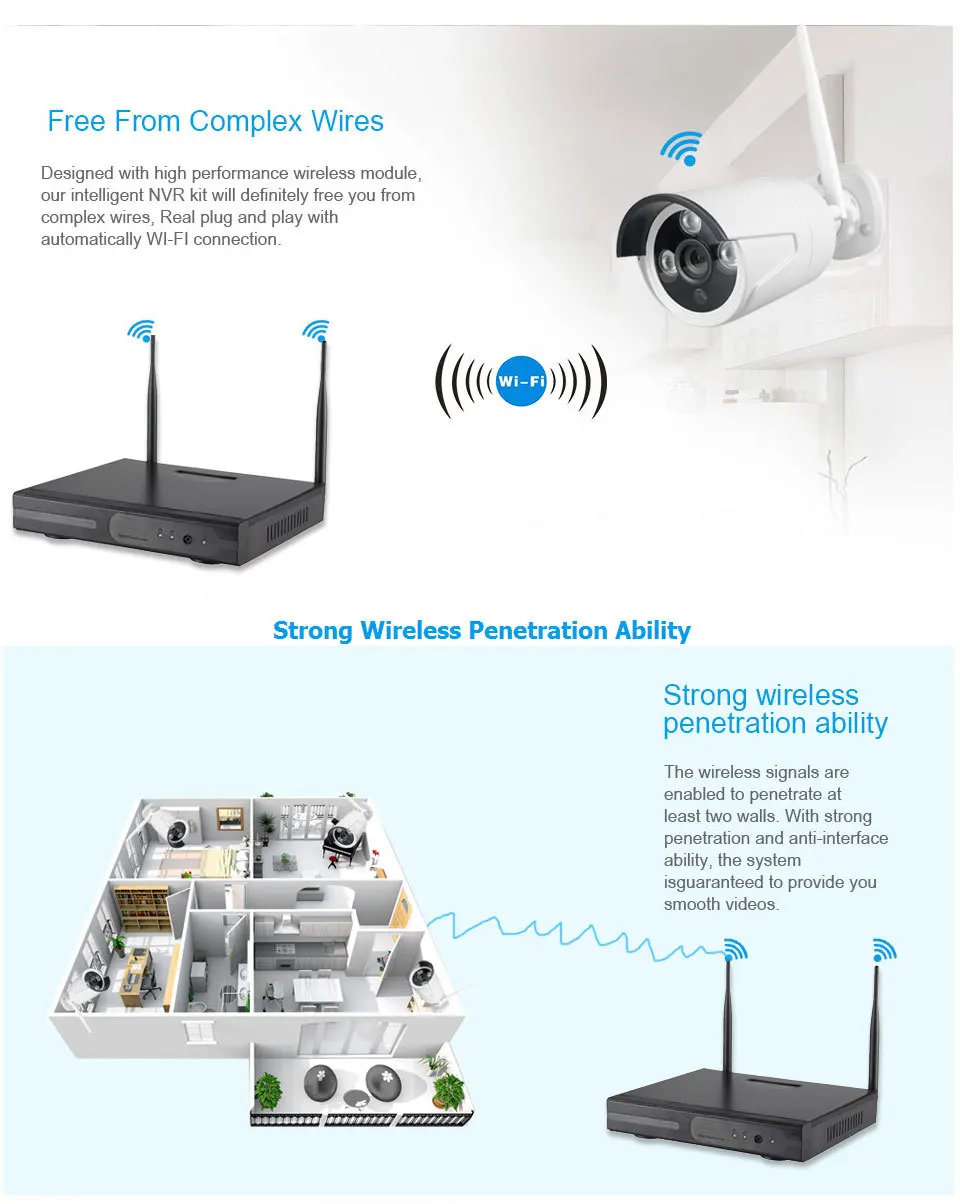

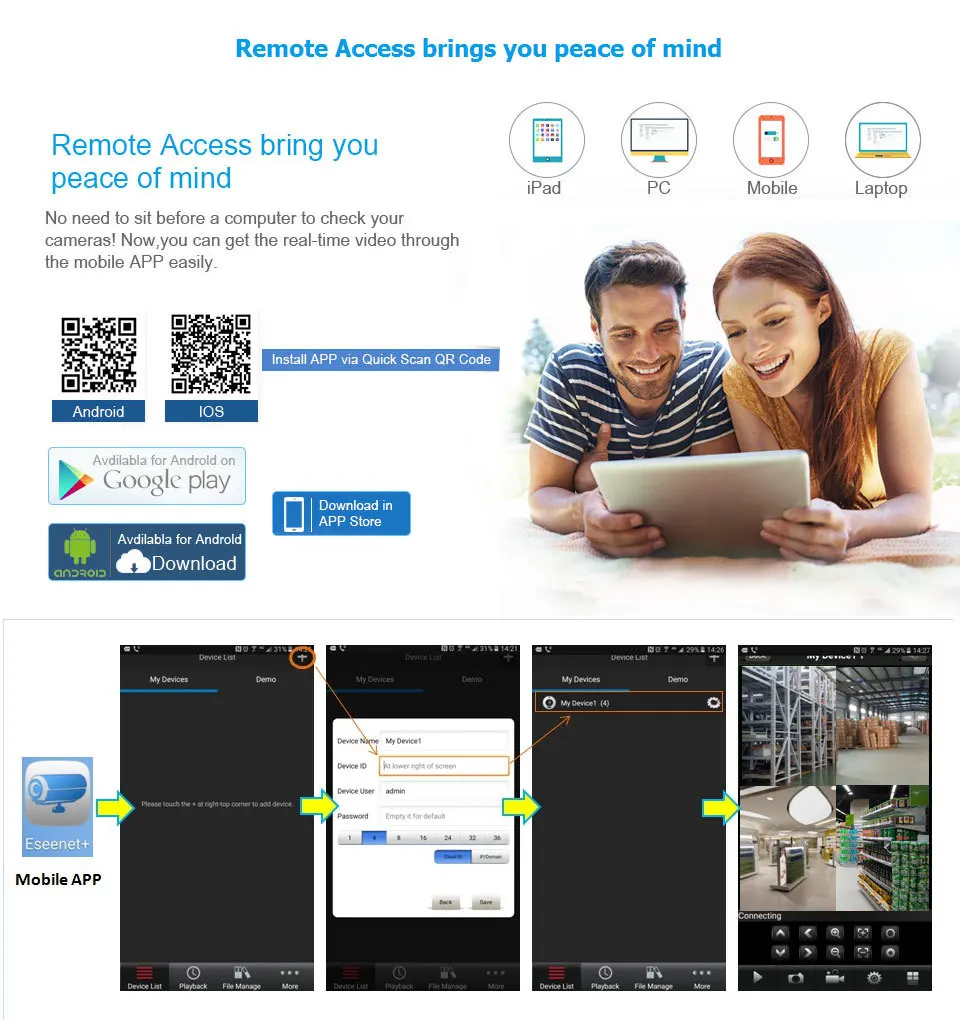

Wireless Network Bulilt-in WiFi module, 2 WiFi antenna WiFi Encryption WPA Wireless Range 50M(No obstacles), 30M(2 barrier wall) Smartphone iPhone, iPad, Android, Pad
