Features:

Plug & Play. HUD short for Head Up Display.It displays driving datas on the front windshield such as speed,water temperature,voltage,single driving distance on the car front window glass;avoiding drivers unsafety because of watching the instrument while driving.Drivers can read the driving information instantly , and can always keep the best state on the way with HUD.

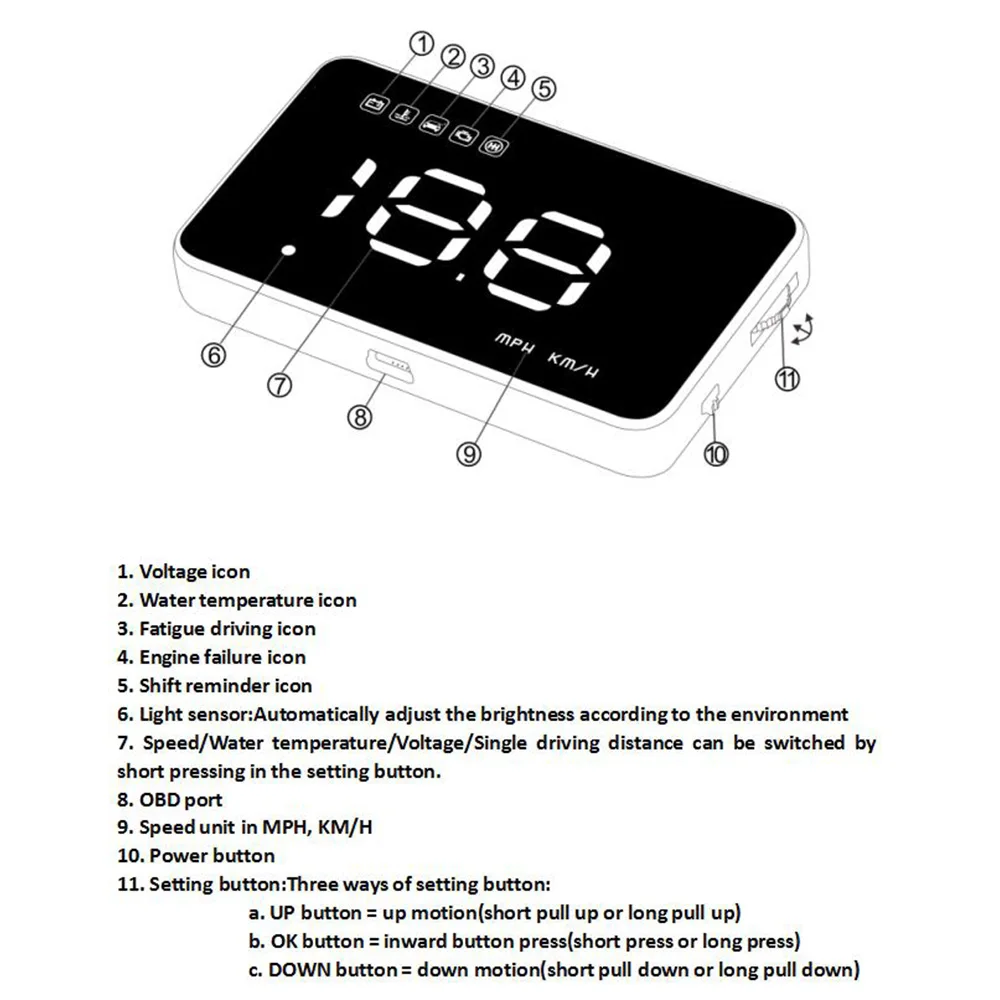

1. Voltage  icon
2. Water temperature  icon
3. Fatigue driving  icon
4. Engine failure icon
5. Shift reminder icon
6. Light sensor:Automatically adjust the brightness according to the environment
7. Speed/Water temperature/Voltage/Single driving distance can be switched by shortpressing in the setting button.
8. OBD port
9. Speed unit in MPH, KM/H
Power button
11. Setting button:Three ways of setting button:
a.Up button = up motion(short pull up or long pull up)
b.Ok button = inward button press(short press or long press)
c.Down button = down motion(short pull down or long pull down)

-Output Frequency:OBD2 or EU OBD interface
-Material :Plastic, electronic componets
-Function :speed, water temperature, battery voltage
-External Testing Certification:Rohs, CE, FCC
Compatible:
OBD2 or EU OBD interface,Two factors will show if your vehicle is OBD II compliant:
1. There will be an OBD II connector, and
2. There will be a note on a sticker or nameplate under the hood stating "OBD II compliant" or "OBD II Certified".

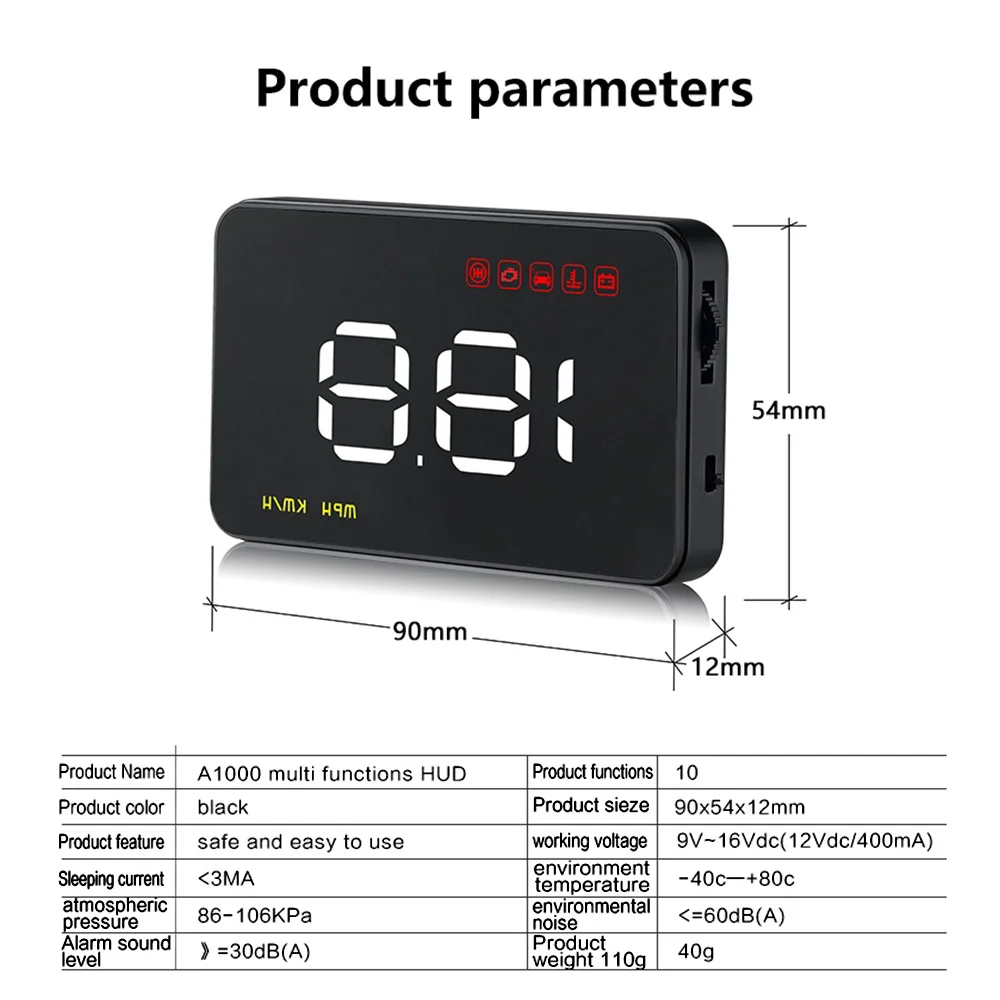

Technical Parameters:
Environment temperature: -40c- + 80c atmospheric pressure 86-106KPa
Relative Humidity: 10% -95% environmental noise <= 60dB (A)
Alarm sound level: &#12299;= 30dB (A)
Working voltage: 9V ~ 16Vdc (12Vdc / 400mA)
HUD size: 9x5.4x1.2(cm)

Package:
1*A1000 Head Up Display
1*Reflective Film
1*OBD Cable
1*Antiskid Pad
1*English User Manual
1*Case
