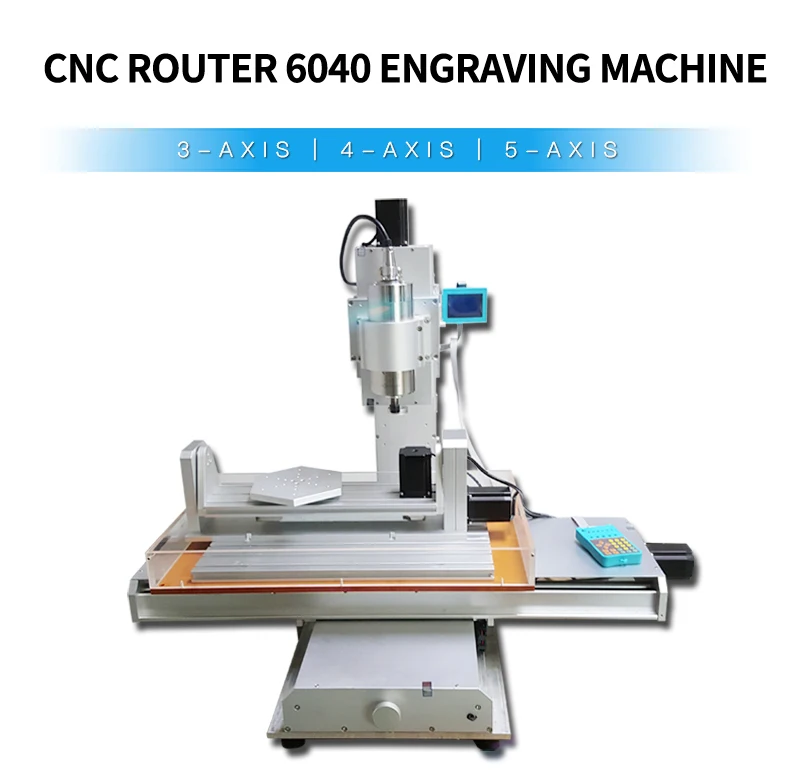

Vertical CNC Router 6040 3 4 5 Axis 2200W ER20 Spindle Aluminum Metal Engraving Machine drilling Cutters Coolant Pipe clamps | Инструменты

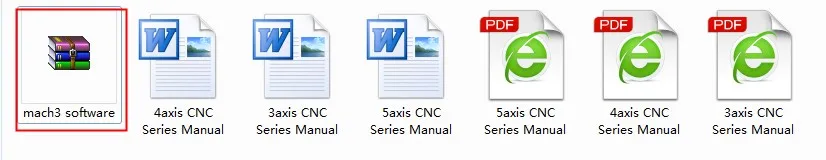

LY CNC 6040 Vertical Type Wood Router 3 /4 /5 Axis 2200W Spindle Motor Column Aluminum Engraving Milling Machine Free tax to Russia.  Parcel includes CD, there has Software and manual as below, you can easily use the machine even you are a new user.

Working video:

LY vertical CNC 3 axis drill hole on stainless steel

//youtu.be/Ld4dHDQvwR8

LY vertical cnc test resonance rigidity stability with coin

//youtu.be/5vNeyNkCxlw

LY vertical CNC 3 axis work with stainless steel video

//youtu.be/wF4gHl1OrxA

LY vertical CNC 3 axis work with aluminum stuff materials

//youtu.be/DAfay44AHxA

LY vertical CNC 3 axis work with wood stuff and ABS stuff materials

//youtu.be/DyocbPUcWUg

LY vertical CNC 4 axis engraving dragon on aluminum poles

//youtu.be/t3Ay1eLZYFo

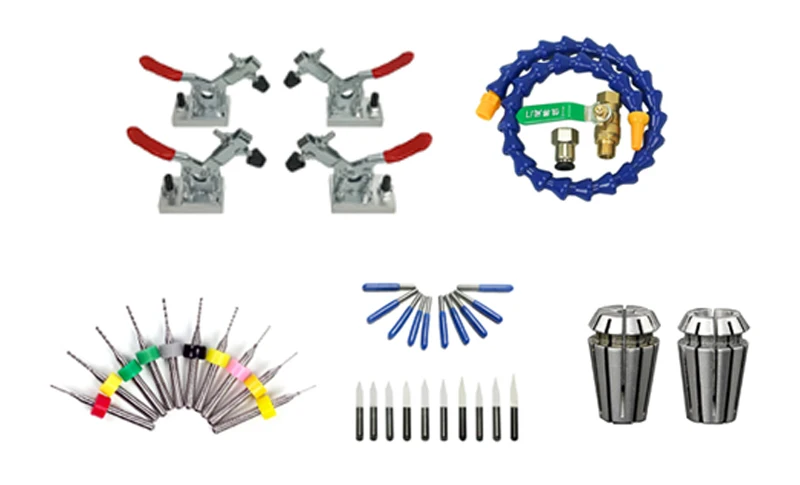

Free gifts:

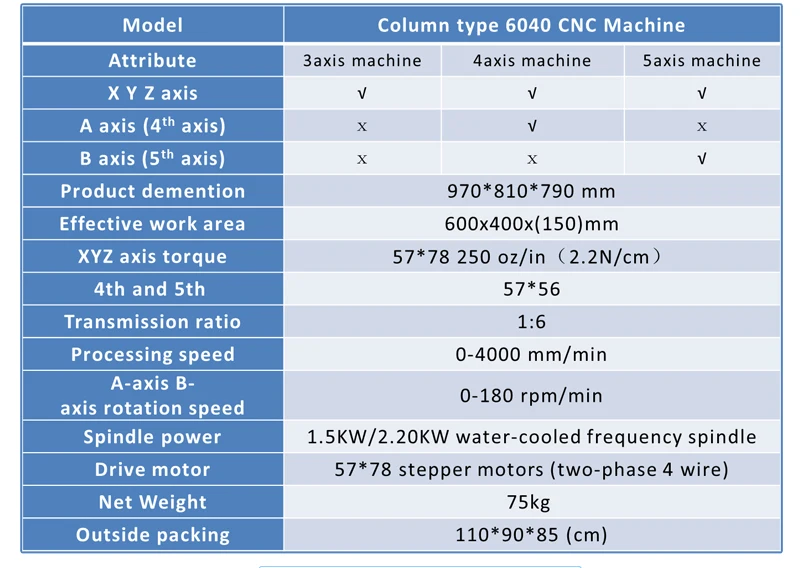

Specifications:

Model

Column type 6040 CNC Machine 2.2KW

Attribute

3axis machine

4axis machine

5axis machine

X Y Z axis

√

√

√

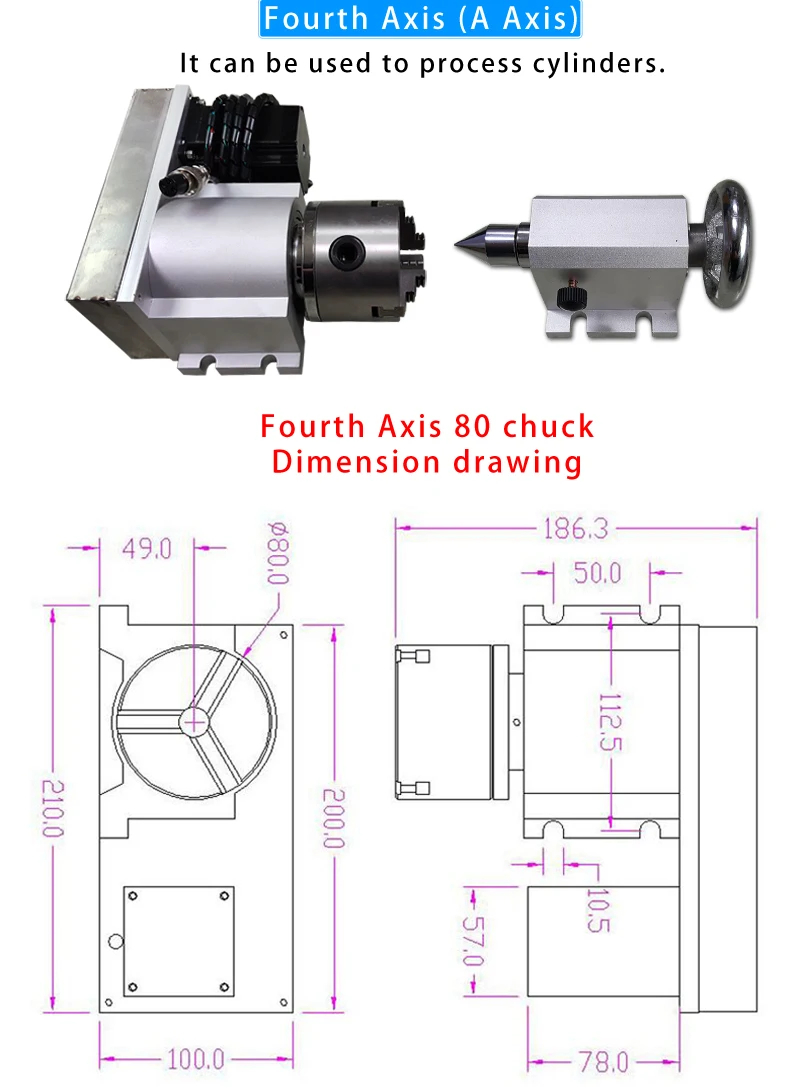

A axis (4th axis)

ⅹ

√

ⅹ

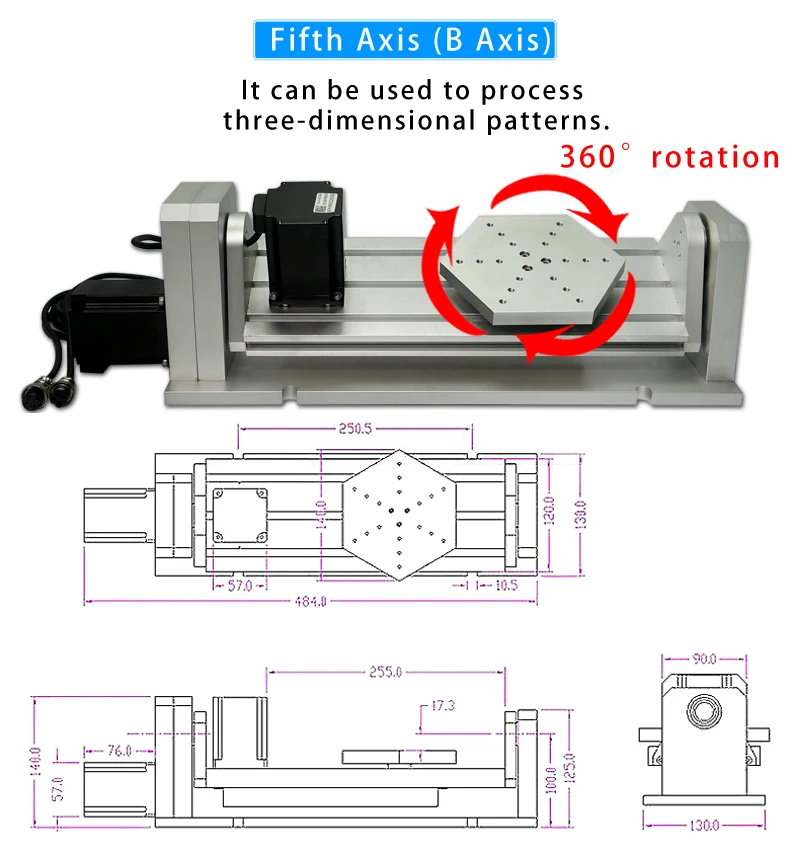

B axis (5th axis)

ⅹ

ⅹ

√

Net Weight

70KG

75KG

80KG

Gross Weight

110kg

115KG

120KG

Product Dimention

970X810X790 mm

Effective work area

600x400x(150) mm

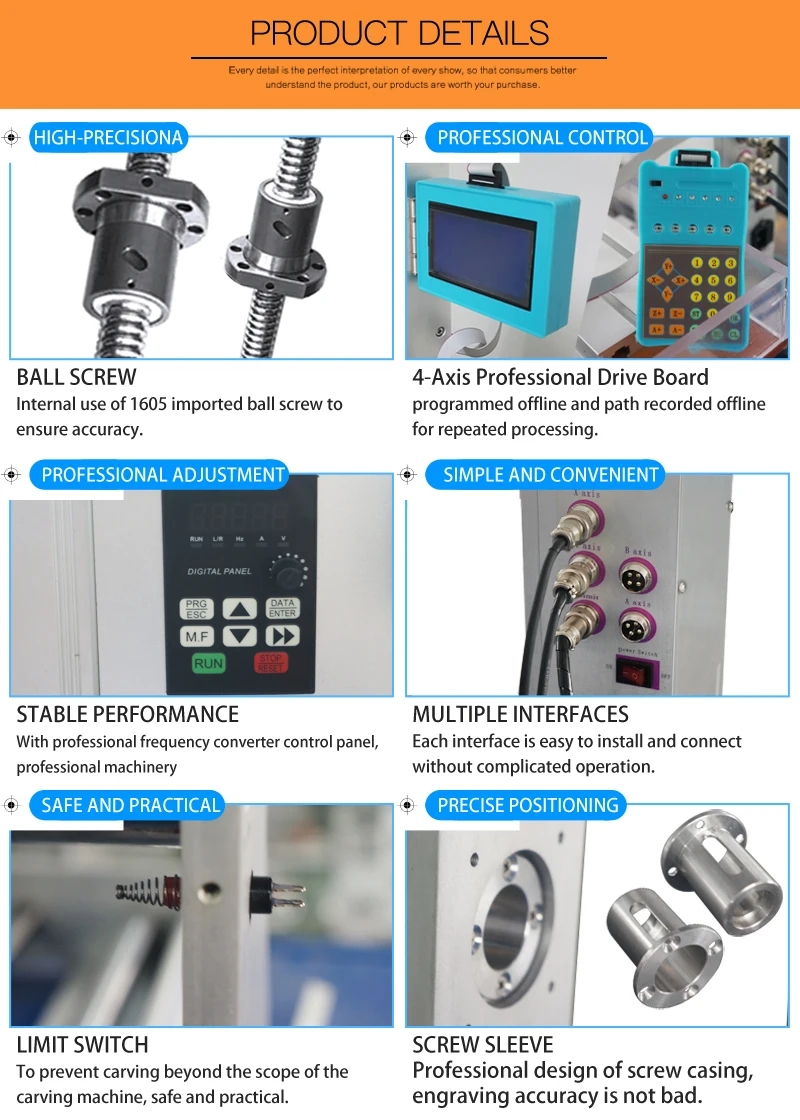

Precision ball screw

1605

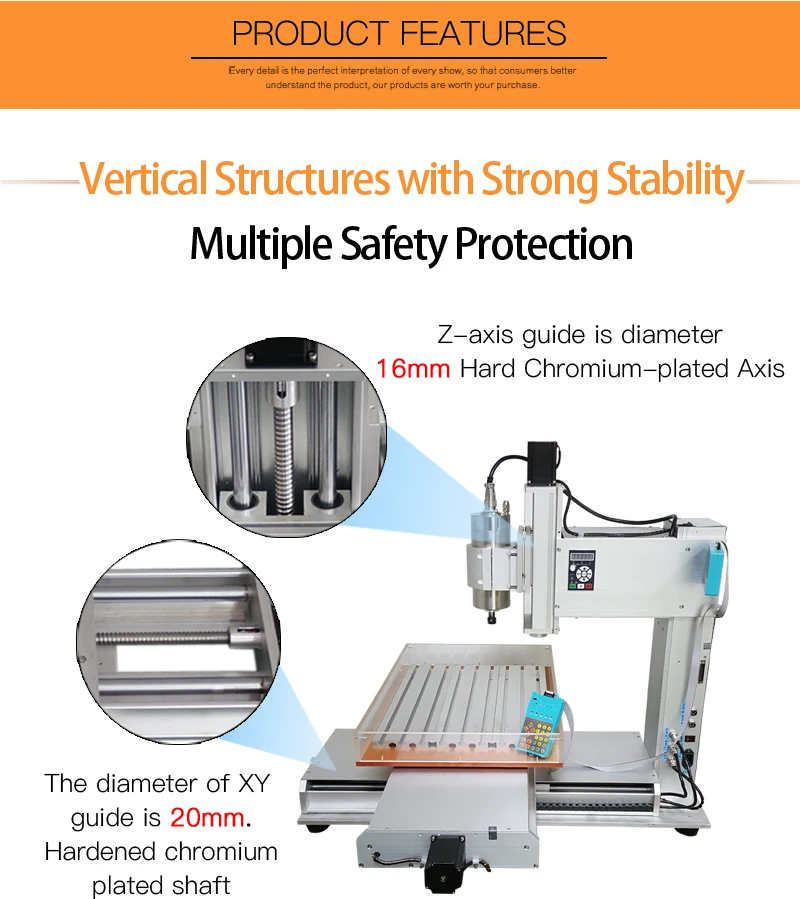

XYZ rail material

Hard chrome shaft

XY rail diameter

20mm

Z rail diameter

16mm

XYZ axis torque

57*78  250 OZ/IN (2.2N/CM)

4th and 5th

57*56

4th and 5th transmission ratio

1:6

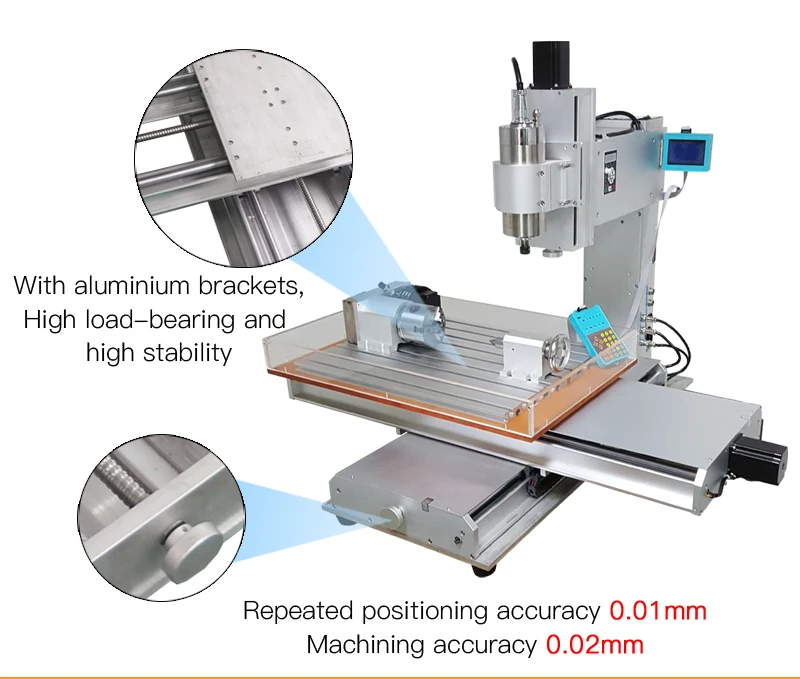

Repeat positioning accuracy

0.01mm

Working precision

0.02mm

Processing speed

0-4000 mm/Min

A-axis B-axis rotation speed

0-180 rpm/min

XY table maximum load

50kg

XY+A+B axis table maximum load

15kg

Tailgate material

Stainless steel

Switching Power Supply

Integrated 24V 350W

Spindle power

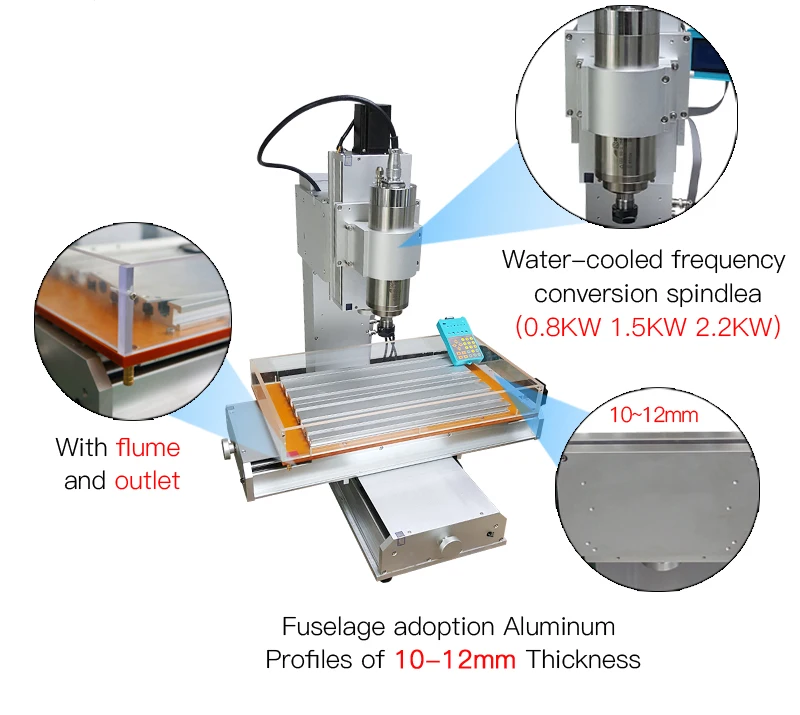

2200W water-cooled frequency spindle

Spindle converter

2200W

Input Power

220V / 110V power supply

Output Current

Drive 4.5A (peak 5A)

Drive motor

57*78 stepper motors (two-phase 4 wire)

Outside packing

110*90*85 (cm)

Features:

1. Integrated high-speed microcomputer intelligent control chip, can be equipped with external LCD monitor with hands, automatic detection of computer controlled automatic shield handle motion control functions, can simultaneously track digital recording of computer data and handle mobile data control 2. The computer keeps track of the path, you can run once the computer processing of the data record-keeping process automatically repeats offline processing operation. 3. Manually move the processing to save recorded track record, manually move the machine data and automatically reprocessed run manually move the path. 4. Manual data input processing path and enter the path to run automatically. 5 You can automatically complete the XYZ axis or Z axis of the knife, without complicated computer software operation control 6. Max 5A stepper motor drive current, eight-speed adjustable.  7. Up to 16 segments, higher accuracy, run more smoothly. 8. Overload over-current over-temperature protection function, automatic semi-flow control, fully protect your computer and peripherals. 9. Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region. 10. Closed optical isolation, dual-stage signal processing, and fully protect your computers and devices.

Why buy  from us :

CE approved. Video support. English manual available. Mach 3 software send with the machine as a CD. Can engrave material which hardness below 45.

Easy operating:

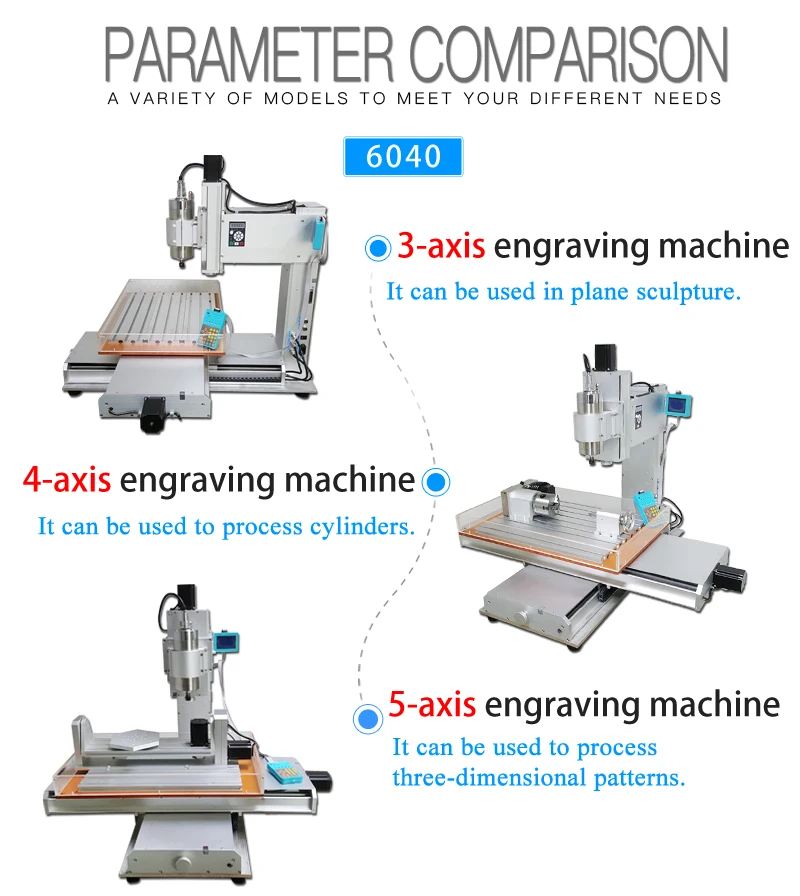

It can work with 3 axis / 4 axis / 5 axis, just as you like ! Integrated high-speed micro computer intelligent control chip. With external digital LCD monitor and handwheel controller. The working process can be tracked, recorded in the digital LCD monitor automatically. Mach 3 software Built in frequencey converter and without controller box.

Higher precision because:

Cross slippery platform design rather than gantry design. Aluminum base sheet is heavy which can make sure no vibration when work. With auto-checking function. 1500w water-cooled spindle. Ball screw
