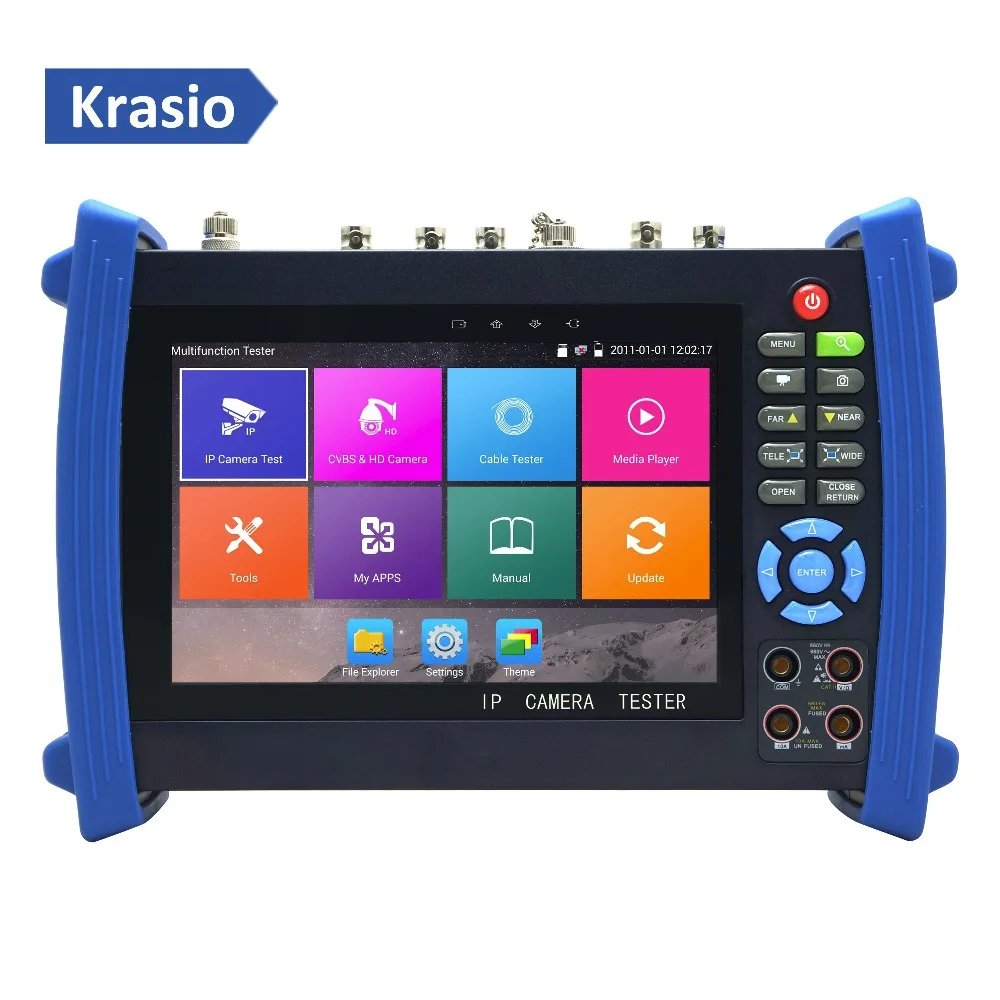

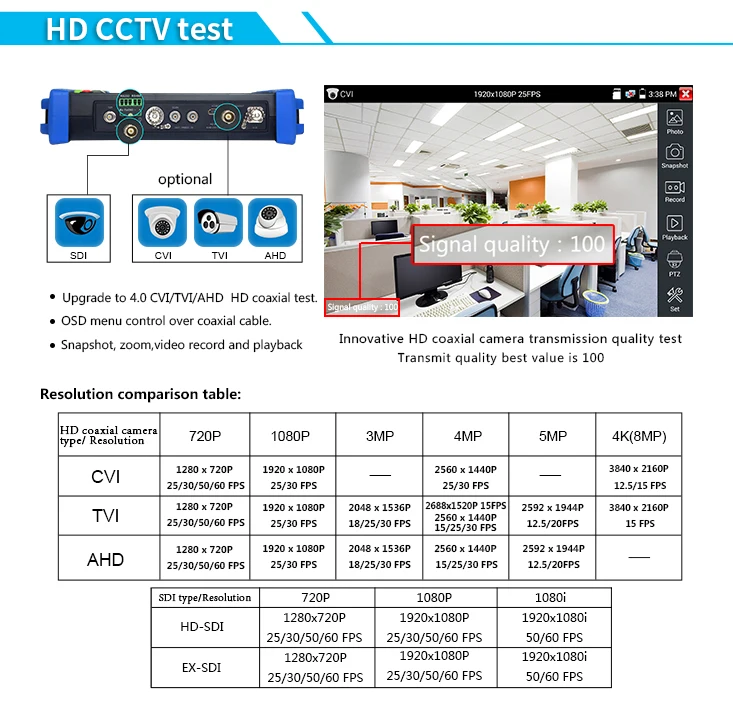

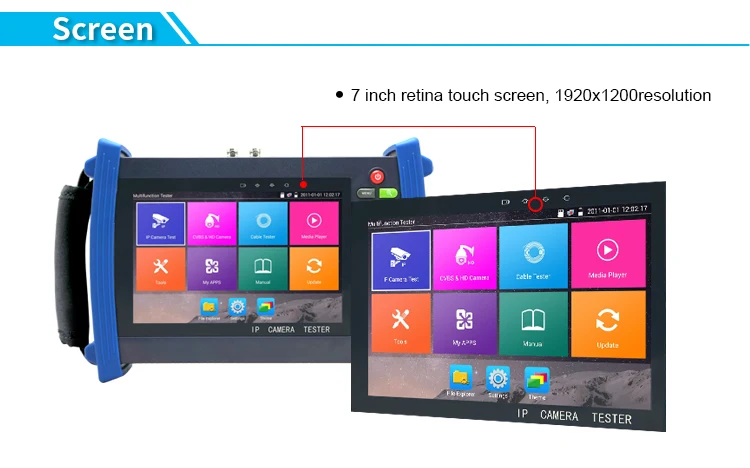

8MP 5MP CCTV Tester with 7 inch Monitor All in one Security Tester Monitor for IP AHD TVI CVI SDI Optical Power Multimeter

Application:

CCTV system installation and maintenance

—Network cabling project installation and maintenance

Dome camera IP camera testing

—PTZ controller

Camera test:

● Digital Multimeter :DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement。

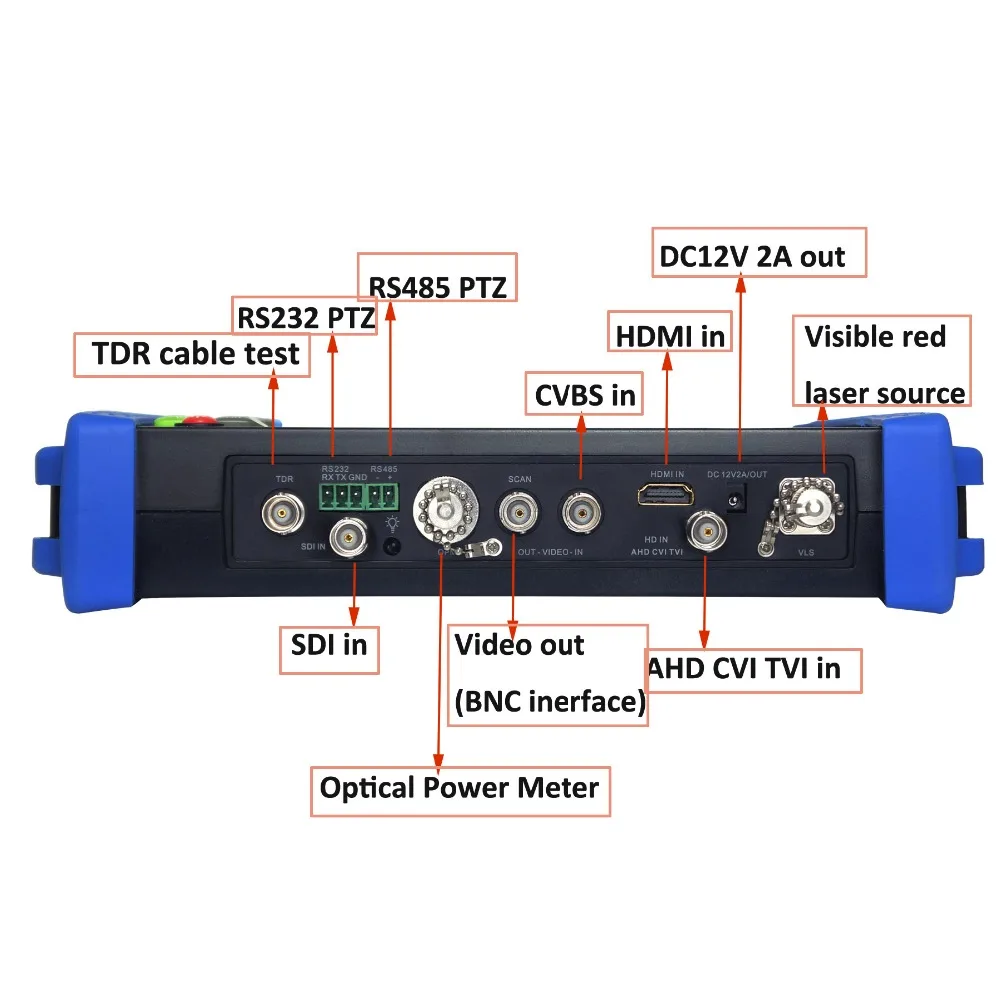

● Optical power meter, Wavelength：1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 ～ +10 dBm, for optical   power testing and Fiber link loss relative measurement.

● Visual fault locator :10mW visual fault locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber’s bending and   breakage, test range 10KM

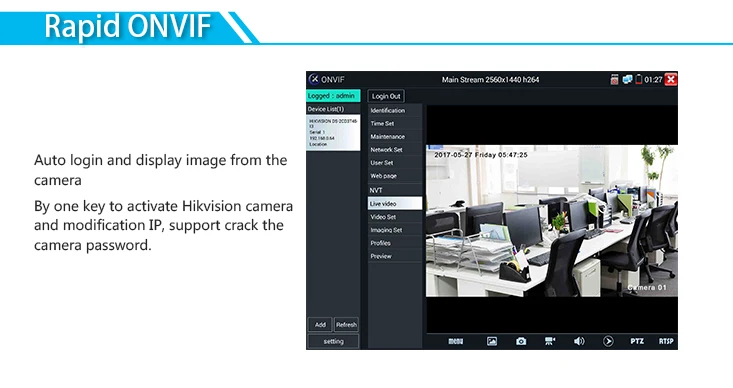

● Rapid ONVIF, Auto log in and display image, create testing report

● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

● CVBS camera test and PTZ control

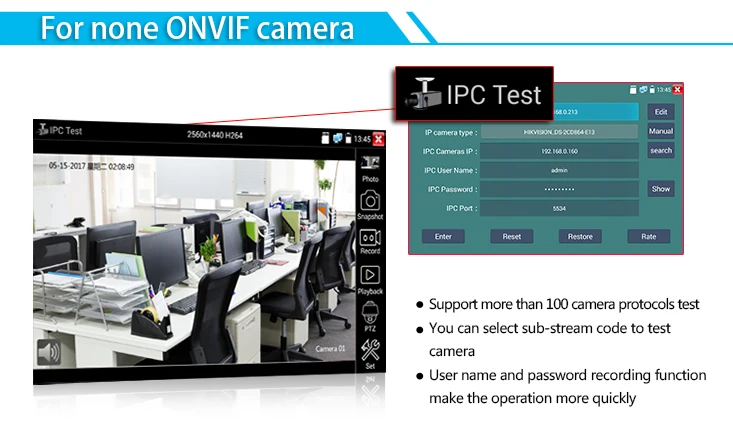

● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera),DH test tool (Dahua camera)

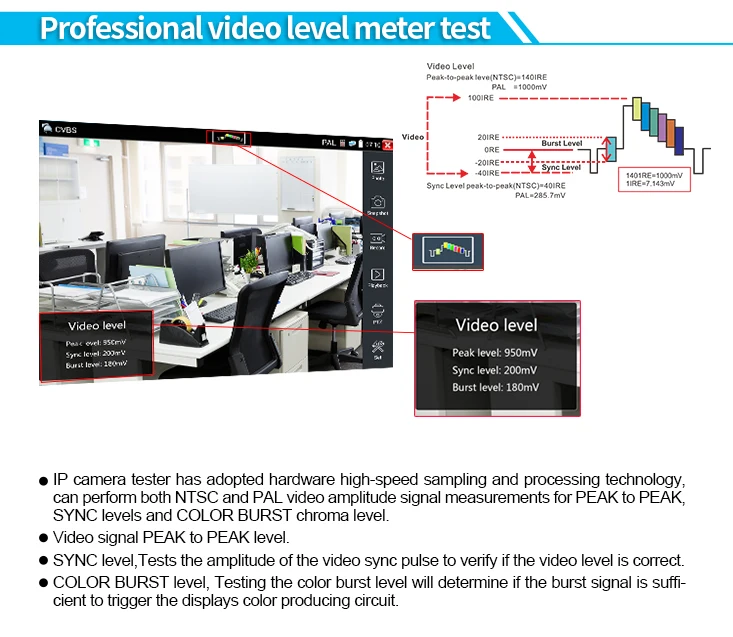

● Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement

● DC12V/2A power output, camera can be powered from DC 12Votage

● 48V PoE power output power

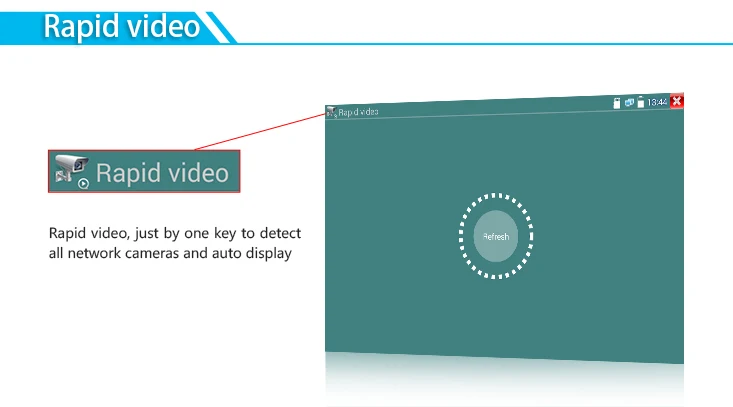

● Rapid video, just by one key to detect all network cameras and auto display

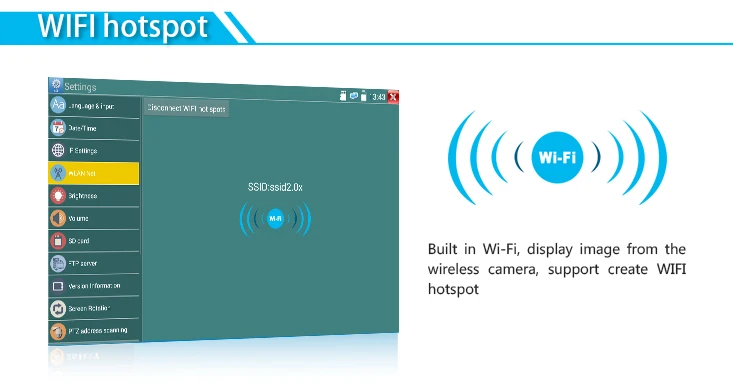

● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

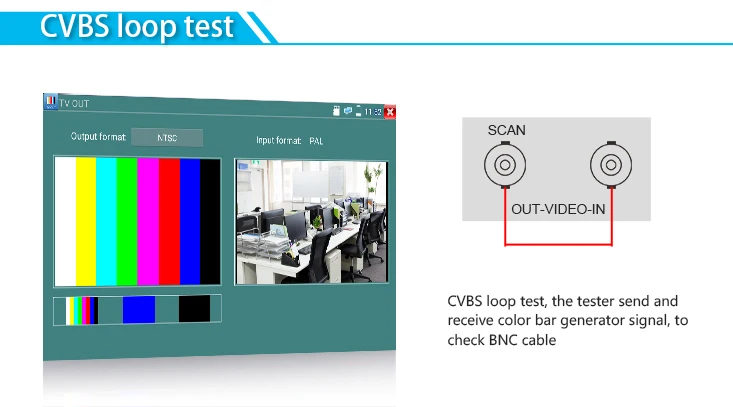

● CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable

● Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

Cable test:

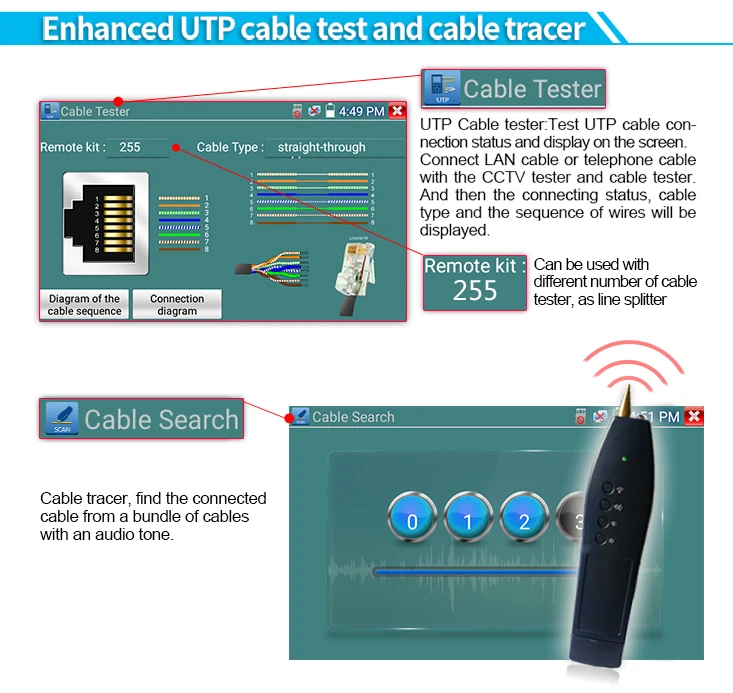

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized

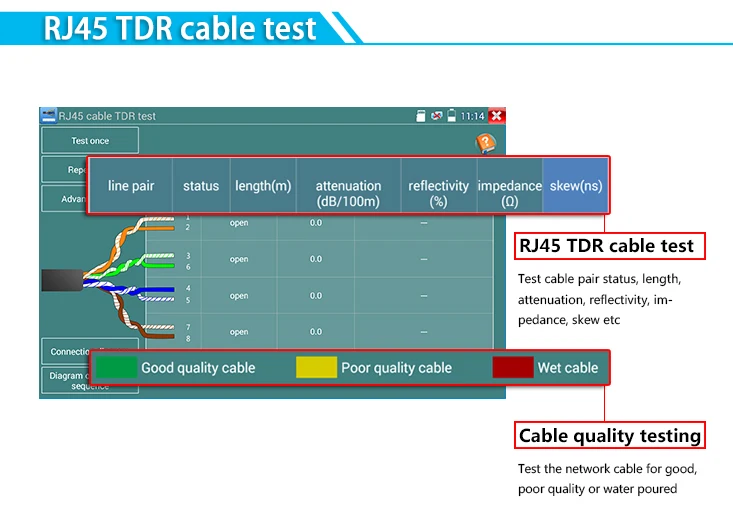

● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

● Cable tracer, search BNC cable, network cable and telephone cable from the mess cables

● TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM*

Other functions:

● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

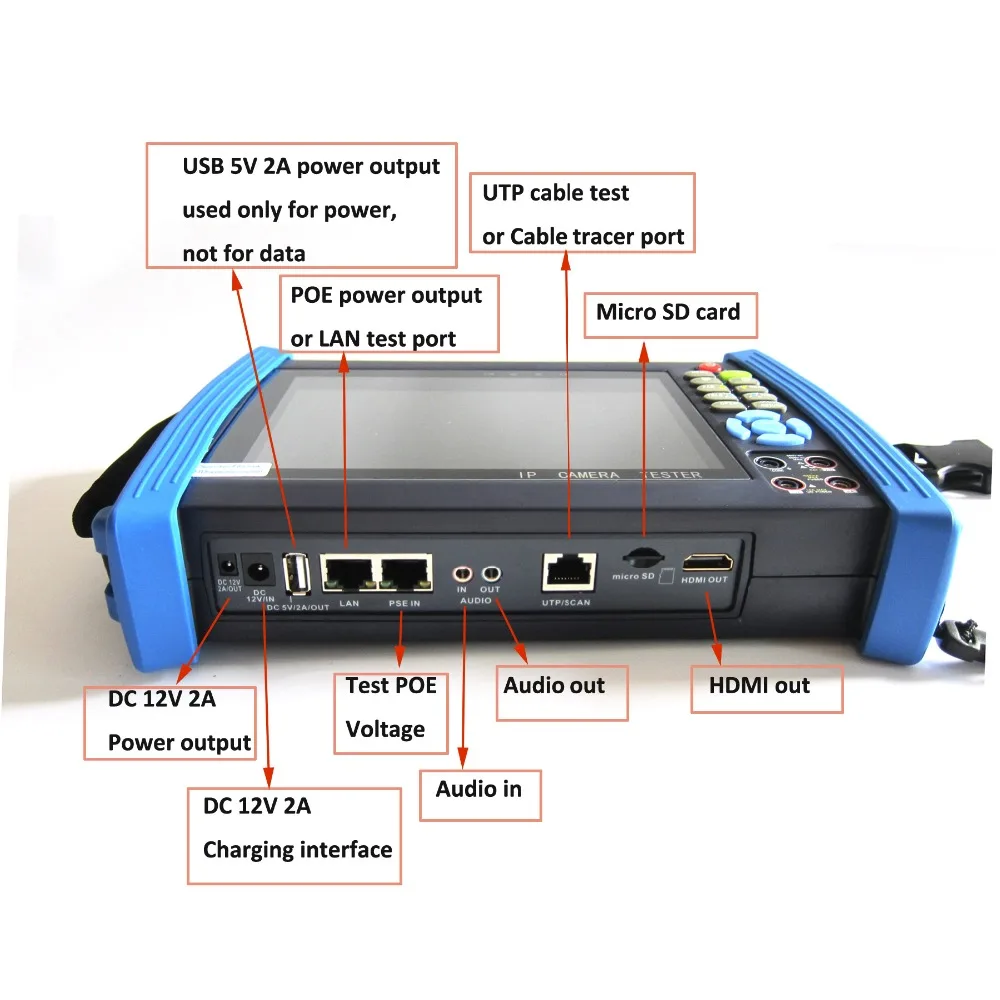

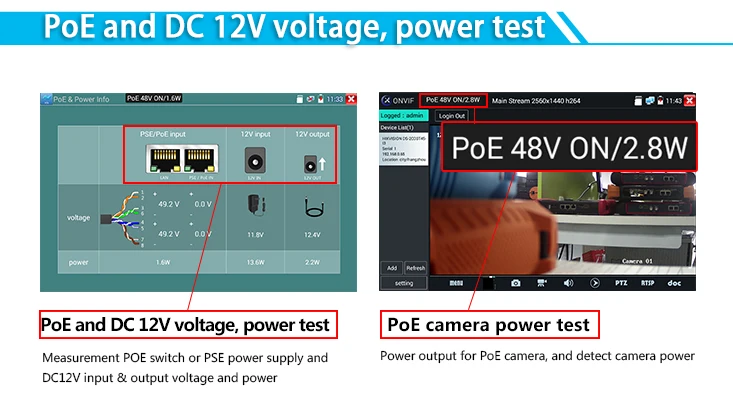

● POE & power information, DC12V& PoE power and voltage output /input measurement

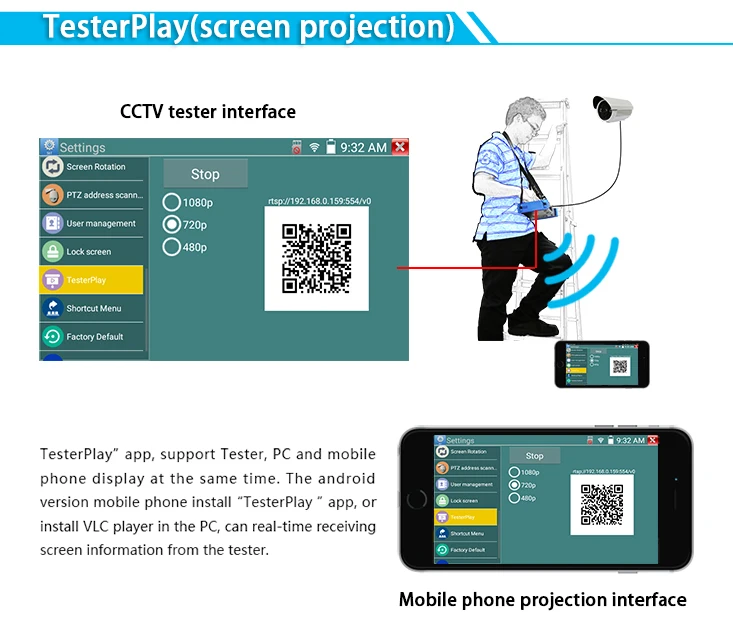

● Tester Play: Tester, android version mobile phone and PC display at the same time

● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc

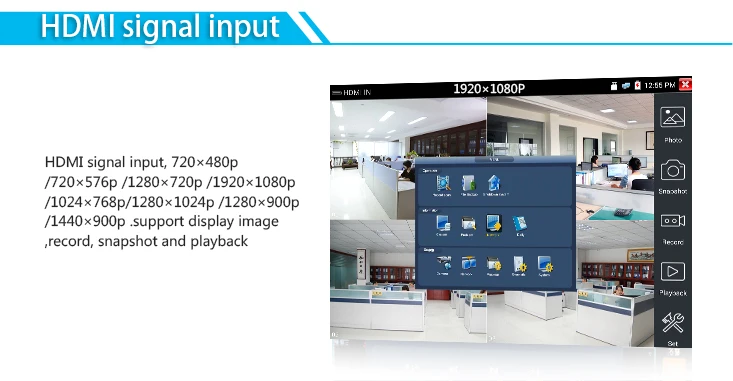

● HDM input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display, record and snapshot *

● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

● Self -update software, you can install apps with android version

● Media player, 4K video files and MKV/MP4 media files play

● Quick office, quick office app (support excel, word, ppt format) doc. editable

● 8GB SD card including

● Display its genuine resolution of the IP camera images

● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

● 7.4 V /7000mAh Lithium Ion Polymer Battery, after 7~8 hours charging , working time lasts 16 hours

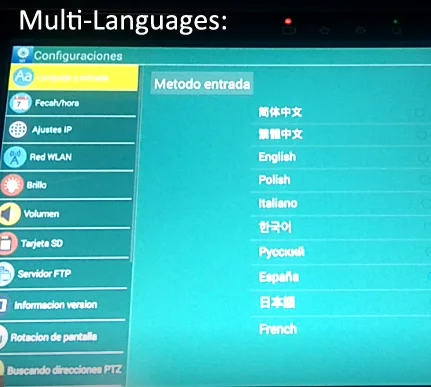

● Multi Languages:  English, Chinese, Korean,Russian, Italian, French, Polish, Spanish, Japanese etc

​​Notice:
