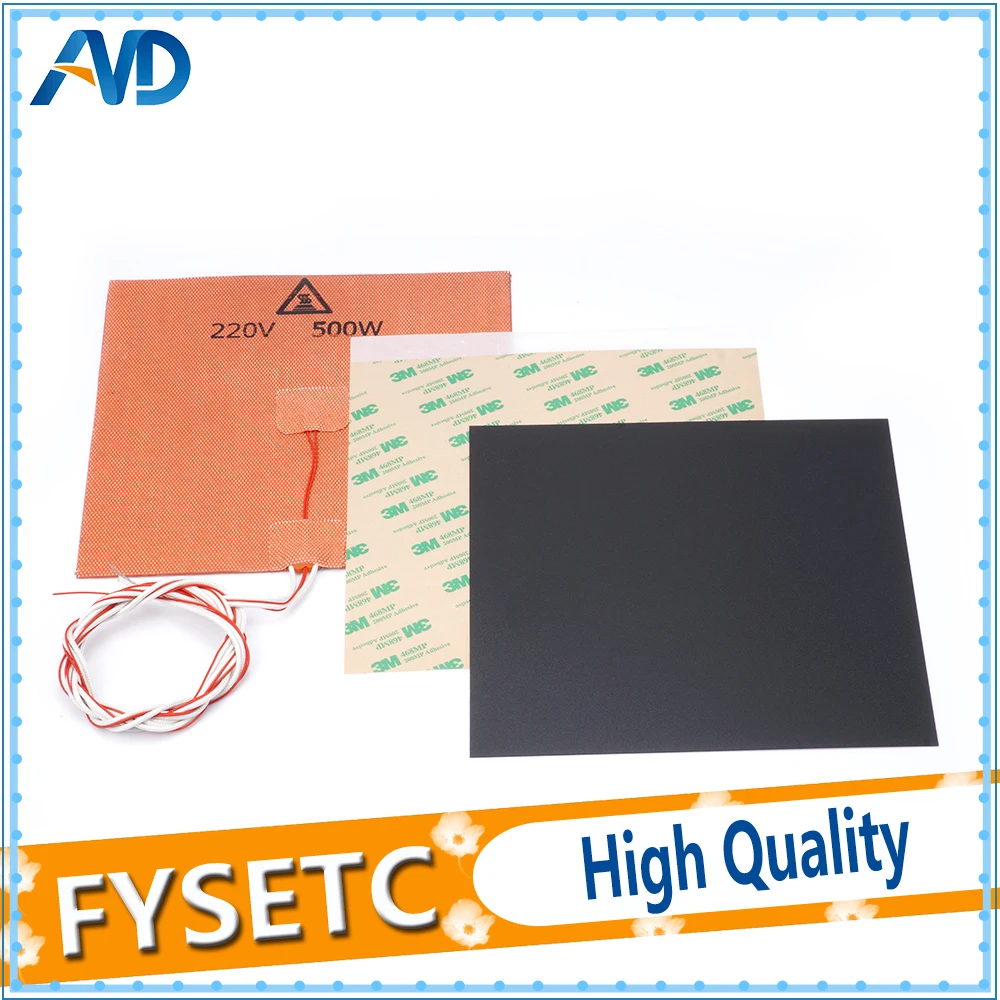

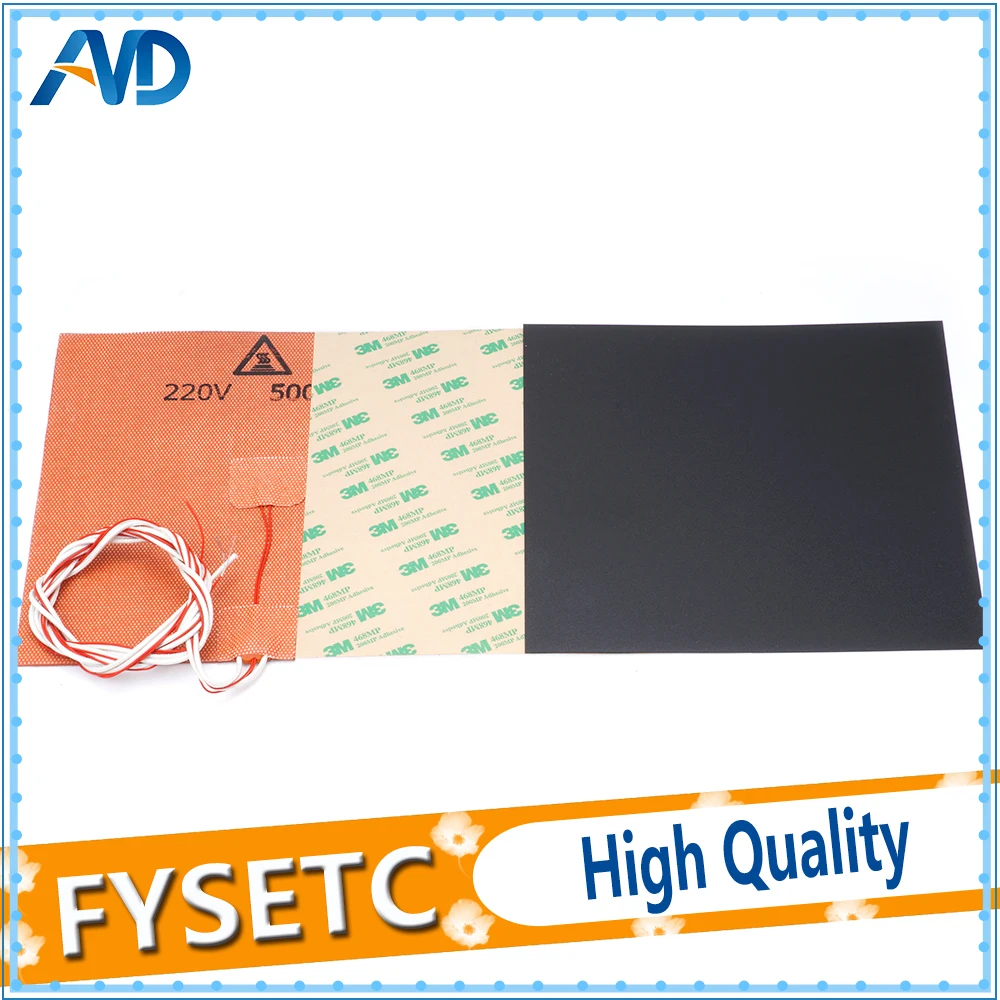

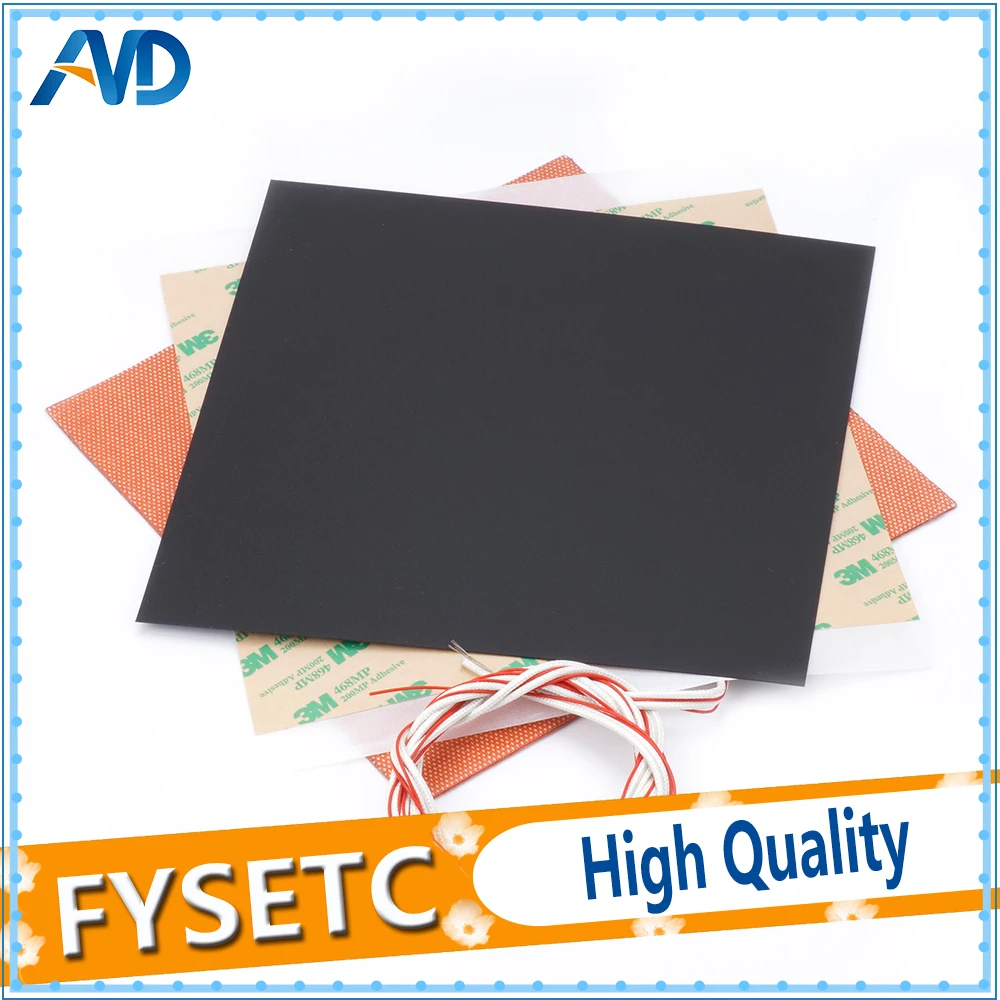

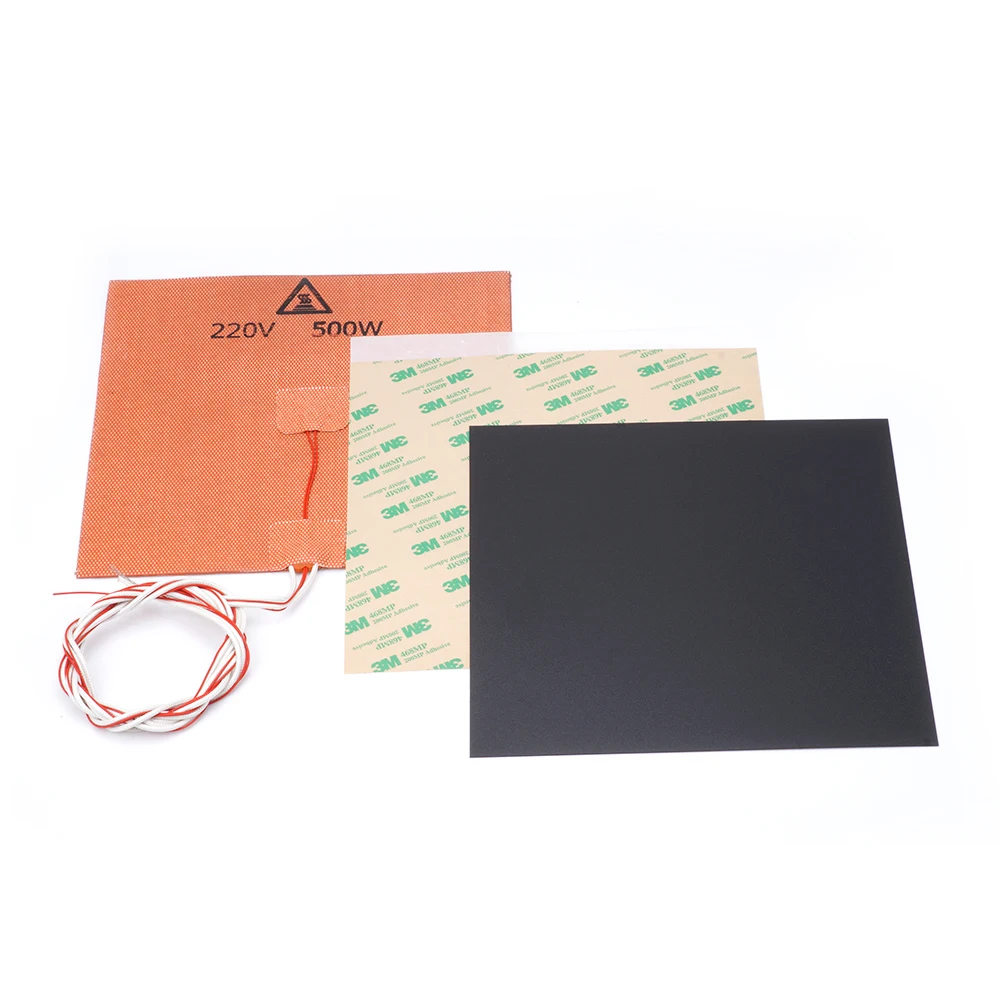

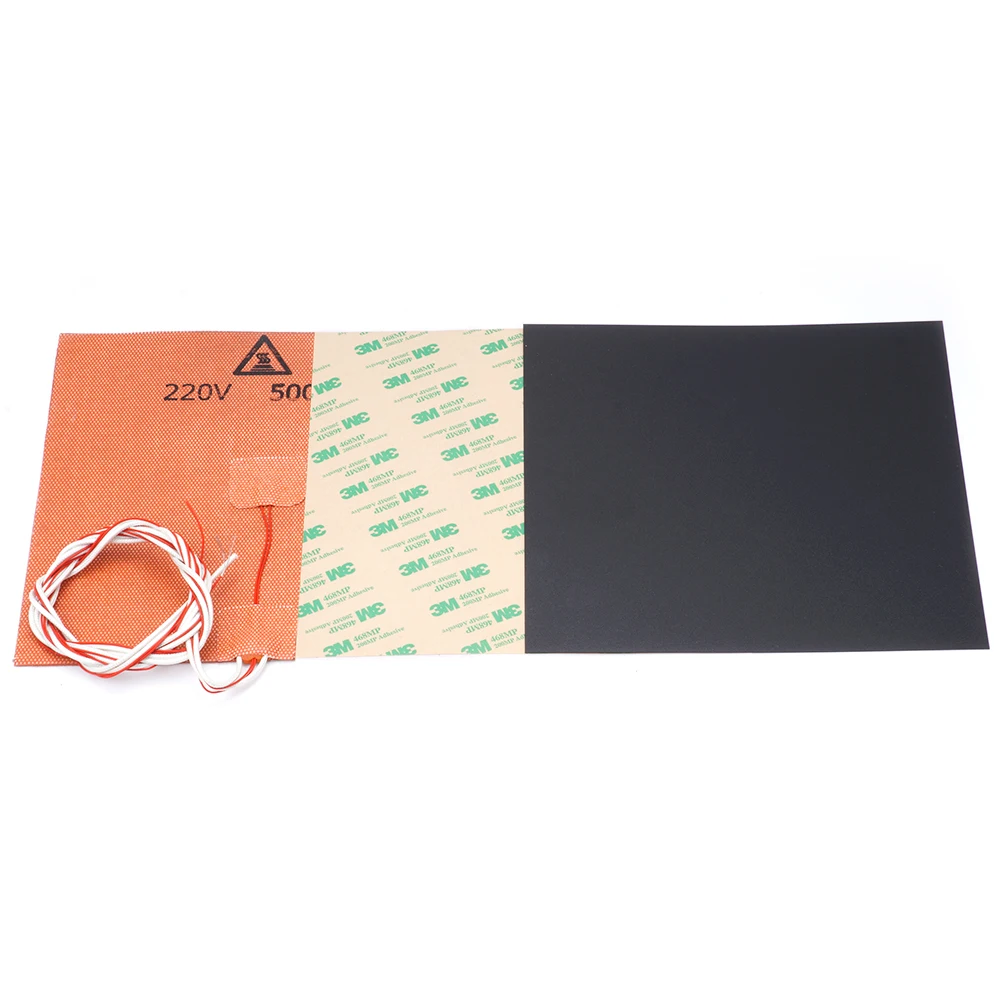

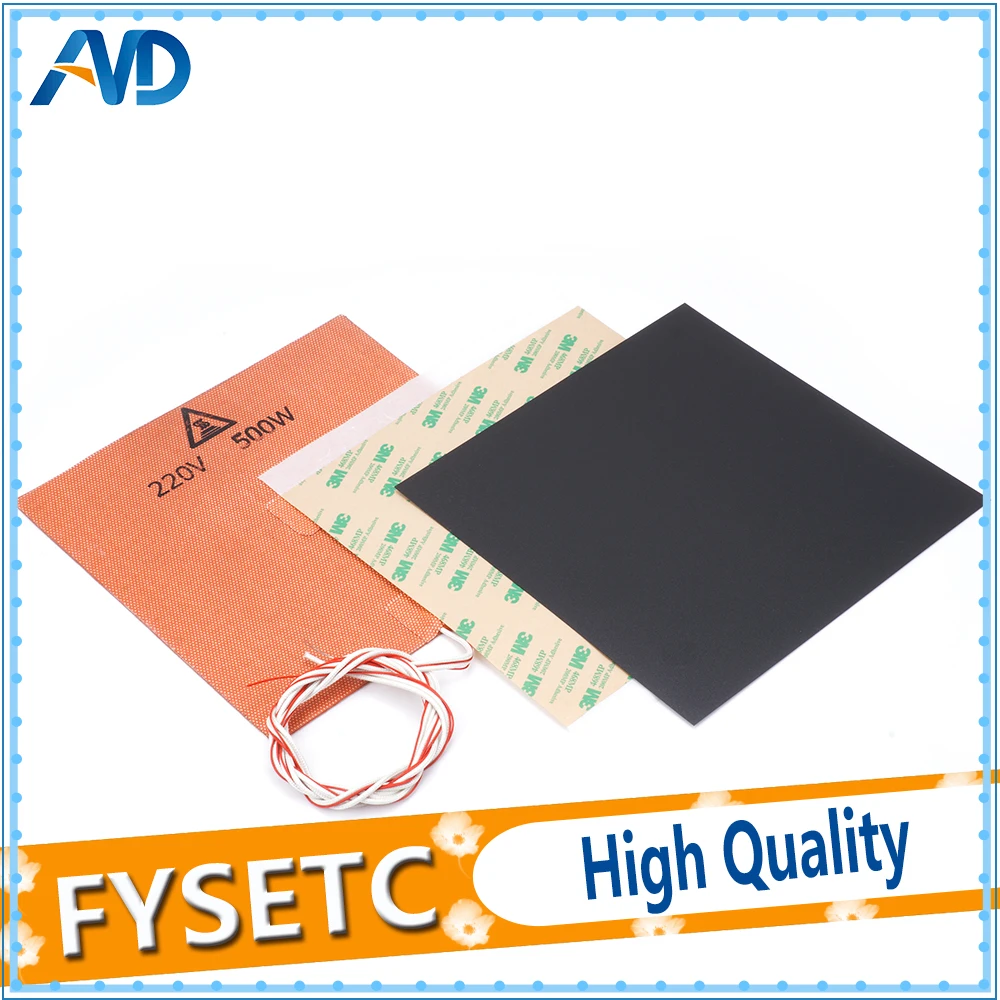

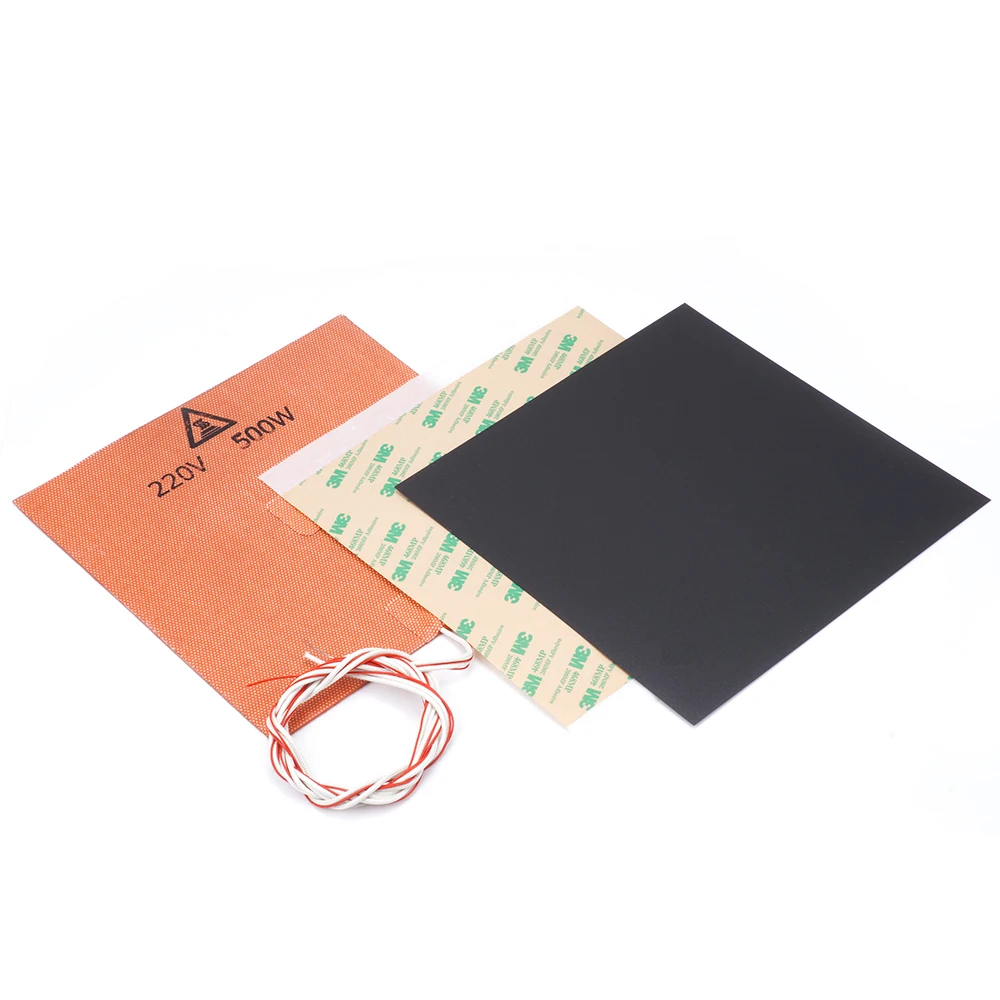

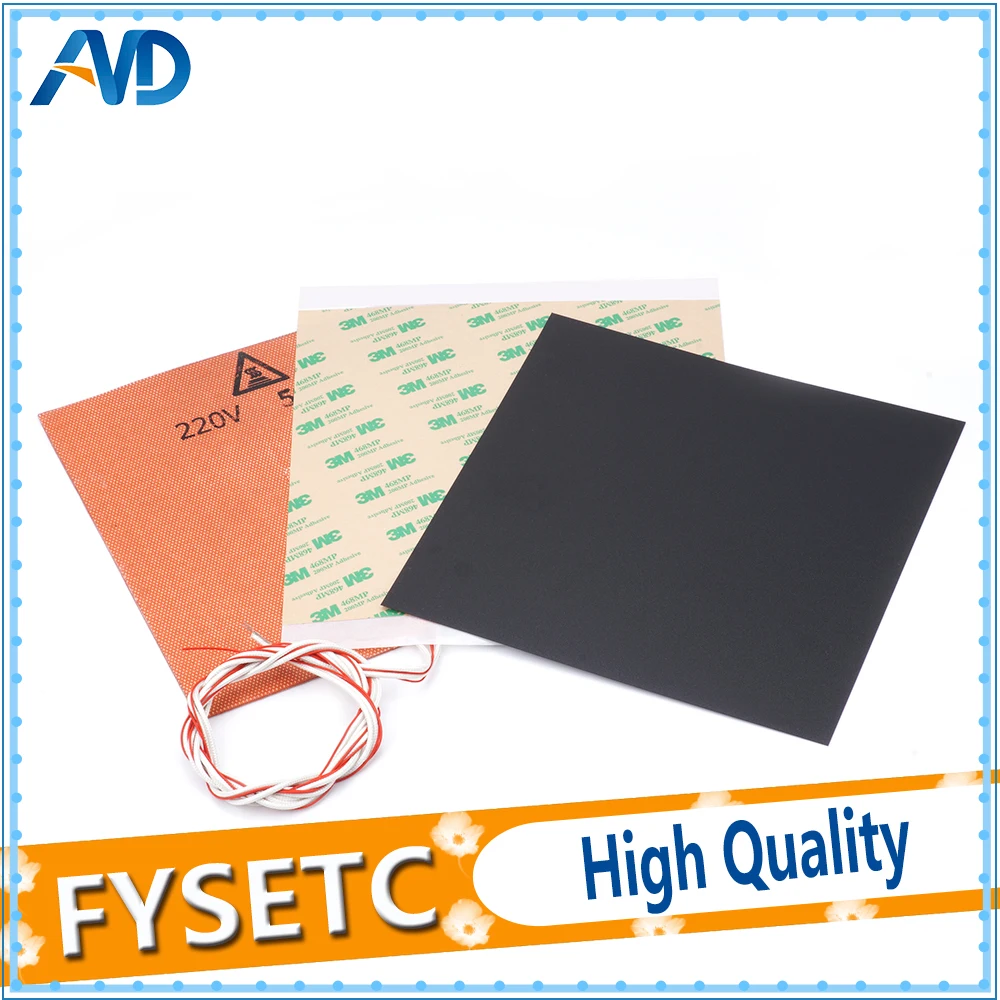

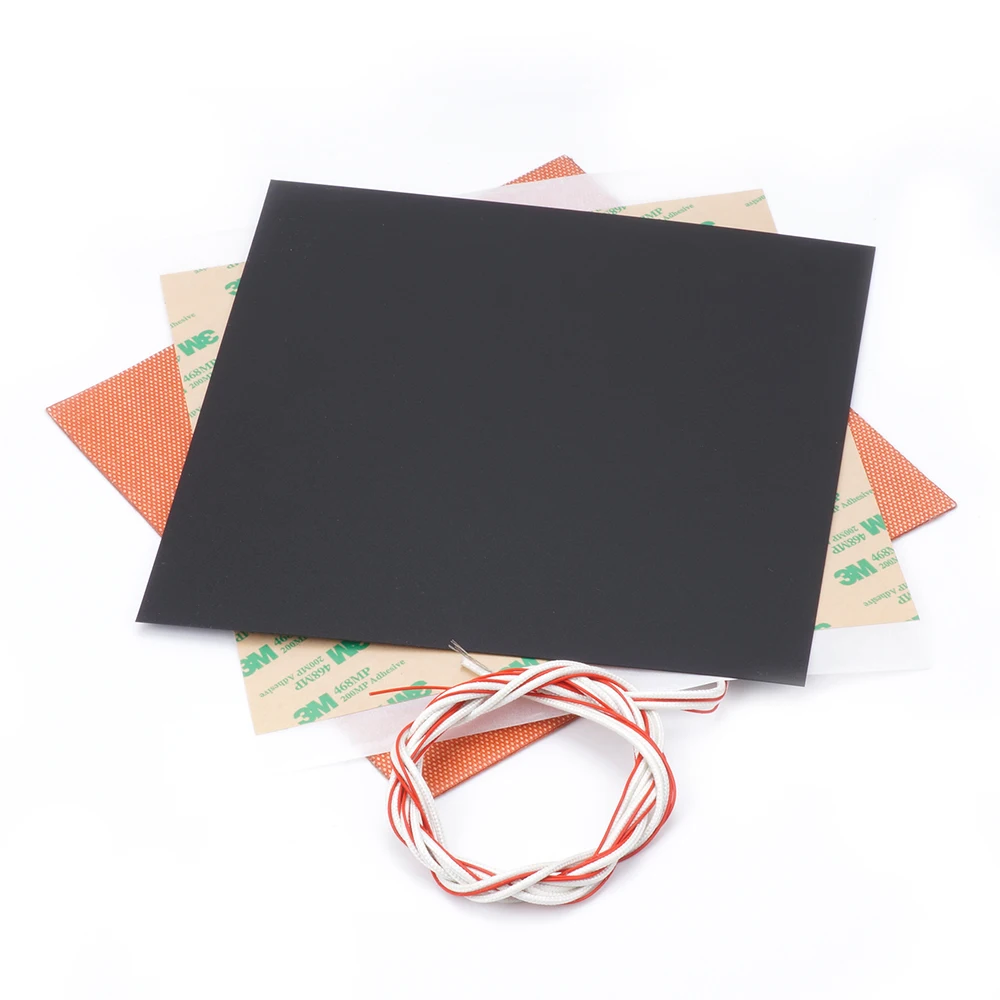

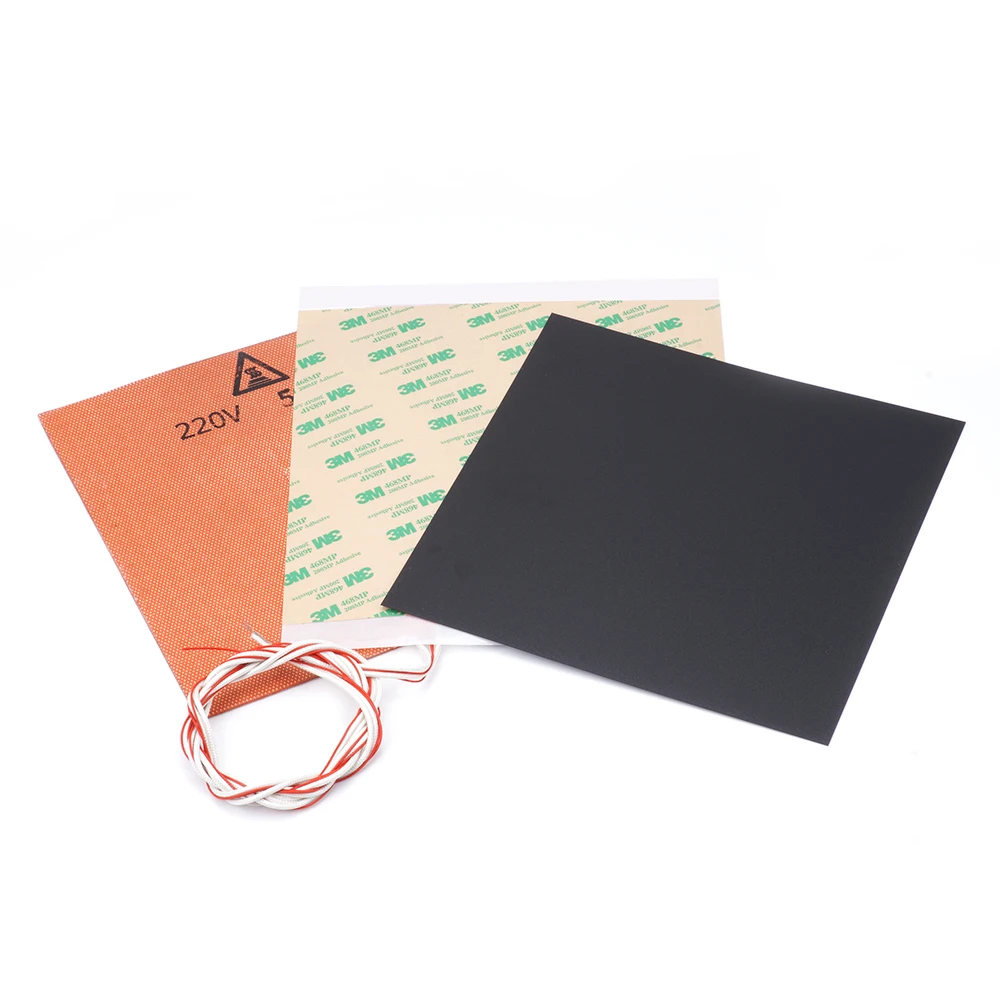

200X200mm 220V 500W Silicone Heater Pad + 0.5/0.8/1mm Frosted Black Build Surface Polyetherimide Cold PEI Sheet For Prusa i3



Size: 200mm x 200mm ( approx. 7.8" x 7.8") Power: 500W Accessories: 1m power cable(white) Surface mount NTC 100K thermistor + 1m extension wire(red) 3M adhesive backing 4 pre-made screw holes as per drawing     Important Notes:  Please heat only when after it's mounted onto the build plate (Aluminum plate recommended).     This 3D-printing build surface is an 200mm PEI square sheet  PEI (Polyetherimide) sheets provide a 3D printing build surface that requires no tape, slurry, or adhesive. ABS and PLA both stick extremely well to the surface, which eliminates the need for support rafts used for better adhesion. longtemperature is 120 degree C.   If you want to use it in 3M 468MP tape,just choose the option. Note: Normal PEI film is not matte, 2 surface paste protective film. First of all, we sell PEI is genuine, he said the yellow color is the color of most PEI, PEI also has black,white and transparent, it depends on the manufacturer's material formula. Our PEI is duratron PEI     PEI according to the addition of different components, the color will be different. This PEI is Duratron produced custom PEI, can not use Acetone, or will damage PEI, and he can cut a little PEI burned the smell, special taste, fake not It is recommended to use isopropyl alcohol, methyl alcohol to clean, can not use Acetone   Within 120  ℃ operating temperature for long-term use.   Don't keep a long time heating!!!  Package included: 1* silicone heater pad 1* PEI ​1*3M adhesive

​

supply voltage:

0-400V,Please contact us for other voltages.

Insulation Material:

Silicone Rubber Coated Fiberglass

Max.Operating Temperature:

260 Deg C or 500 Deg F

Max.Power Density:

5w/sq.cm depending on application

Heating Elements

Wire Wound or Etched Foil.Please contact

Resistance Tolerance:

about +/- 5%

Thickness:

1.5mm

Flammability:

Flame retardant

Thermal Protection:

On board thermal fuse,thermostat,thermistor and PT100 are available as part of your thermal management solution.

Power Leads:

High temperature PTFE or Silicone insulation leads
