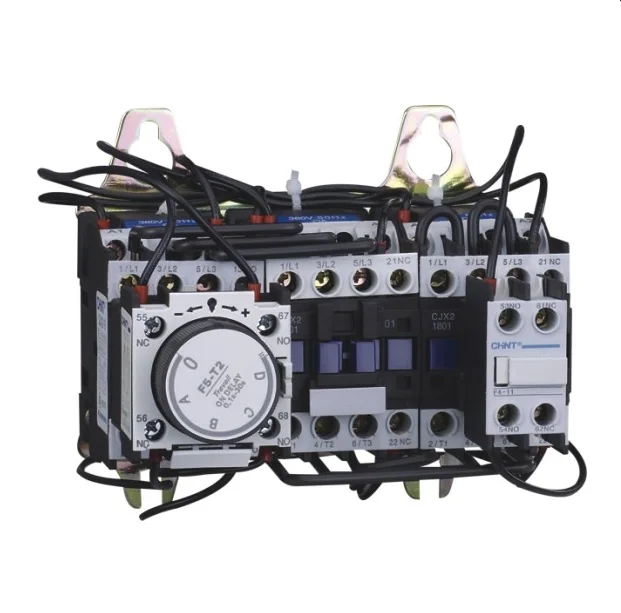

  QJX2-12 star-delta reduced voltage starter is suitable for starting motor in the circuit of AC 50/60 Hz, voltage up to 660V and maximum motor current up to 21A

The start delta unit is provided with a timer for automatic changeover of star delta to reduce the voltage and current of motor starting plus a thermal overload for motor protection.

The QJX2 series star delta motor start units use the CJX2 series contactors. The CJX2 series contactors are the old Telemecanique style contactors

The default overload supplied with  the 11kW star delta unit is TO-13 (9-13A) if a smaller over load is required please advise at time of purchase.

The maximum motor current specified in the table (see gallery) are a guide please whenever possible, determine the actual f.l.c from the motor rating plate in each case.

 The Star Delta starters come standard with 415V AC control coil, the units can be fitted with 240V,110V,48V and 24V AC coils.

Note:

1: Set the overload to 58% of the motor rated current.

2: Always check the full load current of the motor before finalizing your selection the maximum load current can vary between motors depending on the efficiency of the motors.
