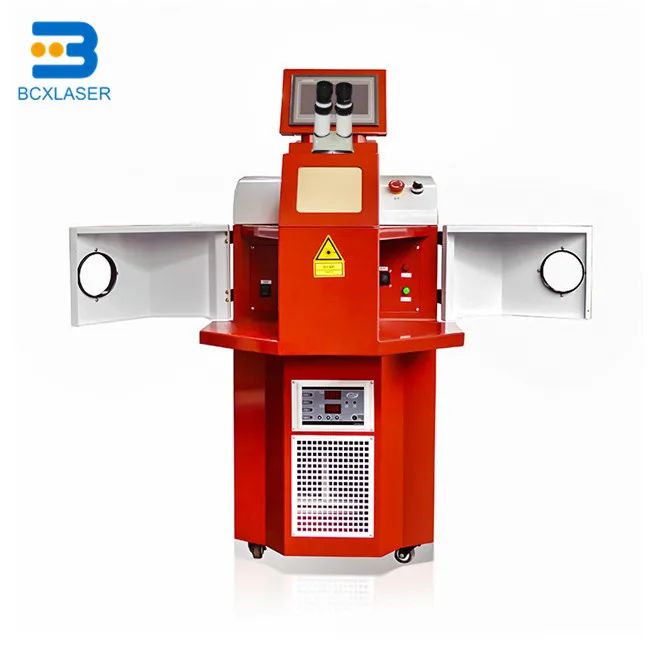

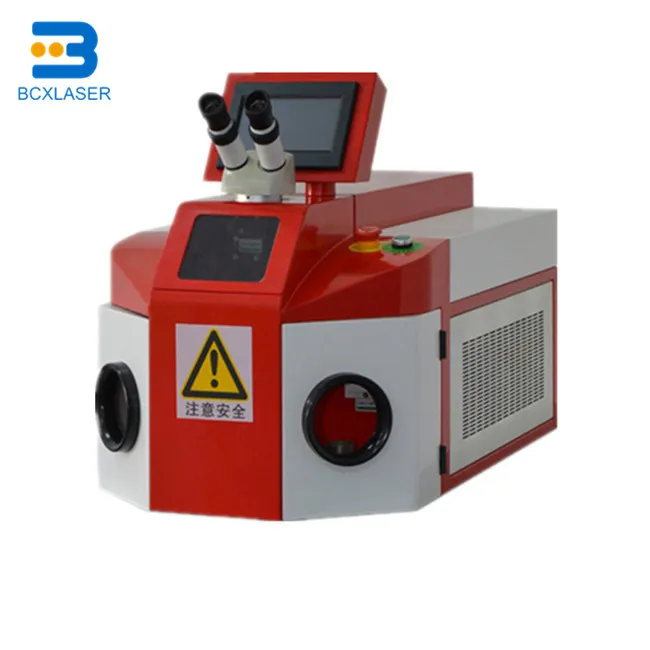

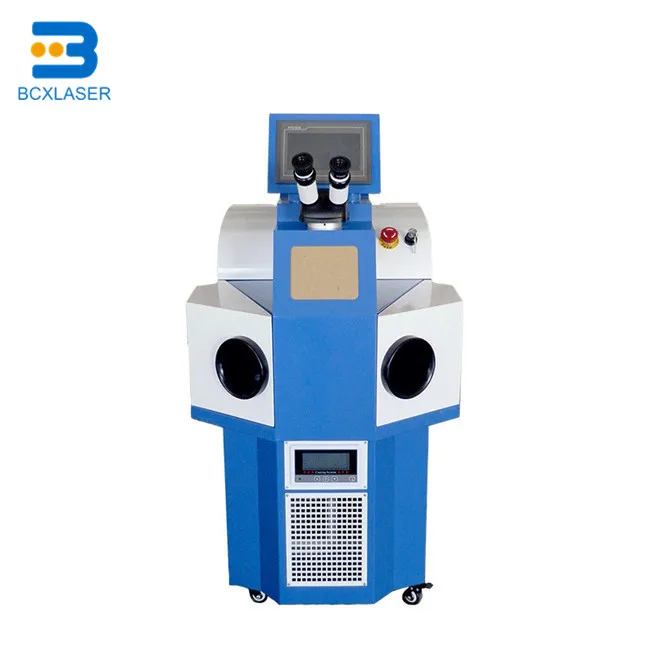

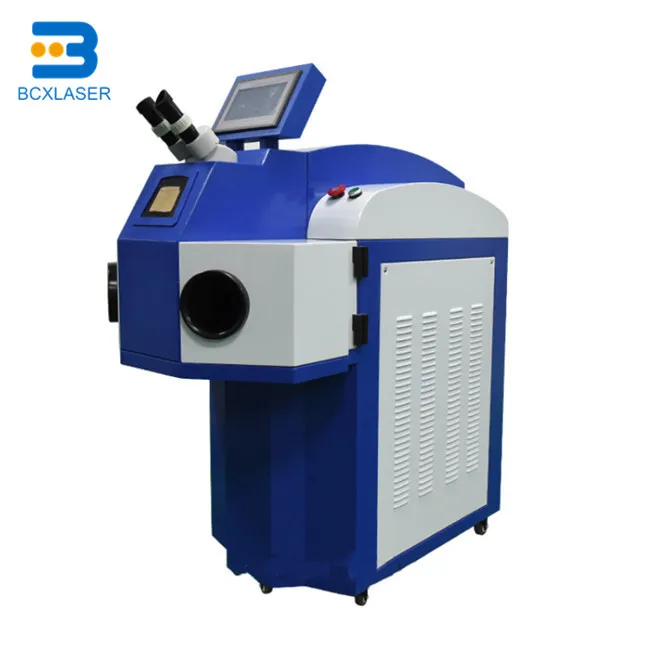

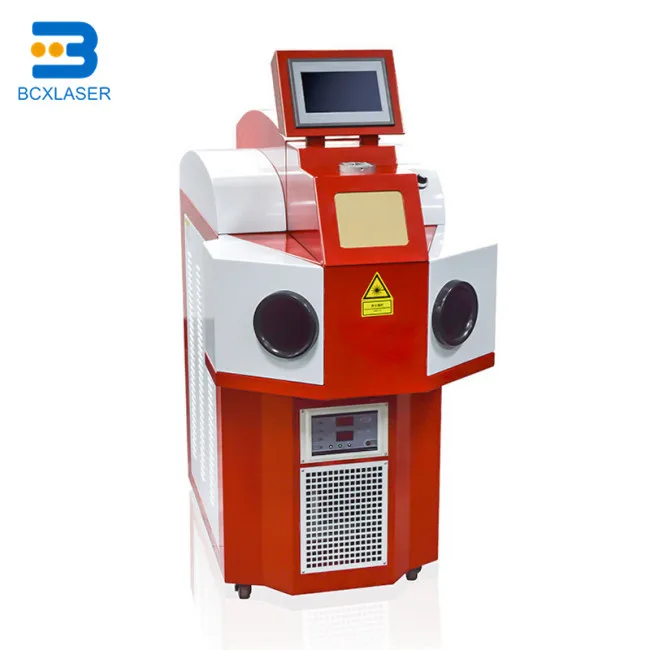

Laser soldering system portable jewelry laser welding machine price

High-magnification beam expander system to obtain finer spot and meet the requirements of fine laser spot welding
   The spot welding machine 200W is aimed at welding thin-walled materials and precision parts to realize spot welding, butt welding, overlap welding, and sealing welding. It is mainly used for making holes and spot welding for gold and silver ornaments, during spot welding. Is a heat conduction type, that is, laser radiation heating the workpiece surface, the surface heat through the internal diffusion, by controlling the width of the laser pulse, the peak energy, power and repetition frequency parameters, the workpiece melting, forming a specific molten pool.
   Adjustable high-brightness LED ring shadowless lamp, observing the workpiece without shadow, with high-definition body type
   Parallel light path microscope, laser welding position is more clearly observed

Model

BCX-43/XAC-45

Output Power

100W/200W

Laser  Wavelength

1064nm

Laser welding pool

0.1mm

Laser Pulse frequency

<500Hz

Laser Pulse Widtch

<20ms

Focus spot

0.1-3.0mm

Red Light spot

0.2-3.0mm

Power Max

4KW/6KW

Power Supply

220VSingle Phase/50Hz/20A

System Outook

920X560X1220mm

NO.2 Advantages
1 The ergonomic design of the whole machine is more suitable for the jewellery industry, with fine products, beautiful appearance, stable performance, and suitable for long-term continuous work;
2 The operation software can select Chinese or English interface, and select the corresponding laser welding processing parameters for different processing positions. The cursor is moved to the corresponding parameter position by the selection button, and the size of the parameter is adjusted by the adjustment button;
 3  Based on the 10X microscope observation system, the first use of high-definition CCD observation system to ensure that the spot welding effect is beautiful;
 4  Assembled with a liquid crystal shutter with independent intellectual property rights, the shutter will work with the laser light and off light to achieve laser welding jewelry shielding flash when the flash, the light is turned off when the laser is off, protect the eyes of the operator is not affected by the laser Blinking and feeling uncomfortable;
5  Argon gas protection device can be installed. This function can effectively protect the welding position in the welding process is always protected by argon, always maintain the metal color, ensure the welding quality;
6  With 24-hour continuous work capability, the whole machine has stable working performance.

Jewelry laser spot welding machine is widely used in aviation, aerospace, sporting goods, jewelry, golf clubs, medical equipment, aluminum alloy dentures, instrumentation, electronics, machining, automotive and other industries, in particular for the hole of gold and silver jewelry, Spot welding seams, inlaid force pieces and claw foot parts and other welding
