600W MPPT Grid Tie Inverter 30V 36V Panel 60 72 Cells pure sine wave inverter 110V or 220V Output 22-60VDC input LED indicator display

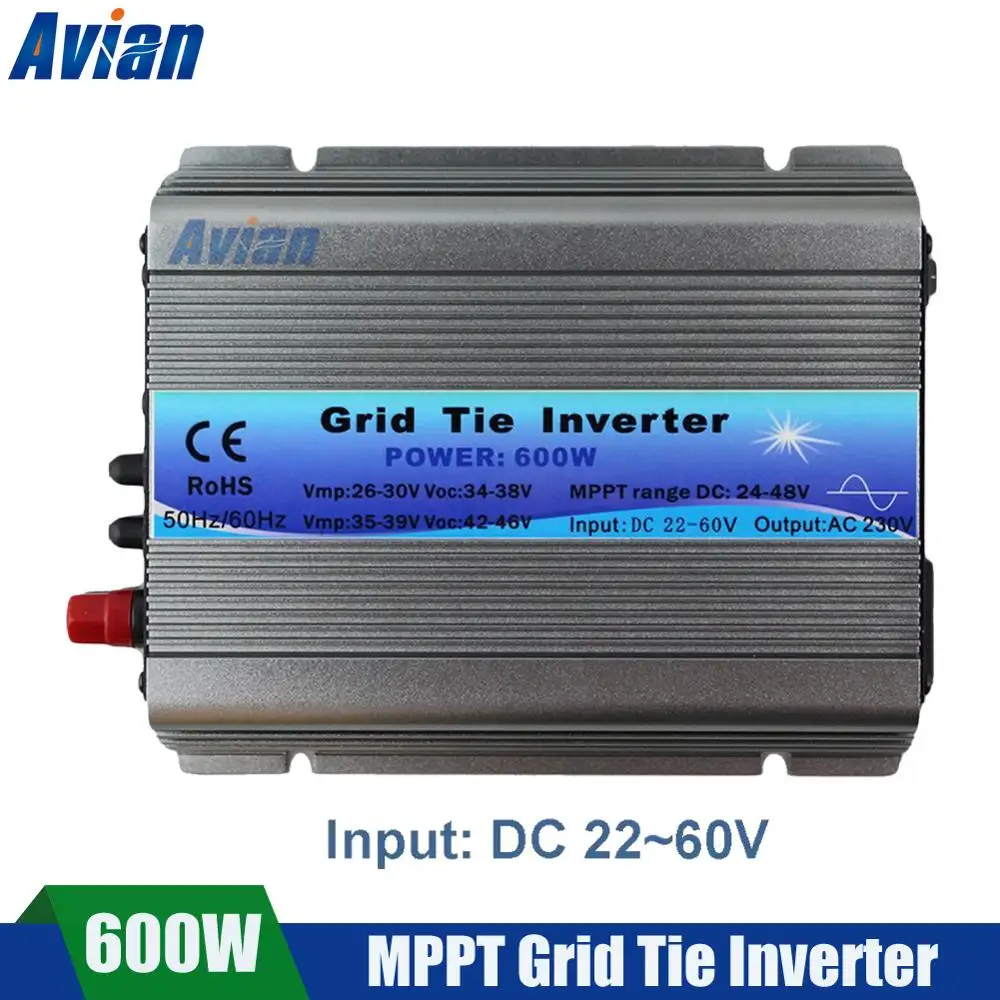

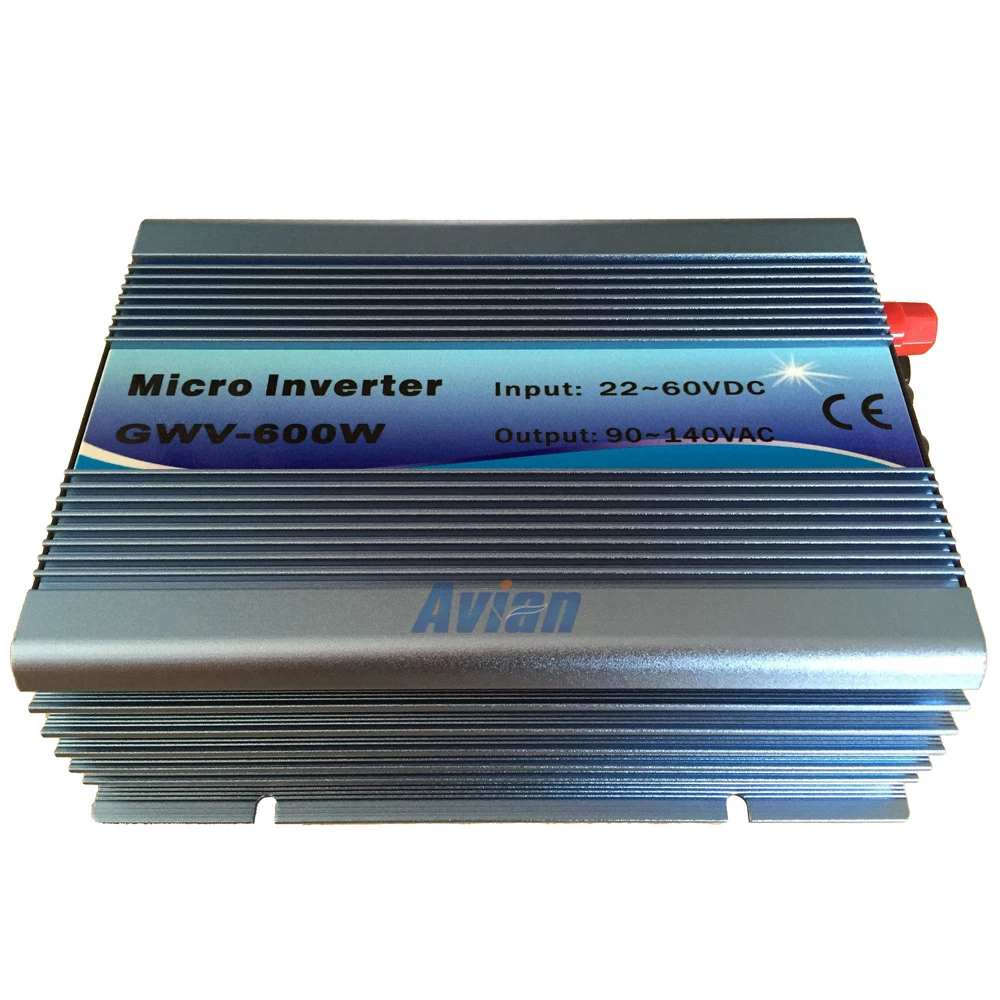

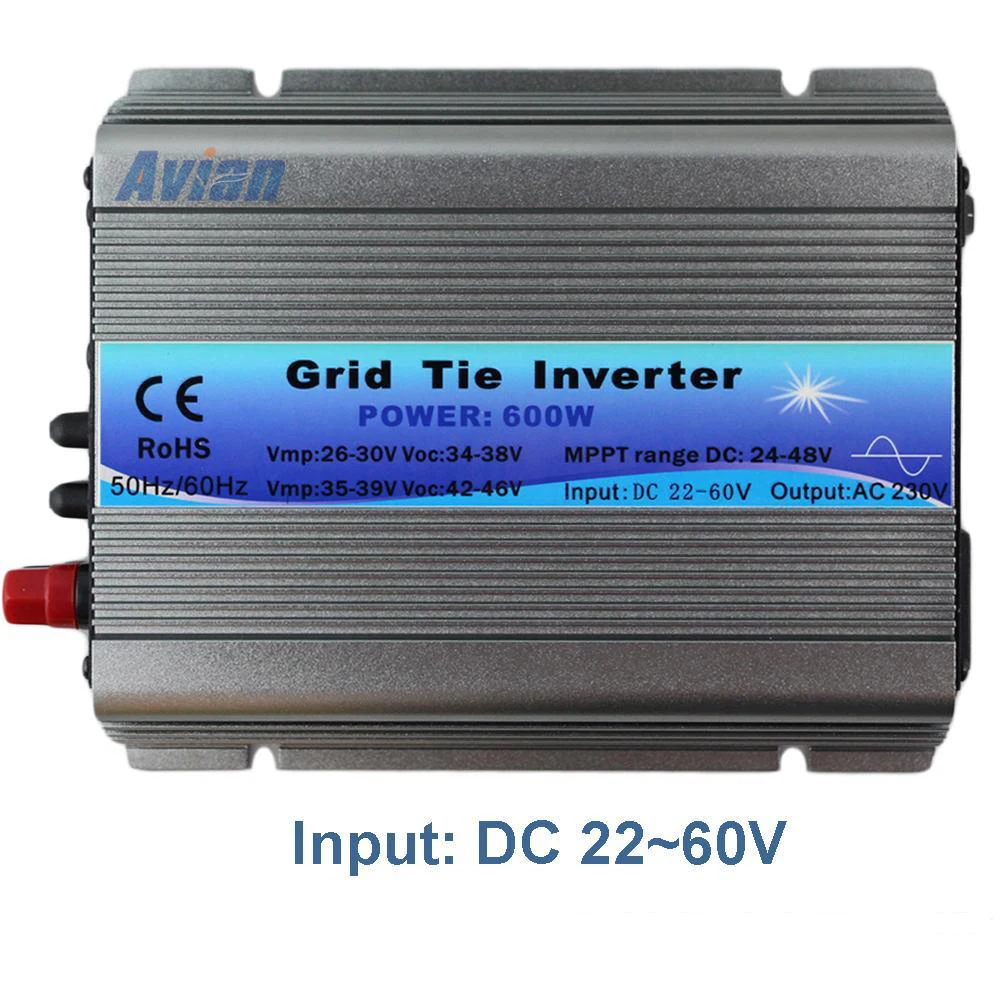

Wide voltage input(22-60VDC)

Achieve wide voltage input.DC voltage input 22-60VDC.Second level power variable voltage conversion

Kinds of frequency output function.
It can apply to 50Hz and 60Hz frequency of AC.Frequency range: 45Hz ~ 63Hz

AC 0 angle with high precision auto-detection
AC phase angle of 0 through isolation amplifier then input to the MCU for high-precision detection and analysis. The phase shift rate is less than 1%, thus achieve high-precision with phase modulation AC output together.

Synchronous High-frequency Modulation
1 Modulation synthesis: half wave and full-bridge modulation synthesis (100Hz / 120Hz)
2 Synthetic way: MOSFET full-bridge
3 High frequency: 38KHz

Pure Sine Wave Output
Use SPWM directly to make pure sine wave output.
1 Output waveform: Adopt complementary PWM to push-pull pure sine wave.
2 Generate means: enhancement-mode SPWM

Power Automatically Locked (APL)
In different current fluctuations, we should use the MPPT function. When the MPPT function adjusted to the
maximum power point, the product automatically powers locked in maximum power point, then made the
output power more stable.

Power lock: The biggest sampling point of MPPT.

Automatically Adapt To Different Load Power.

The output synchronise with the electrical utility Grid. With a strong back of power grid, any power load can work, such as: Inductive Load; Resistance Load; Condensive Load Constant Current, Constant Power, Current-limit Protection.The output synchronise with the Power Grid and power phase, and tie to the Power Grid; take the Power Grid as a supplement,make the output current and power are constant,not affect by load, without any overload, over-current phenomenon.

Automatically Shut Down When The Power Output Of a Fault
When the city power system is in failure, the inverter will automatically turn off the output.

Stack Multiple Machines
Multiple small power inverters in parallel can achieve large output power.

High-Frequency High Conversion Rate
Adapt high frequency converter, the output more efficient.

Maximum Power Point Tracking (MPPT) Use battery as power supply, this function is not exist.
Current intensity, voltage constantly changes, if there is no power point tracking, then there will be a lot of problems in the past usually adopted a solar controller, this product uses high_precision MPPT
computing power, automatic and immediate to solar panels output power adjustment in the maximum output point, in order to achieve a stable output purposes.

Grid-series models

600Watt

Recommend use solar panels

30V/36V/600Wp

DC MAX input current

Automatic control

AC MAX output power

650Watt

DC maximum voltage

60.5VDC

DC input voltage range

22~60VDC

MAX output power factor

98%

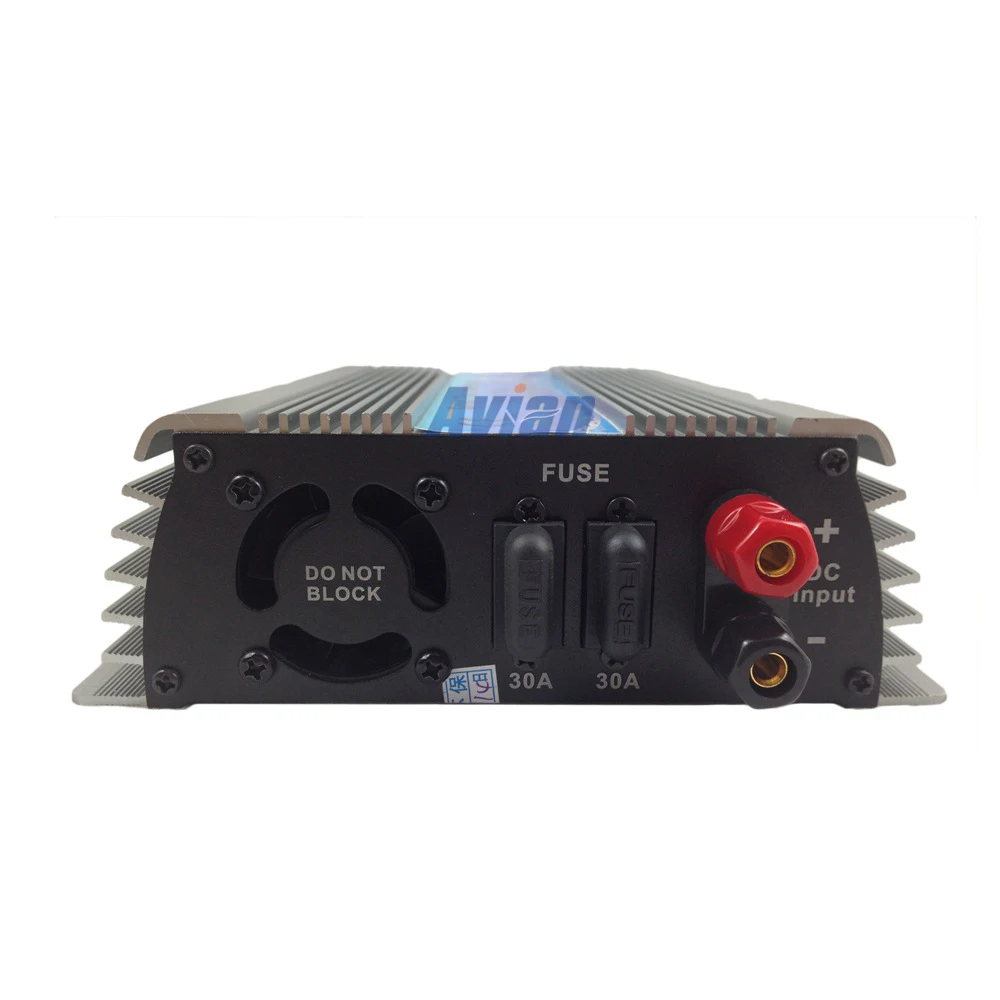

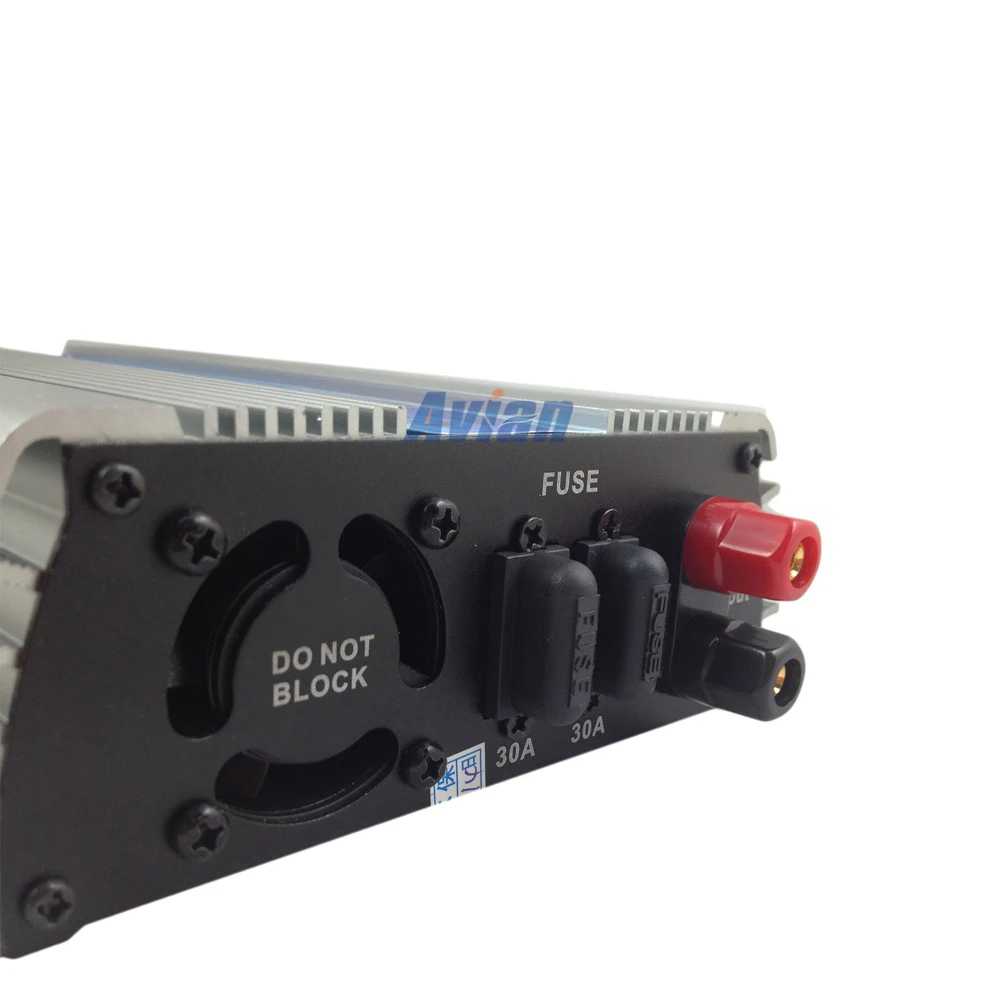

DC input Reverse voltage protection

FUSE

AC output voltage range

120VAC(90-140VAC)  or 230VAC(190-260VAC)

AC frequency range

50Hz/ 60Hz Automatic detection and adjust

Output current total

harmonic distortion

THDIAC <5%

Phase shift rate

<1%

Islanding protection

Vac Fac

Output short circuit protection

FUSE

Standby Power

<2W

Voltage at Pmax

>22V

Work temperature range

-25 ~65

Humidity

0~99%( no Dew)

Waterproof

Indoor Type Design

EMC

EN61000-6-3:2007 EN61000-6-1:2007

Grid disturbance

EN 50178+EN 62109-1+VDE0126-1-12

Grid detection

DIN VDE 1026 UL1741

DC TO AC Conversion efficiency

>85%

Installation:

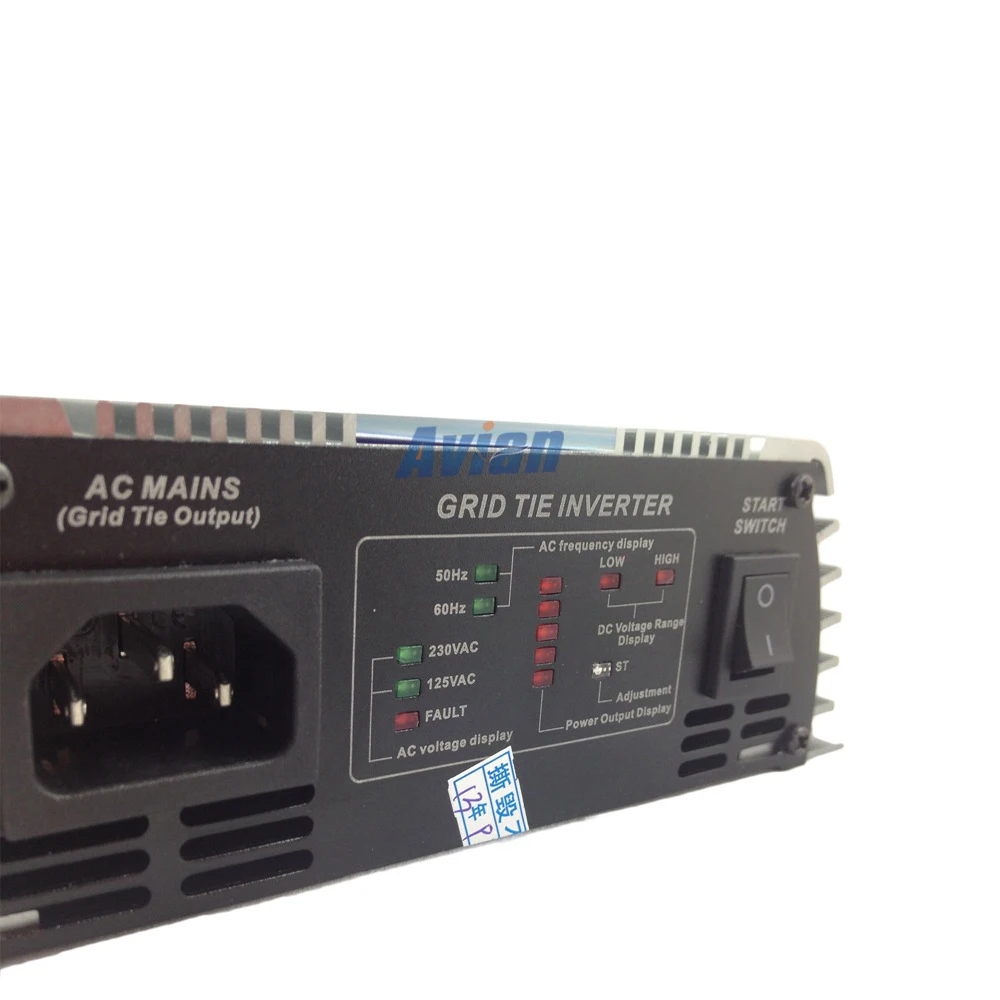

LED indicator:

1. Red LED indicator lights up under any conditions as listed below:
a. Low-voltage protection(DC input voltage lower than Min. input voltage of inverters )
b. Over-voltage protection(DC input voltage higher than Max. input voltage of inverters)
c. Over-temperature protection (inverters will be shut down for power output when the temperature of body of inverters higher than 65-75.)

And inverter will be automatically restart up when the temperature of body of the inverter down to 40-50.

d. Power grid fault protection (when 110VAC or 220VAC grid power outage and/or tripped.
e. Islanding protection: inverter will be automatically shut down for power output when disconnect with power grid.
