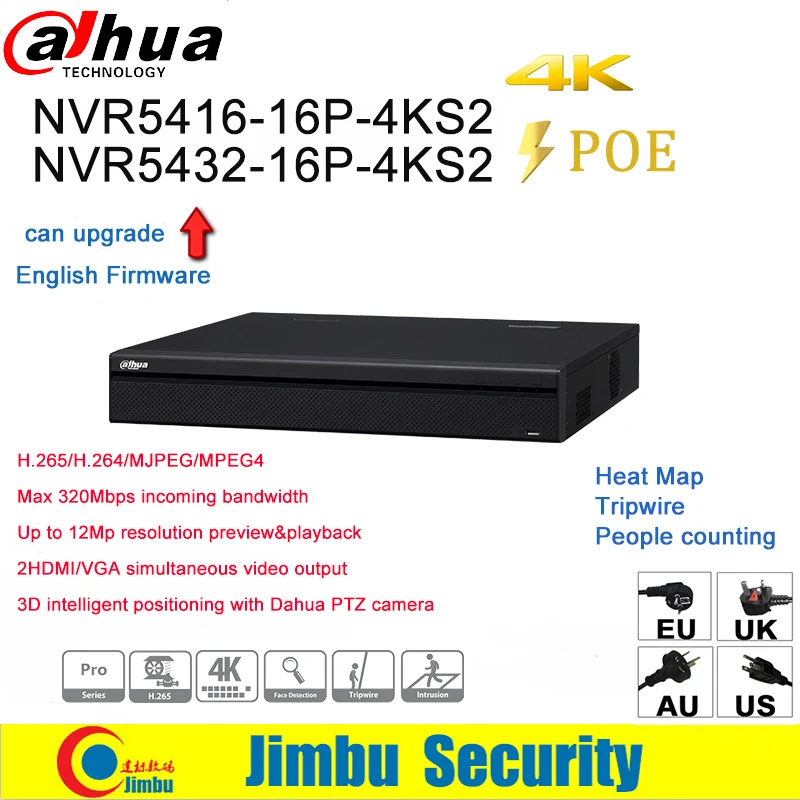

Dahua NVR 4K NVR5416-16P-4KS2 NVR5432-16P-4KS2 PSP POE Video Recorder 16PoE Ports 16CH 32CH H.265 H.264 people countiing IVS DVR |

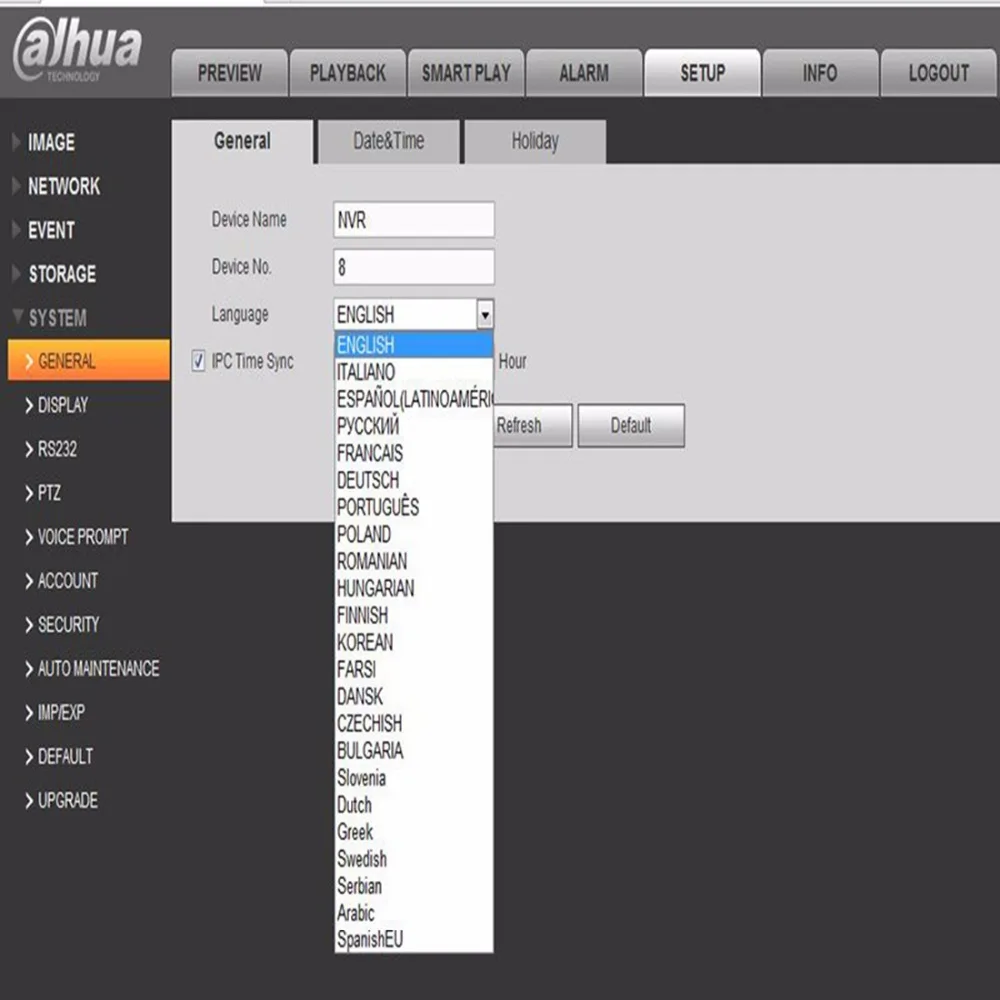

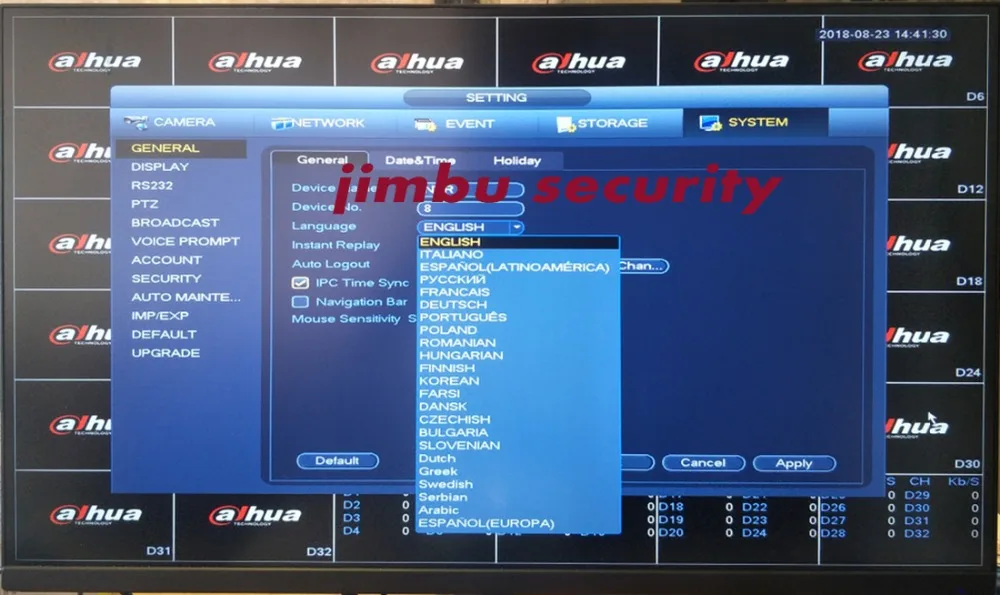

can support multiple language

English, Italy, Spanish,Russian, France, German, Portuguese, Poland, Romanian, Hungarian, Finnish, Korean, Farsi,Danish, Czechish, Bulgaria, Slovenia, Dutch, Greek, Swedish, Serbian,Arabic

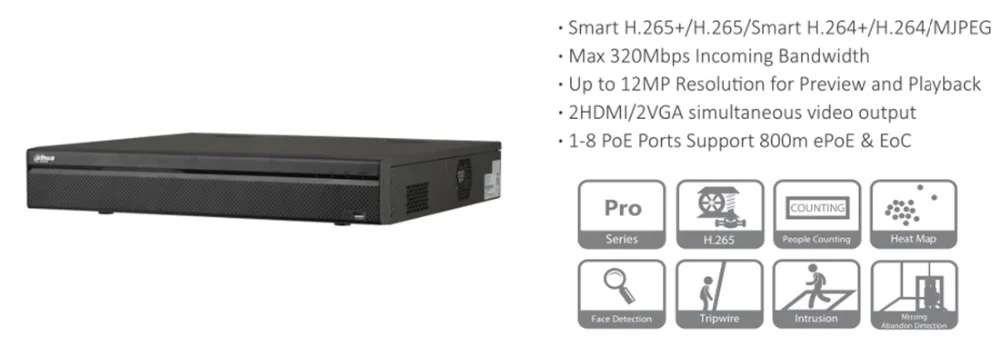

16/32Channel 1.5U 16PoE 4K&H.265 Pro Network Video Recorder

>H.265/H.264/MJPEG/MPEG4 codec decoding
>Max 320Mbps incoming bandwidth
>Up to 12Mp resolution preview&playback
>2HDMI/VGA simultaneous video output
>3D intelligent positioning with Dahua PTZ camera

  System   Main Processor Quad-core embedded processor Operating System Embedded LINUX Display Interface 2 HDMI (1 HDMI up to 3840x2160, Different Source ), 1 VGA Resolution 3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768 Multi-screen Display 1st screen:
16CH: 1/4/8/9/16
32CH: 1/4/8/9/16/25/36
64CH: 1/4/8/9/16/25/36
2nd screen: 1/4/8/9/16 OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording Video Detection and Alarm Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering Alarm input 16 Channel, Low Level Effective, Green Terminal Interface Relay Output 6 Channel, NO/NC Programmable, Green Terminal Interface Tracking Trigger Event N/A Playback and Backup Sync Playback 1/4/9/16 Search Mode Time /Date, Alarm, MD and Exact Search (accurate tosecond) Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom Backup Mode USB Device/Network/Internal SATA burner/eSATA Device Storage Internal HDD 4 SATA III Ports, up to 8TB capacity for each HDD HDD Mode Single eSATA 1 eSATA port SAS N/A Auxiliary Interface Front Cover N/A USB 3 ports (2 Rear USB3.0,1 Front USB2.0) RS232 1 Port, for PC Communication and Keyboard RS485 1 Port, for PTZ Control Third-party Support Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more Audio and Video IP Camera Input 16/32/64 Channel Two-way Talk 1 Channel Input, 1 Channel Output, RCA Recording Compression H.265/H.264/MJPEG/MPEG4 Resolution 12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc. Record Rate 320Mbps Bit Rate 16kbps~20Mbps for per channel Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec Network Interface 1 RJ-45 port (10/100/1000Mbps) Ethernet Port 1 Independent 1000Mbps Ethernet Port PoE 16 ports (IEEE802.3af/at) Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P Optical Fiber Interface N/A Max. User Access 128 users Smart Phone iPhone, iPad, Android Interoperability ONVIF 2.4, CGI Conformant Electrical Power Supply Single, AC 100~240V, 50/60 Hz Power Consumption <17.5W (without HDD) Environmental Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH Construction Dimensions(W×D×H) 1.5U, 440mm×411.1mm×76mm (17.3" x 16.2" x 3.0") Net Weight 4.65kg (10.3 lb) (without HDD) Gross Weight 7kg(15.4 lb)(without HDD) Certifications CE EN55022, EN55024, EN50130-4, EN60950-1 FCC Part15 subpartB,ANSI C63.4-2014 UL UL60950-1+CAN/CSA C22.2 No.60950-1
