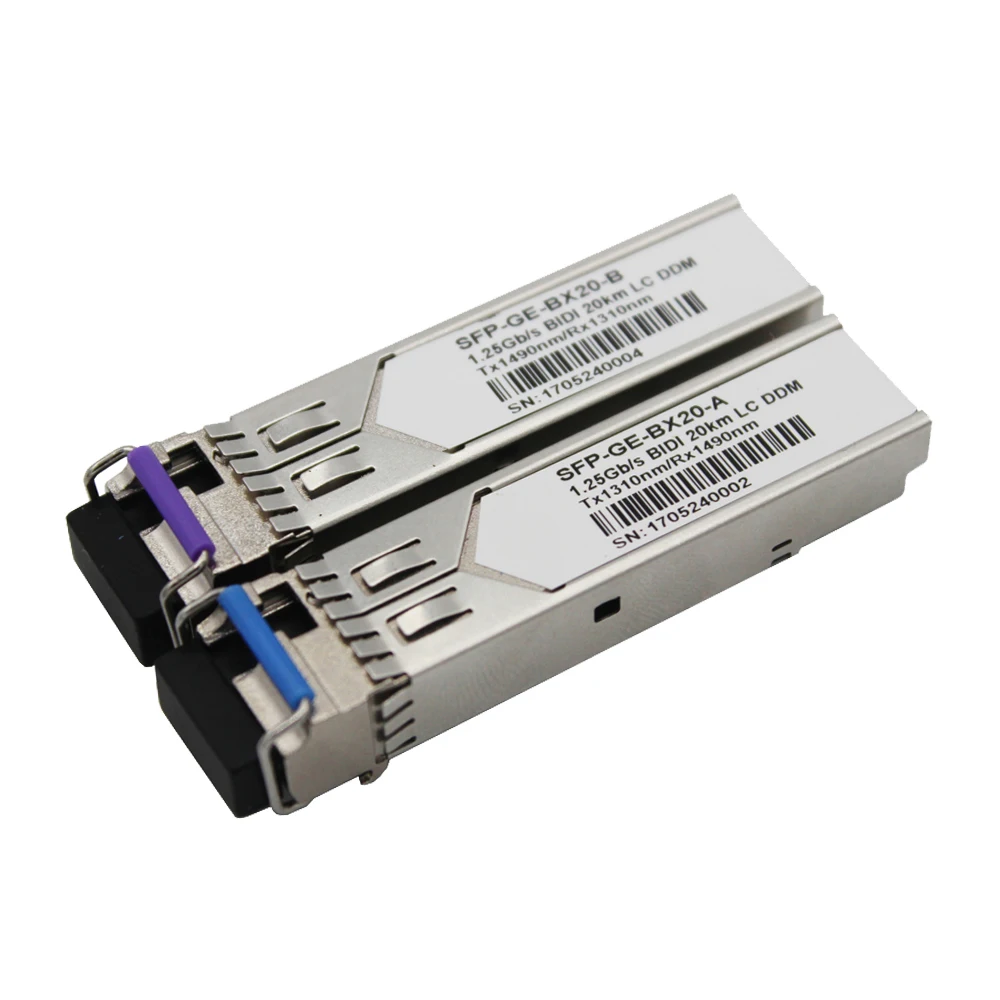

1.25Gb/s SFP Transceiver single fiber singlemode 20km 1310nm/1550nm LC DDM | Мобильные телефоны и аксессуары



Note: When you place the order, please kindly make note which brand of Switch this SFP compatible with, Thanks very much for your kind cooperation. 1.25Gb/s SFP Transceiver single fiber singlemode 20km 1310nm/1550nm LC DDM Description

GE-BX10-SM1310 Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 14dB link budge ensure this module 1000Base-LX Ethernet 10km application.



Features



Up to 1.25Gb/s Data Links Hot-Pluggable Single LC connector Up to 10 km on 9/125μm SMF 1310nm FP laser transmitter 1550nm PIN photo-detector Single +3.3V Power Supply Monitoring Interface Compliant with SFF-8472 Maximum Power <1W Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available RoHS compliant and Lead Free



Applications



1000Base-LX Ethernet Metro/Access Networks 1×Fiber Channel Other Optical Links



Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter Symbol Min. Typical Max. Unit Note Transmitter Section: Center Wavelength λc 1270 1310 1600 nm   Spectral Width(RMS) σRMS     4 nm   Optical Output Power Pout -9   -3 dBm 1 Extinction Ratio ER 9     dB   Optical Rise/Fall Time tr / tf     260 ps 2 Relative Intensity Noise RIN     -120 dB/Hz   Total Jitter Contribution TX Δ TJ     0.284 UI 3 Eye Mask for Optical Output Compliant with IEEE802.3 z (class 1 laser safety)   Receiver Section:   Optical Input Wavelength λc 1530 1550 1570 nm   Receiver Overload Pol -3     dBm 4 RX Sensitivity Sen     -24 dBm 4 RX_LOS Assert LOS A -40     dBm   RX_LOS De-assert LOS D     -25 dBm   RX_LOS Hysteresis LOS H 0.5     dB   General Specifications: Data Rate BR   1.25   Gb/s   Bit Error Rate BER     10-12     Max. Supported Link Length on 9/125μm SMF1.25Gb/s LMAX   10   km   Total System Budget LB 14     dB







































Ordering Informations:

  Dual Fiber SFP Transmitter           Part Number Product Description 155Mbp/s SFP Transmitter           FE-SX-MM850 155Mbps, 850nm MM 2km Dual LC, DDM 0°C~+70°C FE-SX-MM1310 155Mbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C FE-LX20-SM1310 155Mbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C FE-LX40-SM1310 155Mbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C FE-LX80-SM1550 155Mbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C FE-LX120-SM1550 155Mbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C 1.25Gbps SFP Transmitter           GE-SX-MM850 1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C GE-SX-MM1310 1.25gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C GE-LX20-SM1310 1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C GE-LX40-SM1310 1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C GE-LX60-SM1550 1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C GE-LX80-SM1550 1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C GE-LX120-SM1550 1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C 10Gbps SFP Transmitter           SFP+-10GB-SR 10G SFP+ SR Multi mode dual fiber LC 850nm 300M SFP+-10GB-LRM 10G SFP+ LRM Multi mode dual fiber LC 1310nm 220M SFP+-10GB-LR 10G SFP+ LR Single mode dual fiber LC 1310nm 20km SFP+-10GB-ER 10G SFP+ER Single mode dual fiber LC 1550nm 40km SFP+-10GB-ZR 10G SFP+ZR Single mode dual fiber LC 1550nm 80km SFP+10G40-CWDM 1470 ~1610nm CWDM SFP+ 40km SFP+10G80-CWDM 1470~1570nm CWDM SFP+ 80km SFP+10G80-CWDM 1590~1610nm CWDM SFP+ 80km SFP+10G40-DWDM DWDM SFP+ 40km SFP+10G80-DWDM DWDM SFP+ 80km NF-CWDM-XFP40 1470 ~1610nm CWDM XFP 40km NF-CWDM-XFP80 1470~1570nm CWDM XFP 80km NF-CWDM-XFP80 1590~1610nm CWDM XFP 80km NF-DWDM-XFP40 DWDM XFP 40km NF-DWDM-XFP80 DWDM XFP 80km NF-DWDM-XFP100 DWDM XFP100km
