750W 1000W polly-2 down tube battery 52V 13Ah/14.5Ah/16Ah/16.5Ah/17.5Ah Li-ion 52V high voltage ebike battery for fat tire bike

Product specification:

Electric bicycle battery specifications:

Model

AEC1000WPL6501

Chemistry

LiNiCoMn

Nominal Voltage

52V

Nominal Capacity

13Ah/14.5Ah/16Ah/16.5Ah/17.5Ah

Weight

Approx 4.5KG

Outer case

Big polly down tube

Dimension

110*92*365mm

Standard Charge

Constant Current 0.2C, Constant Voltage 58.8V 100mA Cut-off

Fast Charge

Constant Current 0.5CA, Constant Voltage 58.8V 100mA Cut-off

Standard Discharge

Constant Current 0.2C/End Voltage 42V

Cycle Life

500 times with DOD80%

Continuous Discharge Current

30A

Peak discharge current

50A

BMS function

Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Balance

Storage Temperature Range

Temperature: -10-40

Relative humidity:45-75%

Pressure: 86-106KPa

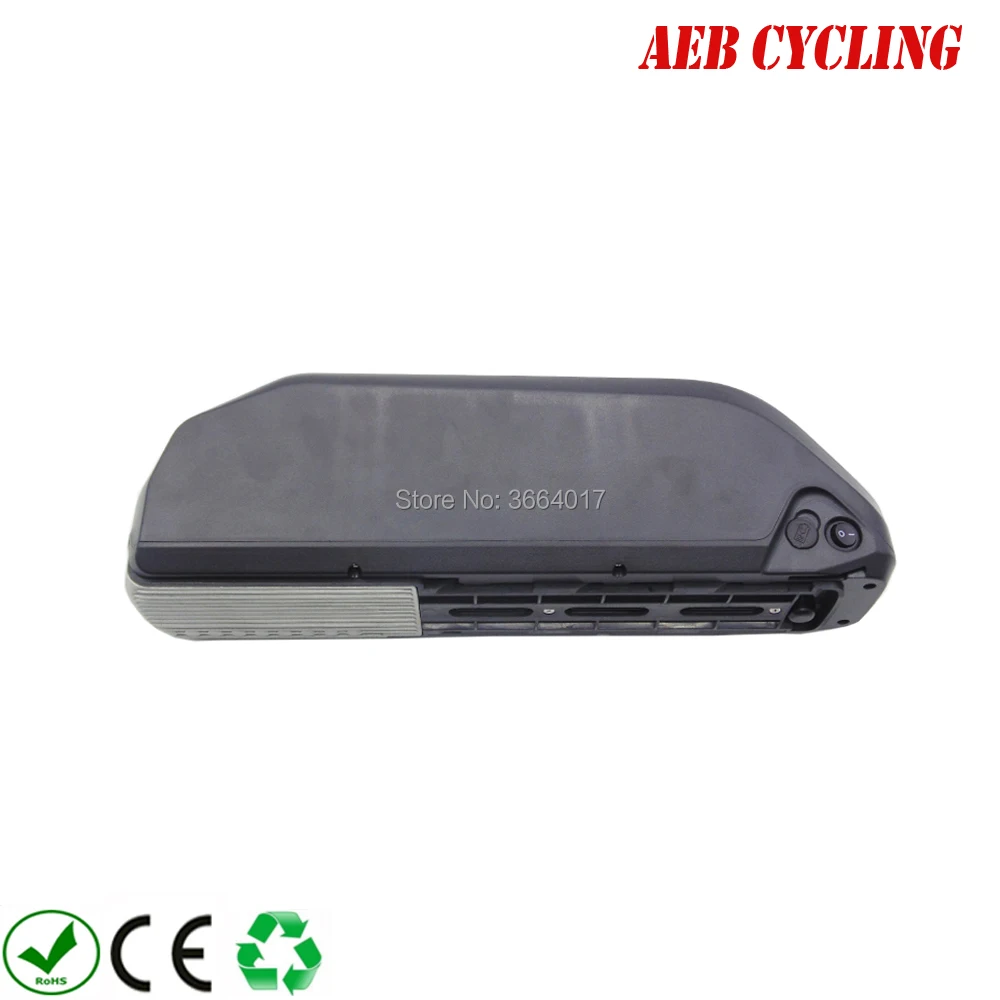

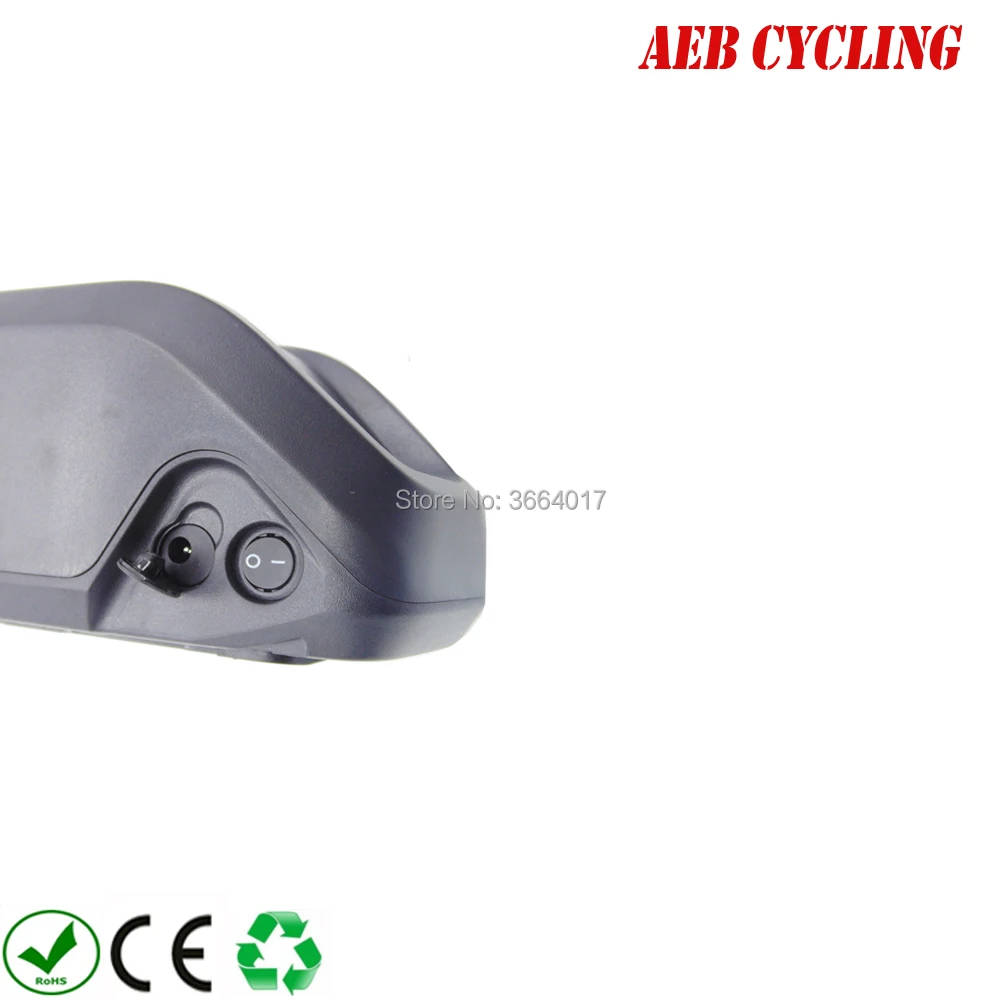

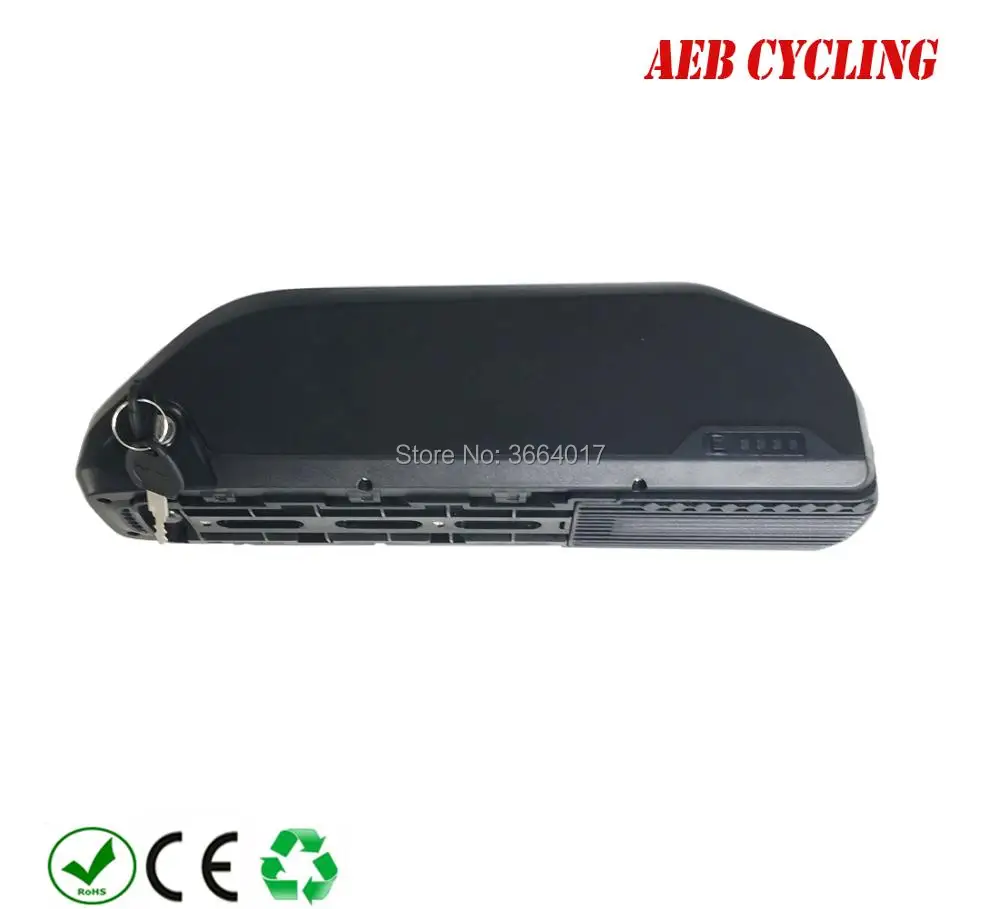

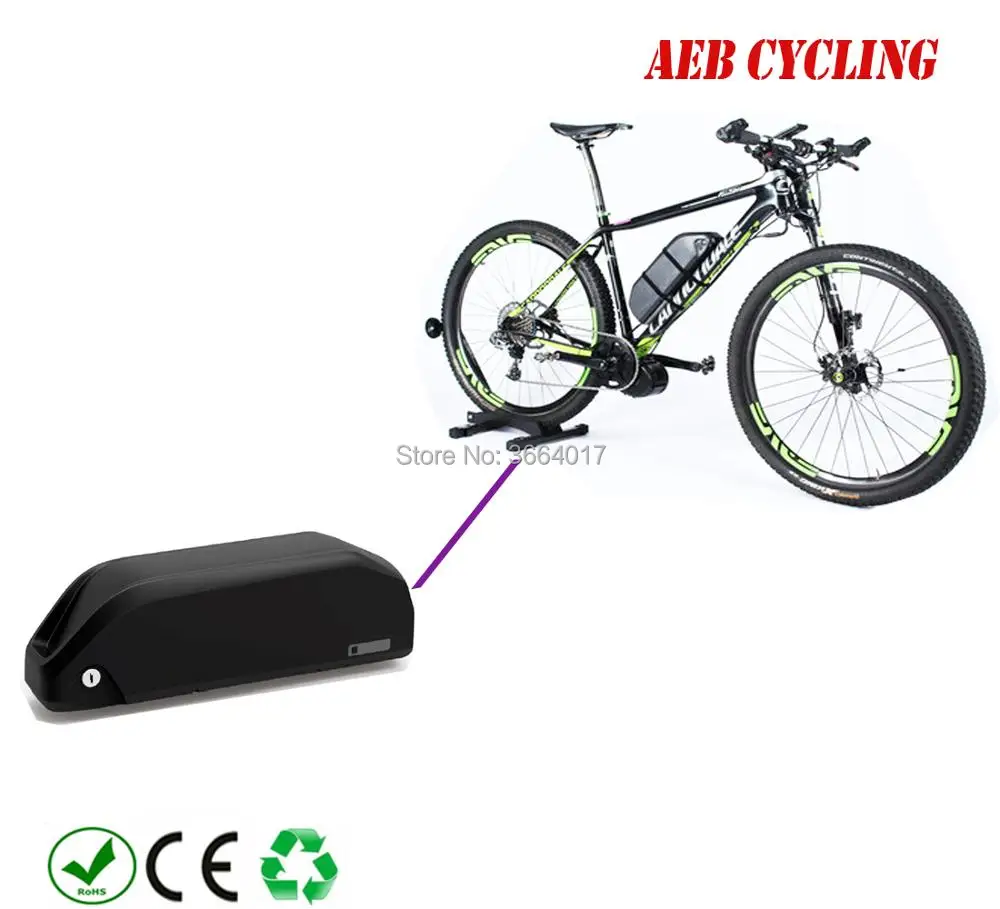

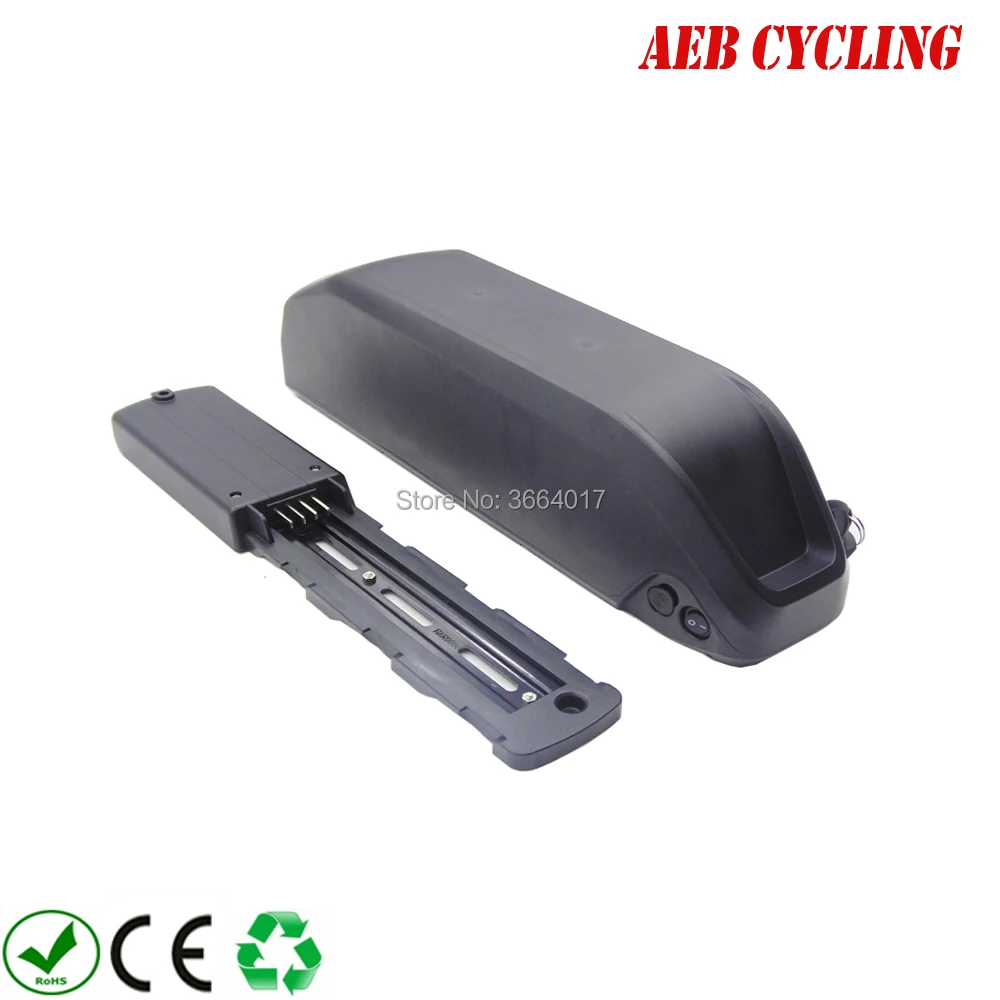

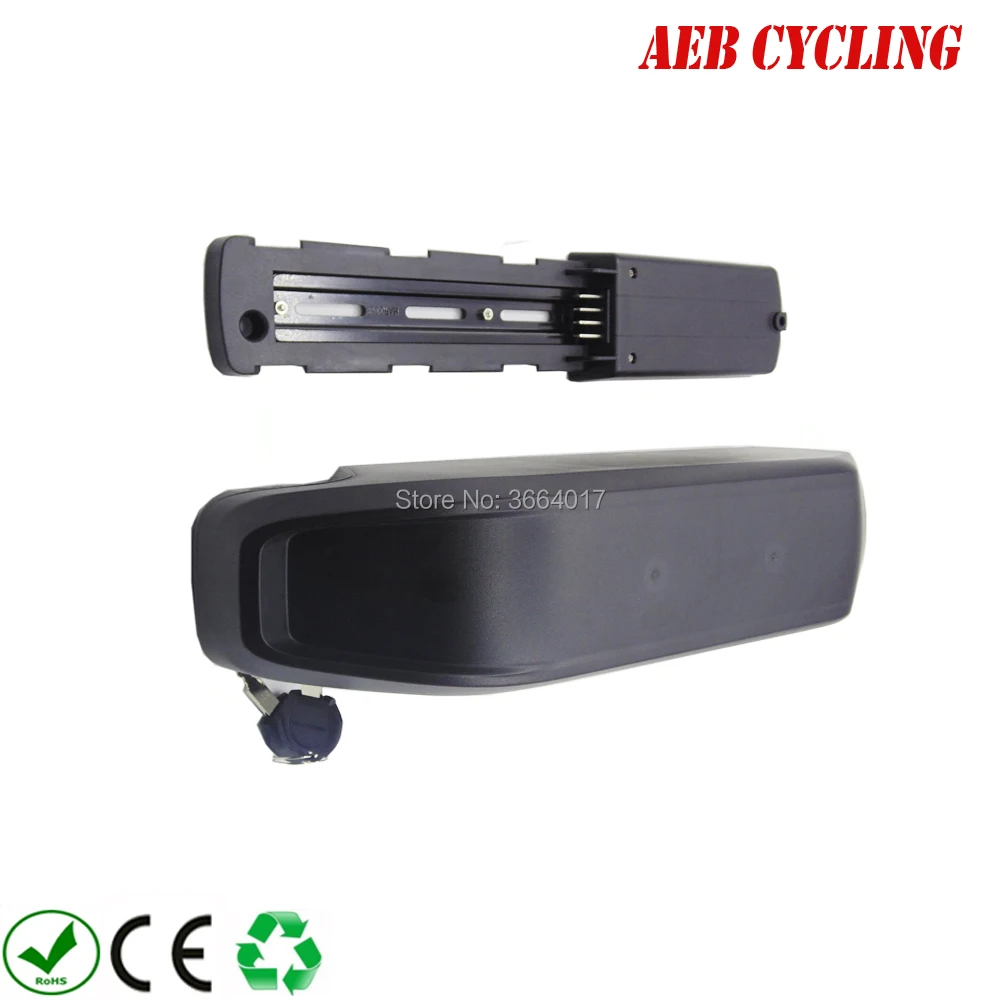

Product pictures:

Package lists:

1.52V13Ah/14.5Ah/16Ah/16.5Ah/17.5Ah battery with mounting plate, keys.

2.58.8V 2A charger

Battery Operation Instructions:

1. Charge:Connecting the battery pack to the charge controller, connect the charger to recharge.
2. Discharge:Connecting the battery pack to the load ,connect the load to discharge.
3. When you combine the battery with series or parallels, if there are oxidation layer on the surface, you
should brush surface to the metal glow with thin steel brush to lower the connective resistance to the minimal resistance.
4. When combining with many batteries, if the voltage between the two electrodes is over 24V, the safe
voltage for human beings, to guarantee the safety, you should not touch the two electrodes with your body.

Notes:

1. If shelve a long time suggested that the battery voltage 51-52V, need for regular recharging (even if
not use), must charge and discharge for three months one time;
2. Do not expose the battery to extreme heat or flame.
3. Do not short circuit, over-charge or over-discharge the battery pack;
4. Do not disassemble or modify the battery pack.
5. Do not handle or store with metallic like necklaces, coins or hairpins, etc.
6. Do not reverse the polarity of the battery pack for any reason.
7. Do not immerse the battery pack in water or sea water, or get it wet.
8. Use a constant current, constant voltage (CC/CV) lithium-ion (Li+) battery charge controller.
