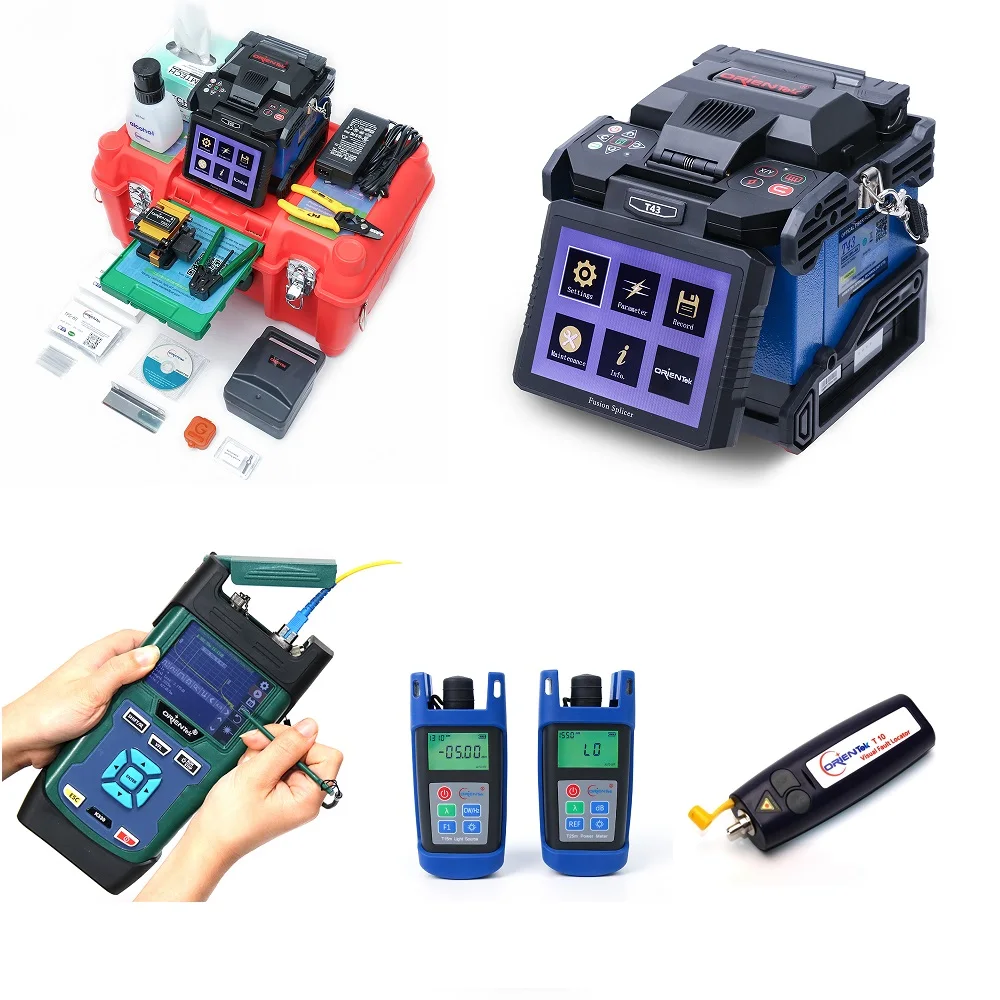

FTTH Progect Tool Kit Orientek T43 Fusion Splicer OTDR Combos K330 SM 1310/1550nm 32/30dB OPM OLS VFL | Мобильные телефоны и

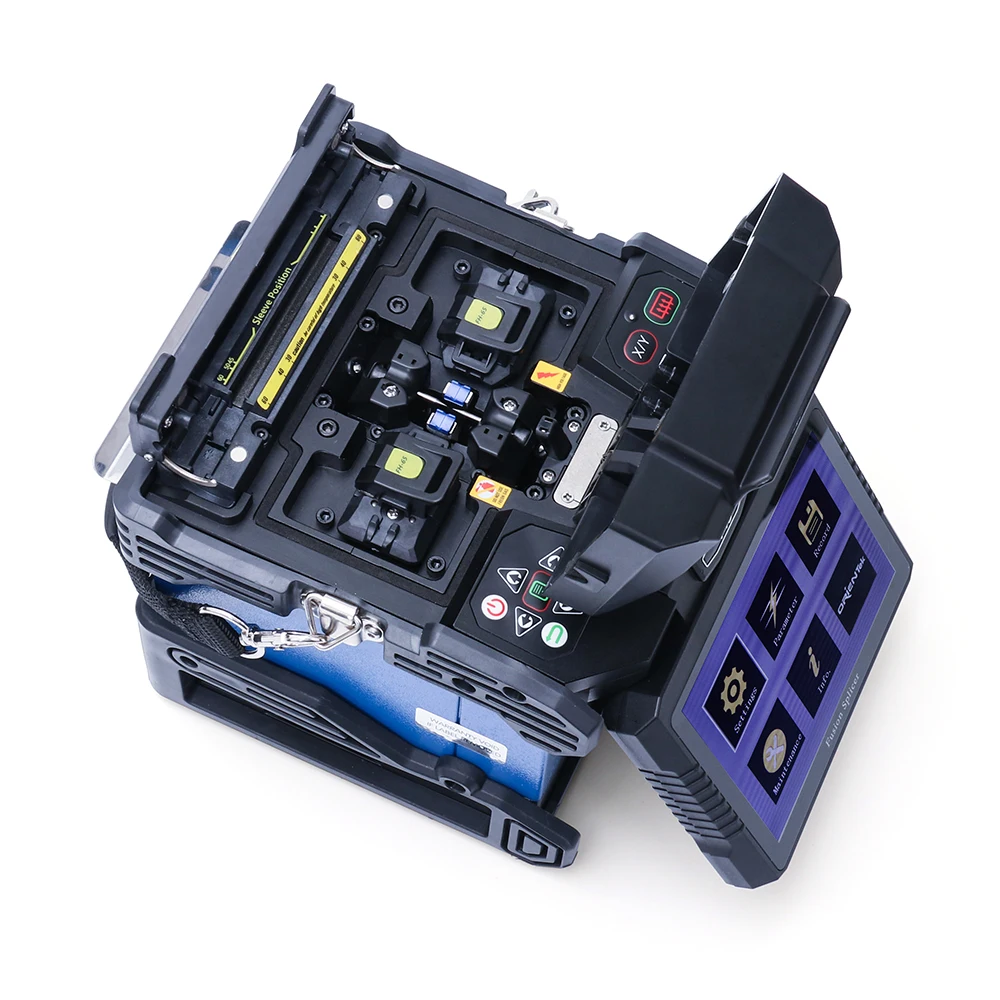

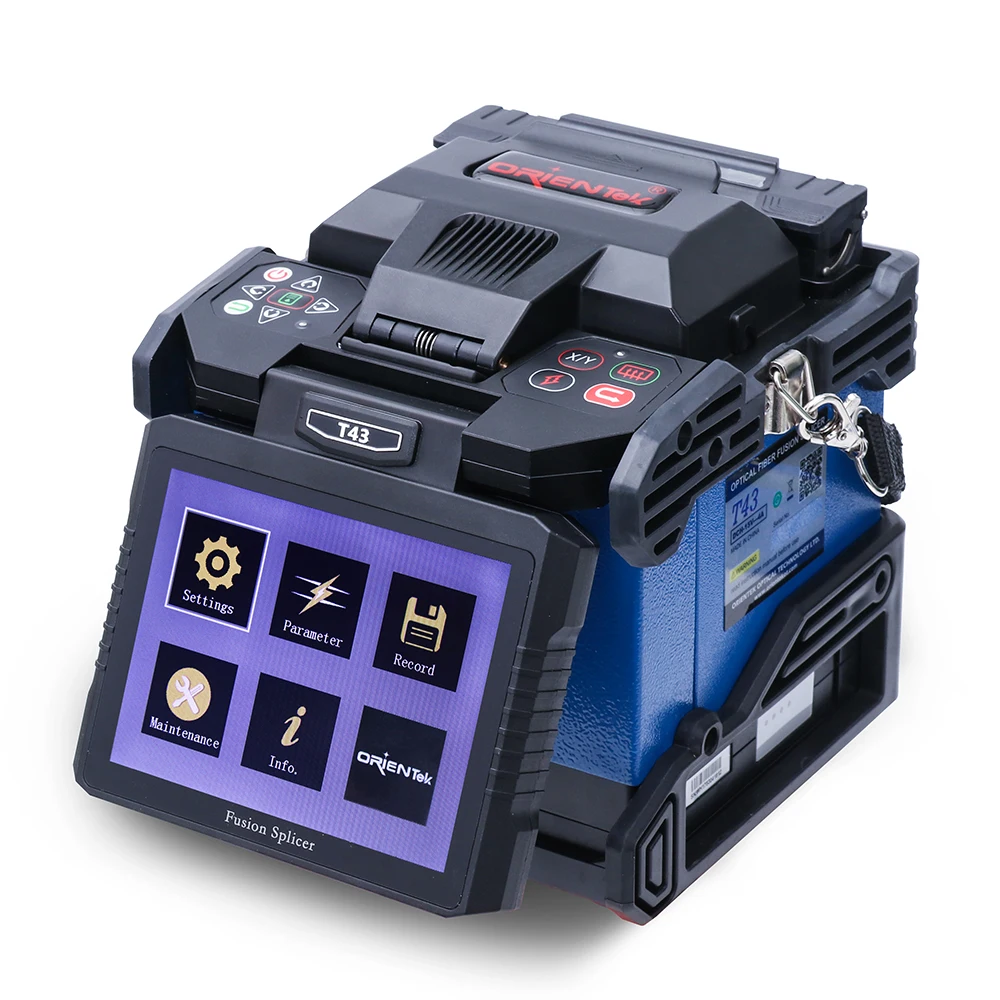

Orientek T43 Fusion Splicer OTDR Combos K330 OTDR SM 1310/1550nm 32/30dB OPM OLS VFL 1: T45 Fusion Splicer Specification     Subject Description Alignment IPAS Core to Core Alignment (Image Pattern Analysis Alignment System) Applicable fibers SMF(ITU-T G.652), MMF(ITU-T G.651), DSF(ITU-T G.653), NZDSF(ITU-T G.655), EDFA, EI980, Splicing available with different type fiber(SM/MM), ITU-T G.657 Compatible Fiber / Cable 0.25mm/0.9mm/3.0mm/ Flat/Drop cable Fiber cleave length 250 um(Coat) : 8 ~ 16mm, 900um : 16mm Typical splice loss SMF : 0.02dB, MMF : 0.01dB, DSF : 0.04dB, NZDSF : 0.04dB Return loss Less then -60dB SPLICE Time SPLICE : Typical 9sec, Tube Heat : Typical 30sec with S-160(60mm) Tube Program SPLICE Mode : 100, Heat Mode : 50 Storage of splice result 4,000 results Operating altitude 0 ~ 5000m above sea level Operating condition -10℃ to 50℃ , humidity : 95%, non-Condensing Storage condition -40℃ to 80℃ , 0 to 95% RH Protection Wind 15m/s , shock proof, water proof, dust proof SIZE, Weight 130W 130L 135H (include Monitor), 2.2Kg (Exclude Battery) Terminal USB, External Power Power DC 14.8V Battery (7800mAh), 100 ~ 240V AC Adapter Additional power DC 12V automobile power outlet available No of splice/Heating with Battery 200cycle, lithium polymer batteries Electrode 4,000 times splicing without exchange Languages English, Spanish, French, Chinese, Portuguese, Italiano, Russian, Indonesia, Turkish Display Two CMOS cameras and 5.0 color LCD monitor Fiber view and magnification X/Y 300X, 170X

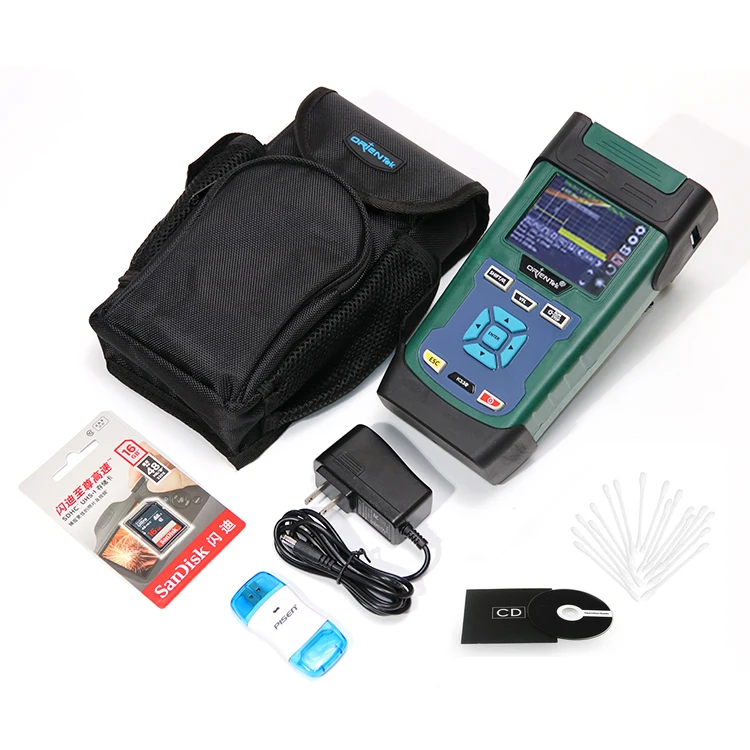

2: K330 OTDR Specification   15 Hours Battery Operation   Imagine working an entire work shift at your remote work site without worrying a . bout running out of battery power. The K330’s powerful Li-Ion battery 4200mah will last for an amazing 18 hours under the Telcordia standard conditions and 10 hours even with the laser continuously turned on!   PARAMETER K320 K330 Central wave length 1550nm ± 20nm 1310nm/1550nm ± 20nm Type of compatible applicable fibres single-mode single-mode Dynamic range 30dB(70-80km) 32/30dB(100-110km) Min. event deadzone 1.6m(single-mode) Ranging accuracy ±(1m+sampling interval+0.003%×distance)(excluding refractive index imbedding error) Resolution of ranging 0.1m-16m Loss threshold value 0.01dB Linearity 0.05dB/dB VFL output power 10mW (only integrated in K330) Measurement range 0.3, 1, 3, 5, 10, 30, 60, 120km (single-mode) Pulse width 5, 10, 20, 40, 80, 160, 320, 640, 1280, 2560, 10240ns Number of sampling points 65K Waveform storage capacity 1000 frames Range of refractive index 1.00000∼2.00000 Range of optical-cable correction factor 0.80000~1.0000 LCD display 3.5” color LCD Port USB Optical output port FC/UPC (SC/UPC optional) AC/DC adapter: AC input: 100V∼240V(1.5A) Power supply Output DC: 9V(2A) Power frequency: 50Hz∼60Hz Internal lithium battery: 7.4V, 4200mAh Working hours of battery: 15 hours (normal temperature) Menu language English/Spanish/Portuguese Environmental requirements Storage temperature: －40℃∼70℃(exclusive of battery) Relative humidity: 5%－95%, no condensation Dimensions 250mm×130mm×66mm Weight About 1kg

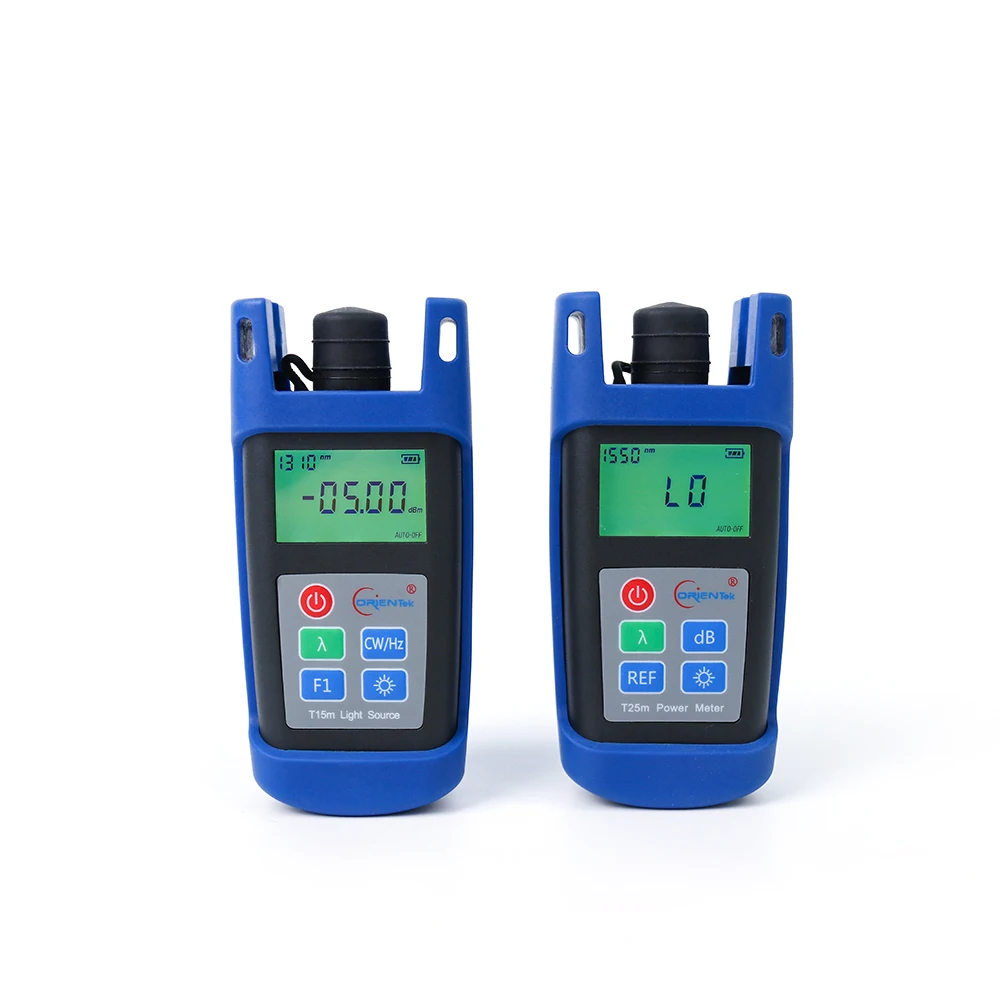

T25M Optical Power Meter



① Wavelength : 800 ~1700 nm
② Detector : InGaAs
③ Measurement Range : -70~+3 dBm
④ Resolution : 0.01 dBm
⑤ Connector : SC+ 2.5mm universal (1.25mm for LC is Optional)
⑥ Power Supply : Alkaline Battery(3 AA 1.5V)
T15MS Optical Light Source   ①  Wavelength : 1310/1550nm
② Typical Output Power : -5dBm
③ Output Stability : ±0.05dB/15mins; ±0.1dB/ 8hours
④ Modulation Frequencies : CW,270Hz,1KHz,2KHz
⑤ Connector : SC+ 2.5mm universal (1.25mm for LC is Optional)
⑥ Power Supply : Alkaline Battery(3 AA 1.5V )
