Use:
A variety of angle sensors, tilt sensor tilt sensor, output with the relay, direct access to large current load, can be applied to a variety of equipment dumping protection, home appliances dumping protection.
Module features:
1, the sensor by default the company's highly sensitive SW-520D angle sensor,

With different angle sensor can achieve different functions, there are 45 degree angle sensor, 90 degree angle sensor, can be used in any angle sensor
2, the comparator outputs a direct drive relay, can be connected to 220V AC or other equipment;
3, with a sensitivity adjustment potentiometer;
4, with 4 3mm fixed bolt holes, easy to install
5, with a blue output terminal seat, convenient wiring

Modules for use:

Relay. The initial state must to tilt sensor communication and disconnection, when conduction, relay, a public end and often start switch, tilt sensor is disconnected, the relay to disconnect, the public end with the normally closed terminal is connected.
2 general in the initial state of the tilt sensor are installed in a normally open state, the tilt sensor and relay are not in working condition, prolong the service life;
SW-520D sensor 3 default for dumping detecting objects 90 degrees, for the other point of view, please contact dispensers.

Electrical parameters:
Power supply voltage: 5VDC
Current: more than 100mA
Load: 250V 10A AC or 30V DC 10A

Shipping list:

5V version of the tilt sensor module 1 and relay, with SW-520D tilt sensor

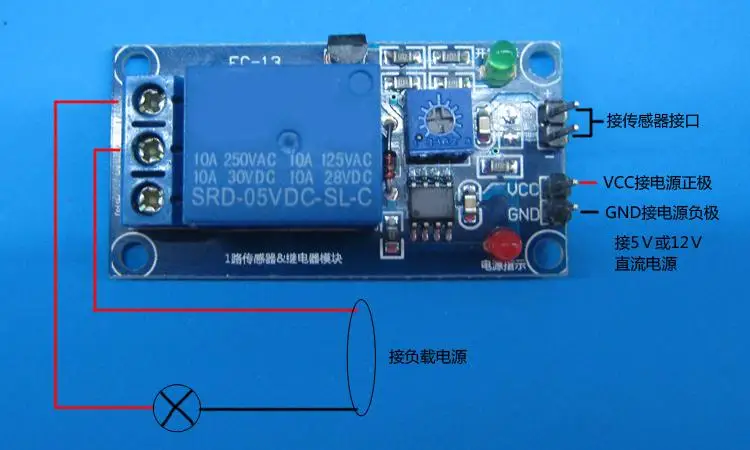

The sensor and the relay module wiring diagram:

When the tilt sensor is conducted when the lamp voltage, disconnect, will not light (shown only for connection wiring method), high voltage.

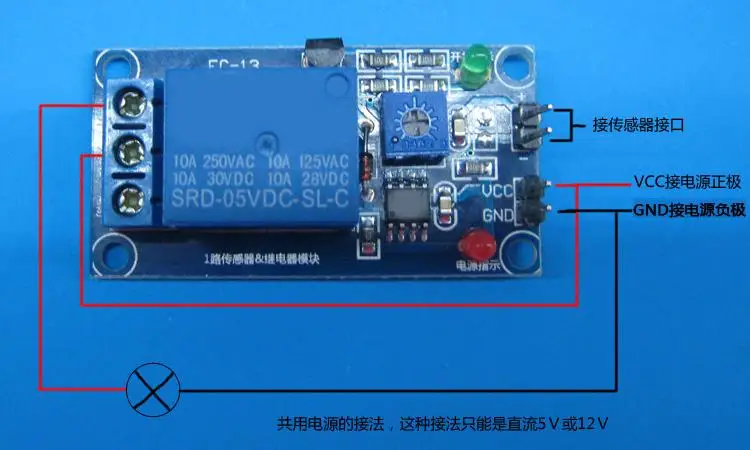

The common module power supply connection, the tilt sensor is conducted, the light bulb has a voltage disconnect, will not light (shown only that wiring method).
