Features

CE conformity Silicone oil filled Reverse polarity protection Stainless steel 316L wetted parts

SS312 series is based and improved on SS302. Material of the wetted parts are stainless steel 316L and the updated electronic circuit(PCB) makes better stability and anti-interference, and also bring a new good feature: surge protection. Modularize manufacturing shorten production cycle. The feature of larger range of pressure, from 0.1-1000bar and application makes it widely used in many fields.



Co-related item

CODE MODEL PRESSURE VOLTAGE SIGNAL THREAD 302+14G0100P20M SS302+ 100psi gauge 9...30Vdc 4...20mA G1/4" 302+14N0100P20M SS302+ 100psi gauge 9...30Vdc 4...20mA 1/4"NPT 302+14G0100P10V SS302+ 100psi gauge 12...30Vdc 0...10V G1/4" 302+14N0100P10V SS302+ 100psi gauge 12...30Vdc 0...10V 1/4"NPT 302+14G0100P5V SS302+ 100psi gauge 12...30Vdc 0...5V G1/4" 302+14N0100P5V SS302+ 100psi gauge 12...30Vdc 0...5V 1/4"NPT 302+14G0100P4.5V SS302+ 100psi gauge 5Vdc 0.5...4.5V G1/4" 302+14N0100P4.5V SS302+ 100psi gauge 5Vdc 0.5...4.5V 1/4"NPT



Technical data

Supply Voltage

12 to 30VDC

Output Signal

0 to 10V

Pressure Range

100psi gauge

Proof Pressure

2.0*F.S.

Accuracy

0.5%F.S.

Stability

≤0.2%F.S./Year

Temp Coefficient

±0.03%F.S./°C

Response Time

≤4ms(90%F.S.)

Sealing Rating IP65

Environmental conditions

Medium temperature range

-20°C → +100°C

Ambient temperature range

-20°C → +80°C

Compensated temp range

0°C → +70°C

EMC - Emission

EN 61000-6-3

EMC - Immunity

EN 61000-6-1

Insulation resistance >100 MΩ at 250 V

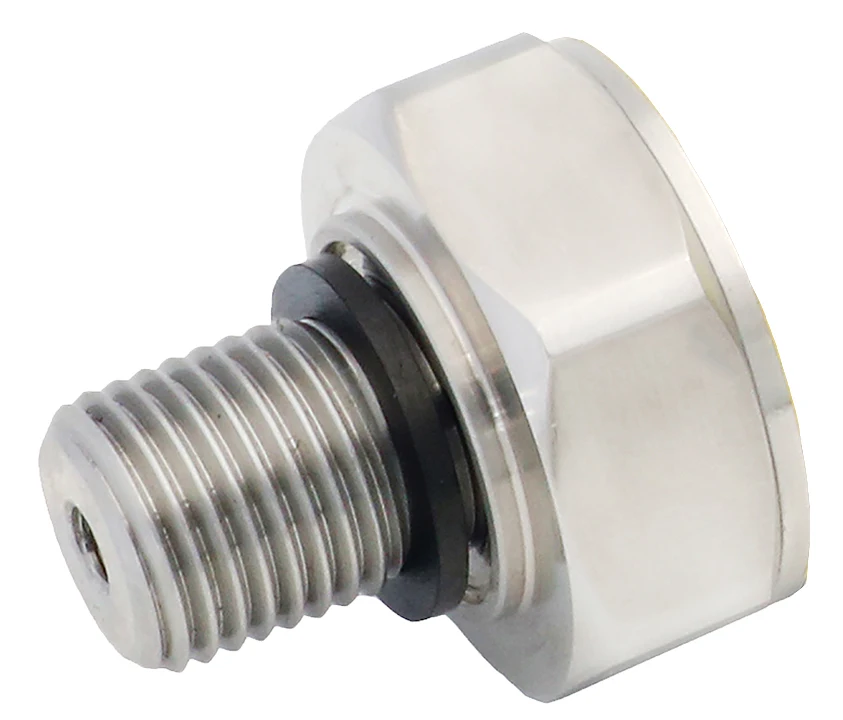

Dimensions & Material

Electrical connections

4-20mA  (2 wire)

Pin1: + supply   Pin 2: + output

0-5V       (3 wire)

Pin1: + supply   Pin 2: GND   Pin3: + output

0-10V     (3 wire)

Pin1: + supply   Pin 2: GND   Pin3: + output

0.5-4.5V (3 wire)

Pin1: + supply   Pin 2: GND   Pin3: + output
