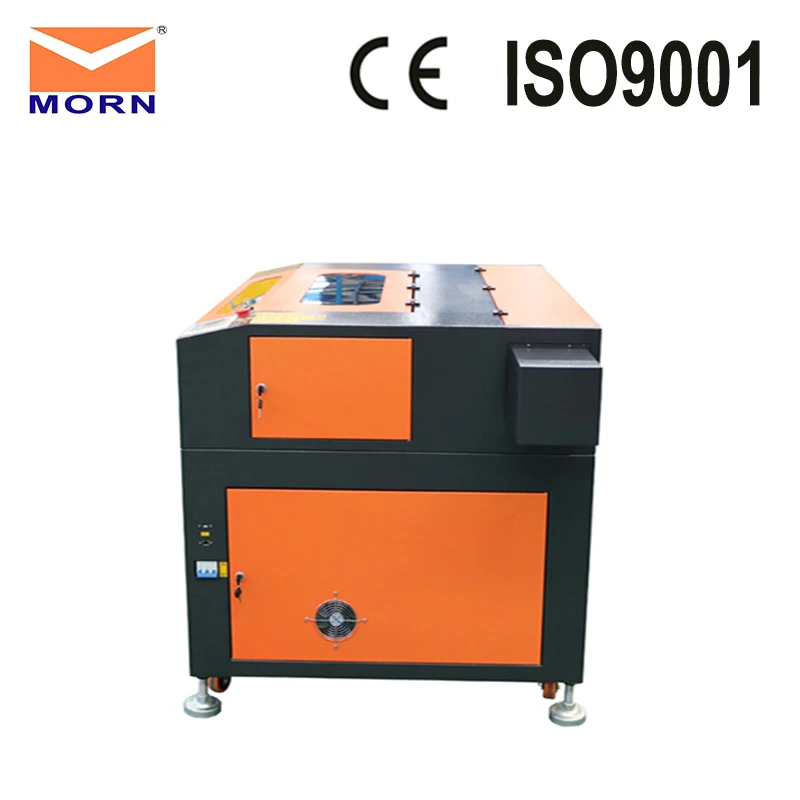

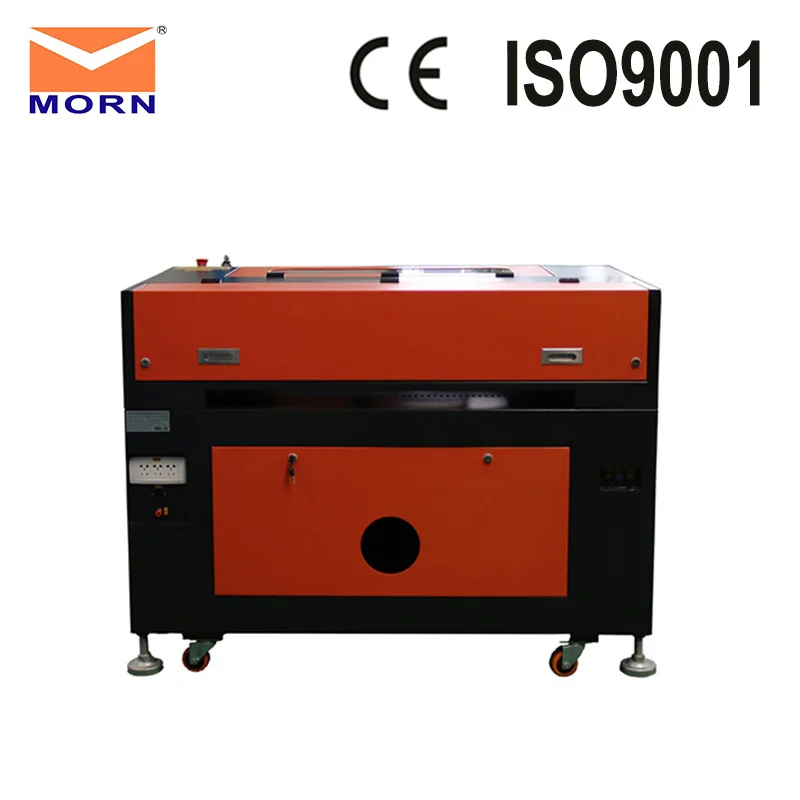

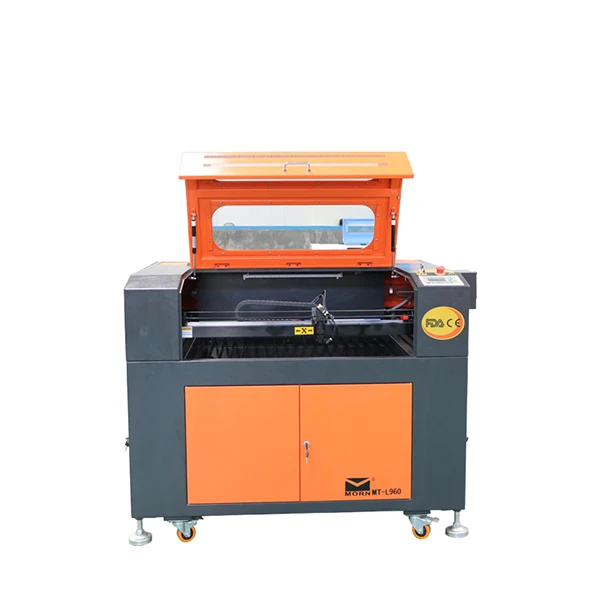

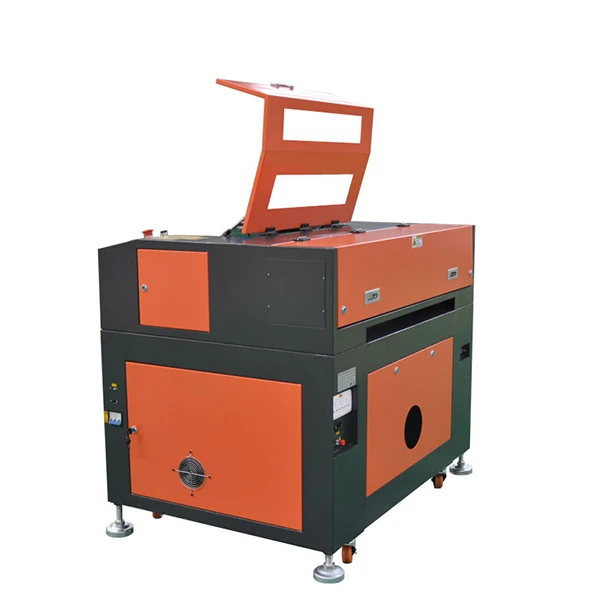

 100W ZS CO2 Fiber Laser Engraving Etching and Cutting Machine

Attention:This price is FOB price.Please contact us to confirm shipping cost before order.

Model

MT-L960

Control system

 Ruida 6442s

Offline work

Support

Laser power

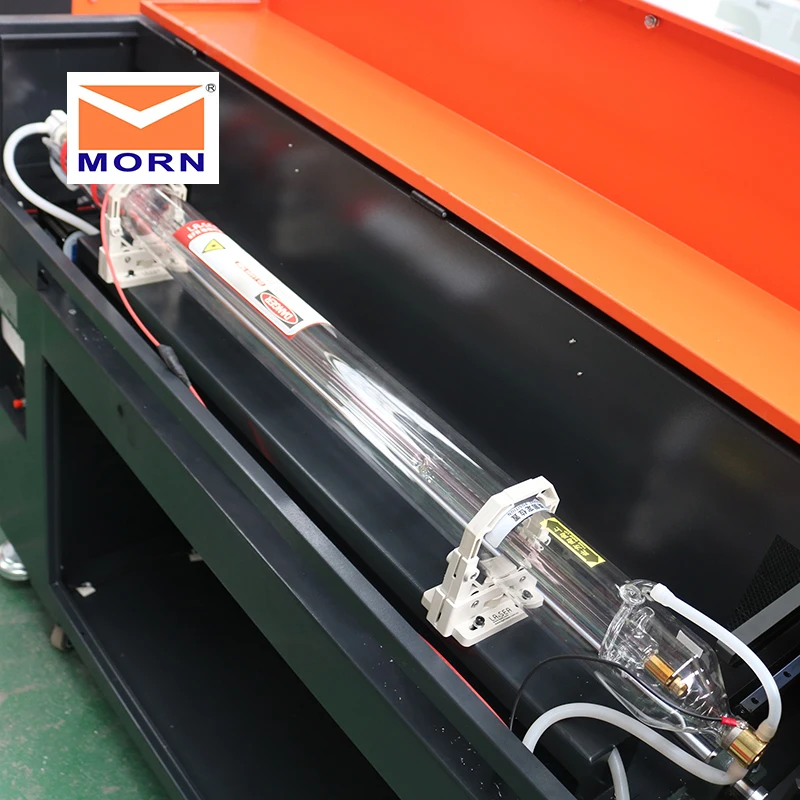

60W/80W/100W EFR laser tube

Power supply

AC220±10% 50-60Hz/110V 60Hz

Working area

900mm*600mm

Max moving speed

1-1500mm/s

Locating precision

≤0.001mm

Min shaping character

Character:2*2mm,letter:1*1mm

Resolution ratio

≤4500dpi

Control configuration

RDworks, Coreldraw,AutoCAD,Photoshop

Data transfer interface

USB port / LAN

Working table

Blade/Honeycomb working table

System environment

WINDOWS2000/WINDOWS XP/ WIN7/WIN8/WIN10

Compatible software

CorelDraw, AutoCAD, Photoshop

Cutting thickness

0-25mm(depends on different material)

Full machine size

156*136*115CM

Cooling mode

CW-3000/CW5000 water chiller

Supported graphic Format

BMP, JPG, PLT, DXF, AI

Max engraving speed

0-1500 mm/s

Focus lens

4 inch focus lens

Parts warranty

mirrors (3 months) tube(10 months)

Machine warranty

12 months

Optional

Ball screw motorized up and down working table/Rotary device/

Gross weight

320kg

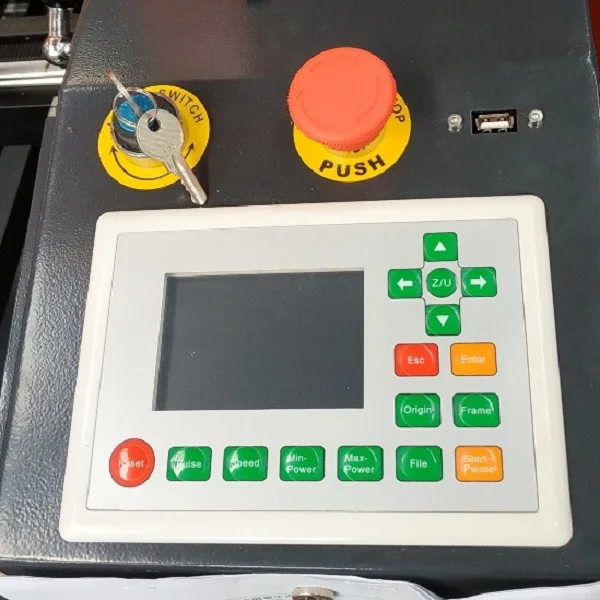

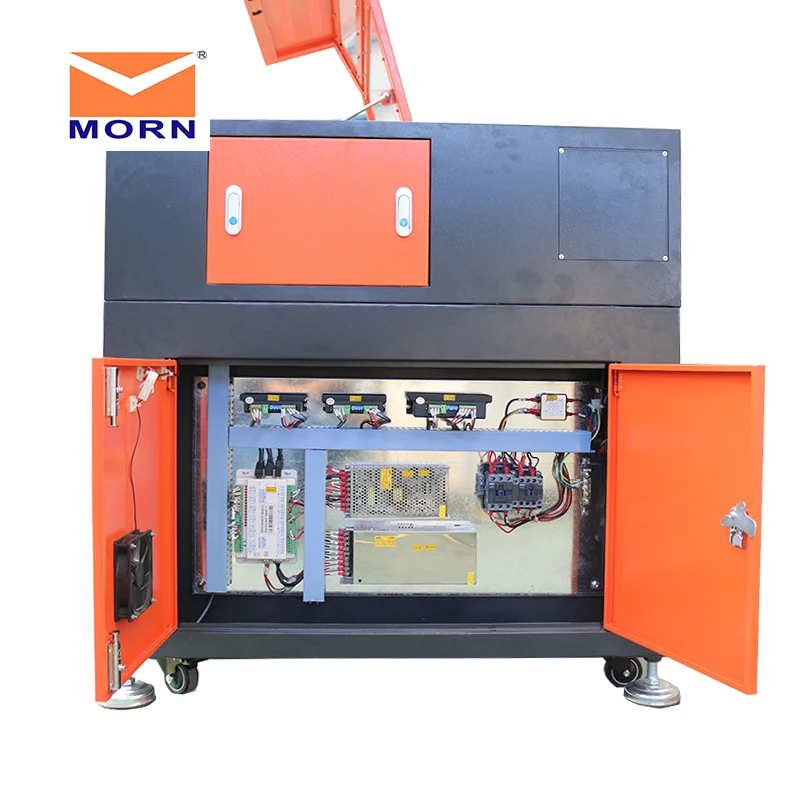

Control Panel: Schneider Electric Devices - International Famous Brands， Design is safer and less prone to damage

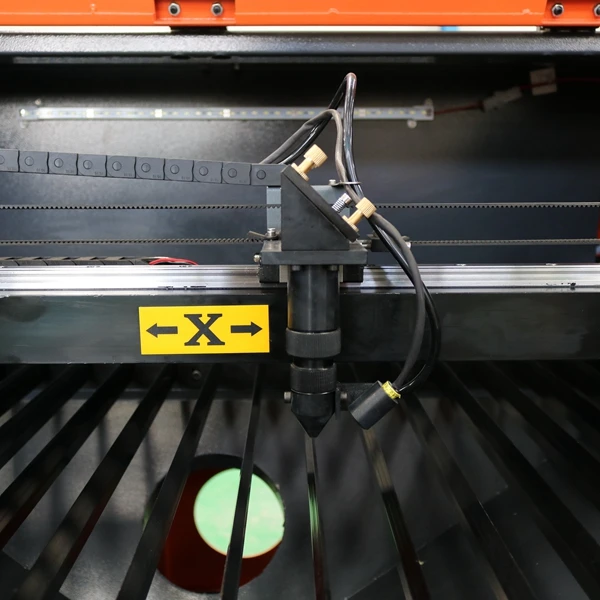

Laser Head: The laser head has a simple structure and low failure rate; fewer accessories and longer service life

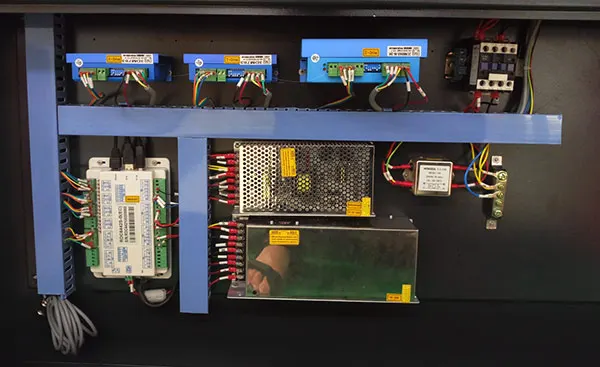

Control System: The wire is tested through multiple processes and standardized production.

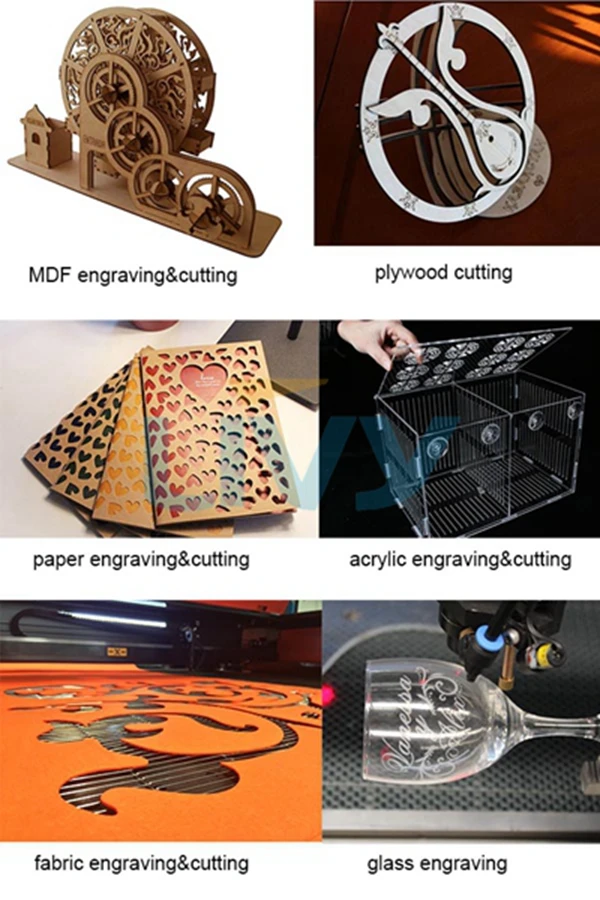

Applicable Material:

Non-metal materials such as fabrics, label, rubber, marble, granite, tiles, paper boards, leather,

embroidery, acrylic, glass, plastic, MDF, wooden plates and paper ware etc.

Applicable industry of the laser machine:

1.Advertising industry: large blister word cutting, organic glass engraving and cutting, engraving of double color board,scutcheon,crystal cup, authorize brand etc.

2.Leather and clothing industry: complex text and graphic engraving on leather, synthetic leather,leatheroid,cloth,fur and leather.Cutting of clothes,underware,home decoration,gloves,bags,shoes,hats,toys and other industries.

3.Art and Craft industry: engraving on marble, bone, bamboo craft, leather, shell, ivory and so on.

4.Model industry:cutting on architectural model, aviation and navigation model, and wooden toys.

5.Packing and printing industry: engraving and cutting of printing rubber plate, and cutting of sandwich plate and die board cutting.

6.Decoration industry: engraving and cutting on electric products and relevant materials.

7.The product labeling industry:Equipment nameplate,Anti-counterfeit marking ect.

1.If you choose seller shipping method, please email us your port name to double check if it can be reached and delivery time. Please reconfirm the shipment information: consignee/contact person, detailed address, telephone number.

For Russia, we can ship machine to your city by land transportation. Please contact us to confirm the shipping cost and customs tax.

2. When payment and shipping information are confirmed, shipping will be made within 7 working days.

3. It's FOB Qingdao trade term. The buyer should pay shipping cost, surcharge of port, including handling charges, custom clearance cost and import taxes. EXW and CIF terms are also acceptable. We ship goods by sea to your seaport (you need to find broker to help you clear customs).

4. On arriving at the destination port, the machine should be picked up soon. Or the buyer should pay the relevant demurrage charges.

5. If want other courier like DHL, TNT, UPS, FedEx or EMS, please also provide us with your city name and post code, so we can check the delivery detail and cost.

6. Please check all goods carefully and report to us within one week if there are any parts loss or machine problems (photo evidence needed). The machine is specially customized product with big size, so we do not accept return with pretty high return cost. But we are confident in our products quality. And lifetime tech support and free spare parts (Consumable parts not included) during warranty will be offered for each buyer.

7. If we are not on line, please leave us messages on Aliexpress about any questions on our product or your order, then we will reply you within 24 hours.

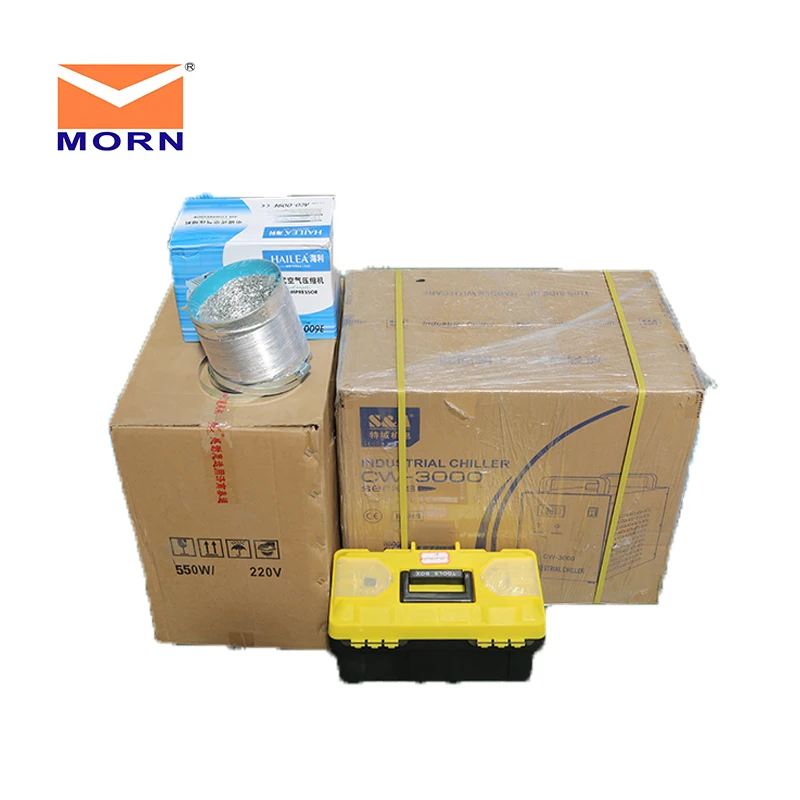

The package:

1. FDA,CE Certification, ISO9001 Quality Certification.

2. Smooth and Precise Engraving and Cutting.
3. Output from RDdraw directly,also supports CorelDraw and Auto CAD .
4. Optimization of mechanical and electrical design.
5. More friendly control panel with Color Screen.
6. English, French, German, Italian, Spanish and more languages updating.
7. Separation of cutting up to 256 Colors.
8. One key to install, more convenient.
9. Use virtual array list and additional off-cut graph to realize the off-cut function.
10.Machines with feeding devices can realize the cyclical model of working-feeding-working.
11.USB Interface, U-Flash Disk Supported,Machine will read files from memory stick,you can work even without a PC.
12.Air Assist, Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.
13.Adopt advanced DSP digital control system, international standard laser power supply,integrated framework style
14.1 years free warranty (except consumable spare parts) and life time free maintenance service.

Q. Can the machine engraving and cutting?
A. Yes, even on the same Job, you can do setting with different colour in the software and also can making holes.

Q. is the machine must work with computer?
  A. Must connect with computer with USB cable when you change the settings of machine. for the design files, you can transfer the file with USB memory stick to the machine, Or can download it to the machine directly with USB cable from computer.

Q. How long the laser tube is working well?
  A. It is about 6000+ hours. It’s lifetime depend on your materials operation, using frequency and maintenance.

Q. Do you avaliable spare parts?
  A. we can provide all of spare parts of any model we listing.

Q. I have heard the mirrors need cleaning?
  A. Yes they do but not after every job, once a week is normally enough

Q. How about the after sell service?
  A. Free tech support for the whole life of the machine, and 24 hours telephone support. WhatsApp or Skype, Wechat,  online when you need.
